2019 LEXUS UX200 Owners Manual

651-4. Theft deterrent system
1
For safety and security
■Alarm-operated door lock
In the following cases, depending on the sit-
uation, the door may automatically lock to
prevent improper entry into the vehicle:
●When a person remaining in the vehicle
unlocks the door and the alarm is acti-
vated.
●While the alarm is activated, a person
remaining in the vehicle unlocks the door.
●When recharging or replacing the bat-
tery.
NOTICE
■To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper opera-
tion of the system cannot be guaranteed.

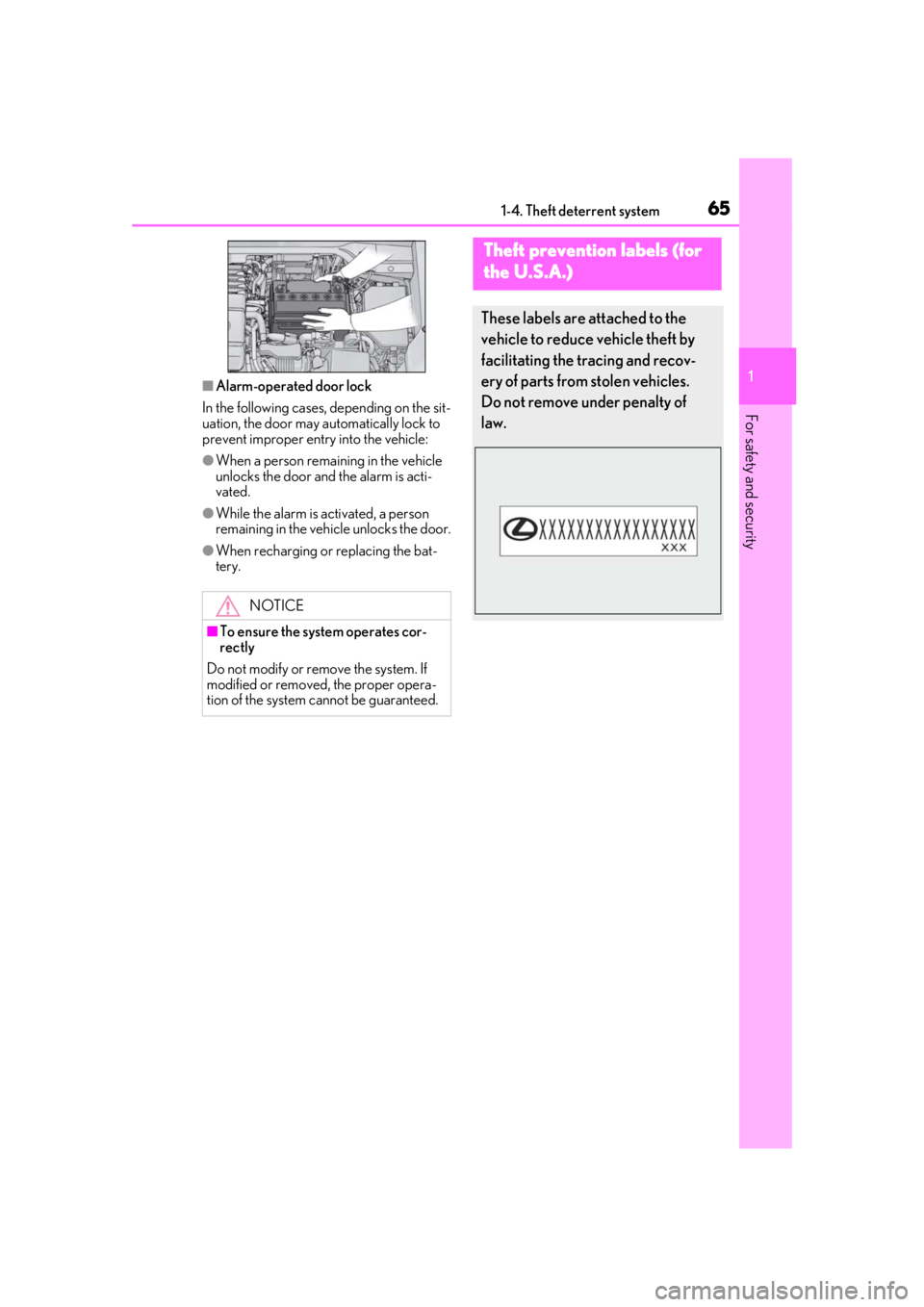

Theft prevention labels (for
t
he U.S.A.)
These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under penalty of
law.

661-4. Theft deterrent system

67
2
2
Vehicle status information and indicators
Vehicle status informationand indicators
2-1. Instrument cluster
Warning lights and indicators . 68
Gauges and meters (except F SPORT models) ......................... 72
Gauges and meters (F SPORT models) .......................................... 75
Multi-information display.......... 79
Head-up display ........................... 86
Fuel consumption information 90

682-1. Instrument cluster
2-1.Instrument cluster
For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.
Except F SPORT models
F SPORT models
The location of warning lights and indicat ors may differ depending on the main
meter position.
Warning lights and indicators
The warning lights and indicators on th e instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.
Warning lights and indicators displayed on the instrument cluster

692-1. Instrument cluster
2
Vehicle status information and indicators
Warning lights inform the driver of mal-
functions in the indicated vehicle’s sys-
tems.
*1: These lights come on when the engine
Warning lights
(U.S.A.)
Brake system warning light*1
(  P.358)
(red)
(Canada)
Brake system warning light*1
(  P.358)
Charging system warning
light
*2 (  P.358)
Low engine oil pressure warn-
ing light
*2 (  P.358)
(U.S.A.)
Malfunction indicator lamp*1
(  P.359)
(Canada)
Malfunction indicator lamp*1
(  P.359)
High coolant temperature
warning light
*2 (  P.359)
Tire pressure warning light
*1
(  P.359)
(yellow)
Brake system warning light*1
(  P.360)
SRS warning light
*1 (  P.360)
(U.S.A.)
ABS warning light*1 ( P.360)
(Canada)
ABS warning light*1 ( P.360)
(red)
Electric power st eering system
warning light
*1 (  P.360)
(yellow)
Electric power steering system
warning light
*1 ( P.360)
Slip indicator
*1 (  P.361)
(Flashes)
(U.S.A.)
Parking brake indicator
(  P.361)
(Flashes)
(Canada)
Parking brake indicator
(  P.361)
(Flashes)
Brake hold operated indicator*1
(  P.361)
(Flashes)
Intuitive parking assist OFF indi-
cator (if equipped) ( P.361)
(Flashes)
RCTA OFF indicator (if
equipped) ( P.362)
PKSB OFF indicator
*1 (if
equipped) ( P.362)
Low fuel level warning light
(  P.362)
Driver’s and front passenger’s
seat belt re minder light
(  P.362)
Rear passengers’ seat belt
reminder lights
*2 (  P.363)
Brake Override System warn-
ing light/Drive-Start Control
warning light/PKSB warning
light
*2 (  P.363)
(orange)
LTA indicator*2 ( P.364)
(Flashes or
illuminates)PCS warning light*1 (  P.364)

702-1. Instrument cluster
switch is turned to ON to indicate that a
system check is being performed. They
will go off after the engine is on, or after
a few seconds. There may be a malfunc-
tion in a system if the lights do not come
on, or go off. Have the vehicle inspected
by your Lexus dealer.
*2: This light illuminates on the multi-infor- mation display.
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
WARNING
■If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS warning light not come on
when you start the engine, this could
mean that these systems are not available
to help protect you in an accident, which
could result in death or serious injury.
Have the vehicle inspected by your
Lexus dealer immediately if this occurs.
Indicators
Turn signal indicator ( P.159)
(U.S.A.)
Headlight indicator ( P.165)
(Canada)
Tail light indicator ( P.165)
Headlight high beam indicator
(  P.166)
Automatic High Beam indica-
tor
*1 (  P.168)
Front fog light indicator (if
equipped) ( P.172)
PCS warning light
*1, 2 (  P.186)
Cruise control indicator*3
(  P.202)
Dynamic radar cruise control
indicator
*3 (  P.202)
Cruise control “SET” indica-
tor
*3 (  P.202)
(white)
LTA indicator*3 ( P.198)
(green)
LTA indicator*3 ( P.198)
(orange)
LTA indicator*3, 4 ( P.198)
BSM outside rear view mirror
indicators
*1, 5 (if equipped)
(  P.244)
BSM indicator (if equipped)
(  P.244)
Intuitive parking assist OFF indi-
cator
*2 (if equipped) ( P.221)
RCTA OFF indicator
*2 (if
equipped) ( P.227)
PKSB OFF indicator
*1, 2 (if
equipped) ( P.232)
Slip indicator
*1, 4 (  P.245)
VSC OFF indicator
*1, 2
(  P.245)
Smart access system with push-
button start indicator
*3
(  P.152)
(U.S.A.)
Parking brake indicator
( P.160)
(Canada)
Parking brake indicator
( P.160)
Brake hold standby indicator
*1
(  P.163)

712-1. Instrument cluster
2
Vehicle status information and indicators
Drive mode indicators
Except F SPORT models
F SPORT models
*1: These lights come on when the engine
switch is turned to ON to indicate that a
system check is being performed. They
will go off after the en gine is on, or after
a few seconds. There may be a malfunc-
tion in a system if the lights do not come
on, or go off. Have the vehicle inspected
by your Lexus dealer.
*2: This light comes on when the system is turned off.
*3: This light illuminates on the multi-infor-
mation display.
*4: This light flashes to indicate that the sys- tem is operating.
*5: This light illuminates on the outside rear view mirrors.
*6: Except F SPORT models: This light illu- minates on the multi-information dis-
play.
*7: When the outside temperature is approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.
*8: This light illuminates on the center panel.
Brake hold operated indicator
*1
(  P.163)
Eco Driving Indicator Light
*1, 6
(  P.82)
Low outside temperature indi-
cator
*3, 7 (  P.72, 75)
Security indicator
*8 (  P.62,
64)
(U.S.A.)
“AIR BAG ON/OFF” indica-
tor
*8 (  P.39)
(Canada)
“AIR BAG ON/OFF” indica-
tor
*8 ( P.39)
Eco drive mode indicator
(  P.243)
Sport mode indicator
(  P.243)
Eco drive mode indicator
(  P.243)
Sport mode indicator
(  P.243)

722-1. Instrument cluster
■Locations of gauges and meters
The units of measure may differ depending on the intended destination of the vehicle.
Multi-information display
Presents the driver with a variety of vehicle data ( P.79)
Displays warning messages if a malfunction occurs (P.367)
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on wh en the ambient temperature is 37°F (3°C)
or lower
Speedometer
Tachometer
Displays the engine speed in revolutions per minute
When Sport mode is se lected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.
Clock
Time displayed is linked to the analog clock on the center panel. (P.285)
Engine coolant temperature gauge
Displays the engine coolant temperature
Fuel gauge
Displays the quantity of fuel remaining in the tank
Gauges and meters (except F SPORT models)
Meter display
A
B
C
D
E
F
G
