2019 LEXUS UX200 windshield

3096-1. Maintenance and care
6
Maintenance and care
Remove dirt and dust using a vac-
uum cleaner. Wipe dirty surfaces
with a cloth dampened with luke-
warm water.
 If dirt cannot be removed, wipe it off
with a soft cloth dampened with
neutral detergent diluted to approx-
imately 1%.
Wring out any excess water from
the cloth and thoroughly wipe off
remaining traces of detergent and
water.
■Shampooing the carpets
There are several commercial foaming-type
cleaners available. Use a sponge or brush
to apply the foam. Rub in overlapping cir-
cles. Do not use water. Wipe dirty surfaces
and let them dry. Excellent results are
obtained by keeping the carpet as dry as
possible.
■Handling the seat belts
Clean with mild soap and lukewarm water
using a cloth or spon ge. Also check the
belts periodically for excessive wear, fraying
or cuts.
■Front side windows with UV protective
coating (vehicles with UV protective
coating)
The front side windows have UV protective
coating. To prevent any damage to the UV
protective coating, observe the following:
●If the windows are dirty, gently wipe them with a cloth soaked in water or lukewarm
water as soon as possible.
●If the windows are very dirty, do not open
and close them repeatedly.
Cleaning and protecting the
v
ehicle interior
Perform cleaning in a manner
appropriate to each component
and its material.
Protecting the vehicle interior
WARNING
■Water in the vehicle
●Do not splash or spill liquid in the vehi-
cle.
Doing so may cause electrical compo-
nents, etc. to malfunction or catch fire.
●Do not get any of the SRS components
or wiring in the vehicle interior wet.
(  P.30)
An electrical malfunction may cause
the airbags to deploy or not function
properly, resulting in death or serious
injury.
●Vehicles with wireless charger: Do not
let the wireless charger ( P.287) get
wet. Failure to do so may cause the
charger to become hot and cause
burns or could cause electric shock
resulting in death or serious injury.
■Cleaning the interior (especially
instrument panel)
Do not use polish wax or polish cleaner.
The instrument panel may reflect off the
windshield, obstructing the driver’s view
and leading to an accident, resulting in
death or serious injury.
NOTICE
■Cleaning detergents
●Do not use the following types of
detergent, as they may discolor the
vehicle interior or cause streaks or
damage to painted surfaces:
• Non-seat portions: Organic sub- stances such as benzene or gasoline,
alkaline or acidic solutions, dye, and
bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alcohol

3156-2. Maintenance
6
Maintenance and care
Seats• Do the seat controls operate properly?
Steering wheel
• Does the steering wheel rotate
smoothly?
• Does the steering wheel have the cor-
rect amount of free
play?
•There should not be any strange sounds
coming from the
steering wheel.
Vehicle exterior
ItemsCheck points
Doors• Do the doors operate smoothly?
Engine hood
• Does the engine hood lock system work
properly?
Fluid leaks
•There should not be any signs of fluid leak-
age after the vehicle
has been parked.
ItemsCheck points
Tires
• Is the tire inflation pressure correct?
• The tires should not be damaged or exces-
sively worn.
• Have the tires been rotated according to
the maintenance
schedule?
• The wheel nuts should not be loose.
Windshield wip-
ers/
rear window
wiper
• The wiper blades should not show any
signs of cracking,
splitting, wear, con-
tamination or defor-
mation.
• The wiper blades should clear the wind-
shield/rear window
without streaking or
skipping.
ItemsCheck points

3276-3. Do-it-yourself maintenance
6
Maintenance and care
If none of the washer does not work or
the “Windshield Washer Fluid Low”
appears on the multi-information dis-
play, the washer tank may be empty.
Add washer fluid.
WARNING
●If electrolyte gets on your skin
Wash the affected area thoroughly. If
you feel pain or burning, get medical
attention immediately.
●If electrolyte gets on your clothes
It can soak through clothing on to your
skin. Immediately take off the clothing
and follow the procedure above if nec-
essary.
●If you accidentally swallow electrolyte
Drink a large quantity of water or milk.
Get emergency medical attention
immediately.
■When there is insufficient battery
fluid
Do not use if there is insufficient fluid in
the battery. There is a possible danger
that the battery may explode.
NOTICE
■When recharging the battery
Never recharge the battery while the
engine is running. Also, be sure all acces-
sories are turned off.
■When adding distilled water
Avoid overfilling. Water spilled during
battery recharging may cause corrosion.
Adding the washer fluid
WARNING
■When adding washer fluid
Do not add washer fluid when the engine
is hot or operating as washer fluid con-
tains alcohol and may catch fire if spilled
on the engine, etc.
NOTICE
■Do not use any fluid other than
washer fluid
Do not use soapy water or engine anti-
freeze instead of washer fluid.
Doing so may cause streaking on the
vehicle’s painted surfaces, as well as
damaging the pump leading to problems
of the washer fluid not spraying.
■Diluting washer fluid
Dilute washer fluid with water as neces-
sary.
Refer to the freezing temperatures listed
on the label of the washer fluid bottle.

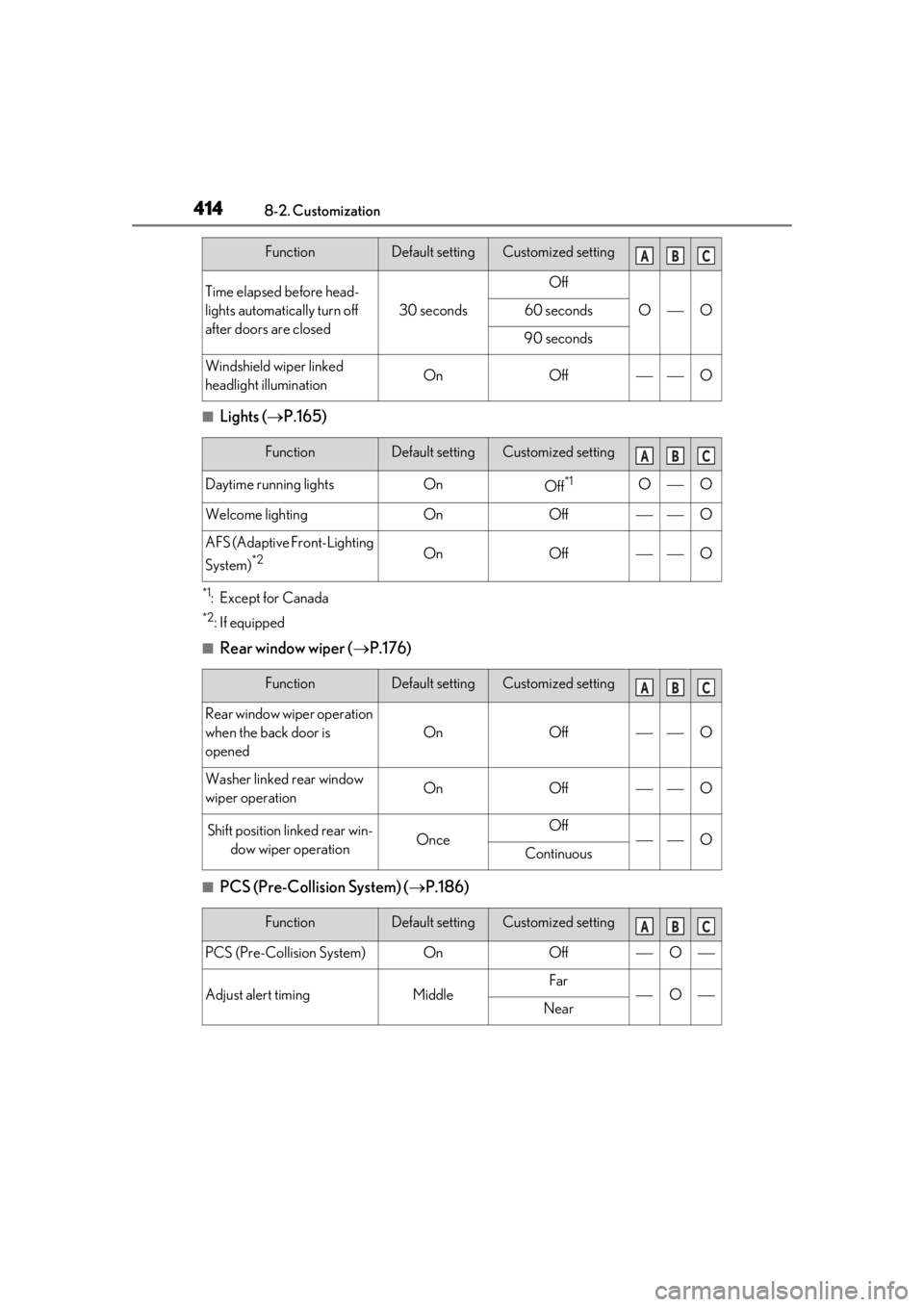

4148-2. Customization
■Lights (P.165)
*1:Except for Canada
*2: If equipped
■Rear window wiper ( P.176)
■PCS (Pre-Collision System) ( P.186)
Time elapsed before head-
lights automatically turn off
after doors are closed
30 seconds
Off
OO60 seconds
90 seconds
Windshield wiper linked
headlight illuminationOnOffO
FunctionDefault settingCustomized setting
Daytime running lightsOnOff*1OO
Welcome lightingOnOffO
AFS (Adaptive Front-Lighting
System)
*2OnOffO
FunctionDefault settingCustomized setting
Rear window wiper operation
when the back door is
opened
OnOffO
Washer linked rear window
wiper operationOnOffO
Shift position linked rear win-
dow wiper operationOnceOffOContinuous
FunctionDefault settingCustomized setting
PCS (Pre-Collision System)OnOffO
Adjust alert timingMiddleFarONear
FunctionDefault settingCustomized settingABC
ABC
ABC
ABC

438Alphabetical Index
C
Card key ............................................................ 94
CareAluminum wheels ......................................306
Exterior ...........................................................306
Interior .............................................................309
Seat belts........................................................309
Cargo capacity............................................... 147
Cargo hooks .................................................280
Center Display ............................................. 256
Chains ................................................................251
Child-protectors............................................. 101
Child restraint system................................... 44 Fixed with a LATCH system .................. 52
Fixed with a seat belt................................... 48
Front passenger occupant classification system ............................................................. 39
Points to remember .................................... 44
Riding with children ..................................... 44
Types of child restraint system installation method ........................................................... 46
Using an anchor bracket .......................... 54
Child safety ....................................................... 44 Airbag precautions...................................... 35
Back door precautions.............................102
Battery precautions ..................... 326, 385
Child restraint system................................. 44
Heated steering wheel and seat heater precautions.................................................. 271
How your child should wear the seat belt .............................................................................27
Moon roof precautions ............................139
Power window lock switch.....................136
Power window precautions ...................136
Rear door child-protectors ..................... 101
Removed key battery precautions ... 342
Seat belt extender precautions ..............27
Seat belt precautions .................................. 52
Cleaning.............................................. 306, 309 Aluminum wheels ......................................306
Exterior ...........................................................306 Interior ............................................................ 309
Radar sensor ...................................... 180, 215
Seat belts ....................................................... 309
Clock ................................................72, 75, 285
Coat hooks..................................................... 294
Compass .......................................................... 301
Condenser ..................................................... 324
Console box .................................................. 278
Consumption screen .................................... 90
Continuously variable transmission...... 155
Coolant Capacity .........................................................393
Checking ....................................................... 323
Preparing and checking before winter.......................................................................... 249
Cooling system............................................. 323 Engine overheating.................................. 386
Cornering lights ............................................. 167 Replacing light bulbs ................................346
Cruise control Dynamic radar cruise control with full-
speed range ..............................................204
Cup holders ................................................... 278
Current fuel consumption ............................81
Curtain shield airbags .................................. 30
Customizable features ..............................408
D
Daytime running light system ...................165
Deck board ......................................................281
Deck under tray ...........................................280
Defogger Outside rear view mirrors.....................263
Rear window ................................................263
Windshield ....................................................263
Dimension ...................................................... 390
Dinghy towing.................................................. 151
Display BSM (Blind Spot Monitor)......................214
Dynamic radar cruise control with full-
speed range ..............................................204
Head-up display............................................86

Alphabetical Index445
Seat heaters ...................................................272
Seat position memory ............................... 123
Seat ventilators.............................................272
Seat ventilators ............................................... 271
Secondary Collision Brake ..................... 245
Sensor Automatic headlight system.................. 165
Automatic High Beam system............. 168
Inside rear view mirror............................... 131
Intuitive parking assist.............................. 220
LTA (Lane Tracing Assist)......................193
Parking Support Brake function (rear-crossing vehicles) .................................. 240
Parking Support Brake function (static objects)........................................................ 236
Radar sensor.......................................180, 215
Rain-sensing windshield wipers........... 174
RCTA .............................................................. 228
Service reminder message .......................312
Shift lever Continuously variable transmission .. 155
Shift lock system.............................................156
Side airbags ...................................................... 30
Side doors.......................................................... 98
Side marker lights Light switch .................................................... 165
Side mirrors .....................................................132 Adjustment...................................................... 132
BSM (Blind Spot Monitor) ..................... 214
Folding ..............................................................133
Linked mirror functi on when reversing
...........................................................................133
Mirror position memory........................... 123
RCTA function .............................................227
Side turn signal lights Replacing light bulbs................................ 346
Turn signal lever .......................................... 159
Side windows ..................................................135
Smart access system with push-button start.................................................................... 114Antenna location............................................114
Entry functions..................................... 98, 103 Starting the engine ..................................... 152
Snow tires ....................................................... 249
Spare tire Inflation pressure ....................................... 395
Storage location ...........................................371
Spark plug ...................................................... 393
Specifications ................................................ 390
Speedometer ............................................72, 75
Sport mode .................................................... 243
Steering lock Column lock release ................................. 152
Steering lock system warning message........................................................................... 152
Steering wheel Adjustment ......................................................129
Heated steering wheel .............................. 271
Meter control switches ............................... 81
Power easy access system .....................123
Steering wheel position memory.........123
Stop lights Replacing light bulbs ................................346
Storage feature .............................................277
Stuck If the vehicle becomes stuck ............... 388
Suggestion function....................................... 85
Sunshade.......................................................... 138
Sun visors ........................................................ 285
Switches “ODO TRIP” switch ........................... 74, 78
“SOS” button...................................................56
ASC (Active Sound Control) switch 164
Automatic High Beam system ............. 168
Brake hold switch ....................................... 163
BSM (Blind Spot Monitor) switch.......216
Door lock switches ....................................100
Driving mode select switch .................. 243
Driving position memory switches .....123
Dynamic radar cruise control with full-
speed range switch .............................. 205
Emergency flashers switch .................. 350
Engine switch ................................................ 152
Fog light switch .............................................. 171

446Alphabetical Index
Garage door opener switches .......... 295
Head-up display switch............................. 87
Heated steering wheel.............................. 271
Ignition switch................................................152
Instrument panel light control switches....................................................................74, 78
Intuitive parking assist switch................. 221
Light switch .................................................... 165
LTA (Lane-Tracing Assist) switch ..... 198
Meter control switches ................................81
Moon roof switches ................................... 137
Outside rear view mi rror switches ..... 132
Paddle shift switches ....................... 157, 158
Parking brake switch ................................ 160
PCS OFF switch ......................................... 188
PKSB (Parking Support Brake) switch ......................................................................... 232
Power back door opener and closer switch............................................................. 105
Power door lock switch .......................... 100
Power window switch ...............................135
RCTA switch.................................................227
Rear window and outside rear view mir- ror defoggers switch ............................ 263
Rear window wiper and washer switch ........................................................................... 176
Seat heater switches .................................272
Seat ventilator switches ...........................272
Tire pressure warning reset switch .. 333
Vehicle-to-vehicle distance switch ..205
VSC off switch ............................................ 245
Window lock switch ..................................136
Windshield wiper de-icer switch ...... 266
Windshield wipers and washer switch ........................................................................... 172
T
Tachometer................................................72, 75 Rev indicator .................................................... 77
Rev peak ............................................................ 77
Tail lights Light switch .................................................... 165 Replacing light bulbs ................................346
Theft deterrent system Alarm................................................................... 64
Engine immobilizer system...................... 62
Tire inflation pressure Maintenance data ..................................... 395
Tire inflation pressure display function......................................................................... 330
Warning light .............................................. 359
Tire information ............................................ 399 Glossary ........................................................ 403
Size ..................................................................... 401
Tire identification number....................... 401
Uniform Tire Quality Grading ............402
Tire pressure warning system Function ......................................................... 330
Initializing........................................................333
Installing tire pres sure warning valves
and transmitters....................................... 332
Registering ID codes ...............................335
Warning light .............................................. 359
Tires................................................................... 328 Chains .............................................................. 251
Checking .......................................................328
If you have a flat tire ...................... 370, 377
Inflation pressure ........................... 337, 395
Replacing .......................................................370
Rotating tires ............................................... 330
Run-flat tires......................................330, 377
Size ................................................................... 395
Snow tires ...................................................... 249
Spare tire ........................................................370
Tire pressure warning system ............ 330
Warning light .............................................. 359
Tools........................................................ 280, 371
Top tether strap............................................... 54
Total load capacity ...................................... 390
Towing Dinghy towing ................................................ 151
Emergency towing....................................353
Towing eyelet.............................................. 280
Trailer towing ................................................ 150

448Alphabetical Index
WeightsCargo capacity............................................. 147
Load limits ...................................................... 150
Weights ..........................................................390
Wheels ............................................................. 339 Size....................................................................395
Window glasses .............................................135
Window lock switch .....................................136
Windows Power windows............................................135
Rear window defogger .......................... 263
Washer ................................................... 172, 176
Windshield wiper de-ice r .........................267
Windshield wipers Intermittent windshield wipers .............. 172
Position ............................................................. 174
Rain-sensing windshield wipers........... 172
Winter driving tips....................................... 249
Wireless remote control key ..................... 96 Battery-saving function ............................. 115
Locking/Unlocking ..................................... 96
Panic mode...................................................... 96
Replacing the battery.................................341
For information regarding the equipment listed below, refer to
the “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S
MANUAL”.
· Audio/video system
· Navigation system
· Lexus parking assist monitor
· Lexus Enform
