2019 LEXUS RX350L Owners Manual

7209-1. Specifications
RX350/RX350L_U
Pneumatic tire
A mechanical device made of rubber, chemicals, fabric
and steel or other materials, that, when mounted on an
automotive wheel, provides the traction and contains
the gas or fluid that sustains the load
Radial ply tireA pneumatic tire in which the ply cords that extend to
the beads are laid at substa ntially 90 degrees to the
centerline of the tread
Reinforced tire A tire designed to operate at higher loads and at higher
inflation pressures than the corresponding standard tire
Section widthThe linear distance between the exteriors of the side-
walls of an inflated tire, excluding elevations due to
labeling, decoration, or protective bands
SidewallThat portion of a tire between the tread and bead
Sidewall separationThe parting of the rubber compound from the cord
material in the sidewall
Snow tire
A tire that attains a traction index equal to or greater
than 110, compared to the ASTM E-1136 Standard Ref-
erence Test Tire, when using the snow traction test as
described in ASTM F-1805-00, Standard Test Method
for Single Wheel Driving Traction in a Straight Line on
Snow-and Ice-Covered Surfaces, and which is marked
with an Alpine Symbol (
) on at least one sidewall
Test rimThe rim on which a tire is fitted for testing, and may be
any rim listed as appropriate for use with that tire
TreadThat portion of a tire that comes into contact with the
road
Tread ribA tread section running circ umferentially around a tire
Tire related termMeaning

7219-1. Specifications
9
Vehicle specifications
RX350/RX350L_U
*:Table 1  Occupant loading and distribution for vehicle normal load for various des-
ignated seating capacities
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators (TWI)The projections within the principal grooves designed
to give a visual indication of the degrees of wear of the
tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire assembly
securely during testing
Tire related termMeaning
Designated seating capac-
ity, Number of occupantsVehicle normal load, Num- ber of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 1552 in front, 1 in second seat, 1 in third seat, 1 in fourth seat
16 through 2072 in front, 2 in second seat, 2 in third seat, 1 in fourth
seat

722
RX350/RX350L_U9-2. Customization
When customizing vehicle features, ensure
that the vehicle is parked in a safe
place with the shift lever in P and the parking brake set.
■Changing on the audio system screen
Vehicles with a navigation system
Press the “MENU” button on the Remote Touch.
Select on the “Menu” screen and select .
Various setting can be changed. Refer to the list of settings that can be
changed for details.
Vehicles with a Lexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “Menu” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing using the multi-information display
 P. 97
Customizable features
Your vehicle includes a variety of elec tronic features that can be personalized
to suit your preferences. The settings of these features can be changed using
the multi-information display, on the audio system screen, or at your Lexus
dealer.
Customizing vehicle features
1
2
1
2

7239-2. Customization
9
Vehicle specifications
RX350/RX350L_U
Some function settings are changed simultaneously with other functions being
customized. Contact your Lexus dealer for further details.
Settings that can be changed on the audio system screen
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, – =Not available
■Gauges, meters and multi-information display ( P. 86, 90)
*1: The default setting varies according to countries.
*2:Except F SPORT models
Customizable Features
1
2
FunctionDefault settingCustomized setting
Language EnglishFrench
O—
Spanish
Units*1miles (MPG US)
miles
(MPG Imperial)
O—km (L/100 km)
km (km/L)
Color*2Color 1Color 2O—
Suggestion functionOnOff—O
12

7249-2. Customization
RX350/RX350L_U

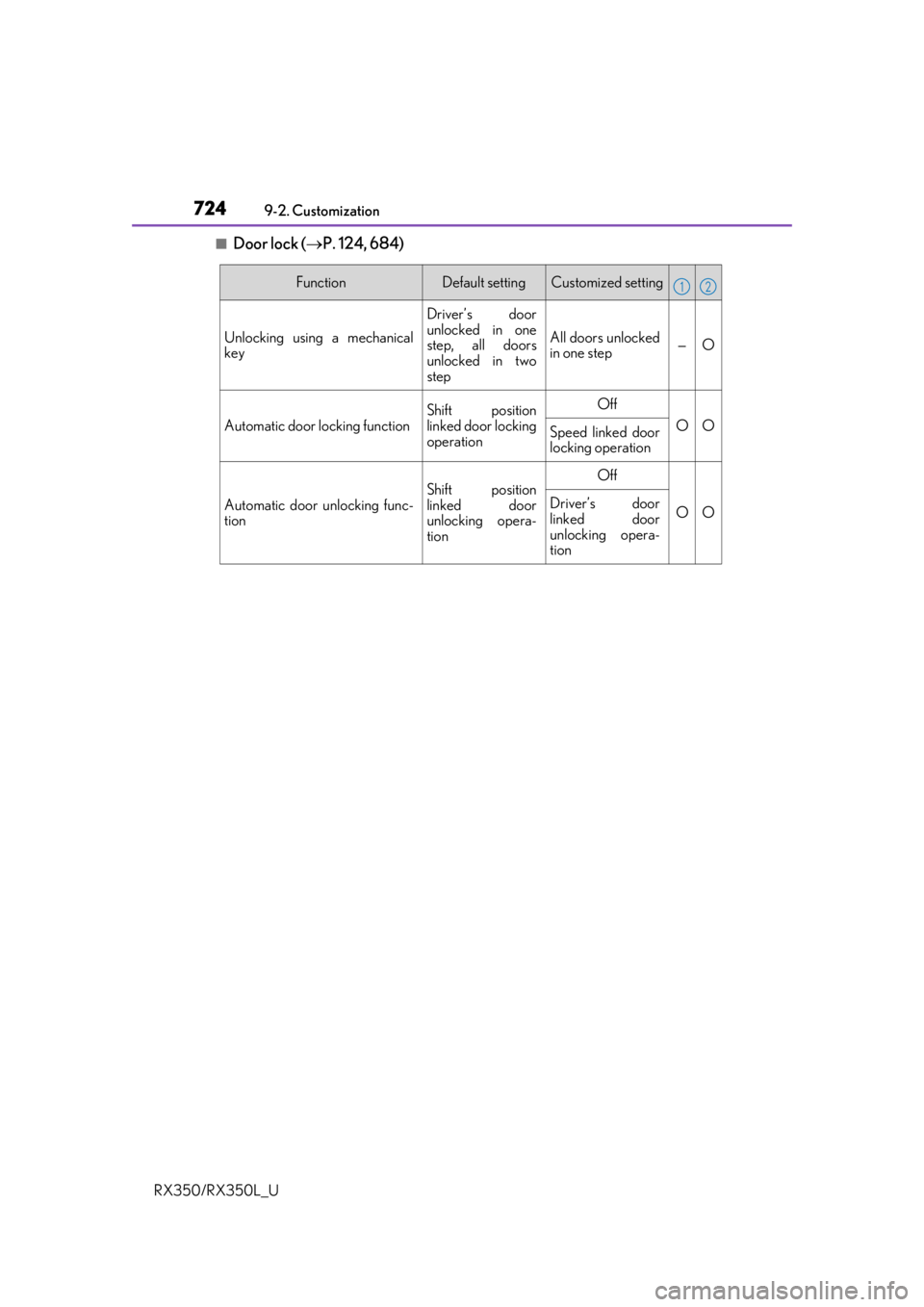

■Door lock ( P. 124, 684)
FunctionDefault settingCustomized setting
Unlocking using a mechanical
key
Driver’s door
unlocked in one
step, all doors
unlocked in two
step
All doors unlocked
in one step—O
Automatic door locking function
Shift position
linked door locking
operationOff
OOSpeed linked door
locking operation
Automatic door unlocking func-
tion
Shift position
linked door
unlocking opera-
tionOff
OODriver’s door
linked door
unlocking opera-
tion
12

7259-2. Customization
9
Vehicle specifications
RX350/RX350L_U
■Power back door (P. 130)
*: If equipped
FunctionDefault settingCustomized setting
Power back door switch opera-
tionPress for 1 secondOne short press—O
Automatic closing of the back
door when loweredOnOff—O
Automatic opening of the back
door using the back door opener
switch
OnOff—O
Power back door opening posi-
tion51 to 5OO
Buzzer volumeLevel 3Level 1—OLevel 2
Power back door/touchless sen-
sor
*On
Power back door:
On
Touchless sensor:
Off
—O
Off
Power back door open/close
buzzer
When the back
door begins to
operate: On
While the back
door is operating:
Off
Off
—O
When the back
door begins to
operate: Off
While the back
door is operating:
On
On
Touchless sensor* sensitivityLevel 2 (standard)Level 1 (lowest) to
level 3 (highest)—O
12

7269-2. Customization
RX350/RX350L_U
■Smart access system with push-button start and wireless remote control
(  P. 124, 146)
■Smart access system with push-button start ( P. 124, 146)
FunctionDefault settingCustomized setting
Operation buzzer volume5OffOO1 to 7
Operation signal
(Emergency flashers)OnOffOO
Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked
60 seconds
Off
—O30 seconds
120 seconds
Open door warning buzzerOffOn—O
Reservation lockOnOff—O
12
FunctionDefault settingCustomized setting
Smart access system with push-
button start On Off — O
The doors that are unlocked
using the smart access system
with push-button start can be
selected Driver’s door All the doors O O
Number of consecutive door
lock operations 2 times As many as desired — O
12

7279-2. Customization
9
Vehicle specifications
RX350/RX350L_U
■Wireless remote control (P. 120, 124, 130)
*1: This setting enables opening of the power back door when it is locked or unlocked.
*2: This function is available only when a customized setting that enables opening of the
power back door when it is either locked or unlocked is selected. (See
*1 above.)
FunctionDefault settingCustomized setting
Wireless remote control OnOff — O
Unlocking operation Driver’s door
unlocked in one
step, all doors
unlocked in two
stepAll doors unlocked
in one step
OO
Panic function OnOff — O
Opening/closing of the power
back door using the
switch of the wireless remote
control Open: Press for 1
second
*1
Close: Press for 1
secondOff
—O
Open: Press for 1
second with the
back door
unlocked
Close: Press for 1
second
Open: One short
press with the back
door unlocked
Close: One short
press
Open: Press twice
with the back door
unlocked
Close: Press twice
Open: Press
twice
*1
Close: Press twice
Door unlocked when the power
back door is opened using the switch of the wireless
remote control
*2
All the doors Back door — O
12
