Page 230 of 632
230
LX570_OM_OM60R07U_(U) 4-3. Operating the lights and wipers
Automatic High Beam The Automatic High Beam uses an in-vehicle camera sensor to assess the
brightness of streetlights, the lights of vehicles ahead etc., and automatically
turns the high beam on or off as necessary. WARNING ■
Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Al ways drive safely, taking care to observe
your surroundings and turning the high be am on or off manually if necessary.■
To prevent incorrect operation of the Automatic High Beam system
Do not overload the vehicle.
NOTICE ■
Notes when using the Auto matic High Beam system
Vehicles without PCS (Pre-Collision System):
Observe the following to ensure that the Automatic High Beam functions correctly.
●
Do not place items on the dashboard. There is a possibility that the camera sensor will
mistake items reflected in the windshield for streetlights, the headlights of other vehi-
cles, etc. ●
Do not install a parking tag or any other ac cessories near or around the inside rear
view mirror and the camera sensor. ●
Do not modify the vehicle. ●
Do not replace windshield wi th non-genuine windshield.
Contact your Lexus dealer. ●
Do not replace headlights wi th non-genuine headlights.
Contact your Lexus dealer.
Vehicles with PCS (Pre-Collision System): P. 251●
Do not touch the camera sensor. ●
Do not subject the inside rear view mirror or
the camera sensor to a strong impact. ●
Do not disassemble the camera sensor. ●
Do not spill liquid onto the inside rear view
mirror or the camera sensor. ●
Do not apply window tinting or stickers to the
camera sensor or the area of windshield near
the camera sensor.
Page 234 of 632
234
LX570_OM_OM60R07U_(U) 4-3. Operating the lights and wipers■
Temporary lowering sensor sensitivity
The sensitivity of the sensor can be temporarily lowered.
Vehicles without PCS (Pre-Collision System):
To lower the sensitivity, push and hold on the inside rear view mirror for 15 to 20 sec-
onds, and release. The in dicator light on the inside rear view mirror will flash to indicate
that the sensitivit y has been lowered.
When the engine switch is turned off, the se nsitivity will be returned to its normal level.
Vehicles with PCS (Pre-Collision System):
Turn the engine switch off while the following conditions are met.
• The headlight switch is in .
• The headlight switch lever is in low beam position.
Turn the engine switch to IGNITION ON mode.
Within 30 seconds after , repeat pushin g the headlight switch lever to the high
beam position then pulling it to the low be am position quickly 10 times, then leave
the lever in high beam position.
Automatic High Beam (head lights) may turn on even the vehicle is stopped. 1
2
3 2
Page 252 of 632
252
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems
WARNING ●
Do not change the installation position or direction of the camera sensor or remove it. ●
Do not disassemble the camera sensor. ●
Do not modify any components of the vehi cle around the camera sensor (inside rear
view mirror, et c.) or ceiling.●
Do not attach any accessories that may obst ruct the camera sensor to the hood, front
grille or front bumper. Contact your Lexus dealer for details.●
If a surfboard or other long object is to be mounted on the roof, ma ke sure that it will
not obstruct the camera sensor. ●
Do not modify the head lights or other lights.
Page 265 of 632
LX570_OM_OM60R07U_(U) 2654-5. Using the driving support systems
4
Driving • When driving on a hill
• If the radar sensor or ca mera sensor is misaligned●
In some situations such as the following, sufficient braking forc e may not be obtained,
preventing the system from performing properly:
• If the braking functions cannot operate to their full extent, such as when the brake
parts are extremely cold, extremely hot, or wet
• If the vehicle is not properly maintained (brakes or tires are excessively worn,
improper tire inflation pressure, etc.)
• When the vehicle is being driven on a gravel road or other slippery surface●
Some pedestrians such as the following may not be detected by the radar sensor and
camera sensor, preventing the system from operating properly:
• Pedestrians shorter than approximately 3.2 ft. (1 m) or taller than approximately
6.5 ft. (2 m)
• Pedestrians wearing oversized clothing (a ra in coat, long skirt, etc.), making their sil-
houette obscure
• Pedestrians who are carrying large baggage, holding an umbrella, etc., hiding part
of their body
• Pedestrians who are bending forward or squatting
• Pedestrians who are pushing a stroller , wheelchair, bicycle or other vehicle
• Groups of pedestrians which are close together
• Pedestrians who are wearing white and look extremely bright
• Pedestrians in the dark, such as at night or while in a tunnel
• Pedestrians whose clothing appears to be nearly the same color or brightness as
their surroundings
• Pedestrians near walls, fences , guardrails, or large objects
• Pedestrians who are on a metal object (manhole cover, steel plate, etc.) on the road
• Pedestrians who are walking fast
• Pedestrians who are changing speed abruptly
• Pedestrians running out from be hind a vehicle or a large object
• Pedestrians who are extremely close to the side of the vehicle (outside rear view
mirror, etc.)
Page 322 of 632
322
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems
Multi-terrain Monitor
The following screens can be select ed according to driving conditions.
• Screens that can be selected vary depend ing on conditions such as shift posi-
tion and vehicle speed. ( P. 328)
• Depending on the displayed screen, the display can be switched from normal
to wide view display.The Multi-terrain Monitor helps the driv er to check the vehicle surroundings.
It assists in determining the conditions around the driver in a variety of situa-
tions, such as when judging conditions during off-road driving or checking for
obstacles when parking. WARNING ■
When using the Multi-terrain Monitor system
Observe the following precautions to avoid an accident that could result in death or
serious injuries. ●
Never rely solely on the Multi-terrain Monitor. As with unequipped vehicles, drive
carefully while directly confirming the safety of your surroundings and the area to the
rear of the vehicle. Take particular care to avoid parked cars and other obstacles.●
Due to the characteristics of the camera lens, the actual position and distance of peo-
ple and other obstacles will differ from those shown on the Multi-terrain Monitor
screen. Directly confirm the safety of your surroundings before driving.●
Do not drive while only looking at the scre en. When driving, make sure to directly
confirm the safety of your surroundings, su ch as by visually checking the area and
using the vehicle’s mirrors. ●
In low temperatures, the screen may darken or the images may become faint.
Images of moving objects in particular may distort or disappear from the screen.
Therefore, make sure to drive carefully while directly visually confirming the safety of
your surroundings.
Multi-terrain Monitor screens

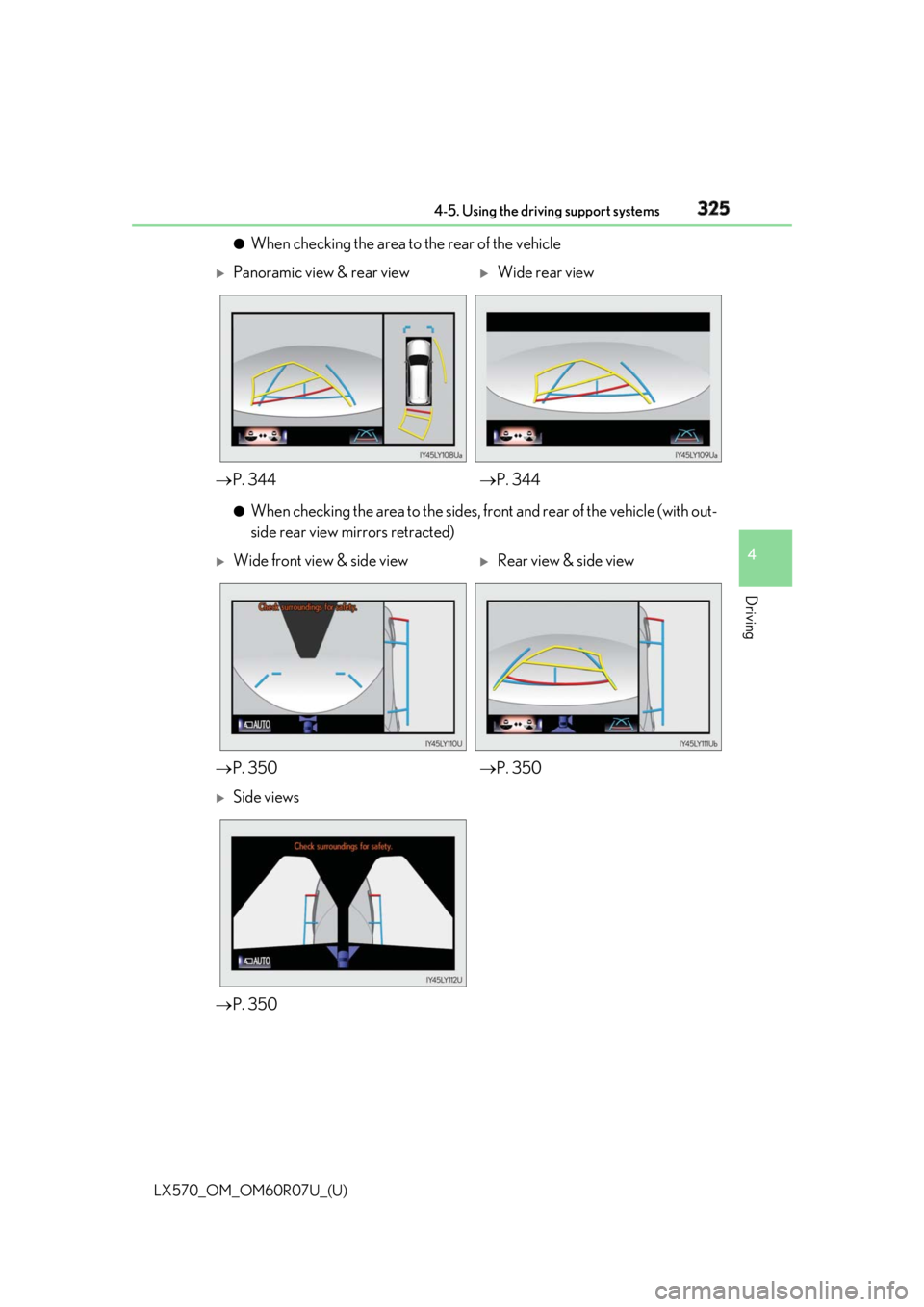

Page 325 of 632
LX570_OM_OM60R07U_(U) 3254-5. Using the driving support systems
4
Driving ●
When checking the area to the rear of the vehicle
●
When checking the area to the sides, front and rear of the vehicle (with out-
side rear view mirrors retracted)
Panoramic view & rear view
Wide rear view
P. 344 P. 344
Wide front view & side view
Rear view & side view
P. 350 P. 350
Side views
P. 350
Page 330 of 632
330
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems■
Screens when the four-wheel drive control switch is in H4
: Press
: Select
: Operate the shift lever
* 1
: The displayed screen differs when the outside rear view mirrors are retracted.
* 2
: The screen display can be switched by touching the image from the camera on the
screen. * 1
* 2
* 1
Navigation screen, information set-
tings screen, etc.
Side views: P. 341
Panoramic view & wide front view:
P. 339 Panoramic view & rear view:
P. 344
Wide rear view: P. 3441
2
3 4
5
Page 332 of 632
332
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems●
Screen description
Under vehicle terrain view selection
switch Switches between front view and under
vehicle terrain view display each time
the switch is selected.
Automatic display mode selection
switch P. 327
Tilt meter/slip display Displays the vehicle’s estimated degree
of incline or indicates a tire slippage.
( P. 333)
Vehicle width lines (blue) Indicate the width of the vehicle includ-
ing the outside rear view mirror.
1.5 ft. (0.5 m) distance guide line
(red)
3 ft. (1 m) distance guide line (blue) 6 ft. (2 m) distance guide line
(blue) Items to indicate the estimated
distance from the front end of the vehi-
cle.
Front tire course line (yellow) Indicates the estimated course of the
front tires according to steering wheel
position.
Forward movement guide line
(blue) Indicates the estimated tire course of
the tightest possible turn.
Front tire contact line (blue)
Rear tire contact line (blue) Items and indicate estimated tire
positions on the image.
Rear tire course line (yellow) Indicates the estimated course of the
rear tires.1
2
3
4
5
6 7 5 7
8
9
10
11 10 11
12
