812-1. Instrument cluster
LS500h_OM_(U)_1809
2
Vehicle status information and indicators
■Locations of gauges and meters
The units of measure may differ depending on the intended destination of the vehicle.
Engine coolant temperature gauge
Displays the engine coolant temperature
Odometer and trip meter display (P.83)
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Hybrid System Indicator
Displays hybrid system outp ut or regeneration level (P.82)
This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. ( P.94, 297)
Speedometer
Clock
Time displayed is linked to the analog clock on the center panel. (P.355)
Shift position indicator ( P.178)
Shift range/gear position ( P.176)
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of vehicle data ( P.90)
Gauges and meters (except F SPORT models)
Meter display
A
B
C
D
E
F
G
H
I
J

852-1. Instrument cluster
LS500h_OM_(U)_1809
2
Vehicle status information and indicators
■Locations of gauges and meters
When the main meter is moved to the righ t, some of the meter displays and the
gauge layout will change. ( P.89)
Main meter in center position
The units of measure may differ depending on the intended destination of the vehicle.
Odometer and trip meter display (P.88)
Engine coolant temperature gauge
Displays the engine coolant temperature
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Hybrid System Indicator
Displays hybrid system outp ut or regeneration level (P.87)
This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. ( P.94, 297)
• Rev indicator ( 
P.87)
•Rev peak ( 
P.87)
Shift position/shift range/gear position ( P.176)
Speedometer
Clock
Time displayed is linked to the analog clock on the center panel. (P.355)
Gauges and meters (F SPORT models)
Meter display
A
B
C
D
E
F
G

862-1. Instrument cluster
LS500h_OM_(U)_1809
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position indicator (P.178)
Multi-information display
Presents the driver with a variety of vehicle data ( P.90)
Displays warning messages if a malfunction occurs ( P.434)
Main meter moved to the right
The units of measure may differ depending on the intended destination of the vehicle.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Clock
Time displayed is linked to the analog clock on the center panel. (P.355)
Hybrid System Indicator
Displays hybrid system outp ut or regeneration level (P.82)
This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. ( P.94, 297)
• Rev indicator ( 
P.87)
•Rev peak ( 
P.87)
Shift position/shift range/gear position ( P.176)
Speedometer
Shift position indicator ( P.178)
Odometer and trip meter display ( P.88)
Fuel gauge
Displays the quantity of fuel remaining in the tank
H
I
J
A
B
C
D
E
F
G
H

942-1. Instrument cluster
LS500h_OM_(U)_1809
LTA (Lane Tracing Assist) ( P.233)
 Dynamic radar cruise control with
full-speed range ( P.245)
 RSA (Road Sign Assist) (if
equipped) ( P.255)
■Meter display settings that can be
changed
 Language
Select to change th e language displayed.
Units
Select to change the units of measure dis-
played.
 Speedometer display (except F
SPORT models)
Select to set the display of the speedome-
ter to digital/analog/both digital and ana-
log.
Drive information 1/Drive informa-
tion 2
Select to select up to 2 items ( P.92) that
will be displayed on ea ch Drive information
screen (Drive information 1 screen and
Drive information 2 sc reen) respectively.
Clock
Select to switch be tween 12-hour display
and 24-hour display.
 Pop-up display
Select to enable/disable pop-up displays
for each relevant system.
Accent color
Select to change the accent color on the
screen, such as the cursor color.
Tachometer setting
Select to set the display of the Hybrid Sys- tem Indicator or tachometer for each driv-
ing mode.

Rev indicator (F SPORT models)
• Select to enable/disable the rev indica-
tor.
• Select to set the engine speed at which the rev indicator (amber) will begin to be
displayed.
 Rev peak (F SPORT models)
Select to enable/disable the rev peak.
EV indicator
Select to enable/disable the EV indicator.
Default setting
Select to reset the meter display settings to
the default setting.
■Vehicle functions and settings that
can be changed
 P.479
■Suspension of the settings display
●Some settings cannot be changed while
driving. When changing settings, park
the vehicle in a safe place.
●If a warning message is displayed, opera-
tion of the settings display will be sus-
pended.
Settings display
WARNING
■Cautions during setting up the dis-
play
As the hybrid system needs to be operat-
ing during setting up the display, ensure
that the vehicle is parked in a place with
adequate ventilation. In a closed area
such as a garage, ex haust gases includ-
ing harmful carbon monoxide (CO) may
collect and enter the vehicle. This may
lead to death or a serious health hazard.

4818-2. Customization
LS500h_OM_(U)_1809
8

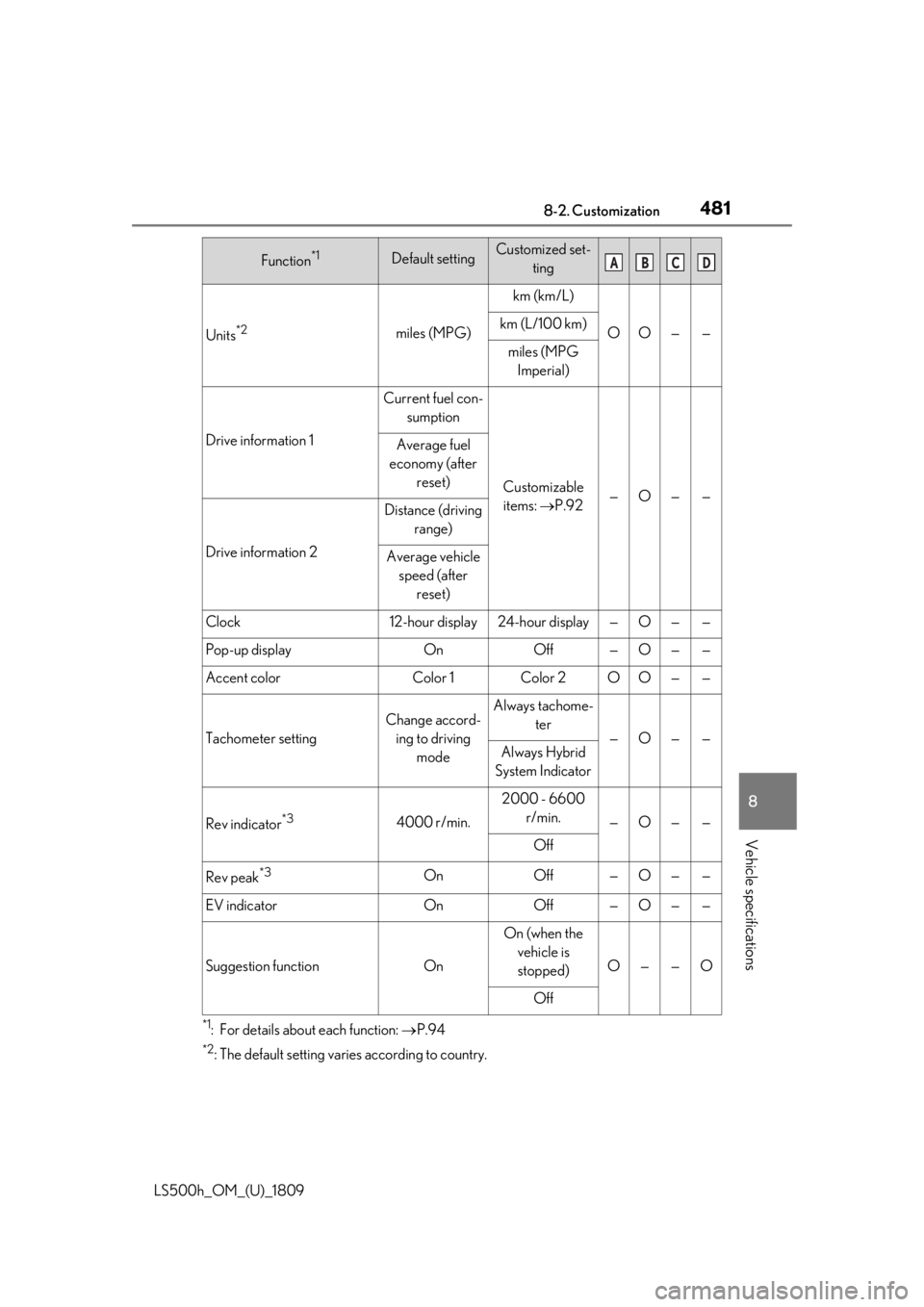

Vehicle specifications
*1: For details about each function: P.94
*2: The default setting varies according to country.
Units*2miles (MPG)
km (km/L)
OO——km (L/100 km)
miles (MPG
Imperial)
Drive information 1
Current fuel con- sumption
Customizable items: P.92—O——
Average fuel
economy (after reset)
Drive information 2
Distance (driving range)
Average vehicle speed (after reset)
Clock12-hour display24-hour display—O——
Pop-up displayOnOff—O——
Accent colorColor 1Color 2OO——
Tachometer setting
Change accord-ing to driving modeAlways tachome- ter
—O——Always Hybrid
System Indicator
Rev indicator*34000 r/min.
2000 - 6600 r/min.
—O——
Off
Rev peak*3OnOff—O——
EV indicatorOnOff—O——
Suggestion functionOn
On (when the vehicle is stopped)
O——O
Off
Function*1Default settingCustomized set- tingABCD

4938-2. Customization
LS500h_OM_(U)_1809
8
Vehicle specifications
gency flashers) function settings.
●Some settings can be changed using a
switch or the audio system screen. If a
setting is changed using a switch, the
changed setting will not be reflected on
the audio system screen until the power
switch is turned of f and then to ON
mode.
■Clock settings screen
If the clock adjustment screen is displayed
continuously when attempting to change
the clock settings, the system may be mal-
functioning. Have the vehicle inspected by
your Lexus dealer.
