2019 Lexus LC500h lexus LC500h 2019 Owner's Manual / LEXUS 2019 LC 500,LC 500H OWNER'S MANUAL QUICK GUIDE (OM11489U)

97
LC500_LC500h_QG_OM11489U_(U)
■Enabling 2-way communication with a garage door (only available for compat-
ible devices)
When enabled, 2-way communication allows you to check the status of the opening and
closing of a garage door through indicators in your vehicle.
2-way communication is only av ailable if the garage door opener motor used is a compati-
ble device. (To check device compat ibility, refer to www.homelink.com.)
1Within 5 seconds after programming the garage door opener has been completed, if
the garage door opener motor is trained to HomeLink
®, both garage door operation
indicators will flash rapidly (green) and the light on the garage door opener motor will
blink twice, indicating that 2- way communication is enabled.
If the indicators do not flash, perform
2 and 3 within the first 10 presses of the HomeLink®
button after programming has been completed.
2Press a programmed HomeLink® button to operate a garage door.
3Within 1 minute of pressing the HomeLink® button, after the garage door operation
has stopped, press th e “Learn” or “Smart” button on the garage door opener motor.
Within 5 seconds of the establishment of 2-way communication with the garage door
opener, both garage door operation indicators in the vehicle will flash rapidly (green)
and the light on the garage door opener mo tor will blink twice, indicating that 2-way
communication is enabled.
■Reprogramming a single HomeLink® button
When the following procedure is performed, buttons which already have devices registered
to them can be overwritten:
1With one hand, press and hold the desired HomeLink® button.
2When the HomeLink® indicator starts flashing (orang e), continue to hold the Home-
Link
® button and perform “Programming HomeLink®” 1 (it takes 20 seconds for the
HomeLink
® indicator to start flashing).
Press the appropriate HomeLink
® button. The HomeLink® indicator light should turn on.
Operating HomeLink®

98
LC500_LC500h_QG_OM11489U_(U)
“SOS” button
LED light indicators
Microphone
Subscribers have the following Safety Connect services available:
● Automatic Collision Notification
In case of either airbag deployment or severe rear-end collision, the system is designed
to automatically call the response center. The responding agent receives the vehicle’s
location and attempts to speak with the vehicle occupants to assess the level of emer-
gency. If the occupants are unable to communicate, the agent automatically treats the
call as an emergency, contacts the nearest em ergency services provider to describe the
situation, and requests that assi stance be sent to the location.
Lexus Enform Safety Connect (if equipped)
Safety Connect is a subscription-based telema tics service that uses Global Positioning
System (GPS) data and embedded cellular technology to provide safety and security fea-
tures to subscribers. Safety Connect is supp orted by Lexus’ designated response center,
which operates 24 hours per day, 7 days per week.
Safety Connect service is av ailable by subscription on select, telematics hardware-
equipped vehicles.
System components
 Vehicles without sunshade Vehicles with sunshade
Services
A
B
C

99
LC500_LC500h_QG_OM11489U_(U)
●Stolen Vehicle Location
If your vehicle is stolen, Safe ty Connect can work with local authorities to assist them in
locating and recovering the vehicle. After filing a police report, call the Safety Connect
response center at 1-800- 25-LEXUS (1-800-255-3987) in the United States, 1-877-
539-8777 in Puerto Rico or 1-800-265-39 87 in Canada, and follow the prompts for
Safety Connect to initiate this service.
In addition to assisting law enforcement with recovery of a stolen vehicle, Safety-Con-
nect-equipped vehicle location data may, under certain circumstances, be shared with
third parties to locate your vehicle. Furth er information is available at Lexus.com.
● Emergency Assistance Button (“SOS”)
In the event of an emergency on the road, push the “SOS” button to reach the Safety
Connect response center. The answering agen t will determine your vehicle’s location,
assess the emergency, and dispatch the necessary assistance required.
If you accidentally press the “SOS” button, tell the response-center agent that you are
not experiencing an emergency.
● Enhanced Roadside Assistance
Enhanced Roadside Assistance adds GPS da ta to the already included warranty-based
Lexus roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect response-center
agent, who can help with a wide range of needs, such as: towing, flat tire, fuel delivery, etc.
For a description of the Roadside Assistance services and their limitations, please see the
Safety Connect Terms and Conditions, which are available at Lexus.com.
After you have signed the Telematics Subscription Service Agreement and are enrolled,
you can begin receiving services.
A variety of subscription terms is available fo r purchase. Contact your Lexus dealer, call the
following or push the “SOS” button in your vehicle for further subscription details.
• The United States
1-800-25-LEXUS (1-800-255-3987)
•Canada
1-800-26-LEXUS (1-800-265-3987)
•Puerto Rico
1-877-539-8777
Subscription

100
LC500_LC500h_QG_OM11489U_(U)
After you sign the Telematics Subscription Service Agreement, download the Lexus Enform
Remote app from your smart phone’s app store, and register within the app (or enroll and
complete registration at the dealer), you can begin using these services.
A variety of subscription terms are available. Contact your Lexus dealer, or call 1-800-25-
LEXUS (1-800-255-3987) for further subscription details.
Lexus Enform Remote (if equipped)
Lexus Enform Remote is a smart phone applic ation that lets you view and remotely con-
trol certain aspects of your vehicle.
For details about the functions and services of this application, refer to
www.lexus.com/enform/
.
Function of the Lexus Enform Remote is achieved by using DCM (Data Communication
Module).
Subscription

101
LC500_LC500h_QG_OM11489U_(U)
Lexus Enform Service Connect (if equipped)
Lexus Enform Service Connect uses DCM (Data Communication Module) to collect and
transmit vehicle data that allows Lexus to provide:
● Vehicle Health Report (VHR) (Safety Recalls, Service Campaigns, Current Vehicle
Alerts, Required Maintenance, and Vehicle Condition Status)
● Maintenance Notifications
● Vehicle Alert Notifications
For details about this serv ice and how to register, re fer to www.lexus.com/enform/
.
The Lexus Enform Service Connect is achieved by using a DCM (Data Communication
Module) built in the vehicle.

102
LC500_LC500h_QG_OM11489U_(U)

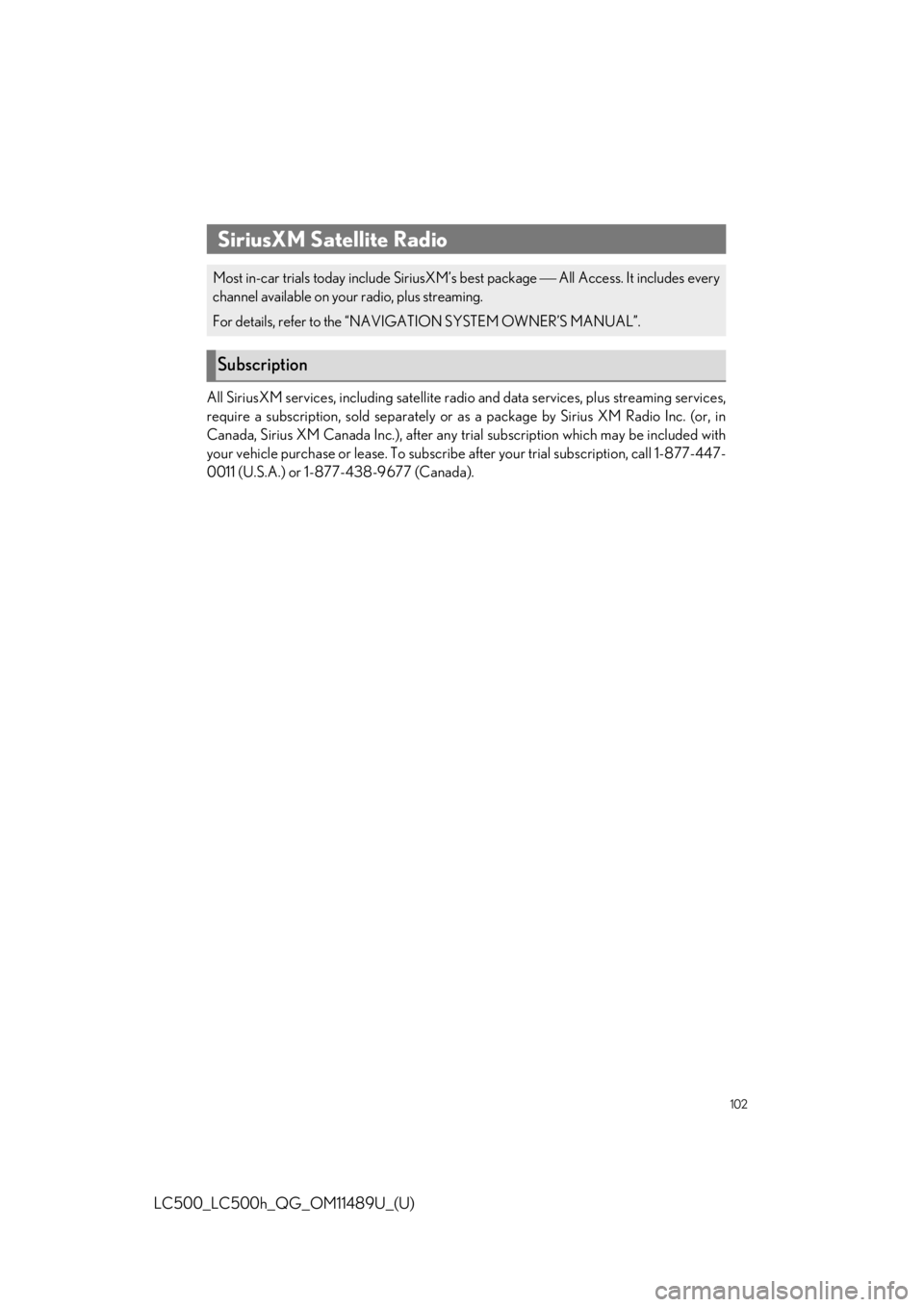

All SiriusXM services, including satellite radio and data services, plus streaming services,
require a subscription, sold separately or as a package by Sirius XM Radio Inc. (or, in
Canada, Sirius XM Canada Inc.), after any tr ial subscription which may be included with
your vehicle purchase or lease. To subscribe after your trial subscription, call 1-877-447-
0011 (U.S.A.) or 1-877-438-9677 (Canada).
SiriusXM Satellite Radio
Most in-car trials today incl ude SiriusXM’s best package  All Access. It includes every
channel available on your radio, plus streaming.
For details, refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
Subscription

103
LC500_LC500h_QG_OM11489U_(U)
■Door lock switches1
Locks both side doors
The indicator comes on.
2Unlocks both side doors
The indicator turns off.
■Inside door handles
Pull the inside door handle to unlock the
door.
The door lock indicator turns off.
The doors can be opened by pulling the
inside door handle even if the door lock
indicator illuminates.
Door Locks
The vehicle can be locked and unlocked usin g the entry function, wireless remote control
or door lock switches.
For details about the entry function or wire less remote control, refer to P.18, 19.
Unlocking and locking the doors from the inside
A
A
A
A

104
LC500_LC500h_QG_OM11489U_(U)
