2019 Lexus GS F Owner's Manuals

731-2. Theft deterrent system
GS F_OM_OM30G90U_(U)
1
For safety and security
■Certifications for the en gine immobilizer system
For vehicles sold in the U.S. mainland, Hawaii, Guam and Puerto Rico
For vehicles sold in Canada
WARNING
■Certifications for the en gine immobilizer system
Changes or modifications not expressly appr oved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If mo dified or removed, the proper operation of
the system cannot be guaranteed.

741-2. Theft deterrent system
GS F_OM_OM30G90U_(U)
Alarm
The alarm uses light and sound to give an alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door is unlocked or opened in any way other than using the entry
function, wireless remote control or mech anical key. (The doors will lock again
automatically.)
●A locked trunk is unlocked or opened in any way other than using the entry
function or wireless remote control.
●The hood is opened.
Close the doors, trunk and hood, and
lock all the doors. The system will be set
automatically after 30 seconds.
The indicator light changes from being
on to flashing when the system is set.
Do one of the following to de activate or stop the alarms:
●Unlock the doors.
●Turn the engine switch to ACCESSOR Y or IGNITION ON mode, or start
the engine. (The alarm will be deactivat ed or stopped after a few seconds.)
The alarm
Setting the alarm system
Deactivating or stopping the alarm

751-2. Theft deterrent system
GS F_OM_OM30G90U_(U)
1
For safety and security
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the follow-
ing:
●Nobody is in the vehicle.
●The windows and moon roof are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
In the following cases, the door may automatically lock:
●When a person remaining in the vehicle un locks the door and the alarm is activated.
●While the alarm is activated, a person remaining in the vehicle unlocks the door.
●When recharging or replacing the battery.
●The trunk is opened using the mechanical key.
●A person inside the vehicle opens a door, the
trunk or hood, or unlocks the vehicle using an
inside lock button.
●The battery is recharged or replaced when the
vehicle is locked. (P. 507)

761-2. Theft deterrent system
GS F_OM_OM30G90U_(U)

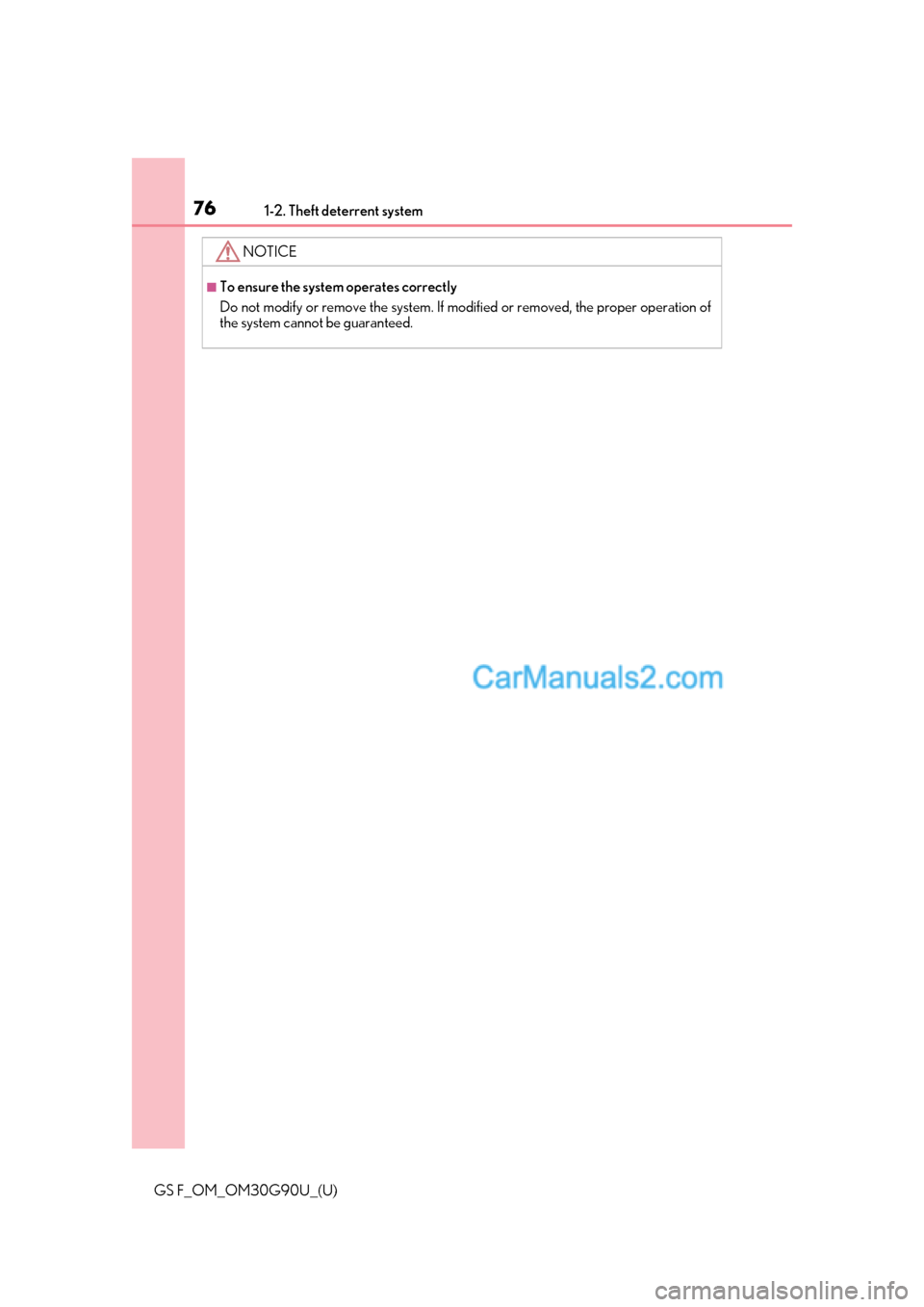

NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.

77
GS F_OM_OM30G90U_(U)
Instrument cluster2
2. Instrument clusterWarning lights and indicators .............................. 78
Gauges and meters (GS350/GS300).................... 86
Gauges and meters (GS F) ...... 92
Multi-information display (GS350/GS300).................. 100
Multi-information display (GS F) ........................................... 108
Head-up display .......................... 120
Fuel consumption information .................................. 127

78
GS F_OM_OM30G90U_(U)2. Instrument cluster
Warning lights and indicators
GS350/GS300 (except F SPORT models)
GS350/GS300 (F SPORT models)
The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.

GS F_OM_OM30G90U_(U)
792. Instrument cluster
2
Instrument cluster

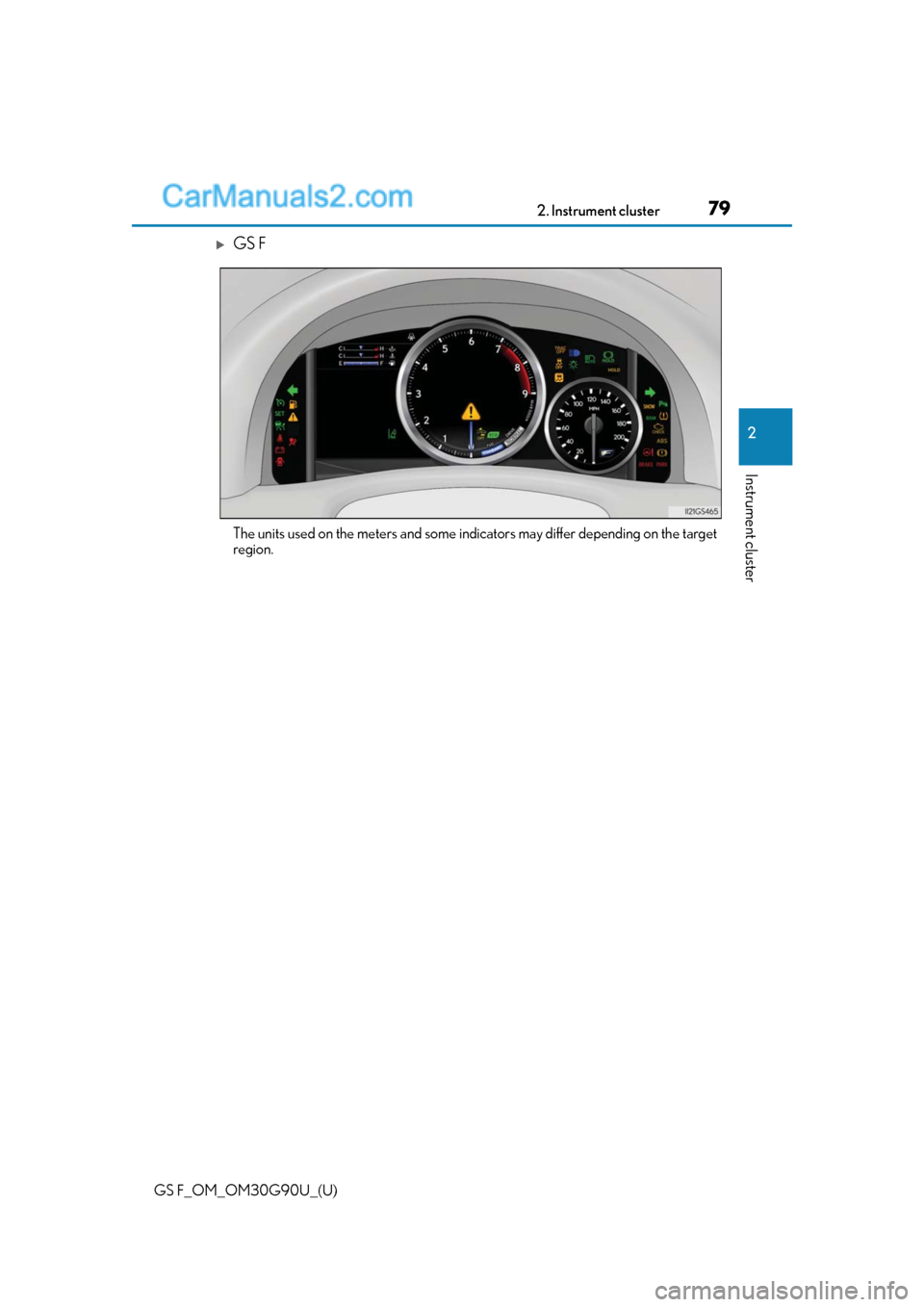

GS F
The units used on the meters and some indicators may differ depending on the target
region.

80
GS F_OM_OM30G90U_(U)2. Instrument cluster
Warning lights inform the driv
er of malfunctions in the indicated vehicle systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
( P. 434)
*1, 3
(If equipped)
PCS (Pre-Collision
System) warning light
( P. 435)
*1
(Canada)
Brake system warning light
( P. 434)*1
Slip indicator ( P. 435)
*1, 2Charging system warning
light ( P. 434)*1, 4, 5
(If equipped)
“AFS OFF” indicator
( P. 435)
*1
(U.S.A.)
Malfunction indicator lamp
( P. 434)*1, 4Brake hold operated
indicator ( P. 435)
*1
(Canada)
Malfunction indicator lamp
( P. 434)*4
(U.S.A.)
Parking brake indicator
( P. 436)
*1SRS warning light
( P. 434)*4
(Canada)
Parking brake indicator
( P. 436)
*1
(U.S.A.)
ABS warning light
( P. 434)*1Brake system warning light
( P. 436)
*1
(Canada)
ABS warning light
( P. 434)*6Open door warning light
( P. 436)
*1Electric power steering
system warning light
( P. 435)Low fuel level warning light
( P. 436)
