Maintenance

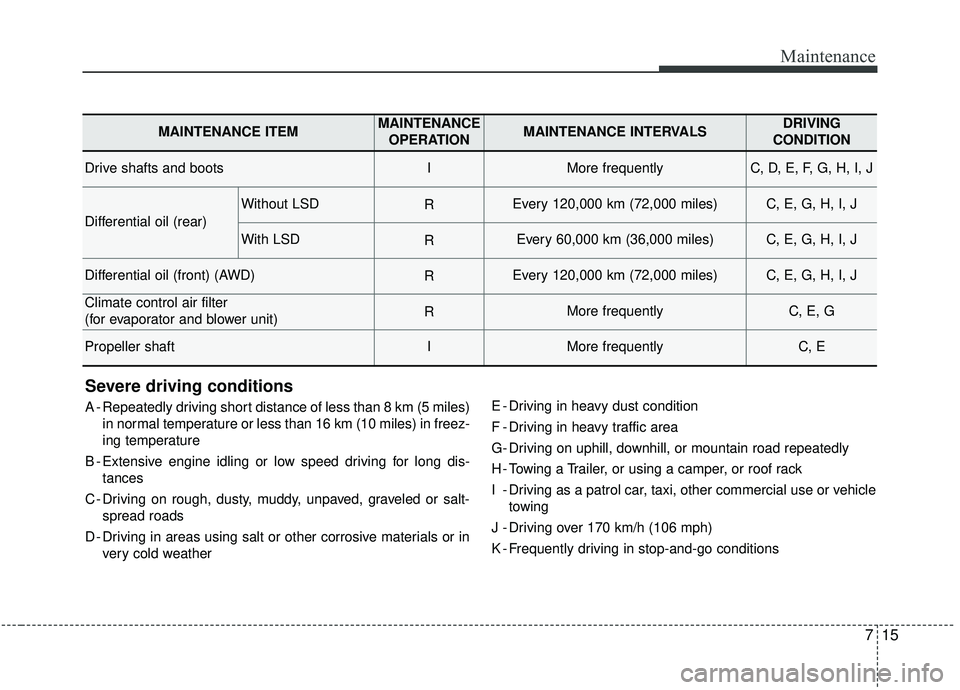

Severe driving conditions
A - Repeatedly driving short distance of less than 8 km (5 miles)in normal temperature or less than 16 km (10 miles) in freez-
ing temperature
B - Extensive engine idling or low speed driving for long dis- tances
C - Driving on rough, dusty, muddy, unpaved, graveled or salt- spread roads
D - Driving in areas using salt or other corrosive materials or in very cold weather E - Driving in heavy dust condition
F - Driving in heavy traffic area
G- Driving on uphill, downhill, or mountain road repeatedly
H - Towing a Trailer, or using a camper, or roof rack
I - Driving as a patrol car, taxi, other commercial use or vehicle
towing
J - Driving over 170 km/h (106 mph)
K - Frequently driving in stop-and-go conditions
MAINTENANCE ITEMMAINTENANCE OPERATIONMAINTENANCE INTERVALSDRIVING
CONDITION
Drive shafts and bootsIMore frequentlyC, D, E, F, G, H, I, J
Differential oil (rear)
Without LSDREvery 120,000 km (72,000 miles)C, E, G, H, I, J
With LSDREvery 60,000 km (36,000 miles)C, E, G, H, I, J
Differential oil (front) (AWD)REvery 120,000 km (72,000 miles)C, E, G, H, I, J
Climate control air filter
(for evaporator and blower unit)RMore frequentlyC, E, G
Propeller shaftIMore frequentlyC, E

Maintenance
22
7
ENGINE COOLANT
The high-pressure cooling system
has a reservoir filled with year round
antifreeze coolant. The reservoir is
filled at the factory.
Check the antifreeze protection and
coolant level at least once a year: at
the beginning of the winter season,
and before traveling to a colder cli-
mate.Checking the coolant level Turn the engine off and wait until it
cools down. Use extreme care
when removing the radiator cap.
Wrap a thick towel around it, and
turn it counterclockwise slowly to
the first stop. Step back while the
pressure is released from the cool-
ing system.
When you are sure all the pressure
has been released, press down on
the cap, using a thick towel, and
continue turning counterclockwise
to remove it.
Even if the engine is not operating, do not remove the radiator cap or
the drain plug while the engine and
radiator are hot. Hot coolant and
steam may still blow out under
pressure, causing serious injury.
WARNING
Removing radiator
cap
Never attempt to remove the
radiator cap while the engine is
operating or hot. Doing so
might lead to cooling system
and engine damage and could
result in serious personal injury
from escaping hot coolant or
steam.
CAUTION - Radiator cap
Never attempt to remove theradiator cap while the engine isoperating or hot. Doing somight lead to cooling systemand engine damage.

I9
Index
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-54
Tilt and telescopic steering. . . . . . . . . . . . . . . . . . . . 4-52
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . . 4-150 Center console storage . . . . . . . . . . . . . . . . . . . . . . 4-150
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-150
Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
The Eco-coasting system . . . . . . . . . . . . . . . . . . . . . . . 5-35 Eco-Coasting operation conditions . . . . . . . . . . . . . 5-35
The Eco-Coasting system release conditions. . . . . . 5-36
The Eco-Coasting system setting . . . . . . . . . . . . . . . 5-35
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14 Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Disarmed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Tire Pressure Monitoring System (TPMS) . . . . . . . . . . . 6-8 Changing a tire with TPMS . . . . . . . . . . . . . . . . . . . 6-12
Check tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Low tire pressure telltale . . . . . . . . . . . . . . . . . . . . . 6-10
Tire specification and pressure label . . . . . . . . . . . . . . 8-11
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-39 All season tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
Checking tire inflation pressure . . . . . . . . . . . . . . . . 7-40
Flat spots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
Low aspect ratio tire. . . . . . . . . . . . . . . . . . . . . . . . . 7-53 Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Recommended cold tire inflation pressures . . . . . . . 7-39
Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Summer tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-39\
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44
Tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-40
Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-41
Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . 7-45
Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44
Wheel alignment and tire balance . . . . . . . . . . . . . . 7-42
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 6-23 Emergency towing . . . . . . . . . . . . . . . . . . . . . . . . . . 6-25
Removable towing hook. . . . . . . . . . . . . . . . . . . . . . 6-25
Towing service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . . . 8-10
Vehicle data collection and event data recorders . . . . . . 1-7
Vehicle Identification Number (VIN) . . . . . . . . . . . . . . 8-10
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-146 Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . 5-149
Tire and loading information label. . . . . . . . . . . . . 5-146
Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-150
T
V

Index
10I
Warning and indicator lights. . . . . . . . . . . . . . . . . . . . . 4-92Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-92
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-27 Checking the washer fluid level . . . . . . . . . . . . . . . . 7-27
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-130 Headlight (Headlamp) escort function . . . . . . . . . . 4-130
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-130
Pocket lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-130
Wide sunroof. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45 Closing the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-49
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . 4-50
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47
Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . 4-46
Sunshade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47\
Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-34 Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
Windshield defrosting and defogging. . . . . . . . . . . . . 4-146 Automatic climate control system . . . . . . . . . . . . . 4-146
Automatic ventilation . . . . . . . . . . . . . . . . . . . . . . . 4-149
Defogging logic . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-147
Smart ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . 4-149
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-142 Carry emergency equipment . . . . . . . . . . . . . . . . . 5-144
Change to “winter weight” oil if necessary . . . . . . 5-143 Check battery and cables . . . . . . . . . . . . . . . . . . . . 5-143
Check spark plugs and ignition system . . . . . . . . . 5-143
Don’t let your parking brake freeze . . . . . . . . . . . . 5-144
Don't let ice and snow accumulate underneath . . . 5-144
Snowy or icy conditions . . . . . . . . . . . . . . . . . . . . . 5-142
To keep locks from freezing. . . . . . . . . . . . . . . . . . 5-144
Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-145
Use approved window washer anti-freeze in
system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14\
4
Use high quality ethylene glycol coolant. . . . . . . . 5-143
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32 Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-122 Front windshield washers. . . . . . . . . . . . . . . . . . . . 4-124
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . 4-122
360° camera monitoring system . . . . . . . . . . . . . . . . . 4-112
