2019 KIA STINGER mirror

Driving your vehicle
134
5
System malfunction
When the “Check System” warning
message appears, the system is not
working properly. In this case, have
the vehicle inspected by an author-
ized Kia dealer.
✽ ✽
NOTICE
The Driver Attention Warning sys-
tem utilizes the camera sensor on the
front windshield for its operation.
To keep the camera sensor in the
best condition, you should observe
the followings:
- Do not disassemble camera tem-
porarily for tinted window or
attaching any types of coatings and
accessories. If you disassemble a
camera and assemble it again, take
your vehicle to an authorized Kia
dealer and have the system
checked to need a calibration.
- Do not locate any reflective objects (i.e. white paper, mirror) over the
dashboard. Any light reflection
may prevent the Driver Attention
Warning (DAW) system from
functioning.
- Pay extreme caution to keep the camera sensor out of water.
- Do not disassemble the camera assembly or apply any impact on
the camera assembly.
• Playing the vehicle audio system at high volume may offset the
Driver Attention Warning system
warning sounds
OCK057141L
WARNING
The Driver Attention Warning
system is not a substitute for
safe driving practices. It is the
responsibility of the driver to
always drive cautiously to
prevent unexpected and sud-
den situations from occur-
ring. Pay attention to the road
conditions at all times.
It may suggest a break according to the driver’s driv-
ing pattern or habits even if
the driver doesn’t feel
fatigued.
The driver who feels fatigued should take a break even
though there is no break sug-
gestion by the Driver Attention
Warning system.

Driving your vehicle
140
5
Adjust your mirrors to reduce the
glare from other driver's head-
lights.
Keep your headlights clean and properly aimed. (On vehicles not
equipped with the automatic head-
light aiming feature.) Dirty or
improperly aimed headlights will
make it much more difficult to see
at night.
Avoid staring directly at the head- lights of oncoming vehicles. You
could be temporarily blinded, and it
will take several seconds for your
eyes to readjust to the darkness.Driving in the rain
Rain and wet roads can make driving
dangerous, especially if you’re not
prepared for the slick pavement.
Here are a few things to consider
when driving in the rain:
A heavy rainfall will make it harderto see and will increase the dis-
tance needed to stop your vehicle,
so slow down.
Keep your windshield wiping equipment in good shape. Replace
your windshield wiper blades when
they show signs of streaking or
missing areas on the windshield.
If your tires are not in good condi- tion, making a quick stop on wet
pavement can cause a skid and
possibly lead to an accident. Be
sure your tires are in good shape.
Turn on your headlights to make it easier for others to see you. Driving too fast through large pud-
dles can affect your brakes. If you
must go through puddles, try to
drive through them slowly.
If you believe you may have gotten your brakes wet, apply them lightly
while driving until normal braking
operation returns.

• Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
52
• Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
• Low aspect ratio tire . . . . . . . . . . . . . . . . . . . . . . . . . . 7-53
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
7-54
• Inner panel fuse replacement . . . . . . . . . . . . . . . . . . . 7-56
• Engine compartment fuse replacement. . . . . . . . . . . 7-58
• Fuse/relay panel description. . . . . . . . . . . . . . . . . . . . 7-60
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-77
• Bulb replacement precaution . . . . . . . . . . . . . . . . . . . 7-77
• Light bulb position (Front) . . . . . . . . . . . . . . . . . . . . 7-79
• Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . . 7-79
• Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . . . 7-80
• Headlamp (LED type) replacement(Headlamp Type B) . . . . . . . . . . . . . . . . . . . . . . . . . . 7-80
• Side marker bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . . 7-81
• Position lamp + DRL (LED type) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . . 7-81
• Headlamp (Low/High beam) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . . 7-81
• Front turn signal lamp bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . . 7-83
• Stop and tail lamp (LED type) bulb replacement . . 7-84
• Rear side marker (LED type) bulb replacement . . . 7-84
• Rear turn signal lamp (LED type) bulb replacement. . 7-85 • Rear turn signal lamp (bulb type) bulb replacement . .
7-85
• Back-up lamp bulb replacement . . . . . . . . . . . . . . . . 7-87
• High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-88
• License plate lamp (LED type) bulb replacement . . 7-89
• Side repeater lamp (LED type) bulb replacement . . 7-89
• Map lamp (LED type) bulb replacement . . . . . . . . . 7-89
• Vanity mirror lamp (LED type) bulb replacement . . 7-90
• Room lamp (LED type) bulb replacement . . . . . . . . 7-90
• Glove box lamp (LED type) bulb replacement . . . . 7-90
• Luggage room lamp (LED type) bulb replacement. . 7-91
Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-92
• Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-92
• Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-97
Emission control system . . . . . . . . . . . . . . . . . . . 7-100
• Crankcase emission control system . . . . . . . . . . . . . 7-100
• Evaporative emission control (including ORVR
Onboard Refueling Vapor Recovery) system . . . . 7-100
• Exhaust emission control system . . . . . . . . . . . . . . . 7-101
7

Maintenance
64
7
Fuse NameFuse ratingCircuit Protected
E-SHIFTER 110AElectronic Auto Transmission Shift Lever (B+)
A/BAG IND.10AInstrument Cluster, Passenger Air Bag IND.
IBU 115AIBU (B+)
DDM10ADriver Door Module, Driver/Passenger Power Outside Mirror
MODULE 210AIBU (IG2)
MODULE 310AAuto Transmission Shift Lever Switch, Driver Door Module, Stop Lamp Switch
DOOR LOCK20ADoor Lock Relay, Door Unlock Relay, Two Turn Unlock Relay
S/HEATER
DRV/PASS25AFront Air Ventilation Seat Control Module, Front Seat Warmer Control Module
TAIL GATE10ATail Gate Lid Relay, Fuel Lid Relay, Crash Pad Switch
IBU 210ARain Sensor
SPARE20ASPARE

765
Maintenance
Fuse NameFuse ratingCircuit Protected
MODULE 810ACooling Fan Controller (BLDC Motor), Around View Monitor, Front Air Ventilation Seat Control Module,
Front/Rear Seat Warmer Control Module
MODULE 710A
IBU, ECS Unit, AWD (All Wheel Drive) ECM (Electronic Control Module), Smart Cruise Control Module,
Auto Transmission Shift Lever Indicator, Console Switch (Front/Upper), Blind-Spot Collision Warning Unit
Left Handle side/Right Handle side, Steering Angle Sensor, Steering Tilt & Telescopic Module, Multi-
Function Camera Unit, Crash Pad Switch
POWER HANDLE15ASteering Tilt & Telescopic Module
MODULE 910ADriver Air Lumbar Control Unit
MODULE 110AData Link Connector, Console Switch (Upper), Mood Lamp Control Unit
MODULE 510A
Air Conditioner Control Module, Air Conditioner Switch, Audio, Head Lamp Left Handle side/Right
Handle side, Low DC-DC Converter (Audio/AMP (Amplifier)), Electro Chromic Mirror, AMP (Amplifier),
Driver Integrated memory system Control Module, Front Air Ventilation Seat Control Module, Front/Rear
Seat Warmer Control Module
SUNROOF20ASunroof Control Unit (Glass)
P/WINDOW RH25APassenger Power Window Module, Rear Power Window Module Right Handle side
CHARGER10AFront/Rear USB Charger

Maintenance
74
7
Fuse NameFuse ratingCircuit Protected
ECS15AECS (Electronic Control Suspension) Unit
S/HEATER
REAR20ARear Seat Warmer Control Module
HEATED
MIRROR10AAir Conditioner Switch, Driver/Passenger Power Outside Mirror
FUEL PUMP20AFuel Pump Relay
SPARE110A-
SPARE215A-
SPARE315A-
REAR HEATED30ARear Heated Relay
AMP 225AAMP (Amplifier) (MOBIS/PREMIUM)
SPARE415A-
AMP 130ALow DC-DC Converter (AMP (Amplifier))
IG 115AIG1 Relay
ACC30AACC Relay
Rear fuse box panel

Maintenance
90
7

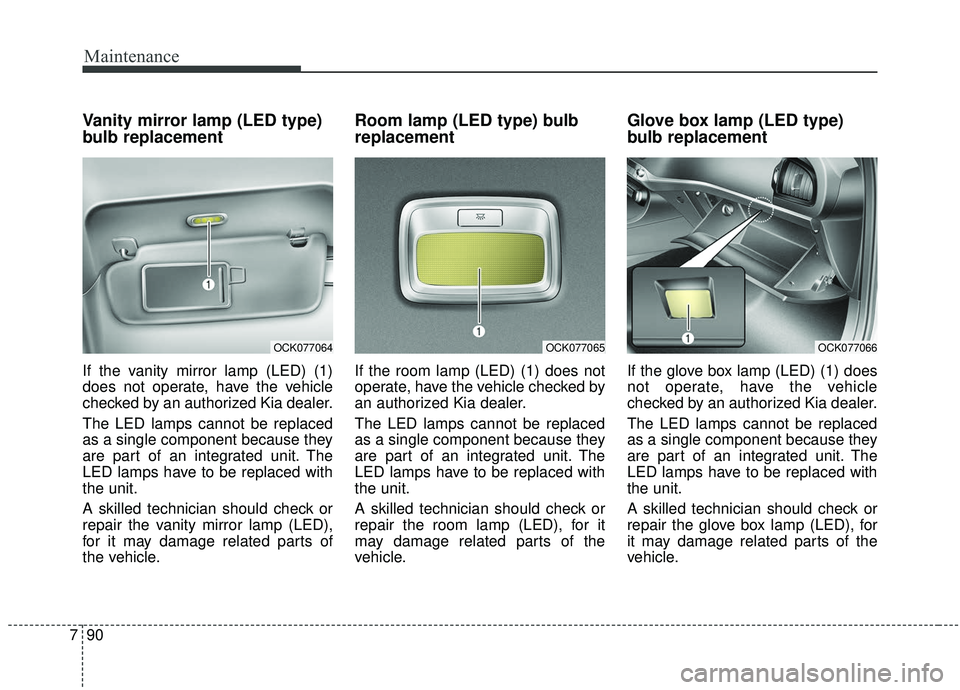

Vanity mirror lamp (LED type)
bulb replacement
If the vanity mirror lamp (LED) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because they
are part of an integrated unit. The
LED lamps have to be replaced with
the unit.
A skilled technician should check or
repair the vanity mirror lamp (LED),
for it may damage related parts of
the vehicle.
Room lamp (LED type) bulb
replacement
If the room lamp (LED) (1) does not
operate, have the vehicle checked by
an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because they
are part of an integrated unit. The
LED lamps have to be replaced with
the unit.
A skilled technician should check or
repair the room lamp (LED), for it
may damage related parts of the
vehicle.
Glove box lamp (LED type)
bulb replacement
If the glove box lamp (LED) (1) does
not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because they
are part of an integrated unit. The
LED lamps have to be replaced with
the unit.
A skilled technician should check or
repair the glove box lamp (LED), for
it may damage related parts of the
vehicle.
OCK077064OCK077066OCK077065

Index
6I
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-153
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-155
USB charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Wireless smart phone charging system . . . . . . . . . 4-157
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-126 Automatic turn off function . . . . . . . . . . . . . . . . . . 4-126
Door courtesy lamp . . . . . . . . . . . . . . . . . . . . . . . . 4-129
Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Liftgate room lamp. . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-127
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-126
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Interior overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
ISG (Idle Stop and Go) system . . . . . . . . . . . . . . . . . 5-103 Auto start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-104
Auto stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-103
Condition of ISG system operation . . . . . . . . . . . . 5-105
ISG system deactivation . . . . . . . . . . . . . . . . . . . . . 5-105
ISG system malfunction . . . . . . . . . . . . . . . . . . . . . 5-106
Lane Keeping Assist (LKA) system . . . . . . . . . . . . . . 5-112 Driver's attention . . . . . . . . . . . . . . . . . . . . . . . . . . 5-118
LKA system function change. . . . . . . . . . . . . . . . . 5-120
LKA system malfunction . . . . . . . . . . . . . . . . . . . . 5-119
LKA system operation . . . . . . . . . . . . . . . . . . . . . . 5-114 LCD windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-73
Distance to empty. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-81
LCD modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-77
Over view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-73
Trip information (Trip computer) . . . . . . . . . . . . . . 4-73
User settings mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-82
Warning message . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-87
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-21 Emergency liftgate safety release. . . . . . . . . . . . . . . 4-28
Non-Powered liftgate . . . . . . . . . . . . . . . . . . . . . . . . 4-21
Power liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-77\
Back-up lamp bulb replacement . . . . . . . . . . . . . . . 7-87
Bulb replacement precaution . . . . . . . . . . . . . . . . . . 7-77
Front turn signal lamp bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . 7-83
Glove box lamp (LED type) bulb replacement . . . . 7-90
Headlamp (LED type) replacement (Headlamp Type B) . . . . . . . . . . . . . . . . . . . . . . . . 7-80
Headlamp (Low/High beam) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . 7-81
High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-88
License plate lamp (LED type) bulb replacement . . 7-89
Light bulb position (Front) . . . . . . . . . . . . . . . . . . . 7-79
Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . 7-79
Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . 7-80
Luggage room lamp (LED type) bulb replacement . 7-91
L
