2019 KIA SPORTAGE dimensions

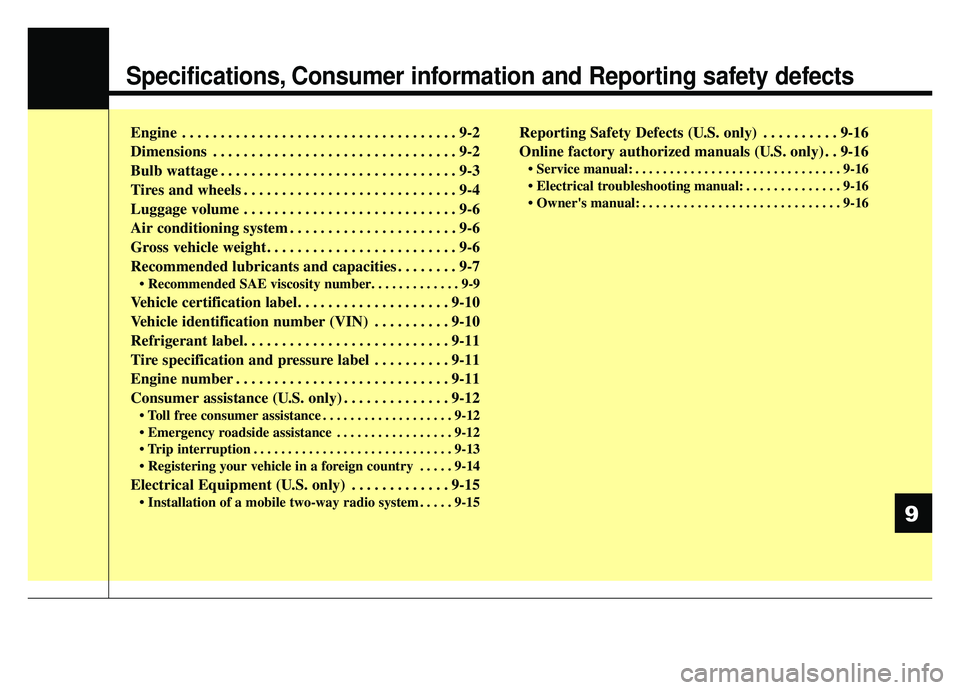

Specifications, Consumer information and Reporting safety defects
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
9-2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 9-6
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 9-6
Recommended lubricants and capacities . . . . . . . . 9-7
• Recommended SAE viscosity number. . . . . . . . . . . . . 9-9
Vehicle certification label. . . . . . . . . . . . . . . . . . . . 9-10
Vehicle identification number (VIN) . . . . . . . . . . 9-10
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
Tire specification and pressure label . . . . . . . . . . 9-11
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
Consumer assistance (U.S. only) . . . . . . . . . . . . . . 9-12
. . . . . . . . . . . . . . . . . . . 9-12
. . . . . . . . . . . . . . . . . 9-12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-13
. . . . . 9-14
Electrical Equipment (U.S. only) . . . . . . . . . . . . . 9-15
. . . . . 9-15
Reporting Safety Defects (U.S. only) . . . . . . . . . . 9-16
Online factory authorized manuals (U.S. only) . . 9-16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-16
. . . . . . . . . . . . . . 9-16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-16
9

Specifications, Consumer information, Reporting safety defects
29

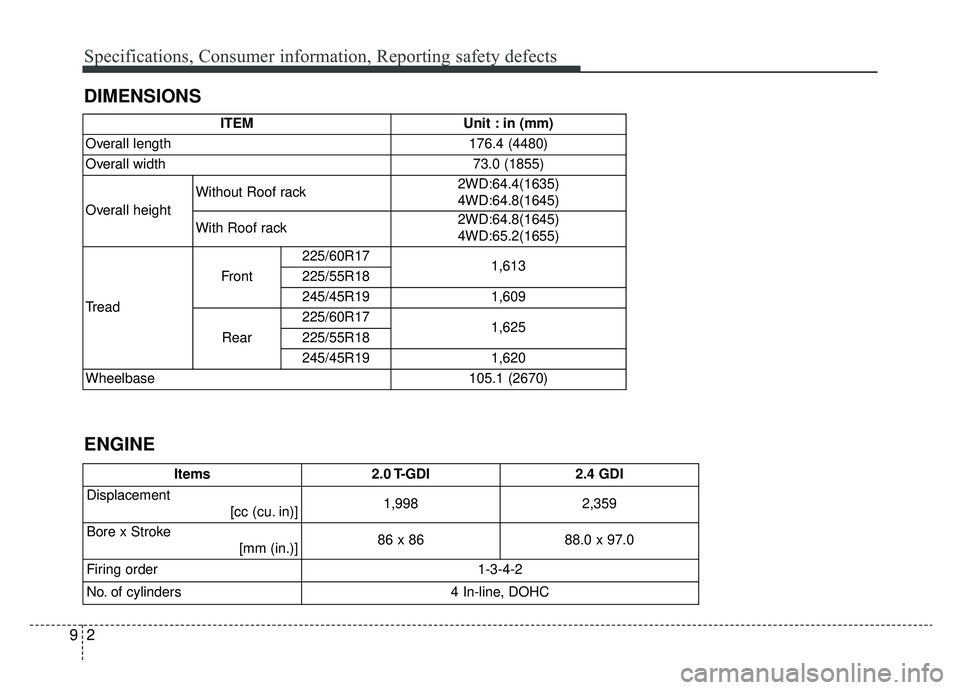

DIMENSIONS
ENGINE
ITEMUnit : in (mm)
Overall length176.4 (4480)
Overall width73.0 (1855)
Overall height
Without Roof rack2WD:64.4(1635)
4WD:64.8(1645)
With Roof rack2WD:64.8(1645)
4WD:65.2(1655)
Tread
Front
225/60R171,613225/55R18
245/45R191,609
Rear
225/60R171,625225/55R18
245/45R191,620
Wheelbase105.1 (2670)
Items 2.0 T-GDI2.4 GDI
Displacement[cc (cu. in)]1,9982,359
Bore x Stroke [mm (in.)]86 x 8688.0 x 97.0
Firing order1-3-4-2
No. of cylinders4 In-line, DOHC

Index
4I
Children Always in the Rear ......................................3-32
Selecting a Child Restraint System (CRS) ................3-33
Installing a Child Restraint System (CRS) ................3-36
Securing a child restraint withthe LATCH anchors system ..........................................................3-38
Securing a child restraint seatwith Tether Anchor system ..............................................3-39
Child-protector rear door lock ......................................4-26
Climate control air filter ................................................8-36 Filter inspection ..........................................................8-36
Climate control system ................................................4-134 Manual climate control system ................................4-134
Automatic climate control system ............................4-144
Automatic heating and air conditioning ..................4-145
Closing the sunroof........................................................4-52
Clothes hanger ............................................................4-172
Combined instrument, see instrument cluster ..............4-68
Compact spare tire ........................................................7-21
Components of the Tire Mobility Kit ............................7-26
Consumer assistance (U.S. only) ..................................9-12 Toll free consumer assistance ....................................9-12
Emergency roadside assistance ..................................9-12
Trip interruption ..........................................................9-13
Registering your vehicle in a foreign country ............9-14
Coolant ........................................................................\
..8-27
Cooling fluid, see engine coolant ..................................8-27
Crankcase emission control system ............................8-100
Cruise control system ....................................................6-66 Cruise control switch ..................................................6-66
To set cruise control speed..........................................6-67
To increase cruise control set speed ..........................6-67
To decrease the cruising speed ..................................6-68
To temporarily accelerate with the cruise control on 6-68
To cancel cruise control ..............................................6-68
To resume cruising speed at more than approximately 20mph (30 km/h) ..............................6-69
To turn cruise control off ............................................6-69
Cup holder ..................................................................4-164
Curtain air bag ..............................................................3-61
Dashboard illumination, see instrument panel illumination ........................................................4-69
Dashboard, see instrument cluster ................................4-68
Day/night rearview mirror ............................................4-58
Declaration of Conformity ............................................5-64 FCC ........................................................................\
....5-64
Defogging (Windshield) ..............................................4-156
Defroster (Rear window) ............................................4-133
Defrosting (Windshield) ..............................................4-156
Dimensions ......................................................................9-\
2
Disarmed stage ..............................................................4-20
Display illumination, see instrument panel illumination..................................................................4-69
Displays, see instrument cluster ....................................4-68
D
