Maintenance
66
7
DescriptionFuse ratingProtected component
ABS 3 7.5AESC Control Module, Multipurpose Check Connector
ECU 1 10APCM
IG 2 40ARLY. 4 (Start Relay), PDM (IG2) Relay, Ignition Switch
POWER
OUTLET 1 20AFront Power Outlet & Cigarette Lighter
SENSOR 6 7.5AGCU
POWER
OUTLET 2 20AFront Power Outlet
MODULE7.5ASmart Cruise Control Radar
ECU 4 20A[Theta II 2.4L Engine] PCM (E-CVVT Relay)
WIPER 125AWiper Low Relay
DEICER 15AFront Deicer Relay
ECU 5 20A[Theta II 2.4L Engine] PCM (E-CVVT Relay)
IG 1 40APDM (IG1) Relay, PDM (ACC) Relay, Ignition Switch
SENSOR 4 10A[Theta II 2.4L Engine] Oxygen Sensor (Up/Down)
[Lambda II 3.3L Engine] PCM, Oxygen Sensor #1/#2/#3/#4
SENSOR 5 15A[Theta II 2.4L Engine] PCM

767
Maintenance
DescriptionFuse ratingProtected component
WIPER 27.5AWiper Parking Signal
POWER
OUTLET 3 20ARear Power Outlet
SENSOR 1 20A[Theta II 2.4L Engine] Ignition Coil #1/#2/#3/#4 [Lambda II 3.3L Engine]\
Ignition Coil #1/#2/#3/#4/#5/#6,
Condecser #1/#2
SENSOR 3 10A[Theta II 2.4L Engine] Fuel Pump Relay [Lambda II 3.3L Engine] Fuel Pump Relay, PCM
POWER
OUTLET 4 20ALuggage Power Outlet
REAR
HEATED 40ARear Defogger Relay
SENSOR 2 10A
[Theta II 2.4L Engine] E/R Junction Block (Cooling Fan 1 Relay), Oil Control Valve (Exhaust), Purge Control
Solenoid Valve, Canister Close Valve, Variable Intake Solenoid Valve
[Lambda II 3.3L Engine] E/R Junction Block (Cooling Fan 1 Relay), Variable Intake Solenoid Valve #1/#2, Purge
Control Solenoid Valve, Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust), PCM, Canister close valve, A/CON
Compressor Relay
FUEL PUMP 20AFuel Pump Relay
HORN 15AHorn Relay
B/ALARM HORN 15ABurglar Alarm Horn Relay
A/C10AA/CON Compressor
SPARE 115ADUMMY
SENSOR 720ANOx SENSOR

Maintenance
68
7

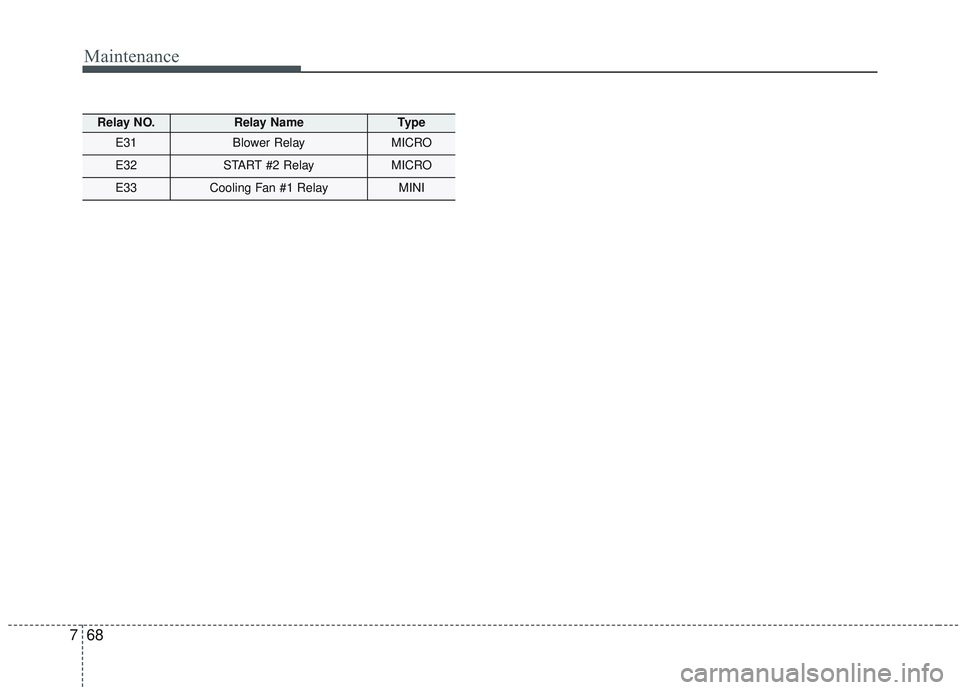

Relay NO.Relay NameType
E31Blower RelayMICRO
E32START #2 RelayMICRO
E33Cooling Fan #1 RelayMINI

I7
