2019 KIA SEDONA cruise control

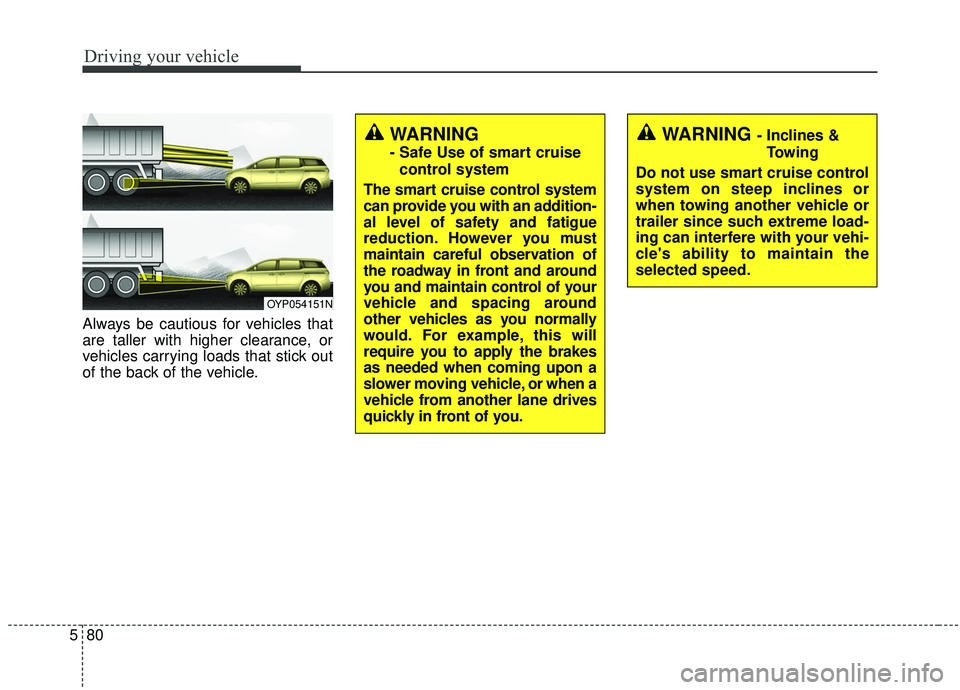

Driving your vehicle
80
5
Always be cautious for vehicles that
are taller with higher clearance, or
vehicles carrying loads that stick out
of the back of the vehicle.
OYP054151N
WARNING - Inclines &
Towing
Do not use smart cruise control
system on steep inclines or
when towing another vehicle or
trailer since such extreme load-
ing can interfere with your vehi-
cle's ability to maintain the
selected speed.WARNING
- Safe Use of smart cruise control system
The smart cruise control system
can provide you with an addition-
al level of safety and fatigue
reduction. However you must
maintain careful observation of
the roadway in front and around
you and maintain control of your
vehicle and spacing around
other vehicles as you normally
would. For example, this will
require you to apply the brakes
as needed when coming upon a
slower moving vehicle, or when a
vehicle from another lane drives
quickly in front of you.

581
Driving your vehicle
- After an engine start, please stopfor several seconds. If system ini-
tialization is not completed, the
smart cruise control system does
not normally operate.
- After an engine start, if any objects are not detected or the sensor
cover is obscured with foreign sub-
stances, there is a possibility that
the smart cruise control system
system may not work.
- The following conditions may cause a malfunction: over-loading
the liftgate, suspension modifica-
tion, tire replacement with unau-
thorized tires or tires with different
tread wear and pressure levels.
- The smart cruise control system cannot guarantee the stop for
every emergency situation.
If an emergency stop is necessary,
you must apply the brakes.
- Keep a safe distance according to road conditions and vehicle speed.
If the vehicle to vehicle distance is
too close during a high-speed driv-
ing, a serious collision may result. - The smart cruise control system
cannot recognize a stopped vehi-
cle, pedestrians or an oncoming
vehicle. Always look ahead cau-
tiously to prevent unexpected and
suddensituations from occurring.
- When other vehicles are changing lanes in front of you frequently, the
smart cruise control system may
not operate appropriately. Always
look ahead cautiously to prevent
unexpected and sudden situations
from occurring.
- The smart cruise control system is not a substitute for safedriving
practices but a convenience func-
tion only. It is the responsibility of
the driver to always check the
speed and the distance to the vehi-
cle ahead.
- Always be aware of the selected speed and vehicle to vehicle dis-
tance.
- Always maintain sufficient braking distance and decelerate your vehi-
cle by applying the brakes if neces-
sary. This device complies with
Industry Canada licence-exempt
RSS standard(s).
Operation is subject to the following
conditions:
(1) This device may not cause inter-
ference, and
(2) This device must accept any
interference, including interfer-
ence that may cause undesired
operation of the device.
(3) Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to oper-
ate the device.

597
Driving your vehicle
✽ ✽NOTICE
• It may suggest a break according
to the driver’s driving pattern or
habits even if the driver doesn’t
feel fatigued.
• The driver, who feels fatigued, should take a break, even though
there is no break suggestion by the
Driver Attention Warning system.
✽ ✽ NOTICE
The Driver Attention Warning sys-
tem utilizes the camera sensor on the
front windshield for its operation.
To keep the camera sensor in the
best condition, you should observe
the followings:
- Do not disassemble camera tem-
porarily for tinted window or
attaching any types of coatings and
accessories. If you disassemble a
camera and assemble it again, take
your vehicle to an authorized Kia
dealer and have the system
checked to need a calibration.
- Do not locate any reflective objects (i.e. white paper, mirror)
over the dashboard. Any light
reflection may cause a mal-func-
tion of the Driver Attention
Warning (DAW) system.
- Pay extreme caution to keep the camera sensor out of water.
- Do not arbitrarily disassemble the camera assembly, nor apply any
impact on the camera assembly.
• Playing the vehicle audio system at high volume may offset the
Driver Attention Warning system
warning soundsCAUTION
The Driver Attention Warning
system may not properly oper-ate with limited alerting in thefollowing situations:
Not properly recognize lane (Refer to “LDW”)
Rough or intentionally evasive driving
Large tire pressure deviation, uneven wear, poor wheelalignment, etc.
Severe winding road Uneven road surface condition Windy road The vehicle drives through a windy area.
The vehicle is controlled by the following driving assistsystems:
- Forward Collision-Avoidance Assist (FCA) System
- Smart Cruise Control (SCC) System
WARNING
The Driver Attention Warning
system is not a substitute for
safe driving practices, but a
convenience function only. It is
the responsibility of the driver
to always drive cautiously to
prevent unexpected and sud-
den situations from occurring.
Pay attention to the road condi-
tions at all times.

761
Maintenance
Fuse Name Fuse ratingCircuit Protected
MULTIMEDIA 15A USB Charger #1/#2, A/V & Navigation Head Unit S/ROOF FRT 20A Front Sunroof Motor AMP 25A AMP IG1 20A PCB BLOCK (Fuse - ABS3, TCU, MDPS, CRUISE)
SMART KEY2 7.5A Smart Key Control Module
INTERIOR LAMP 10A Portable Lamp, Overhead Console Lamp, Cargo Lamp, Front Vinity Lamp Switch LH/RH, Glove Box
Lamp, Key Warning Switch
START 7.5A With IMMO./Smart Key : Transmission Range Switch, W/O IMMO. : PCB Block (B/Alarm Relay)
S/ROOF RR 25A Rear Sunroof Motor
DOOR LOCK 20A Tail Gate Relay, Door Lock/Unlock Relay, Sliding Door Lock/Unlock Relay
FOG LAMP REAR 10A -
MODULE1 10A Audio, A/V & Navigation Head Unit, Around View Unit, BCM, Overhead Console Lamp, MTS Module,
Digital Clock, USB Charger #1/#2
AIR BAG 15A SRS Control Module, Passenger Occupant Detection Sensor
A/CON2 7.5A A/C Control Module, Blower Resistor (Manual)
HEATED MIRROR 10A Passenger Power Outside Mirror, A/C Control Module BRAKE SWITCH 7.5A Smart Key Control Module, Stop Lamp Switch S/HEATER RR 25A Rear Seat Heater Control Module
P/WINDOW LH 25ADriver Safety Window Module, Driver Door Module, Rear Power Window Switch LH, Rear Safety Power
Window Switch LH, Rear Safety Power Window Module LH
MODULE7 7.5A Key Inter Lock Solenoid, Fuel Lid Switch, ATM Lever Switch, Rear A/C Control Switch, Electro Chromic Mirror
POWER OUTLET1 20A Front Power Outlet P/SEAT (DRV) 30A Driver Manual Switch, Driver Lumbar Support Switch, Driver IMS Control Module
P/WINDOW RH 25APassenger Safety Window Module, Passenger Power Window Motor, Passenger Door Module, Rear Power
Window Switch RH, Rear Safety Power Window Switch RH, Rear Safety Power Window Module RH
S/HEATER FRT 20A Heater Control Module, Passenger Ventilation Seat Control Module

Index
4I
Child restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-53Placing a passenger seat belt into the auto lock mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-55
Securing a child restraint seat with child seat lower anchor system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-59
Securing a child restraint seat with tether anchor system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
58
Using a child restraint system . . . . . . . . . . . . . . . . . 3-54
Child-protector rear door lock . . . . . . . . . . . . . . . . . . . 4-30
Clean air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
191
Climate control air filter . . . . . . . . . . . . . . . . . . . . . . . . 7-30 Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20\
5
Combined instrument, see instrument cluster . . . . . . . 4-89
Conversation mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-84
Cool box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
194
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 7-22
Cooling fluid, see engine coolant . . . . . . . . . . . . . . . . . 7-22
Crankcase emission control system . . . . . . . . . . . . . . . 7-98
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . . 5-59 To cancel cruise control . . . . . . . . . . . . . . . . . . . . . . 5-61
To decrease the cruising speed . . . . . . . . . . . . . . . . . 5-60
To increase cruise control set speed . . . . . . . . . . . . . 5-60
To resume cruising speed at more than approximately 20mph (30 km/h) . . . . . . . . . . . . . . . . . . . . . . . . . . 5-62
To set cruise control speed . . . . . . . . . . . . . . . . . . . . 5-59
To temporarily accelerate with the cruise control on . 5-61
To turn cruise control off . . . . . . . . . . . . . . . . . . . . . 5-62 Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-195
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-80
Dashboard illumination, see instrument panel
illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
Dashboard, see instrument cluster . . . . . . . . . . . . . . . . 4-90
Day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-74
Defogging (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-186
Defroster (Rear window) . . . . . . . . . . . . . . . . . . . . . . 4-151
Defrosting (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-186
Digital speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-99
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-\
2
Display illumination, see instrument panel illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
Displays, see instrument cluster . . . . . . . . . . . . . . . . . . 4-89
Distance to empty . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-102
Door lock button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27
Door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
25 Central door lock switch . . . . . . . . . . . . . . . . . . . . . 4-28
Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-30
Door lock button . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27
from inside the vehicle . . . . . . . . . . . . . . . . . . . . . . . 4-27
from outside the vehicle . . . . . . . . . . . . . . . . . . . . . . 4-25
Drinks holders, see cup holders . . . . . . . . . . . . . . . . . 4-195
D

I13

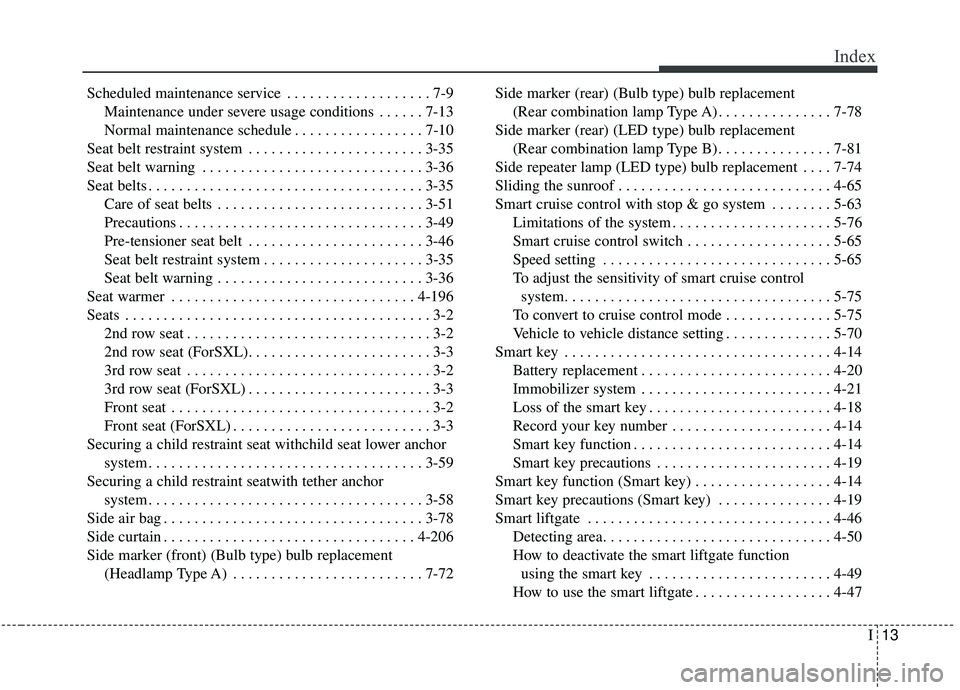

Index
Scheduled maintenance service . . . . . . . . . . . . . . . . . . . 7-9Maintenance under severe usage conditions . . . . . . 7-13
Normal maintenance schedule . . . . . . . . . . . . . . . . . 7-10
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . . 3-35
Seat belt warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-35 Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-51
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-49
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-46
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . 3-35
Seat belt warning . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-196
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 3-2 2nd row seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
2nd row seat (ForSXL). . . . . . . . . . . . . . . . . . . . . . . . 3-3
3rd row seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
3rd row seat (ForSXL) . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Front seat (ForSXL) . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Securing a child restraint seat withchild seat lower anchor system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-59
Securing a child restraint seatwith tether anchor system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-58
Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-78\
Side curtain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-206
Side marker (front) (Bulb type) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . 7-72 Side marker (rear) (Bulb type) bulb replacement
(Rear combination lamp Type A) . . . . . . . . . . . . . . . 7-78
Side marker (rear) (LED type) bulb replacement (Rear combination lamp Type B) . . . . . . . . . . . . . . . 7-81
Side repeater lamp (LED type) bulb replacement . . . . 7-74
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Smart cruise control with stop & go system . . . . . . . . 5-63 Limitations of the system . . . . . . . . . . . . . . . . . . . . . 5-76
Smart cruise control switch . . . . . . . . . . . . . . . . . . . 5-65
Speed setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-65
To adjust the sensitivity of smart cruise control system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-\
75
To convert to cruise control mode . . . . . . . . . . . . . . 5-75
Vehicle to vehicle distance setting . . . . . . . . . . . . . . 5-70
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
14 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
Loss of the smart key . . . . . . . . . . . . . . . . . . . . . . . . 4-18
Record your key number . . . . . . . . . . . . . . . . . . . . . 4-14
Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . 4-19
Smart key function (Smart key) . . . . . . . . . . . . . . . . . . 4-14
Smart key precautions (Smart key) . . . . . . . . . . . . . . . 4-19
Smart liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46 Detecting area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-50
How to deactivate the smart liftgate function using the smart key . . . . . . . . . . . . . . . . . . . . . . . . 4-49
How to use the smart liftgate . . . . . . . . . . . . . . . . . . 4-47
