Maintenance
LIGHT BULBS
Bulb replacement precaution
Please keep extra bulbs on hand
with appropriate wattage ratings in
case of emergencies.
Refer to “Bulb Wattage” in chapter 8.
When changing lamps, first turn off
the engine at a safe place, firmly
apply the parking brake and detach
the battery’s negative (-) terminal.
Use only bulbs of the specifiedwattage. net-work failure
The headlamp, taillight, and fog light
may light up when the head lamp
switch is turned ON, and not light up
when the taillight or for light switch is
turned ON. This may be cause by
network failure or vehicle electrical
control system malfunction. If there is
a problem, we recommend the sys-
tem be serviced by an authorized Kia
dealer.
trical control system stabilization
A normally functioning lamp may
flicker momentarily. This momentary
occurrence is due to stabilization
function of the vehicle's electrical on
control system. If the lamp soon
returns to normal, the vehicle does
not require service.
However, if the lamp goes out after
the momentary flickering, or the flick-
ering continues, we recommend the
system be serviced by an authorized
Kia dealer.
WARNING- Working on the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.
CAUTION -Light replace-
ment
Be sure to replace the burned- out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
CAUTION -Headlamp
Lens
To prevent damage, do notclean the headlamp lens withchemical solvents or strongdetergents.

767
Maintenance

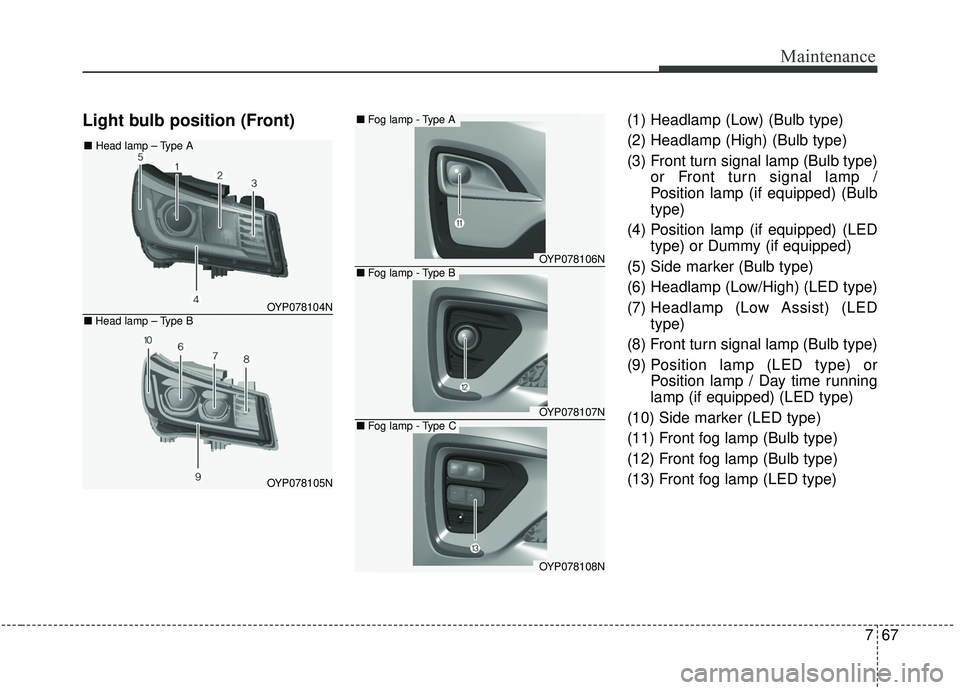

Light bulb position (Front)(1) Headlamp (Low) (Bulb type)
(2) Headlamp (High) (Bulb type)
(3) Front turn signal lamp (Bulb type)or Front turn signal lamp /
Position lamp (if equipped) (Bulb
type)
(4) Position lamp (if equipped) (LED type) or Dummy (if equipped)
(5) Side marker (Bulb type)
(6) Headlamp (Low/High) (LED type)
(7) Headlamp (Low Assist) (LED
type)
(8) Front turn signal lamp (Bulb type)
(9) P osition lamp (LED type) or
Position lamp / Day time running
lamp (if equipped) (LED type)
(10) Side marker (LED type)
(11) Front fog lamp (Bulb type)
(12) Front fog lamp (Bulb type)
(13) Front fog lamp (LED type)
OYP078104N
OYP078105N
■ Head lamp – Type B
■Head lamp – Type A
OYP078106N
OYP078107N
OYP078108N
■Fog lamp - Type A
■Fog lamp - Type B
■Fog lamp - Type C

83

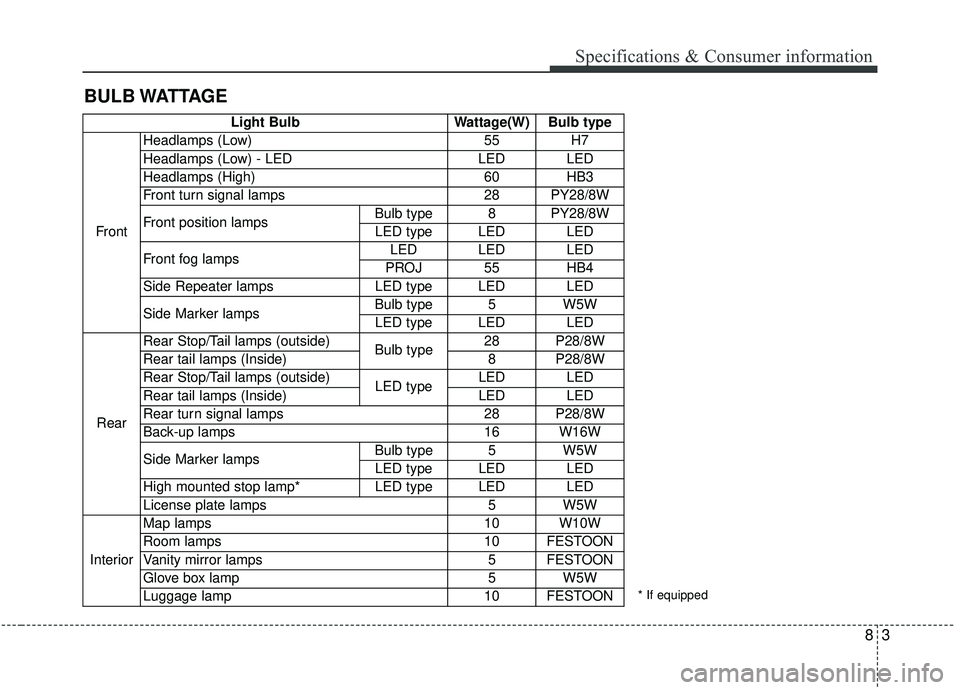

BULB WATTAGESpecifications & Consumer information
* If equipped
Light Bulb
Wattage(W) Bulb type
Front Headlamps (Low)
55H7
Headlamps (Low) - LED LED LED
Headlamps (High) 60 HB3
Front turn signal lamps 28 PY28/8W
Front position lamps Bulb type 8 PY28/8W
LED type LED LED
Front fog lamps LED LED LED
PROJ 55 HB4
Side Repeater lamps LED type LED LED
Side Marker lamps Bulb type 5 W5W
LED type LED LED
Rear Rear Stop/Tail lamps (outside)
Bulb type28 P28/8W
Rear tail lamps (Inside) 8 P28/8W
Rear Stop/Tail lamps (outside) LED typeLED LED
Rear tail lamps (Inside) LED LED
Rear turn signal lamps 28 P28/8W
Back-up lamps 16 W16W
Side Marker lamps Bulb type 5 W5W
LED type LED LED
High mounted stop lamp* LED type LED LED
License plate lamps 5 W5W
Interior Map lamps
10 W10W
Room lamps 10 FESTOON
Vanity mirror lamps 5 FESTOON
Glove box lamp 5 W5W
Luggage lamp 10 FESTOON

Index
2I

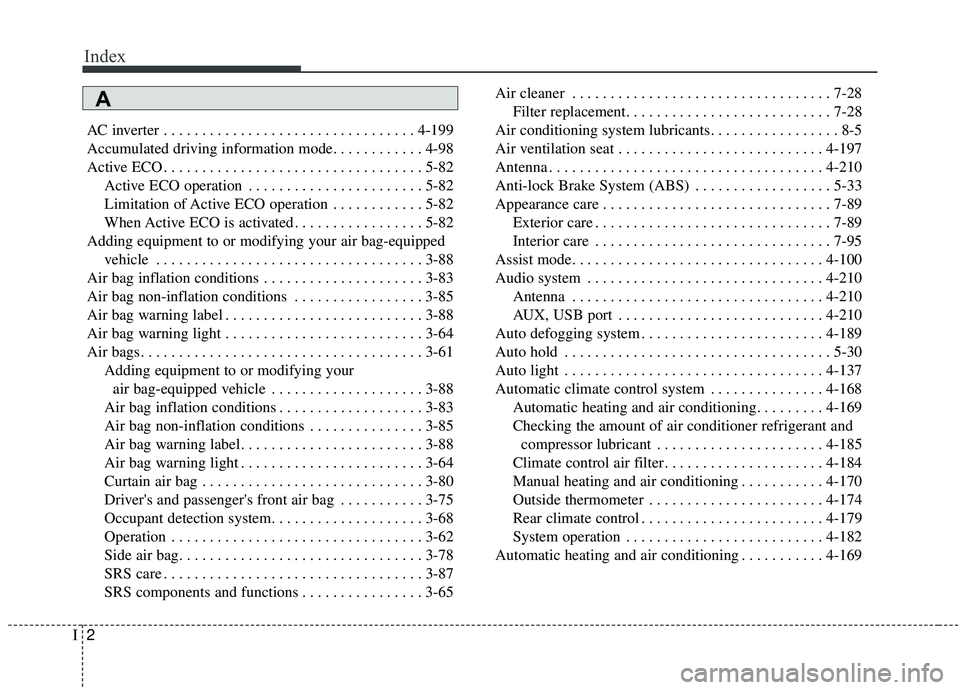

AC inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-199
Accumulated driving information mode. . . . . . . . . . . . 4-98
Active ECO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-82\
Active ECO operation . . . . . . . . . . . . . . . . . . . . . . . 5-82
Limitation of Active ECO operation . . . . . . . . . . . . 5-82
When Active ECO is activated . . . . . . . . . . . . . . . . . 5-82
Adding equipment to or modifying your air bag-equipped vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
88
Air bag inflation conditions . . . . . . . . . . . . . . . . . . . . . 3-83
Air bag non-inflation conditions . . . . . . . . . . . . . . . . . 3-85
Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . . 3-88
Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . . . 3-64
Air bags. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 3-61 Adding equipment to or modifying your air bag-equipped vehicle . . . . . . . . . . . . . . . . . . . . 3-88
Air bag inflation conditions . . . . . . . . . . . . . . . . . . . 3-83
Air bag non-inflation conditions . . . . . . . . . . . . . . . 3-85
Air bag warning label. . . . . . . . . . . . . . . . . . . . . . . . 3-88
Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . 3-64
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-80
Driver's and passenger's front air bag . . . . . . . . . . . 3-75
Occupant detection system. . . . . . . . . . . . . . . . . . . . 3-68
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-62
Side air bag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-78
SRS care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-87\
SRS components and functions . . . . . . . . . . . . . . . . 3-65 Air cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-28\
Filter replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . 7-28
Air conditioning system lubricants. . . . . . . . . . . . . . . . . 8-5
Air ventilation seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-197
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-210
Anti-lock Brake System (ABS) . . . . . . . . . . . . . . . . . . 5-33
Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-89 Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-89
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-95
Assist mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-210 Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-210
AUX, USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-210
Auto defogging system . . . . . . . . . . . . . . . . . . . . . . . . 4-189
Auto hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-\
30
Auto light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13\
7
Automatic climate control system . . . . . . . . . . . . . . . 4-168 Automatic heating and air conditioning. . . . . . . . . 4-169
Checking the amount of air conditioner refrigerant and compressor lubricant . . . . . . . . . . . . . . . . . . . . . . 4-185
Climate control air filter. . . . . . . . . . . . . . . . . . . . . 4-184
Manual heating and air conditioning . . . . . . . . . . . 4-170
Outside thermometer . . . . . . . . . . . . . . . . . . . . . . . 4-174
Rear climate control . . . . . . . . . . . . . . . . . . . . . . . . 4-179
System operation . . . . . . . . . . . . . . . . . . . . . . . . . . 4-182
Automatic heating and air conditioning . . . . . . . . . . . 4-169
A

I7
Index
Front fog lamp bulb replacement . . . . . . . . . . . . . . . . . 7-75
Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-143
Front seat adjustment - power . . . . . . . . . . . . . . . . . . . . 3-8
Front seat adjustment-manual. . . . . . . . . . . . . . . . . . . . . 3-7
Front turn signal lamp bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . 7-72
Front turn signal lamp bulb replacement (Headlamp Type B) . . . . . . . . . . . . . . . . . . . . . . . . . 7-74
Fuel economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-60 Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . 4-60
Emergency fuel filler lid release . . . . . . . . . . . . . . . 4-63
Opening the fuel filler lid. . . . . . . . . . . . . . . . . . . . . 4-60
Fuel gauge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
92
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Do not use methanol . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Fuel additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Gasoline containing alcohol and methanol . . . . . . . . 1-3
Operation in foreign countries . . . . . . . . . . . . . . . . . . 1-5
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 7-53 Engine compartment fuse replacement . . . . . . . . . . 7-57
Fuse switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-56
Fuse/relay panel description. . . . . . . . . . . . . . . . . . . 7-59
Inner panel fuse replacement . . . . . . . . . . . . . . . . . 7-55
Main fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-58 Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-91
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19\
3
Glove box lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-149
Glove box lamp replacement . . . . . . . . . . . . . . . . . . . . 7-86
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Hazardous driving conditions . . . . . . . . . . . . . . . . . . . 5-105
Headlamp (High beam) bulb replacement
(Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . 7-70
Headlamp (LED type) replacement (Headlamp Type B) . . . . . . . . . . . . . . . . . . . . . . . . . 7-73
Headlamp (Low beam) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . 7-69
Headlight (Headlamp) escort function . . . . . . . . . . . . 4-136
Headlight leveling device . . . . . . . . . . . . . . . . . . . . . . 4-143
Headlight position. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-137
Headrest (Front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Heated steering wheel. . . . . . . . . . . . . . . . . . . . . . . . . . 4-72
High - beam operation . . . . . . . . . . . . . . . . . . . . . . . . 4-137
High beam assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-138
High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-84G
H

I9
Index

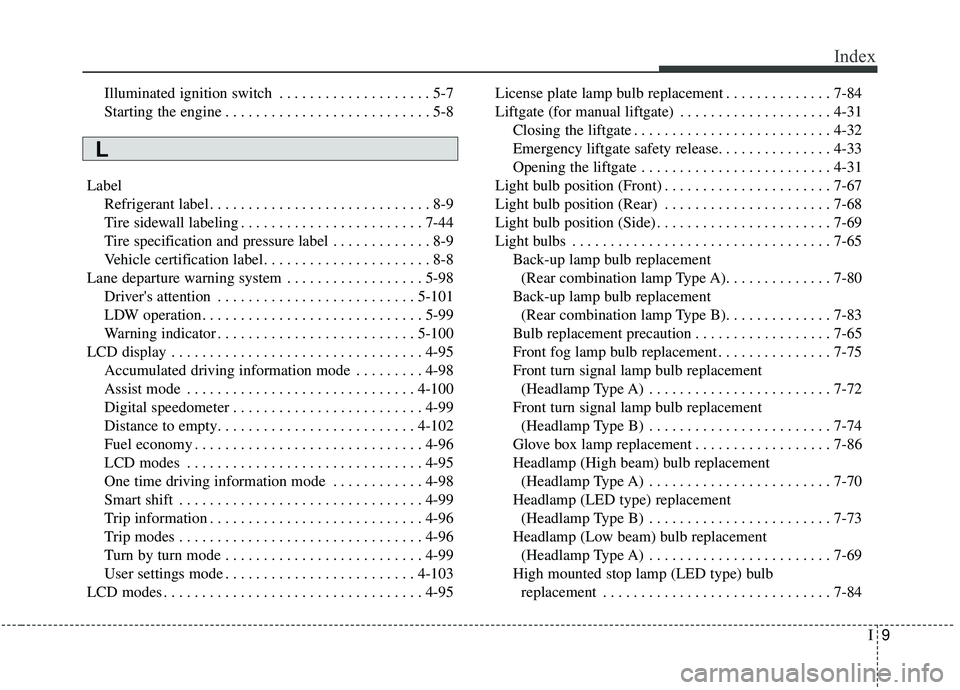

Illuminated ignition switch . . . . . . . . . . . . . . . . . . . . 5-7
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Label Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . 7-44
Tire specification and pressure label . . . . . . . . . . . . . 8-9
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . . 8-8
Lane departure warning system . . . . . . . . . . . . . . . . . . 5-98 Driver's attention . . . . . . . . . . . . . . . . . . . . . . . . . . 5-101
LDW operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-99
Warning indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 5-100
LCD display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-95 Accumulated driving information mode . . . . . . . . . 4-98
Assist mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Digital speedometer . . . . . . . . . . . . . . . . . . . . . . . . . 4-99
Distance to empty. . . . . . . . . . . . . . . . . . . . . . . . . . 4-102
Fuel economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
LCD modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-95
One time driving information mode . . . . . . . . . . . . 4-98
Smart shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-99
Trip information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
Trip modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
Turn by turn mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-99
User settings mode . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
LCD modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-95\
License plate lamp bulb replacement . . . . . . . . . . . . . . 7-84
Liftgate (for manual liftgate) . . . . . . . . . . . . . . . . . . . . 4-31
Closing the liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
Emergency liftgate safety release. . . . . . . . . . . . . . . 4-33
Opening the liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 4-31
Light bulb position (Front) . . . . . . . . . . . . . . . . . . . . . . 7-67
Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . . . 7-68
Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . . . . 7-69
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-65\
Back-up lamp bulb replacement (Rear combination lamp Type A). . . . . . . . . . . . . . 7-80
Back-up lamp bulb replacement (Rear combination lamp Type B). . . . . . . . . . . . . . 7-83
Bulb replacement precaution . . . . . . . . . . . . . . . . . . 7-65
Front fog lamp bulb replacement . . . . . . . . . . . . . . . 7-75
Front turn signal lamp bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . 7-72
Front turn signal lamp bulb replacement (Headlamp Type B) . . . . . . . . . . . . . . . . . . . . . . . . 7-74
Glove box lamp replacement . . . . . . . . . . . . . . . . . . 7-86
Headlamp (High beam) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . 7-70
Headlamp (LED type) replacement (Headlamp Type B) . . . . . . . . . . . . . . . . . . . . . . . . 7-73
Headlamp (Low beam) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . 7-69
High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-84
L

Index
10I
License plate lamp bulb replacement. . . . . . . . . . . . 7-84
Light bulb position (Front). . . . . . . . . . . . . . . . . . . . 7-67
Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . 7-68
Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . 7-69
Luggage lamp (Bulb type) bulb replacement. . . . . . 7-87
Map lamp (Bulb type) bulb replacement . . . . . . . . . 7-85
Position lamp (LED type) replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . 7-73
Rear turn signal lamp (Bulb type) bulb replacement (Rear combination lamp Type A). . . . . . . . . . . . . . 7-77
Rear turn signal lamp (Bulb type) bulb replacement (Rear combination lamp Type B). . . . . . . . . . . . . . 7-82
Room lamp bulb replacement . . . . . . . . . . . . . . . . . 7-85
Side marker (front) (Bulb type) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . 7-72
Side marker (rear) (Bulb type) bulb replacement (Rear combination lamp Type A). . . . . . . . . . . . . . 7-78
Side marker (rear) (LED type) bulb replacement (Rear combination lamp Type B). . . . . . . . . . . . . . 7-81
Side repeater lamp (LED type) bulb replacement . . 7-74
Stop and tail lamp (Bulb type) bulb replacement (Rear combination lamp Type A). . . . . . . . . . . . . . 7-75
Stop and tail lamp (LED type) bulb replacement (Rear combination lamp Type B). . . . . . . . . . . . . . 7-81
Tail lamp (inside) (Bulb type) bulb replacement (Rear combination lamp Type A). . . . . . . . . . . . . . 7-79
Vanity mirror lamp (Bulb type) bulb replacement . . 7-87 Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-135
Auto light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-137
Battery saver function . . . . . . . . . . . . . . . . . . . . . . 4-135
Daytime running light . . . . . . . . . . . . . . . . . . . . . . 4-135
Dynamic Bending Light (DBL) . . . . . . . . . . . . . . . 4-143
Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-143
Headlight (Headlamp) escort function . . . . . . . . . . 4-135
Headlight leveling device . . . . . . . . . . . . . . . . . . . . 4-143
Headlight position . . . . . . . . . . . . . . . . . . . . . . . . . 4-136
High - beam operation . . . . . . . . . . . . . . . . . . . . . . 4-137
High beam assist . . . . . . . . . . . . . . . . . . . . . . . . . . 4-138
Parking & Tail light . . . . . . . . . . . . . . . . . . . . . . . . 4-136
Turn signals and lane change signals . . . . . . . . . . . 4-142
Limp home (override) procedure . . . . . . . . . . . . . . . 4-13
Loss of the smart key (Smart key) . . . . . . . . . . . . . . . . 4-18
Lubricants and capacities . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Luggage lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-149
Luggage lamp (Bulb type) bulb replacement . . . . . . . . 7-88
Luggage net (Holder) . . . . . . . . . . . . . . . . . . . . . . . . . 4-207
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Maintenance Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Explanation of scheduled maintenance items . . . . . 7-15
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
M

Index
16I
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-149
Vanity mirror lamp (Bulb type) bulb replacement . . . . 7-87
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . . . . 8-8
Vehicle data collection and event data recorders . . . . . . 1-7
Vehicle handling instructions . . . . . . . . . . . . . . . . . . . . . 1-6
Vehicle identification number (VIN) . . . . . . . . . . . . . . . 8-8
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-123Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . 5-127
Tire and loading information label. . . . . . . . . . . . . 5-123
Vehicle stability management (VSM) . . . . . . . . . . . . . 5-40
Vehicle weight glossary . . . . . . . . . . . . . . . . . . . . . . . 5-129
Warning and Indicator lights . . . . . . . . . . . . . . . . . . . 4-108
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Warning messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-107
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-27 Checking the washer fluid level . . . . . . . . . . . . . . . . 7-27
Wheel alignment and tire balance . . . . . . . . . . . . . . . . 7-42
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-52 Power window lock button and rear sunroof lock button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-55 Windshield defrosting and defogging. . . . . . . . . . . . . 4-186
Automatic climate control system . . . . . . . . . . . . . 4-189
Defogging logic . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-190
Manual climate control system . . . . . . . . . . . . . . . 4-186
Windshield washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-146
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-145
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-113 Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-113
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32 Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-145 Rear window wiper and washer switch . . . . . . . . . 4-147
Windshield washers . . . . . . . . . . . . . . . . . . . . . . . . 4-146
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . 4-145
Wireless smart phone charging system . . . . . . . . . . . 4-201
360° camera monitoring system . . . . . . . . . . . . . . . . . 4-134
W
V
ETC
