2019 KIA SEDONA wheel

Maintenance
96
7

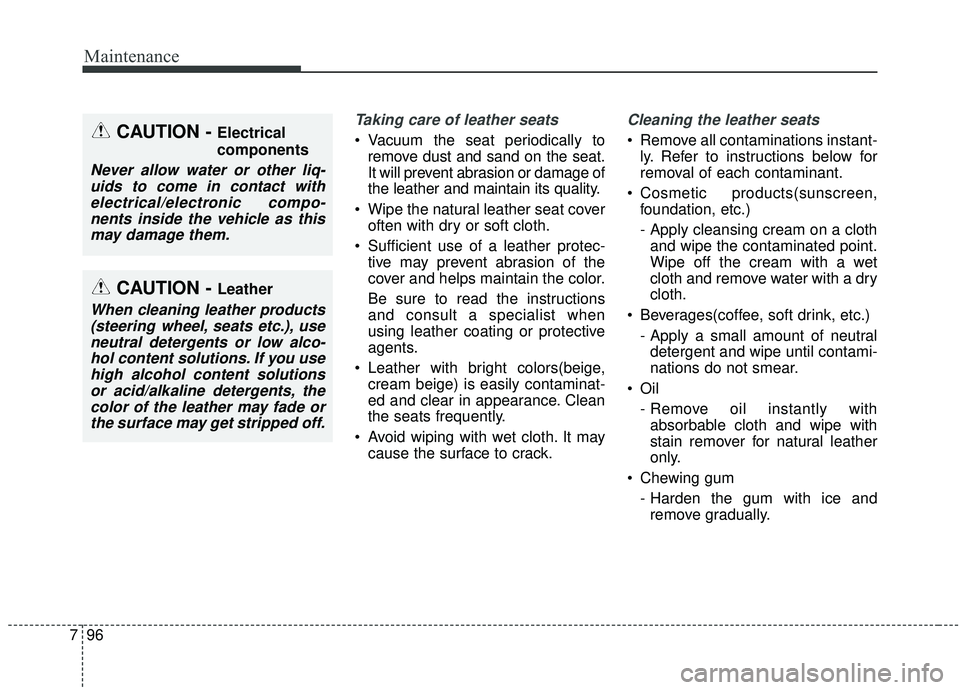

Taking care of leather seats
Vacuum the seat periodically to
remove dust and sand on the seat.
It will prevent abrasion or damage of
the leather and maintain its quality.
Wipe the natural leather seat cover often with dry or soft cloth.
Sufficient use of a leather protec- tive may prevent abrasion of the
cover and helps maintain the color.
Be sure to read the instructions
and consult a specialist when
using leather coating or protective
agents.
Leather with bright colors(beige, cream beige) is easily contaminat-
ed and clear in appearance. Clean
the seats frequently.
Avoid wiping with wet cloth. It may cause the surface to crack.
Cleaning the leather seats
Remove all contaminations instant-ly. Refer to instructions below for
removal of each contaminant.
Cosmetic products(sunscreen, foundation, etc.)
- Apply cleansing cream on a clothand wipe the contaminated point.
Wipe off the cream with a wet
cloth and remove water with a dry
cloth.
Beverages(coffee, soft drink, etc.) - Apply a small amount of neutraldetergent and wipe until contami-
nations do not smear.
Oil - Remove oil instantly withabsorbable cloth and wipe with
stain remover for natural leather
only.
Chewing gum - Harden the gum with ice andremove gradually.CAUTION - Electrical
components
Never allow water or other liq-uids to come in contact withelectrical/electronic compo-nents inside the vehicle as thismay damage them.
CAUTION - Leather
When cleaning leather products(steering wheel, seats etc.), useneutral detergents or low alco-hol content solutions. If you usehigh alcohol content solutionsor acid/alkaline detergents, thecolor of the leather may fade orthe surface may get stripped off.

Specifications & Consumer information
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-5
Recommended lubricants and capacities . . . . . . . . 8-6
• Recommended SAE viscosity number. . . . . . . . . . . . . 8-7
Vehicle identification number (VIN) . . . . . . . . . . . 8-8
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . 8-8
Tire specification and pressure label . . . . . . . . . . . 8-9
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
8

28
DIMENSIONS Specifications & Consumer information
Itemmm (in)
Overall length
5,115 (201.4)
Overall width
1,985 (78.1)
Overall height
Without Roof rack1,740 (68.5)
With Roof rack1,755 (69.1)
Tread
Front
235/65 R171,745 (68.7)
235/60 R181,740 (68.5)
235/55 R191,735 (68.3)
Rear
235/65 R171,752 (68.9)
235/60 R181,747 (68.8)
235/55 R191,742 (68.6)
Wheelbase
3,060 (120.5)
Item LAMBDA 3.3 GDI
Displacement cc (cu. in) 3,342 (203.94)
Bore x Stroke mm (in.)92 X 83.8 (3.62 X 3.29)
Firing order 1-2-3-4-5-6
No. of cylinders 6, V - type
ENGINE

48
TIRES AND WHEELS Specifications & Consumer information
ItemTire size Wheel sizee Inflation pressure [kPa (psi)]
Wheel lug nut torque

Normal load *1Maximum load
Front Rear Front Rear
Full size tire 235/65 R17 6.5J X 17 240 (35) 240 (35) 240 (35) 240 (35)
11 ~ 13
(79 ~ 94, 107 ~ 127)
235/60 R18 7.0J X 18 240 (35) 240 (35) 240 (35) 240 (35)
235/55 R19 7.5J X 19 240 (35) 240 (35) 240 (35) 240 (35)
Compact spare tire T135/90 R17 4.0T X 17 420 (60) 420 (60) 420 (60) 420 (60)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size can damage the related parts or make it work irregularly.
*1 : Normal load : Up to 3 persons
✽ ✽ NOTICE
• It is permissible to add 21 kPa (3 psi) to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 7 kPa (1 psi) for every -11°C (12°F) temperature drop. If extreme temperature variations are
expected, re-check your tire pressure as necessary to keep them properly inflated.
• We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that aff\
ects driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 10.5 kPa (1.5 psi)

I7
Index
Front fog lamp bulb replacement . . . . . . . . . . . . . . . . . 7-75
Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-143
Front seat adjustment - power . . . . . . . . . . . . . . . . . . . . 3-8
Front seat adjustment-manual. . . . . . . . . . . . . . . . . . . . . 3-7
Front turn signal lamp bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . 7-72
Front turn signal lamp bulb replacement (Headlamp Type B) . . . . . . . . . . . . . . . . . . . . . . . . . 7-74
Fuel economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-60 Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . 4-60
Emergency fuel filler lid release . . . . . . . . . . . . . . . 4-63
Opening the fuel filler lid. . . . . . . . . . . . . . . . . . . . . 4-60
Fuel gauge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
92
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Do not use methanol . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Fuel additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Gasoline containing alcohol and methanol . . . . . . . . 1-3
Operation in foreign countries . . . . . . . . . . . . . . . . . . 1-5
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 7-53 Engine compartment fuse replacement . . . . . . . . . . 7-57
Fuse switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-56
Fuse/relay panel description. . . . . . . . . . . . . . . . . . . 7-59
Inner panel fuse replacement . . . . . . . . . . . . . . . . . 7-55
Main fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-58 Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-91
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19\
3
Glove box lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-149
Glove box lamp replacement . . . . . . . . . . . . . . . . . . . . 7-86
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Hazardous driving conditions . . . . . . . . . . . . . . . . . . . 5-105
Headlamp (High beam) bulb replacement
(Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . 7-70
Headlamp (LED type) replacement (Headlamp Type B) . . . . . . . . . . . . . . . . . . . . . . . . . 7-73
Headlamp (Low beam) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . 7-69
Headlight (Headlamp) escort function . . . . . . . . . . . . 4-136
Headlight leveling device . . . . . . . . . . . . . . . . . . . . . . 4-143
Headlight position. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-137
Headrest (Front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Heated steering wheel. . . . . . . . . . . . . . . . . . . . . . . . . . 4-72
High - beam operation . . . . . . . . . . . . . . . . . . . . . . . . 4-137
High beam assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-138
High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-84G
H

Index
14I
Smart shift. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
99
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-107
Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11\
1
Spare tireA flat tire indoor storage . . . . . . . . . . . . . . . . . . . . . 6-19
Changing tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21
Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16
Removing and storing the spare tire . . . . . . . . . . . . 6-17
Storing the spare tire . . . . . . . . . . . . . . . . . . . . . . . . 6-18
Special driving conditions . . . . . . . . . . . . . . . . . . . . . 5-105 Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-107
Driving in flooded areas. . . . . . . . . . . . . . . . . . . . . 5-109
Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . . 5-108
Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-109
Hazardous driving conditions . . . . . . . . . . . . . . . . 5-105
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-109
Reducing the risk of a rollover. . . . . . . . . . . . . . . . 5-105
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . 5-106
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . 5-107
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
SRS care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-87
SRS components and functions . . . . . . . . . . . . . . . . . . 3-65
Starting difficulties, see engine will not start . . . . . . . . . 6-4
Starting the engine - With a smart key . . . . . . . . . . . . . 5-12
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-70 Electric power steering. . . . . . . . . . . . . . . . . . . . . . . 4-70
Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . 4-72
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-73 Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-70
Tilt and telescopic steering. . . . . . . . . . . . . . . . . . . . 4-71
Stop and tail lamp (Bulb type) bulb replacement (Rear combination lamp Type A) . . . . . . . . . . . . . . . 7-75
Stop and tail lamp (LED type) bulb replacement (Rear combination lamp Type B) . . . . . . . . . . . . . . . 7-81
Storage compartment . . . . . . . . . . . . . . . . . . . . . . . . . 4-192 Center console storage . . . . . . . . . . . . . . . . . . . . . . 4-193
Cool box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-194
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-193
Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-194
Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-194
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-64 Rear sunroof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . 4-69
Sunshade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67\
Tilting the sunroof (for front sunroof) . . . . . . . . . . . 4-67
Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . . . 4-69
Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-67
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
195
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-91\
Tail lamp (inside) (Bulb type) bulb replacement (Rear combination lamp Type A) . . . . . . . . . . . . . . . 7-79
T

I15
Index
Theft alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
Disarmed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . . . . 4-71
Tilting the sunroof (for front sunroof) . . . . . . . . . . . . . 4-67
Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-41
Tire specification and pressure label . . . . . . . . . . . . . . . 8-9
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . 7-39, 8-4 All season tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
Checking tire inflation pressure . . . . . . . . . . . . . . . . 7-40
Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Recommended cold tire inflation pressures . . . . . . . 7-39
Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
Summer tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-39\
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44
Tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-40
Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-41
Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . 7-44
Tire terminology and definitions . . . . . . . . . . . . . . . 7-48
Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44
Wheel alignment and tire balance . . . . . . . . . . . . . . 7-42
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44 Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 6-21
Emergency towing . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23
Removable towing hook (Front) . . . . . . . . . . . . . . . 6-22
Towing service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21
Trailer brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-116
Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-114 Driving with a trailer . . . . . . . . . . . . . . . . . . . . . . . 5-116
Hitches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11\
5
If you do decide to pull a trailer . . . . . . . . . . . . . . 5-120
Maintenance when trailer towing . . . . . . . . . . . . . . 5-120
Safety chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-115
Trailer brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-116
Transaxle - Automatic transaxle . . . . . . . . . . . . . . . . . . 5-14
Transaxle shift indicator . . . . . . . . . . . . . . . . . . . . . . . . 4-94
Transmitter precautions (Folding key) . . . . . . . . . . . . . . 4-9
Trip information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-91
Trip modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96\
Turn by turn mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-99
Turn signals and lane change signals . . . . . . . . . . . . . 4-142
USB charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-201
User settings mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
Using a child restraint system . . . . . . . . . . . . . . . . . . . 3-54
U

Index
16I
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-149
Vanity mirror lamp (Bulb type) bulb replacement . . . . 7-87
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . . . . 8-8
Vehicle data collection and event data recorders . . . . . . 1-7
Vehicle handling instructions . . . . . . . . . . . . . . . . . . . . . 1-6
Vehicle identification number (VIN) . . . . . . . . . . . . . . . 8-8
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-123Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . 5-127
Tire and loading information label. . . . . . . . . . . . . 5-123
Vehicle stability management (VSM) . . . . . . . . . . . . . 5-40
Vehicle weight glossary . . . . . . . . . . . . . . . . . . . . . . . 5-129
Warning and Indicator lights . . . . . . . . . . . . . . . . . . . 4-108
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Warning messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-107
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-27 Checking the washer fluid level . . . . . . . . . . . . . . . . 7-27
Wheel alignment and tire balance . . . . . . . . . . . . . . . . 7-42
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-52 Power window lock button and rear sunroof lock button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-55 Windshield defrosting and defogging. . . . . . . . . . . . . 4-186
Automatic climate control system . . . . . . . . . . . . . 4-189
Defogging logic . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-190
Manual climate control system . . . . . . . . . . . . . . . 4-186
Windshield washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-146
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-145
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-113 Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-113
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32 Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-145 Rear window wiper and washer switch . . . . . . . . . 4-147
Windshield washers . . . . . . . . . . . . . . . . . . . . . . . . 4-146
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . 4-145
Wireless smart phone charging system . . . . . . . . . . . 4-201
360° camera monitoring system . . . . . . . . . . . . . . . . . 4-134
W
V
ETC
