2019 KIA SEDONA Features and Functions Guide

31ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
P
R
N D
+
_
(Buttons located below Gear Shift)
Heated and Ventilated Seats Video To view a video on your mobile device, snap this QR Code or visit the listed website
Refer to page 2 for more information
QR CODE
www.youtube.com/KiaFeatureVideos
A
P
R
N D
+
_
P
R
N D
+
_
(Buttons located below Gear Shift)(Type A shown)
Warming
( Yellow LED)
Ventilating (Blue LED)
B
B
B
B
C
C

•If ignition is turned OFF, then ON again within 30 minutes of Steering Wheel Heater being turned ON, the system will remain in the ON position
•System does NOT turn off when ignition is cycled To turn off system, press the Heated Steering Wheel button
QUICK TIPS

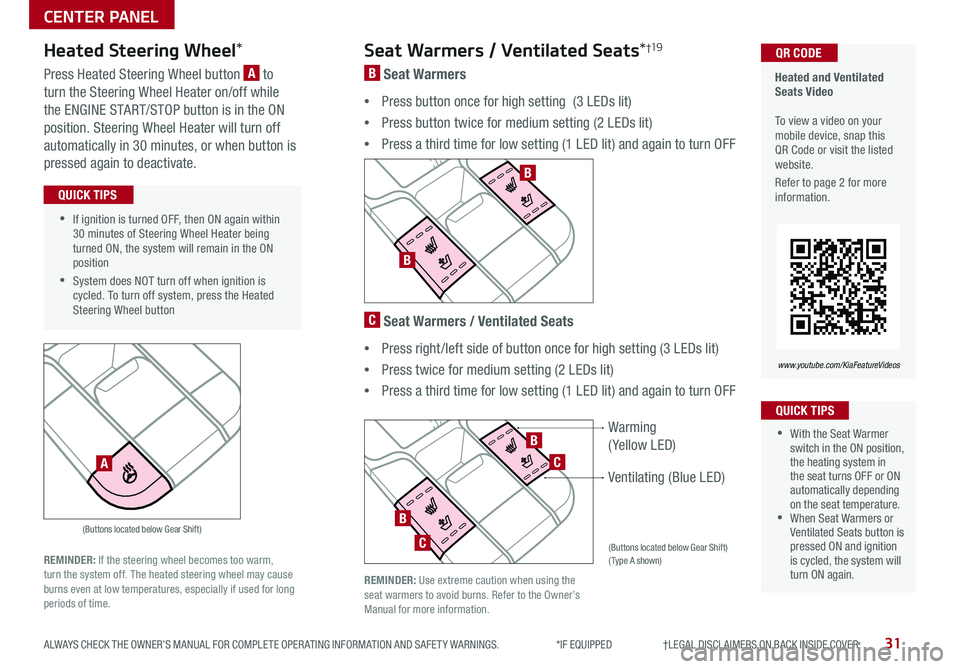

Heated Steering Wheel*
Press Heated Steering Wheel button A to
turn the Steering Wheel Heater on/off while
the ENGINE START/STOP button is in the ON
position Steering Wheel Heater will turn off
automatically in 30 minutes, or when button is
pressed again to deactivate
Seat Warmers / Ventilated Seats*†19
B Seat Warmers
•Press button once for high setting (3 LEDs lit)
•Press button twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
C Seat Warmers / Ventilated Seats
•Press right /left side of button once for high setting (3 LEDs lit)
•Press twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
•With the Seat Warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature •When Seat Warmers or Ventilated Seats button is pressed ON and ignition is cycled, the system will turn ON again
QUICK TIPS
REMINDER: If the steering wheel becomes too warm, turn the system off The heated steering wheel may cause burns even at low temperatures, especially if used for long periods of time
REMINDER: Use extreme caution when using the seat warmers to avoid burns Refer to the Owner’s Manual for more information
CENTER PANEL

SEATING
SEDONA FEATURES & FUNCTIONS GUIDE32*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Front Seat Headrest Adjustment†1 0
To raise headrest: Pull headrest up
To lower headrest: Press lock A, then press the headrest down
Driver Position Memory System*
The integrated system stores into memory the position of the Driver’s Seat
and the Outside Rearview Mirrors
To store positions into memory, first place the Gear Shift into P (Park) while
the Engine Start /Stop button* is in the ON position Then:
1 Adjust the Driver’s Seat and the Outside Rearview Mirrors
2 Press the SET button B on the control panel System will beep once
3 Press one of the memory buttons C within 5 seconds The system will
beep twice when memory has been stored
Easy Access Function*
• The system will automatically move the driver's seat forward when
the ignition or the Engine Start /Stop button is pressed to ON or
the ACC position
• The system will automatically move the driver's seat rearward when
the ignition or the Engine Start /Stop button is pressed to OFF
• To activate or deactivate the Easy Access Function, go to User
Settings in the LCD Instrument Cluster modes
(Buttons located on Driver's Door Panel)
B
CA
REMINDER: Do not operate the vehicle with the headrests removed Headrests can provide critical neck and head support in an accident
REMINDER: Do not attempt to operate the driver position memory system while the vehicle is moving This could result in loss of control of the vehicle

SEATING
33ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
A
AABC
B
C
SeatbackLumbar*SeatSeat Cushion
G
D
EF
When adjusting seat forward or backward, ensure seat clicks or locks into place before driving vehicle
QUICK TIP
Manual Adjustable Driver’s Seat*†17
Pull lever D to slide Seat forward/backward
Pull lever E up several times to raise Seat Height
Push lever E down several times to lower Seat Height
Pull lever F to adjust Seatback recline
Press G to adjust Lumbar support
Power Adjustable Driver’s Seat*†17
Move/press controls to adjust Seat forward/backward, Seat Cushion
up/down, Seatback recline or Lumbar up/down/forward/backward*
For more information on Power Adjustable Driver’s Seat operation, refer to the Owner's Manual.
REMINDER: Do not attempt to adjust the seat while the vehicle is moving This could result in loss of control of the vehicle
For more information on Manual Adjustable Driver’s Seat operation, refer to the Owner's Manual.
Do not attempt to adjust the seat while the vehicle is moving. This could result in loss of control of the vehicle.

SEATING
SEDONA FEATURES & FUNCTIONS GUIDE34*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER

•For specific information on how to use the 2nd- and 3rd- Row Center Seat Belts, please refer to your Owner's Manual
QUICK TIP
B
D
E
A
A
C
Sedona 2nd and 3rd Row Seats Video
To view a video on your mobile device, snap this QR Code or visit the listed website
Refer to page 2 for more information
QR CODE
www.youtube.com/KiaFeatureVideos
REMINDER: The lever must return to its original position for the Seatback to lock
2nd-Row Seat†17
Folding 2nd-Row Seat
1 Lower the 2nd-Row Seat Headrest to the lowest
position
2 Pull up on the Seatback folding lever A or strap*
and fold the Seatback down
Unfolding 2nd-Row Seat
1 Lift the folding Seatback lever A and move the
Seatback backward
2 Then lift the lever A again or return Seatback to an
upright usable position

•When you return Seatback to its original position, ensure it locks (clicks) into place •It may be necessary to slide the front Seat forward and adjust the front Seatbacks to fully lower rear seats •Lower Rear Headrests to the lowest position
QUICK TIPS
For more information on 2nd-Row Seat operation, refer to the Owner's Manual.
2nd-Row Walk-In Seat*†17
To get in and out of the 3rd-Row Seat, adjust the 2nd-Row Walk-
In Seat as follows:
1 Lift the 2nd-Row Seat armrest
2 Adjust headrest to the lowest position
3 Accessing from outside of the vehicle: Pull up the Walk-In
Lever A – the seat will stand up and headrest will fold
automatically C
4 Accessing from the 3rd-Row seat: Pull the release strap B –
the seat will stand up and headrest will fold automatically C
5 Return the 2nd-Row Seat to its original position and push until
it locks (clicks) into place and the headrest unfolds
Walk-In Seat Adjustment*
To adjust the 2nd Row Walk-In Seat, press button D for desired
seatback angle, forward/backward
Press button E to adjust seat cushion forward/backward
REMINDER: Do not use the button while front passenger seat is occupied
For more information on 2nd-Row Walk-In Seat operation, refer to the Owner's Manual.
(Buttons located on the side of the passenger's seatback)

SEATING
35ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Unfastening Center
Seat Belt
1 If Seat Belt is buckled, press the
release button on the buckle
2 To retract the center seatbelt
webbing G in 2nd and/or 3rd
rows, use the lap belt tongue
plate H to push the “release
button” in the small slot on the
center belt buckle J
A
B
C
D
Unfastening Center Seat Belt Video
To view a video on your mobile device, snap this QR Code or visit the listed website
Refer to page 2 for more information
QR CODE
www.youtube.com/KiaFeatureVideos
H
H
GGJJ
E
F
For more information on the Tumble Seat, refer to the Owner's Manual.
2nd-Row Tumble (Center) Seat*†17
Removing the Tumble Seat
1 Insert the seat belt into the belt assembly cover, and the
seat belt buckle into the seat cushion pocket
2 Lower the headrest A to the lowest position
3 Slide the Seat backward to the farthest position
4 Pull up the recline strap B and fold the Seatback forward
5
Pull the removal strap C and lift the back of the Tumble
Seat forward
6
Pull up the catch release lever D under the Tumble Seat
cushion and lift out of the anchors

For specific information on how to use the 2nd- and 3rd-Row Center Seat Belts, please refer to your Owner's Manual
QUICK TIP
Installing Tumble Seat
1 Place and align the Tumble Seat properly E
2 Lower Tumble Seat and push down firmly
until it clicks into place
3 Ensure the Tumble Seat is
latched securely by the
green indicator
4 Pull up the Tumble Seatback
recline strap F, lift Seatback
backward until it locks (clicks)
into place
5 Return the Seat Belt to its
proper position
REMINDERS:
•
Never install or remove the Tumble Seat while there are occupants in the 3rd-Row Seat
•
Make sure to raise up both the left and right side seatbacks before installing tumble seat
For more information on removing the Tumble Seat, refer to the Owner's Manual.

SEATING
SEDONA FEATURES & FUNCTIONS GUIDE36*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
3rd-Row Seat - Folding and Stowing*†17
Folding 3rd-Row Seat
1 Fully lower headrest A
2 Pull Seat folding strap located in the back of the Seatback B
3 Fold Seat down C
Stowing 3rd-Row Seats*
The rear seats can be folded and stowed in the
luggage compartment for additional cargo space
1 Fully lower headrests D
2 Pull release lever E and push Seat firmly in place
3 Press seat down firmly in stowing area
REMINDERS:
• The seat straps on the front and back of the 3rd-Row Seat are for folding only
• Do not stow the seat while the Seatback is folded down as this may cause damage to the mechanism
D
E
B
A
C
For more information on 3rd-Row Seat operation, refer to the Owner's Manual.
Sedona 2nd and 3rd Row Seat Video
To view a video on your mobile device, snap this QR Code or visit the listed website
Refer to page 2 for more information
QR CODE
www.youtube.com/KiaFeatureVideos

For specific information on how to use the 2nd- and 3rd-Row Center Seat Belts, please refer to your Owner's Manual
QUICK TIP

37ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
OTHER KEY FEATURES
A
B
C
D
FE
D
UnlockLock
(Type B shown)
(Type B shown)
REMINDERS:
•
The Manual Liftgate does not automatically open when the E button is pressed
•
The Liftgate unlocks when the Smart Key fob is within close proximity of the rear liftgate
Remote button configuration may vary depending on vehicle options.
Remote Keyless Entry (Folding Key)*
A Press the release button to unfold the key
B Press to lock All Doors
C Press to unlock Driver’s Door: Press twice in 4 seconds to unlock All Doors and
Liftgate, and manually open
D
Press and hold left /right button to automatically open/close the Power Sliding Doors*
E Manual Liftgate*: Press and hold for more than 1 second to unlock Liftgate and
manually open
E Power Liftgate*: Press and hold for more than 1 second for Power Liftgate to
automatically open/close
F Press and hold more than a half second for Panic Alarm To turn OFF Alarm,
press any button
Double-Turn Lock/Unlock All
•Turn counterclockwise once to unlock Driver’s Door
•Turn counterclockwise again within 4 seconds to unlock All Doors
•Turn clockwise once to lock All Doors
Kia Key Fob Video
To view a video on your mobile device, snap this QR Code or visit the listed website
Refer to page 2 for more information
QR CODE
www.youtube.com/KiaFeatureVideos

SEDONA FEATURES & FUNCTIONS GUIDE38*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Smart Key*†8
A Press to lock All Doors
B
Press to unlock Driver’s Door Press twice within 4 seconds to unlock All Doors
C Power Sliding Doors:
Option 1 - Press and hold the left /right button to automatically open/close the Power Sliding Doors*
Option 2 - With the Smart Key fob on your person, pull the Power Sliding Door handle once and the
door will open/close automatically
D Manual Liftgate*: Press and hold for more than 1 second to unlock Liftgate Then lift by the handle to manually open Liftgate
REMINDERS: •
The Liftgate does not automatically open when the D button is pressed
•
The Liftgate unlocks when the Smart Key fob is within close proximity of the vehicle
Power Liftgate*: Press and hold for Power Liftgate to open automatically Press again at any time to stop Press again to automatically close
Smart Power Liftgate*: When enabled, the liftgate will open automatically as you approach the rear of the vehicle with the Smart Key fob with you (For more details, see page 41)
E Press and hold for more than a half second for Panic Alarm To turn off Alarm, press any button
Driver’s Door Lock/Unlock button G:
•Press button once to unlock Driver’s Door
•Press again within 4 seconds to unlock All Doors
•
Press again to lock All Doors
Mechanical Key F:
•Press button on back of key fob to release Mechanical Key
•Use to unlock Driver’s Door
•Use to enable/disable Child-Protector Rear Door Lock
•Use to lock glove box
REMINDER: When reinserting the mechanical key, make sure it is pushed all the way in until there is a click sound
For more information on the Mechanical Key, please refer to your Owner’s Manual.
G
A
B
C
ED
C
F
(Type B shown)
• The Smart Key’s signal can be blocked by the normal operation of a cellular phone or smartphone To help prevent this, store each device separately
• If the Smart Key battery is weak or not working properly, hold the Smart Key fob up to the Engine Start /Stop button (Lock button side closest) and press to start engine
QUICK TIPS
Remote button configuration may vary depending on vehicle options.
To view these videos on your mobile device, snap these QR Codes or visit the listed website
Refer to page 2 for more information
Engine Start/Stop Button & Smart Key Video
Kia Key Fob Video

QR CODES
www.youtube.com/KiaFeatureVideos
OTHER KEY FEATURES
