2019 KIA RIO HATCHBACK turn signal

Maintenance
74
8

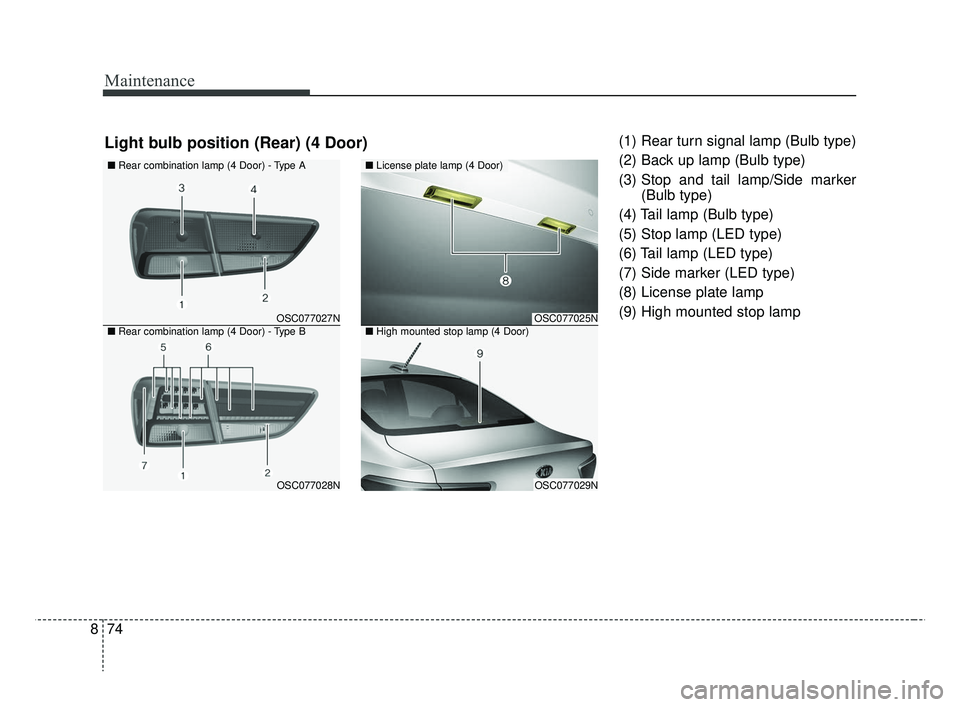

(1) Rear turn signal lamp (Bulb type)
(2) Back up lamp (Bulb type)
(3) Stop and tail lamp/Side marker
(Bulb type)
(4) Tail lamp (Bulb type)
(5) Stop lamp (LED type)
(6) Tail lamp (LED type)
(7) Side marker (LED type)
(8) License plate lamp
(9) High mounted stop lampLight bulb position (Rear) (4 Door)
OSC077027N
OSC077028N
■ Rear combination lamp (4 Door) - Type A
■Rear combination lamp (4 Door) - Type BOSC077025N
OSC077029N
■License plate lamp (4 Door)
■High mounted stop lamp (4 Door)
SC CAN (ENG) 8.qxp 7/18/2018 5:35 PM Page 74

877
Maintenance
4. Insert a new bulb by inserting itinto the bulb-socket.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.Front turn signal lamp bulb
replacement (Headlamp Type A)
1. Open the hood.
2. Remove the bulb-socket from theheadlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket 4. Insert a new bulb by inserting it
into the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.
OYB076051
SC CAN (ENG) 8.qxp 7/18/2018 5:35 PM Page 77

879
Maintenance
Headlamp (Low/High beam)
(LED type) bulb replacement
(Headlamp Type B)
If the headlamp (Low/High beam) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
Front turn signal lamp bulb
replacement (Headlamp Type B)
1. Open the hood.
2. Remove the headlamp bulb coverby turning it counterclockwise.
3. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
(Continued)
Always handle them carefully,and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit. A bulb should be
operated only when installed
in a headlamp.
If a bulb becomes damaged or cracked, replace it immediate-
ly and carefully dispose of it.
Wear eye protection when changing a bulb. Allow the
bulb to cool down before han-
dling it.
OSC078038
OYB076054
SC CAN (ENG) 8.qxp 7/18/2018 5:35 PM Page 79

Maintenance
84
8

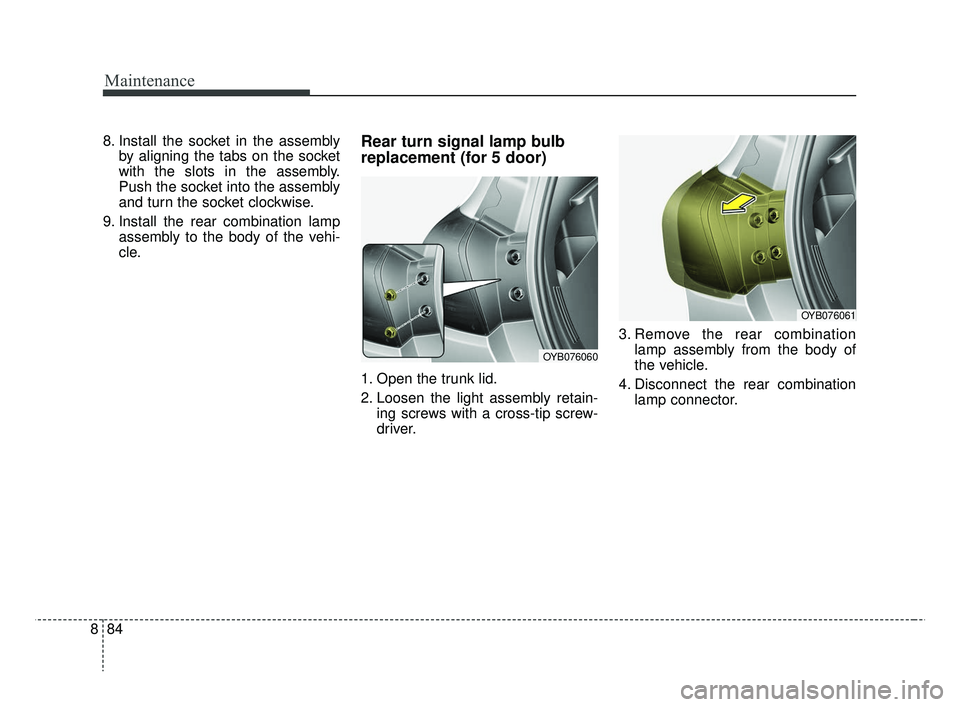

8. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9. Install the rear combination lamp assembly to the body of the vehi-
cle.Rear turn signal lamp bulb
replacement (for 5 door)
1. Open the trunk lid.
2. Loosen the light assembly retain-ing screws with a cross-tip screw-
driver. 3. Remove the rear combination
lamp assembly from the body of
the vehicle.
4. Disconnect the rear combination lamp connector.
OYB076060
OYB076061
SC CAN (ENG) 8.qxp 7/18/2018 5:36 PM Page 84

Maintenance
90
8

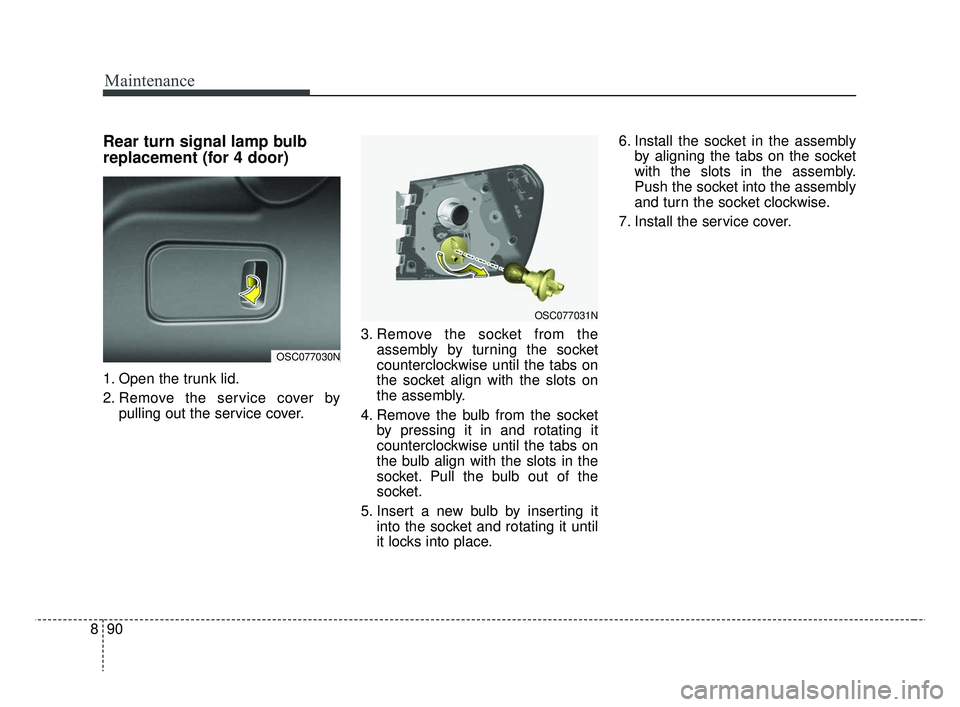

Rear turn signal lamp bulb
replacement (for 4 door)
1. Open the trunk lid.
2. Remove the service cover by
pulling out the service cover. 3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
5. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place. 6. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the service cover.
OSC077031N
OSC077030N
SC CAN (ENG) 8.qxp 7/18/2018 5:36 PM Page 90

93
Specifications & Consumer information

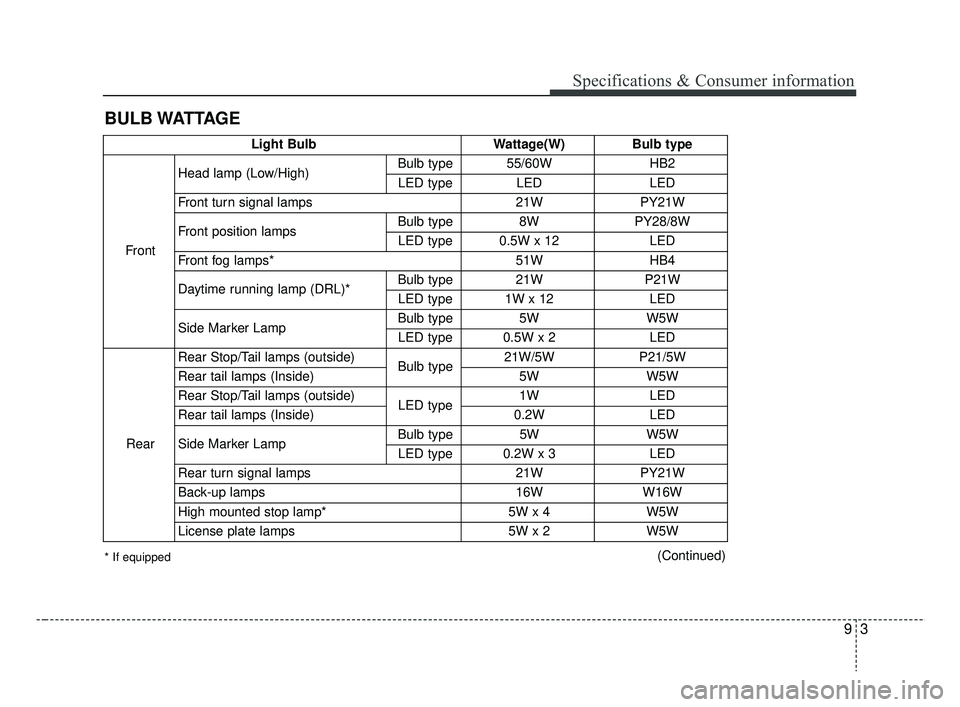

BULB WATTAGE
Light BulbWattage(W)Bulb type
Front Head lamp (Low/High)
Bulb type 55/60W
HB2
LED type LED LED
Front turn signal lamps 21WPY21W
Front position lamps Bulb type
8WPY28/8W
LED type 0.5W x 12 LED
Front fog lamps* 51WHB4
Daytime running lamp (DRL)* Bulb type 21W
P21W
LED type 1W x 12 LED
Side Marker Lamp Bulb type
5W W5W
LED type 0.5W x 2 LED
Rear Rear Stop/Tail lamps (outside)
Bulb type21W/5W
P21/5W
Rear tail lamps (Inside) 5WW5W
Rear Stop/Tail lamps (outside) LED type1W LED
Rear tail lamps (Inside) 0.2WLED
Side Marker Lamp Bulb type
5W W5W
LED type 0.2W x 3 LED
Rear turn signal lamps 21WPY21W
Back-up lamps 16WW16W
High mounted stop lamp* 5W x 4W5W
License plate lamps 5W x 2W5W
* If equipped(Continued)
