OPTIMA FEATURES & FUNCTIONS GUIDE38*IF EQUIPPED
Automatic turn off function*
The interior lights automatically
turn off approximately 30 seconds
after the ignition or Engine Start /
Stop button* is OFF .

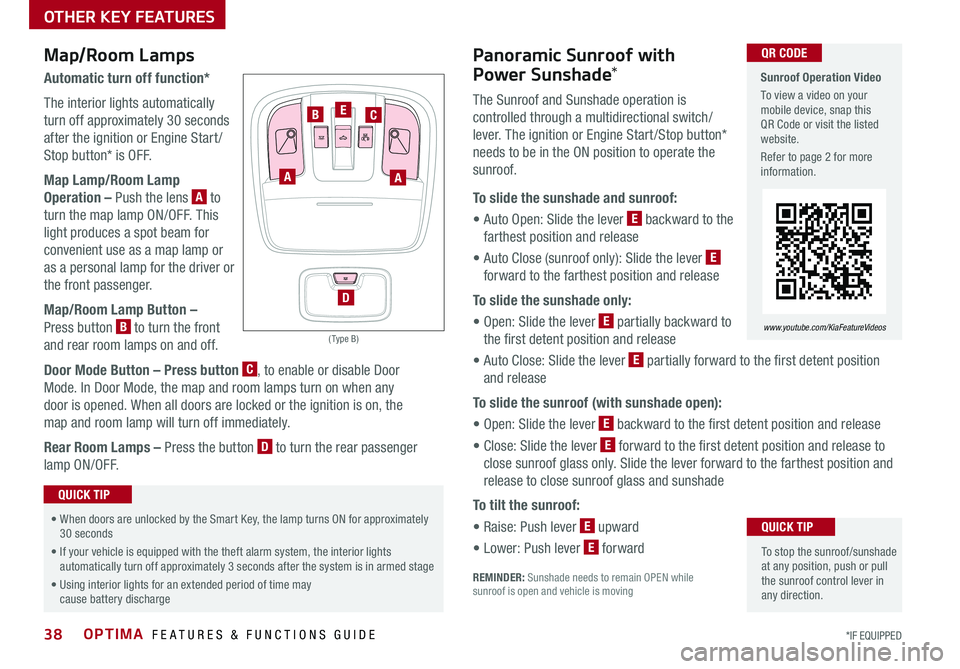

Map Lamp/Room Lamp
Operation – Push the lens A to
turn the map lamp ON/OFF . This
light produces a spot beam for
convenient use as a map lamp or
as a personal lamp for the driver or
the front passenger .
Map/Room Lamp Button –
Press button B to turn the front
and rear room lamps on and off .
Door Mode Button – Press button C, to enable or disable Door
Mode . In Door Mode, the map and room lamps turn on when any
door is opened . When all doors are locked or the ignition is on, the
map and room lamp will turn off immediately .
Rear Room Lamps – Press the button D to turn the rear passenger
lamp ON/OFF .
Panoramic Sunroof with
Power Sunshade*
The Sunroof and Sunshade operation is
controlled through a multidirectional switch/
lever . The ignition or Engine Start /Stop button*
needs to be in the ON position to operate the
sunroof .
To slide the sunshade and sunroof:
• Auto Open: Slide the lever E backward to the
farthest position and release
• Auto Close (sunroof only): Slide the lever E
forward to the farthest position and release
To slide the sunshade only:
• Open: Slide the lever E partially backward to
the first detent position and release
• Auto Close: Slide the lever E partially forward to the first detent position
and release
To slide the sunroof (with sunshade open):
• Open: Slide the lever E backward to the first detent position and release
• Close: Slide the lever E forward to the first detent position and release to
close sunroof glass only . Slide the lever forward to the farthest position and
release to close sunroof glass and sunshade
To tilt the sunroof:
• Raise: Push lever E upward
• Lower: Push lever E forward
• When doors are unlocked by the Smart Key, the lamp turns ON for approximately 30 seconds
• If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage
• Using interior lights for an extended period of time may cause battery discharge
QUICK TIP
To stop the sunroof/sunshade at any position, push or pull the sunroof control lever in any direction .
QUICK TIP
REMINDER: Sunshade needs to remain OPEN while sunroof is open and vehicle is moving
AA
BCE
D
( Type B)
Map/Room Lamps Sunroof Operation Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
OTHER KEY FEATURES
