OPTIMA FEATURES & FUNCTIONS GUIDE30*IF EQUIPPED
Auto Hold temporarily maintains the vehicle
at a standstill even though the brake pedal
is not depressed after the driver brings the
vehicle to a complete stop by depressing the
brake pedal . Auto Hold can be turned On/
Off using the AUTO HOLD button B on the
center panel below gear shift . Before Auto
Hold will operate, the driver’s door, engine
hood and trunk must be closed .
The AUTO HOLD indicator on the
Instrument Cluster has four states:
White: Standby - With vehicle at a
standstill, when the AUTO HOLD button B
is pressed on, the indicator will illuminate
white . While driving the vehicle (vehicle is
not at a standstill), the Auto Hold indicator
will remain white .
Green: Engaged - When coming to a complete stop by depressing the
brake pedal, the Auto Hold indicator changes from white to green .
Off (not illuminated) - The indicator will turn Off when the AUTO HOLD
button B is manually pressed Off or when the EPB is manually turned On .
Yellow: Malfunction - When the indicator is illuminated yellow, there may
be a system malfunction . Take your vehicle to a local Kia dealer .
REMINDERS:
• Auto Hold only operates when vehicle is in Drive or Neutral
• To reduce the risk of an accident, do not activate Auto Hold while driving downhill, backing up or parking your vehicle .
Refer to page 4 for location of Instrument Cluster indicators.
Electric Parking Brake (EPB) Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
A
B
(Located below gear shift)
Electric Parking Brake (EPB)*
The Electric Parking Brake (EPB) system utilizes
an electric motor to engage the parking brake .
Applying the Parking Brake
Depress the brake pedal and pull up the EPB
switch . Ensure that the indicator light is
illuminated on the instrument cluster .
Releasing the Parking Brake
The EPB will automatically release when the
shifter is placed in Reverse or Drive .
To release EPB manually, depress the brake pedal, then press the EPB
switch A, with the ignition switch in the ON position . Ensure that the
indicator light is OFF .
Auto Hold*

•When leaving your keys with parking lot attendants or valet, make sure to inform them how to operate the EPB •Pull up and hold EPB switch for 3 seconds to increase brake pressure if parked on a decline or incline
QUICK TIPS
REMINDERS:
•
As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned ON
•
If the warning light does not illuminate temporarily, or continues to remain lit, take your vehicle to an authorized Kia dealer and have the system checked
•The EPB should not be operated while the vehicle is moving
•
A click or electric brake motor sound may be heard while operating or releasing the EPB, but these conditions are normal and indicate that the EPB is functioning properly
CENTER PANEL

ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER35
OTHER KEY FEATURES
( Type B handle shown)
HOLD
A
B
C
D
F
E
I
Smart Key*†8
Smart Key Fob:
A Press to lock All Doors
B Press to unlock Driver’s Door . Press twice in 4 seconds
to unlock All Doors
C Press and hold to open Trunk . Then lift by the handle
REMINDER: The Trunk unlocks when the Smart Key fob is within close proximity to the vehicle .
D Press and hold more than 1 second for Panic Alarm .
To turn off Alarm, press any button
E Press to release Mechanical Key (on reverse side of fob)
F Mechanical Key
Driver’s Door Lock/Unlock button G:
•
Press button once to unlock Driver’s Door
•Press again within 4 seconds to unlock All Doors
•Press again to lock All Doors
Mechanical Key: Use to unlock /lock Driver’s Door:
1 . Pull out door handle
2 . Remove door handle keyhole cover with Mechanical Key by pressing up
into slot as shown H
3 . Insert Mechanical Key I and turn right to Unlock Driver’s Door
4 . Turn twice within 4 seconds to Unlock all doors
5 . Insert Mechanical Key and turn left to Lock Driver’s Door
6 . Return keyhole cover to its original position
Use to unlock trunk, lock glove box and to turn Child Protector Rear-Door Locks

•If the Smart Key battery is weak or not working properly, hold the Smart Key fob up to the Engine Start /Stop button (Lock button side closest) and press to start engine •The Smart Key’s signal can be blocked by the normal operation of a cell phone or smartphone . To help prevent this, store each device separately
QUICK TIPS
REMINDER: When reinserting the mechanical key, make sure it is pushed all the way in until there is a click sound
REMINDER: Remote button configuration may vary depending on vehicle options
G
H
To view videos on your mobile device, snap these QR Codes or visit the listed website . Refer to page 2 for more information .
Engine Start/Stop Button & Smart Key Video
Key Fob Video
www.youtube.com/KiaFeatureVideos
QR CODES

OPTIMA FEATURES & FUNCTIONS GUIDE36*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
One-Click Fuel Cap Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
HOLD
B
A
C
D
E
QR CODE
Lock
Unlock
Remote Keyless Entry (Folding Key)*Fuel Cap / Malfunction
Indicator (Check Engine Light)
Tighten for ONE
CLICK to prevent
Malfunction Indicator
from illuminating .
REMINDERS:
•
The Fuel Filler Door Release button is located on the lower part of the driver’s door panel
•
It is normal operation when tightening to hear one click, and then when Fuel Cap is released, it clicks back
A Press to release Folding Key
B Press to lock All Doors
C Press to unlock Driver’s Door .
Press twice in 4 seconds to
unlock All Doors
D Press and hold to unlock Trunk
and manually open
E Press and hold more than 1
second for Panic Alarm . To turn
off Alarm, press any button
Remote button configuration may vary depending on vehicle options.
Double-Turn Lock/Unlock All
•Turn clockwise once to unlock Driver’s Door
•Turn clockwise again within 4 seconds to unlock All Doors
•Turn counterclockwise once to lock All Doors
Sunvisor†12
Use the Sunvisor to shield
direct light through the
front or side windows .
Slide the Sunvisor out and
adjust as needed .
REMINDERS:
•The Sunvisor may impair visibility if not adjusted properly
•Sunvisor may not shield all direct light
•
Do not operate the vehicle if Sunvisor is impairing your visibility
•
Be aware of your seating position when adjusting or swinging Sunvisor around from the front or side windows
OTHER KEY FEATURES

37ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER

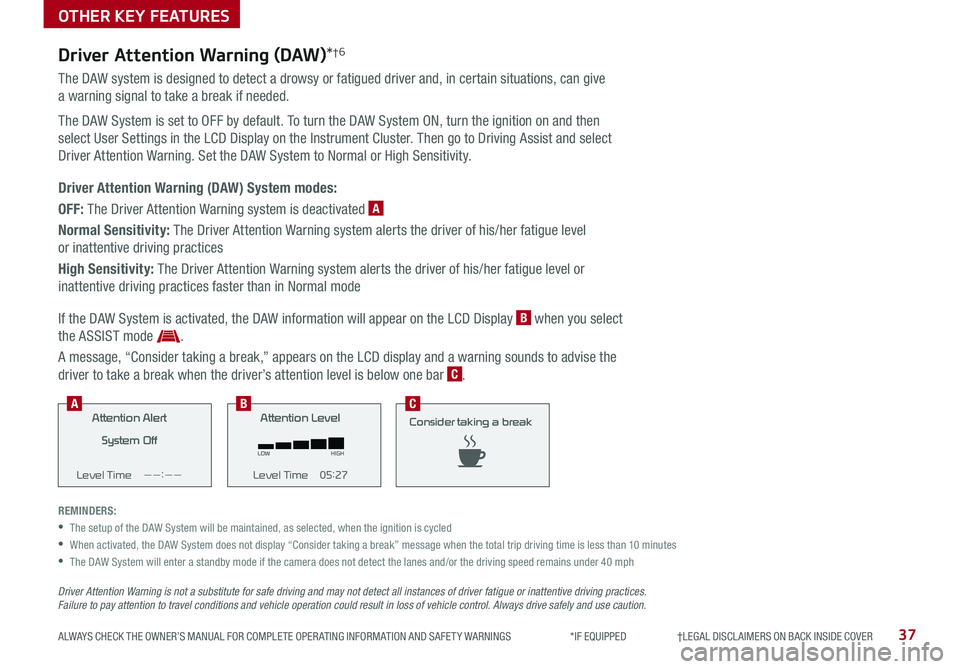

Driver Attention Warning (DAW)*†6
The DAW system is designed to detect a drowsy or fatigued driver and, in certain situations, can give
a warning signal to take a break if needed .
The DAW System is set to OFF by default . To turn the DAW System ON, turn the ignition on and then
select User Settings in the LCD Display on the Instrument Cluster . Then go to Driving Assist and select
Driver Attention Warning . Set the DAW System to Normal or High Sensitivity .
Driver Attention Warning (DAW) System modes:
OFF: The Driver Attention Warning system is deactivated A
Normal Sensitivity: The Driver Attention Warning system alerts the driver of his/her fatigue level
or inattentive driving practices
High Sensitivity: The Driver Attention Warning system alerts the driver of his/her fatigue level or
inattentive driving practices faster than in Normal mode
If the DAW System is activated, the DAW information will appear on the LCD Display B when you select
the ASSIST mode .
A message, “Consider taking a break,” appears on the LCD display and a warning sounds to advise the
driver to take a break when the driver’s attention level is below one bar C .
REMINDERS:
•The setup of the DAW System will be maintained, as selected, when the ignition is cycled
•
When activated, the DAW System does not display “Consider taking a break” message when the total trip driving time is less than 10 minutes
•
The DAW System will enter a standby mode if the camera does not detect the lanes and/or the driving speed remains under 40 mph
Attention Alert
System Off
Level Time ——:——Attention Level
LOW HIGH
Level Time 05:27 Attention Level
LOW
HIGH
Level Time 05:27
Consider taking a break
22.4
°C4025km
Attention Alert System Off
Level Time ——:——Attention Level
LOW HIGH
Level Time 05:27
Attention Level
LOWHIGH
Level Time 05:27
Consider taking a break
22.4
°C4025km
Attention Alert System Off
Level Time ——:—— Attention Level
LOW
HIGH
Level Time 05:27
Attention Level
LOWHIGH
Level Time 05:27
Consider taking a break
22.4 °C4025km
BCA
Driver Attention Warning is not a substitute for safe driving and may not detect all instances of driver fatigue or inattentive driving practices. Failure to pay attention to travel conditions and vehicle operation could result in loss of vehicle control. Always drive safely and use caution.
OTHER KEY FEATURES

OPTIMA FEATURES & FUNCTIONS GUIDE38*IF EQUIPPED
Automatic turn off function*
The interior lights automatically
turn off approximately 30 seconds
after the ignition or Engine Start /
Stop button* is OFF .
Map Lamp/Room Lamp
Operation – Push the lens A to
turn the map lamp ON/OFF . This
light produces a spot beam for
convenient use as a map lamp or
as a personal lamp for the driver or
the front passenger .
Map/Room Lamp Button –
Press button B to turn the front
and rear room lamps on and off .
Door Mode Button – Press button C, to enable or disable Door
Mode . In Door Mode, the map and room lamps turn on when any
door is opened . When all doors are locked or the ignition is on, the
map and room lamp will turn off immediately .
Rear Room Lamps – Press the button D to turn the rear passenger
lamp ON/OFF .
Panoramic Sunroof with
Power Sunshade*
The Sunroof and Sunshade operation is
controlled through a multidirectional switch/
lever . The ignition or Engine Start /Stop button*
needs to be in the ON position to operate the
sunroof .
To slide the sunshade and sunroof:
• Auto Open: Slide the lever E backward to the
farthest position and release
• Auto Close (sunroof only): Slide the lever E
forward to the farthest position and release
To slide the sunshade only:
• Open: Slide the lever E partially backward to
the first detent position and release
• Auto Close: Slide the lever E partially forward to the first detent position
and release
To slide the sunroof (with sunshade open):
• Open: Slide the lever E backward to the first detent position and release
• Close: Slide the lever E forward to the first detent position and release to
close sunroof glass only . Slide the lever forward to the farthest position and
release to close sunroof glass and sunshade
To tilt the sunroof:
• Raise: Push lever E upward
• Lower: Push lever E forward
• When doors are unlocked by the Smart Key, the lamp turns ON for approximately 30 seconds
• If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage
• Using interior lights for an extended period of time may cause battery discharge
QUICK TIP
To stop the sunroof/sunshade at any position, push or pull the sunroof control lever in any direction .
QUICK TIP
REMINDER: Sunshade needs to remain OPEN while sunroof is open and vehicle is moving
AA
BCE
D
( Type B)
Map/Room Lamps Sunroof Operation Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
OTHER KEY FEATURES

39ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED
(Buttons located on Driver's Panel left of Steering Wheel)
AB
C
Fuel Filler Lid and Trunk Release
Press the button A to release the fuel door .
Press the button B to open the trunk .
Trunk Release Button (Exterior)
Located underneath
the Trunk lid . With
Trunk unlocked, press
the Trunk Release
button C and pull the
Trunk lid up by the
handle to open .
Smart Power Trunk*†15
When the Smart Key fob is on your person and you are near the back of the
vehicle, within close proximity, the hazard warning lights will blink and a chime
will sound for about 3 seconds as an alert that the Smart Trunk is about to open .
Then the alert system will blink and chime two additional times before opening
the Smart Power Trunk .
The Smart Power Trunk feature is OFF by default . To enable the Smart Power
Trunk, go to User Settings in the LCD Instrument Cluster modes .
During the Smart Power Trunk alert, the Smart Power Trunk can be deactivated with the Smart Key by pressing any button on the key fob .
QUICK TIPS

•The Trunk must be unlocked before it can be opened by the Trunk Release Button •Smart Key* - The Trunk unlocks automatically, and can then be opened manually, when the Smart Key fob* is within close proximity to the vehicle
QUICK TIPS
REMINDERS:
•
The Smart Key must be outside of the vehicle for the Smart Power Trunk to operate
•All doors are closed and locked after about 15 seconds
•
The Smart Power Trunk feature will not operate when the doors are recently closed and locked, and the Smart Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles, a door is not locked or closed or the Smart Key is in the vehicle
•
Press any button on the Smart Key fob during the Detect and Alert stage to deactivate the Smart Power Trunk function
•
When ignition is on, the Smart Power Trunk will only operate with the gear shift in the Park (P) position
•Ensure obstacles and people are out of the way of the Trunk
For more information on the Smart Power Trunk operation, please refer to the Owner's Manual.
OTHER KEY FEATURES

OPTIMA FEATURES & FUNCTIONS GUIDE40*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
(Located on Driver side kick panel)(Located inside of Hood's center) (Images shown are for illustration purposes only . Actual operation may vary)
A
B
OTHER KEY FEATURES
Hood Release Lever and Latch
Opening the Hood:
1 . Pull the Hood Release Lever A to unlatch the Hood
2 . In the front of the vehicle, lift the Hood slightly, push the secondary
Latch B to the left inside of the Hood’s center and lift the Hood
Closing the Hood:
Lower the Hood about halfway and then press down to securely
lock in place .
Child-Protector Rear Door Locks
Locate these locks on the rear edge
of the rear passenger doors . Turn the
Child-Protector Rear Door Lock to the
LOCK position to disable the inner door
handles from opening the rear doors .
REMINDER: Child-Protector Rear Door Locks are located on rear passenger’s door jamb .
REMINDER: Open the Hood only after turning the engine off, on a flat surface, with the gear shift in P (Park) position and setting the parking brake .
Parking Distance Warning-Reverse*†6
The Parking Distance Warning-Reverse is a supplemental system that is
designed to assist the driver by chiming if any object is detected within
the sensing area to the rear and side of the vehicle when backing up .
When the ignition is ON, the system is activated .
REMINDERS:
•
If the vehicle is moving at speeds over 3 mph, the system may not activate correctly
•
When more than two objects are sensed at the same time, the closest one will be recognized first

The Parking Distance Warning-Reverse is not a substitute for proper and safe backing-up procedures. Always drive safely and use caution when backing up. The Parking Distance Warning-Reverse may not detect every object behind the vehicle.

41ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
A
B
Tire Mobility Kit Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
QR CODE
www.youtube.com/KiaFeatureVideos
(Navigation screen display shown)
P
R
N
DSHIFTL OCK
RELEASE
Rear-Camera Display†6
The Rear-Camera Display system is a supplemental system that displays
the view behind the vehicle through the audio control unit screens while
the vehicle is in Reverse .
The Rear-Camera Display activates when the:
•Engine Start /Stop button* is in the ON position
•Gear Shift Lever is in the R (Reverse) position
REMINDERS:
•The Rear-Camera Display is ON by default when ignition is cycled
•
The screen image above is for illustration purposes only . The actual image or graphics may differ in your vehicle
The Rear-Camera Display is not a substitute for proper and safe backing-up procedures. The Rear-Camera Display may not display every object behind the vehicle. Always drive safely and use caution when backing up.
Tire Mobility Kit*
The Tire Mobility Kit may temporarily seal
certain types of tire damage .
For operational information, please refer
to the Owner’s Manual .
A Sealant Bottle
B Compressor
REMINDERS:
•
The Tire Mobility Kit requires the use of the 12V/15A /180W Power Outlet, which is located on the right side of the outlet /aux port area
•
After tire is properly sealed, drive cautiously at a maximum speed of 50 mph for no longer than a maximum distance of 120 miles

•The Tire Mobility Kit is a temporary fix and is to be used for one tire only; the tire should be inspected as soon as possible •The kit should only be used for sealing/inflating passenger car tires; do not use for inflating any other type of tires •Some damaged tires cannot be sealed completely; do not use the kit if it appears a tire is damaged beyond repair
QUICK TIPS
OTHER KEY FEATURES
