4165

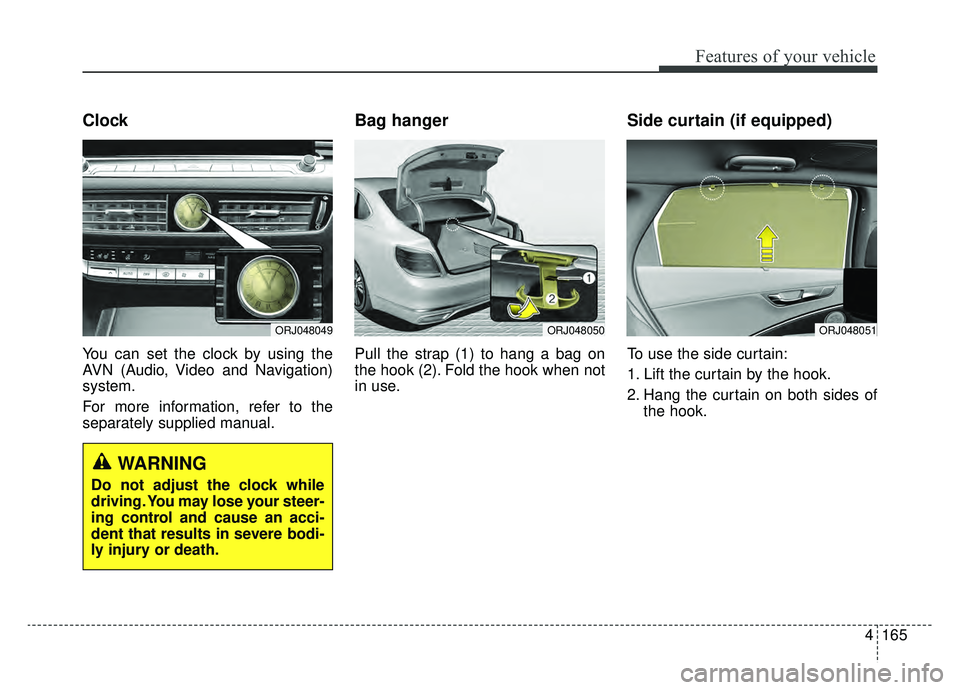

Features of your vehicle
Clock
You can set the clock by using the
AVN (Audio, Video and Navigation)
system.
For more information, refer to the
separately supplied manual.
Bag hanger
Pull the strap (1) to hang a bag on
the hook (2). Fold the hook when not
in use.
Side curtain (if equipped)
To use the side curtain:
1. Lift the curtain by the hook.
2. Hang the curtain on both sides ofthe hook.
ORJ048050ORJ048051ORJ048049
WARNING
Do not adjust the clock while
driving. You may lose your steer-
ing control and cause an acci-
dent that results in severe bodi-
ly injury or death.
625

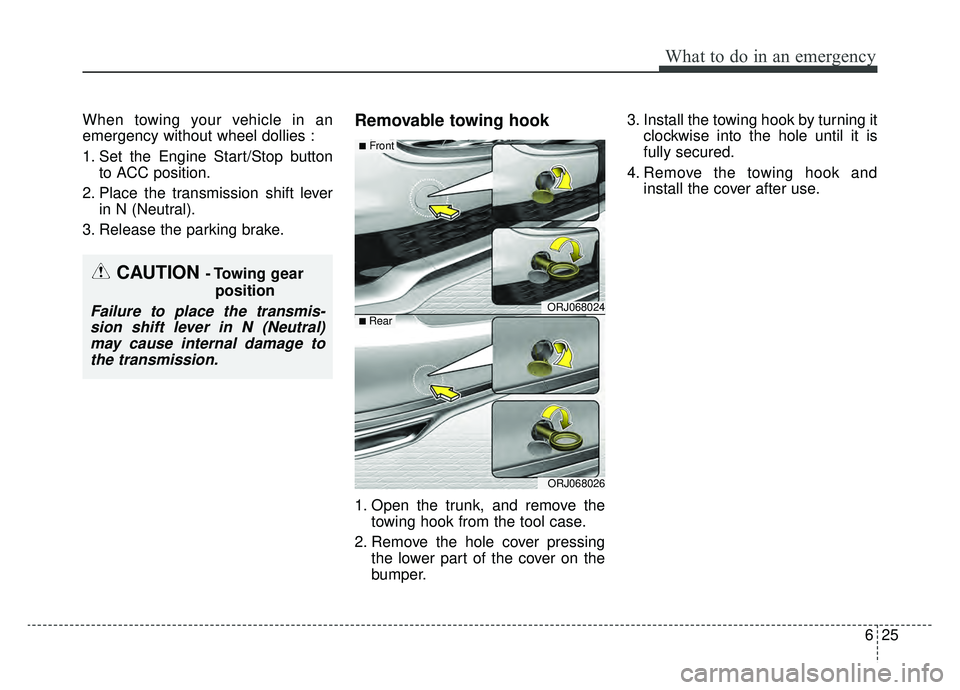

What to do in an emergency
When towing your vehicle in an
emergency without wheel dollies :
1. Set the Engine Start/Stop buttonto ACC position.
2. Place the transmission shift lever in N (Neutral).
3. Release the parking brake.Removable towing hook
1. Open the trunk, and remove the towing hook from the tool case.
2. Remove the hole cover pressing the lower part of the cover on the
bumper. 3. Install the towing hook by turning it
clockwise into the hole until it is
fully secured.
4. Remove the towing hook and install the cover after use.
CAUTION - Towing gear
position
Failure to place the transmis-sion shift lever in N (Neutral)may cause internal damage tothe transmission.ORJ068024
ORJ068026
■Front
■ Rear
Maintenance
56
7
3. Pull the suspected fuse straight
out. Use the removal tool provided
on the engine compartment fuse
panel cover.
4. Check the removed fuse; replace it if it is blown.
Spare fuses are provided in theengine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly
in the clips.
If it fits loosely, consult an authorized
K900 Kia dealer.
If you do not have a spare, use a fuse of the same rating from a circuityou may not need for operating thevehicle, such as the cigarette lighterfuse.
If the headlights or taillights, stop-
lights, courtesy lamp, day time run-
ning lights (D.R.L) do not work and
the fuses are not blown, check the
fuse panel in the engine compart-
ment. If a fuse is blown, it must be
replaced.
✽ ✽ NOTICE
If the headlamp, turn signal lamp,
or tail lamp malfunction even with-
out any problem to the lamps, have
the vehicle checked by an author-
ized K900 Kia dealer for assistance.
Fuse switch
Always set the fuse switch to the ON
position before using the vehicle.
If you move the switch to the OFF
position, some items such as audio
and digital clock must be reset and
transmitter (or smart key) may not
work properly. When the switch is
Off, the caution indicator will be dis-
played on the instrument cluster.
ORJ078017
ORJ078018
Index
8I
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-162
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . 4-163
USB charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-158
Wireless smart phone charging system . . . . . . . . . 4-159
Side curtain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-165
Luggage net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-164
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
165
Bag hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-165
Rear curtain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-166
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-126 Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-126
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-127
Trunk room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-129
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Door courtesy lamp . . . . . . . . . . . . . . . . . . . . . . . . 4-129
Interior overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
ISG (Idle Stop and Go) system . . . . . . . . . . . . . . . . . . 5-90 Auto stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-90
Auto start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-91
Condition of ISG system operation . . . . . . . . . . . . . 5-92
ISG system deactivation . . . . . . . . . . . . . . . . . . . . . . 5-92
ISG system malfunction . . . . . . . . . . . . . . . . . . . . . . 5-93 Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
Jump starting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Label
Air bag warning label. . . . . . . . . . . . . . . . . . . . . . . . 3-76
Lamp (LED type) bulb replacement . . . . . . . . . . . . . . . 7-77
Lane Following Assist (LFA) system . . . . . . . . . . . . . . 5-99 LFA system operation . . . . . . . . . . . . . . . . . . . . . . 5-100
LFA system malfunction . . . . . . . . . . . . . . . . . . . . 5-102
Limitation of the system . . . . . . . . . . . . . . . . . . . . 5-103
Lane Keeping Assist (LKA) System . . . . . . . . . . . . . 5-105 LKA system operation . . . . . . . . . . . . . . . . . . . . . . 5-107
Driver's attention . . . . . . . . . . . . . . . . . . . . . . . . . . 5-111
LKA system malfunction . . . . . . . . . . . . . . . . . . . . 5-112
LKA system function change. . . . . . . . . . . . . . . . . 5-113
Lap/Shoulder belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29
LCD modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-80\
LCD windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-76
Leading vehicle departure alert system . . . . . . . . . . . . 5-88 System setting and operating conditions . . . . . . . . . 5-88
License plate lamp (LED type) bulb replacement . . . . 7-81
Light bulb position (front) . . . . . . . . . . . . . . . . . . . . . . 7-79
Light bulb position (rear) . . . . . . . . . . . . . . . . . . . . . . . 7-79
Light bulb position (side) . . . . . . . . . . . . . . . . . . . . . . . 7-80
