Safety features of your vehicle
12
3

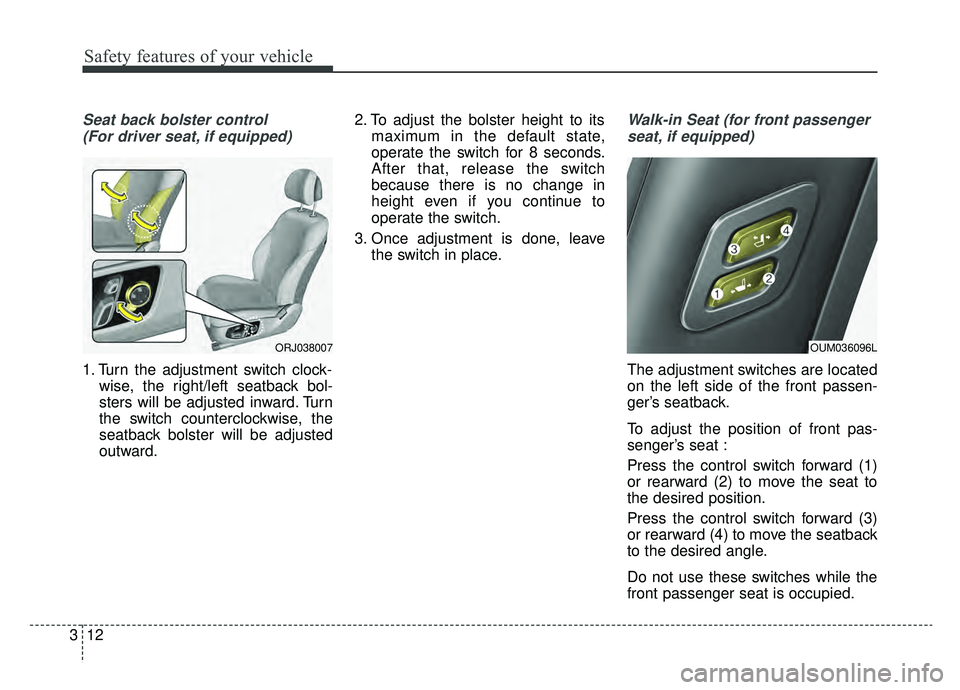

Seat back bolster control
(For driver seat, if equipped)
1. Turn the adjustment switch clock- wise, the right/left seatback bol-
sters will be adjusted inward. Turn
the switch counterclockwise, the
seatback bolster will be adjusted
outward. 2. To adjust the bolster height to its
maximum in the default state,
operate the switch for 8 seconds.
After that, release the switch
because there is no change in
height even if you continue to
operate the switch.
3. Once adjustment is done, leave the switch in place.
Walk-in Seat (for front passenger
seat, if equipped)
The adjustment switches are located
on the left side of the front passen-
ger’s seatback.
To adjust the position of front pas-
senger’s seat :
Press the control switch forward (1)
or rearward (2) to move the seat to
the desired position.
Press the control switch forward (3)
or rearward (4) to move the seatback
to the desired angle.
Do not use these switches while the
front passenger seat is occupied.
ORJ038007OUM036096L

317
Safety features of your vehicle

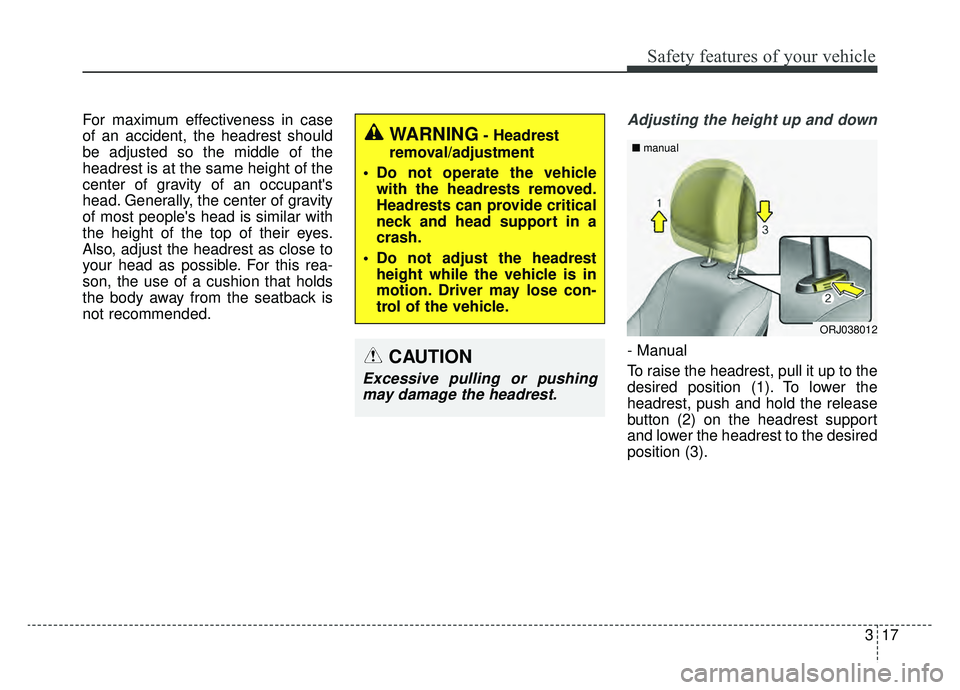

For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's head is similar with
the height of the top of their eyes.
Also, adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.Adjusting the height up and down
- Manual
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).
WARNING- Headrest
removal/adjustment
Do not operate the vehicle with the headrests removed.
Headrests can provide critical
neck and head support in a
crash.
Do not adjust the headrest height while the vehicle is in
motion. Driver may lose con-
trol of the vehicle.
CAUTION
Excessive pulling or pushingmay damage the headrest.
ORJ038012
■
manual

319
Safety features of your vehicle
✽ ✽
NOTICE
If you recline the seatback towards
the front with the headrest and seat
cushion raised, the headrest may
come in contact with the sunvisor or
other parts of the vehicle.
Removal and reinstallation
To remove the headrest:
1. Recline the seatback (2) with the
recline lever or switch (1). 2. Type A (manual): Raise the head-
rest as far as it can go. Then Press
the headrest release button (3)
while pulling the headrest up (4).
Type B (power, if equipped) : Raise
the headrest to the end with the
headrest height adjustment switch,
then insert a pointed tool into the
headrest adjustment hole (3). After
inserting the tool, remove the head-
rest by pulling it all the way up (4).
WARNING - Headrest
Removal
NEVER allow anyone to ride in a
seat with the headrest removed.
Headrests can provide critical
neck and head support in a
crash.
OYFH034205ORJ038015
ORJ038016
■ Type B
■Type A

Safety features of your vehicle
20
3

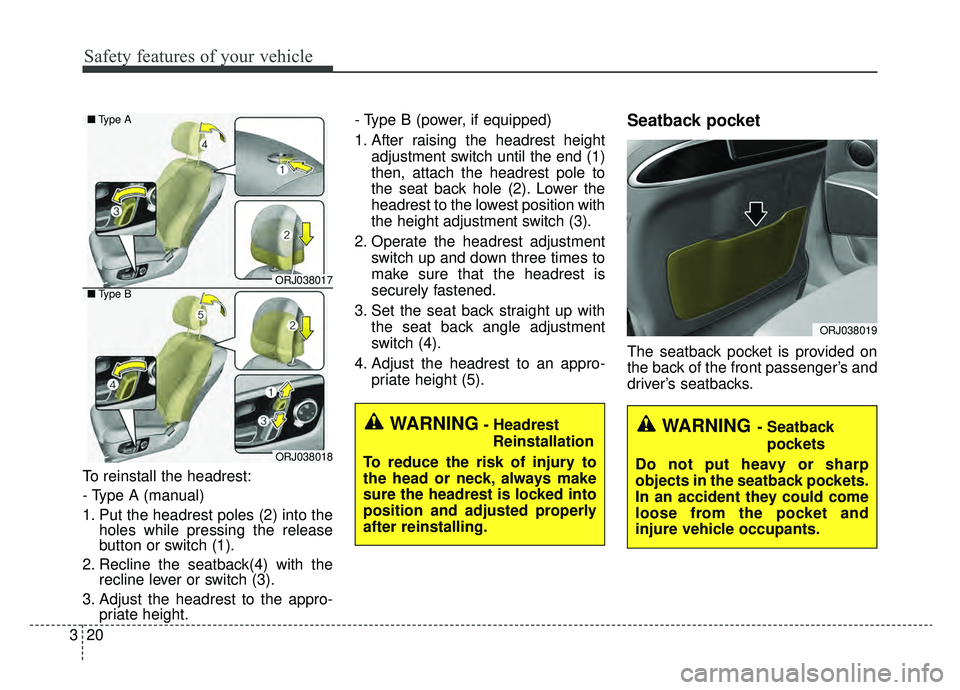

To reinstall the headrest:
- Type A (manual)
1. Put the headrest poles (2) into the
holes while pressing the release
button or switch (1).
2. Recline the seatback(4) with the recline lever or switch (3).
3. Adjust the headrest to the appro- priate height. - Type B (power, if equipped)
1. After raising the headrest height
adjustment switch until the end (1)
then, attach the headrest pole to
the seat back hole (2). Lower the
headrest to the lowest position with
the height adjustment switch (3).
2. Operate the headrest adjustment switch up and down three times to
make sure that the headrest is
securely fastened.
3. Set the seat back straight up with the seat back angle adjustment
switch (4).
4. Adjust the headrest to an appro- priate height (5).
Seatback pocket
The seatback pocket is provided on
the back of the front passenger’s and
driver’s seatbacks.
ORJ038019
WARNING- Seatback
pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.WARNING- Headrest Reinstallation
To reduce the risk of injury to
the head or neck, always make
sure the headrest is locked into
position and adjusted properly
after reinstalling.
ORJ038017
ORJ038018
■ Type B
■Type A

321
Safety features of your vehicle

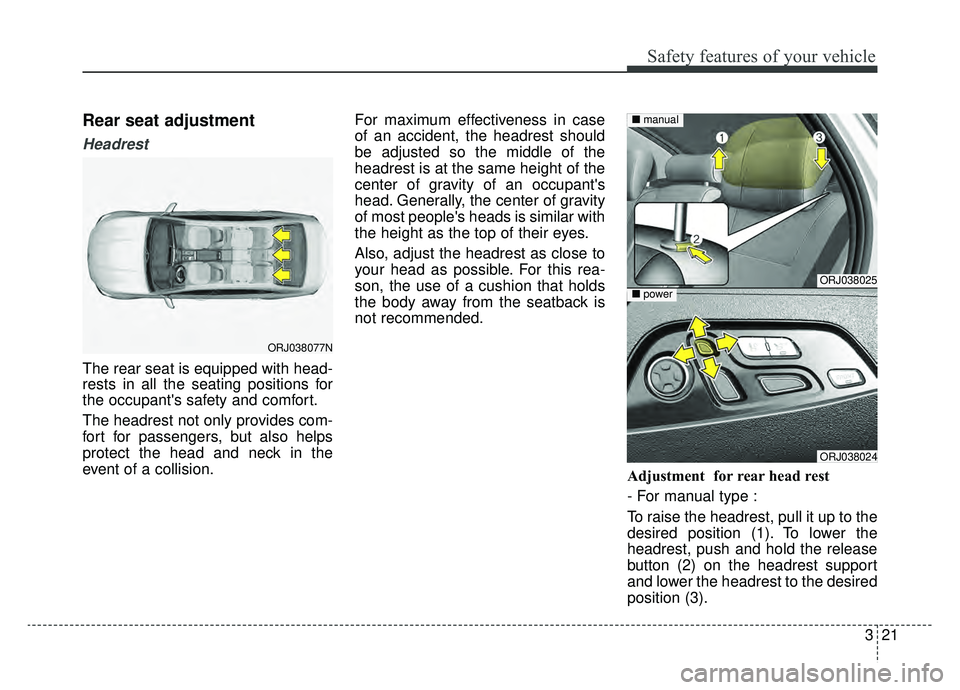

Rear seat adjustment
Headrest
The rear seat is equipped with head-
rests in all the seating positions for
the occupant's safety and comfort.
The headrest not only provides com-
fort for passengers, but also helps
protect the head and neck in the
event of a collision.For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's heads is similar with
the height as the top of their eyes.
Also, adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.
Adjustment for rear head rest
- For manual type :
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).
ORJ038077N
ORJ038025
ORJ038024
■power
■manual

325
Safety features of your vehicle
Relax mode
While pressing the switch (1), then
the front passenger seat will move as
follows, and the rear seat will move,
too.
The front passenger seat :
1. The seat and the seatback willmove forward. The headrest will
move downward.
2. Seat cushion will move downward.
3. The height of the seat will move downward. Once the adjustment is
completed, the signaling sound
will beep once.
The rear right passenger seat :
1. The head rest will move down- ward.
2. The seat will move forward, the seat cushion will move upward,
the bottom part of lumbar support
will come out.
Once the operation is completed, the
signaling sound will beep once.CAUTION
The rear relaxation seat system switches won’t work in the fol-lowing cases.
- When there is a person sitting in the passenger seat
- When there are heavy objects placed on the passenger seat
- When the door of the passen- ger seat is opened
- When the seat belt of the pas- senger seat is fastened
CAUTION
Relax mode buttons won’t workin the following cases:
- When there is a person sitting in the front passenger seat
- When there are heavy objects placed on the passenger seat
- When the door of the front passenger seat is opened
- When the seat belt of the pas- senger seat is fastened
- If the Relax mode button is pressed again during theRelax mode in operation, theseat will stop moving.
- If you operate the seat control button manually while Relaxmode is in operation, the auto-matic movement of the seatwill stop and be adjusted man-ually.
(Continued)

Safety features of your vehicle
26
3

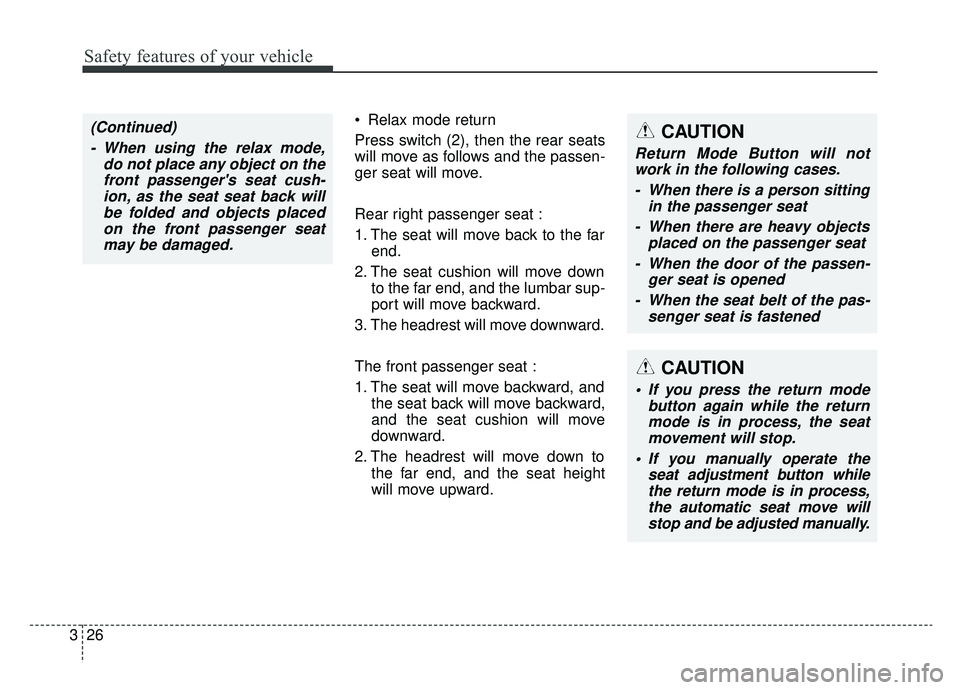

Relax mode return
Press switch (2), then the rear seats
will move as follows and the passen-
ger seat will move.
Rear right passenger seat :
1. The seat will move back to the far
end.
2. The seat cushion will move down to the far end, and the lumbar sup-
port will move backward.
3. The headrest will move downward.
The front passenger seat :
1. The seat will move backward, and the seat back will move backward,
and the seat cushion will move
downward.
2. The headrest will move down to the far end, and the seat height
will move upward.(Continued)
- When using the relax mode, do not place any object on thefront passenger's seat cush-ion, as the seat seat back willbe folded and objects placedon the front passenger seatmay be damaged.CAUTION
Return Mode Button will notwork in the following cases.
- When there is a person sitting in the passenger seat
- When there are heavy objects placed on the passenger seat
- When the door of the passen- ger seat is opened
- When the seat belt of the pas- senger seat is fastened
CAUTION
If you press the return modebutton again while the returnmode is in process, the seatmovement will stop.
If you manually operate the seat adjustment button whilethe return mode is in process,the automatic seat move willstop and be adjusted manually.

329
Safety features of your vehicle

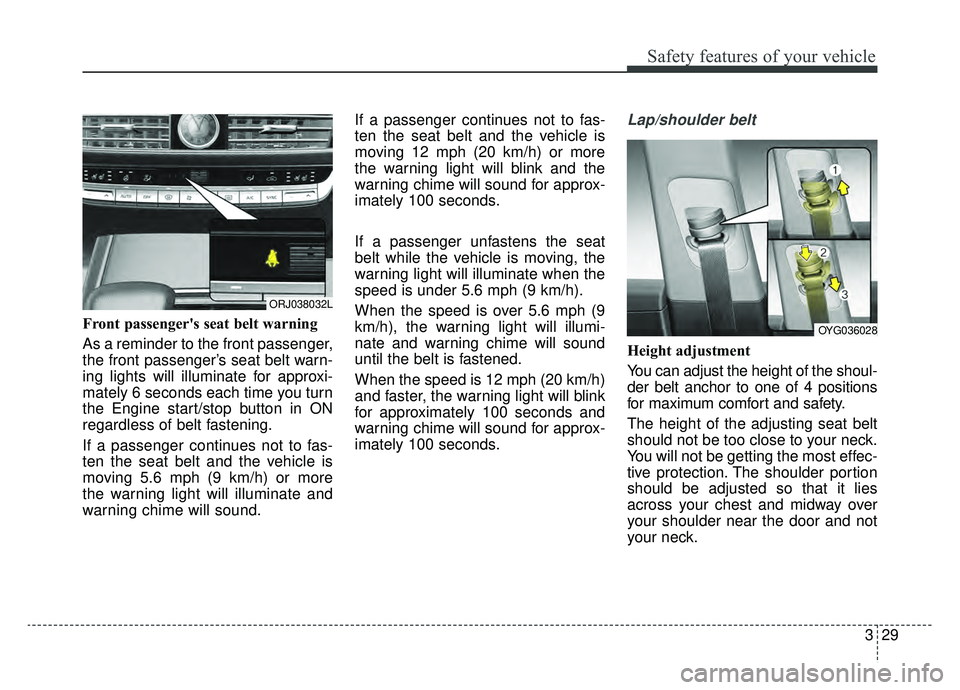

Front passenger's seat belt warning
As a reminder to the front passenger,
the front passenger’s seat belt warn-
ing lights will illuminate for approxi-
mately 6 seconds each time you turn
the Engine start/stop button in ON
regardless of belt fastening.
If a passenger continues not to fas-
ten the seat belt and the vehicle is
moving 5.6 mph (9 km/h) or more
the warning light will illuminate and
warning chime will sound.If a passenger continues not to fas-
ten the seat belt and the vehicle is
moving 12 mph (20 km/h) or more
the warning light will blink and the
warning chime will sound for approx-
imately 100 seconds.
If a passenger unfastens the seat
belt while the vehicle is moving, the
warning light will illuminate when the
speed is under 5.6 mph (9 km/h).
When the speed is over 5.6 mph (9
km/h), the warning light will illumi-
nate and warning chime will sound
until the belt is fastened.
When the speed is 12 mph (20 km/h)
and faster, the warning light will blink
for approximately 100 seconds and
warning chime will sound for approx-
imately 100 seconds.
Lap/shoulder belt
Height adjustment
You can adjust the height of the shoul-
der belt anchor to one of 4 positions
for maximum comfort and safety.
The height of the adjusting seat belt
should not be too close to your neck.
You will not be getting the most effec-
tive protection. The shoulder portion
should be adjusted so that it lies
across your chest and midway over
your shoulder near the door and not
your neck.
