Maintenance
Fuse NameFuse ratingCircuit Protected
REAR LH POWERSEAT125ARear Seat Relay Module Left Handle side
PASSENGER
POWER WINDOW30APassenger Power Window Module, Rear Power Window Module Right Handle side
POWER
OUTLET420ARear Seat Power Outlet
MODULE1010AIBU (Integrated Body Control Unit) (IG2)
E-SHIFTER210AElectronic Auto Transmission Shift Lever Switch
DRIVER POWER SEAT130ADriver Power Seat Module, Driver Seat Relay Module
PASSENGER
POWER SEAT125APassenger Power Seat Module, Passenger Seat Relay Module
DRIVER POWER WINDOW30ADriver Power Window Module, Rear Power Window Module Left Handle side
MODULE410A
Rear Seat Wireless Charger, Rear Seat Console Lamp, Keyboard, IBU (Integrated Body Control Unit), AMP
(Amplifier), Rear Seat Audio Switch, Rear Seat USB Charger, MTS (Mozen Telematics System) E-Call
Module, Audio/Video & Navigation Head Unit, Analog Clock, Front Tray Lamp, Surround View Monitor Unit,
Front USB Charger, Front Wireless Charger, DIS (Driver Information System), Front Console Lamp,
Electronic Auto Transmission Shift Lever Switch, Engine Room Junction Block (Power Outlet Relay)
AIR
CONDITIONER310AEngine Room Junction Block (Front Blower Relay), Rear LCD, Rear Sub Junction Block (Rear Blower
Relay), Ionizer, Air Conditioner Control Module, Front Air Conditioner Controller
MODULE810A[Auto Static] Auto Head Lamp Leveling Device Module, Head Lamp Left Handle side/Right Handle side

Maintenance
66
7

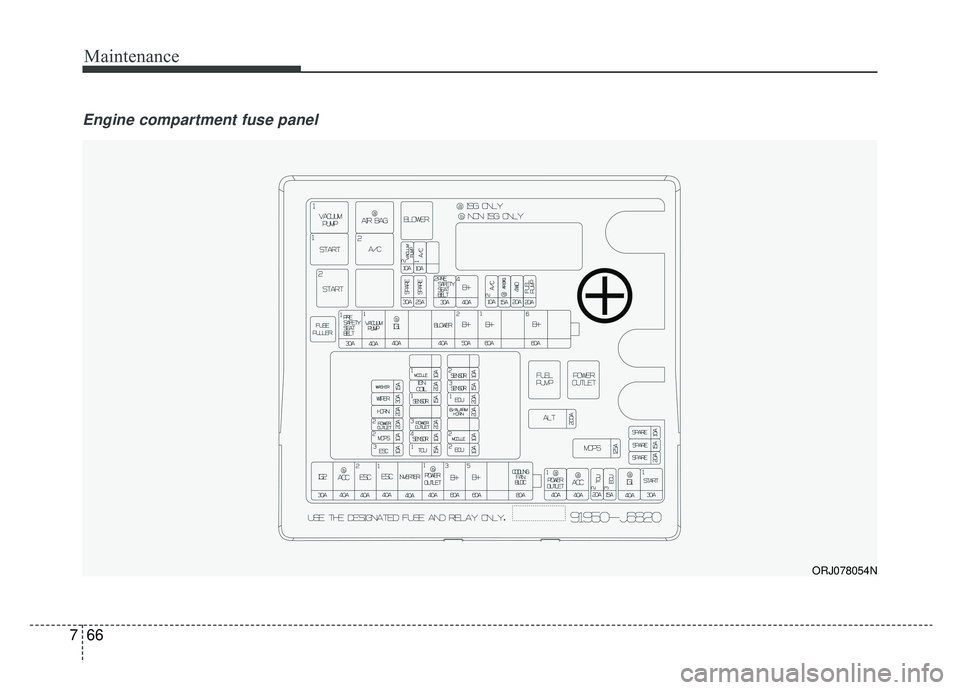

Engine compartment fuse panel
ORJ078054N

767
Maintenance
Fuse NameFuse ratingCircuit Protected
ALT200AAlternator, Fuse - R-MDPS, Multi Fuse #1 - COOLING FAN (BLDC)/COOLING FAN (DC)/B+5/B+3/POWER
OUTLET1/ESC1/ESC2/ACC/IG2
R-MDPS125ARack-MDPS (Motor Driven Power Steering) Unit
COOLING FAN(BLDC)80A[BLDC (Brushless Direct Current) Type - Middle East] Cooling Fan Controller
B+560AInstrument Panel Junction Block (Fuse - BRAKE SWITCH/MULTI MEDIA2/MULTI MEDIA1/INTERIOR
LAMP/MULTI MEDIA4/MULTI MEDIA3/MEMORY1/E-CALL/MEMORY2/Door Area power control Unit)
B+360AInstrument Panel Junction Block (Fuse - DRIVER POWER SEAT2/TRUNK LID/REAR LH POWER
SEAT2/PASSENGER POWER SEAT2/REAR LH POWER SEAT1/PASSENGER POWER WINDOW/DRIVER
POWER WINDOW)
POWER
OUTLET140APower Outlet Relay
ESC140AESC (Electronic Stability Control) Control Module, Multipurpose Check Connector
ESC240AESC (Electronic Stability Control) Control Module
ACC40AACC Relay
IG230AIG2 Relay
B+660AEngine Control Relay, Fuse - HORN/WIPER/MODULE1/BURGLAR ALARM
Engine room compartment fuse panel

769
Maintenance
Fuse NameFuse ratingCircuit Protected
ECU315AECM (Engine Control Module)
START130AStart1 Relay
ESC310AESC (Electronic Stability Control) Control Module
R-MDPS210ARack-MDPS (Motor Driven Power Steering) Unit
POWER
OUTLET220AFront Tray Power Outlet
HORN20AHorn Relay
WIPER30AWiper Motor
WASHER15AWasher Relay
TCU115ATCM (Transmission Control Module), Start2 Relay
POWER
OUTLET320AFront Power Outlet
SENSOR115AFuel Pump Relay
IGNITION COIL20A[Lambda II 3.3L/3.8L GDI Engine] Ignition Coil #1/#2/#3/#4/#5/#6

Maintenance
70
7
Fuse NameFuse ratingCircuit Protected
MODULE110AActive Air Flap
ECU210AECM (Engine Control Module)
MODULE210AActive Air Flap, Smart Cruise Control Radar
BURGLAR
ALARM10ABurglar Alarm Horn Relay
ECU120AECM (Engine Control Module)
SENSOR315A[Lambda II 3.3L Engine] Oxygen Sensor #1 (B1/S1), Oxygen Sensor #2 (B\
2/S1), Oxygen Sensor #3
(B1/S2), Oxygen Sensor #4 (B2/S2)
WIPER10A[Lambda II 3.3L/3.8L GDI Engine] Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust), Oil Pressure Solenoid
Valve, Electronic Thermostat, Purge Control Solenoid Valve, Variable Intake Solenoid Valve #1/#2, A/C2
Relay

Maintenance
76
7
Fuse NameFuse ratingCircuit Protected
START80A
Engine Room Junction Block
(a) NON ISG : FUSE-TCU2/ECU3/START1
(b) ISG : FUSE-TCU2/ECU3/START1/POWER OUT-
LET1/ACC/IG1
B+7100ARear fuse box panel
AMS10ABattery Sensor
Battery box fuse panel

785
Maintenance

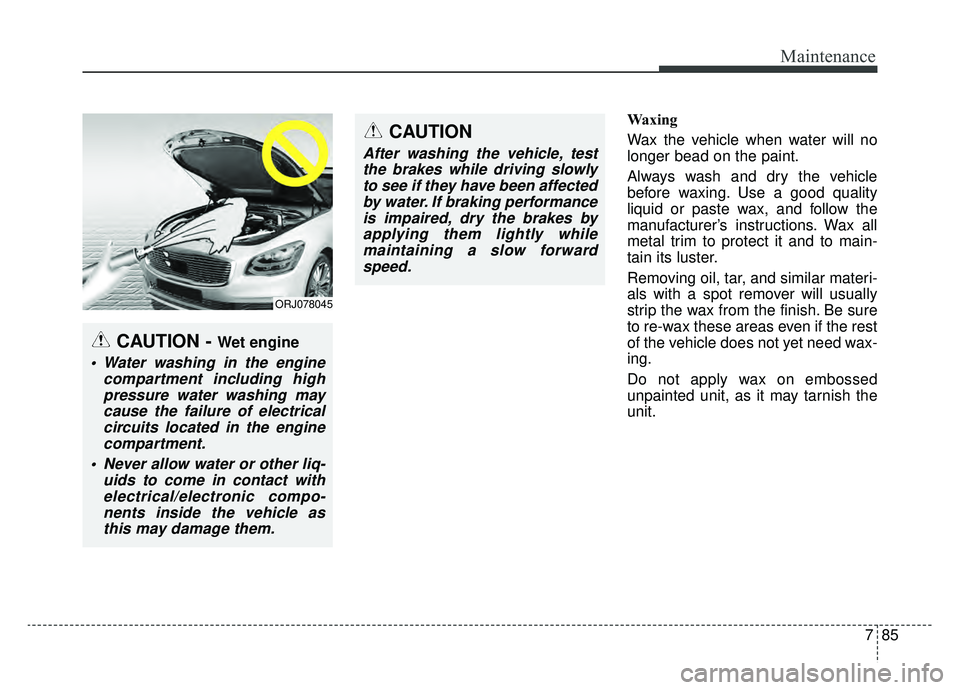

Waxing
Wax the vehicle when water will no
longer bead on the paint.
Always wash and dry the vehicle
before waxing. Use a good quality
liquid or paste wax, and follow the
manufacturer’s instructions. Wax all
metal trim to protect it and to main-
tain its luster.
Removing oil, tar, and similar materi-
als with a spot remover will usually
strip the wax from the finish. Be sure
to re-wax these areas even if the rest
of the vehicle does not yet need wax-
ing.
Do not apply wax on embossed
unpainted unit, as it may tarnish the
unit.
ORJ078045
CAUTION - Wet engine
Water washing in the enginecompartment including highpressure water washing maycause the failure of electricalcircuits located in the enginecompartment.
Never allow water or other liq- uids to come in contact withelectrical/electronic compo-nents inside the vehicle asthis may damage them.
CAUTION
After washing the vehicle, testthe brakes while driving slowlyto see if they have been affectedby water. If braking performanceis impaired, dry the brakes byapplying them lightly whilemaintaining a slow forwardspeed.

793
Maintenance

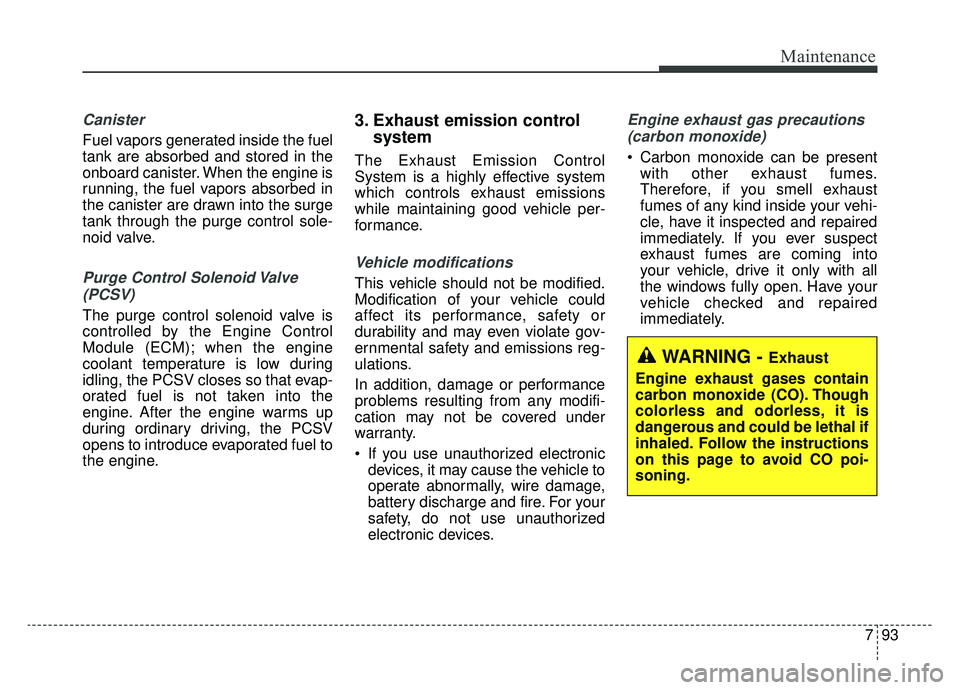

Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in
the canister are drawn into the surge
tank through the purge control sole-
noid valve.
Purge Control Solenoid Valve(PCSV)
The purge control solenoid valve is
controlled by the Engine Control
Module (ECM); when the engine
coolant temperature is low during
idling, the PCSV closes so that evap-
orated fuel is not taken into the
engine. After the engine warms up
during ordinary driving, the PCSV
opens to introduce evaporated fuel to
the engine.
3. Exhaust emission control system
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
while maintaining good vehicle per-
formance.
Vehicle modifications
This vehicle should not be modified.
Modification of your vehicle could
affect its performance, safety or
durability and may even violate gov-
ernmental safety and emissions reg-
ulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.
If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge and fire. For your
safety, do not use unauthorized
electronic devices.
Engine exhaust gas precautions
(carbon monoxide)
Carbon monoxide can be present with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately. If you ever suspect
exhaust fumes are coming into
your vehicle, drive it only with all
the windows fully open. Have your
vehicle checked and repaired
immediately.
WARNING - Exhaust
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
on this page to avoid CO poi-
soning.
