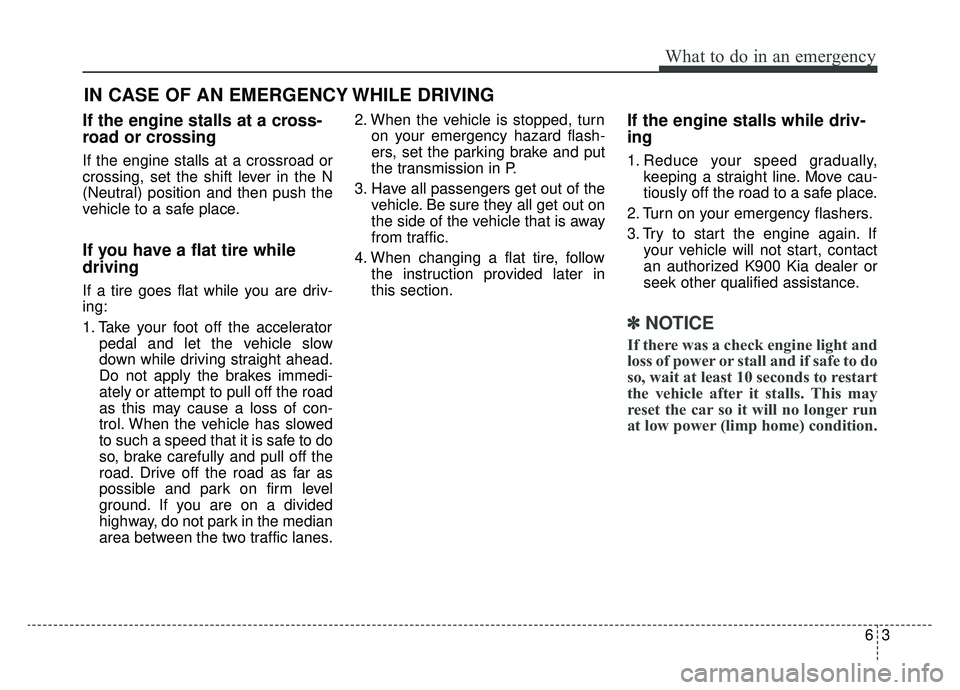

What to do in an emergency
If the engine stalls at a cross-
road or crossing
If the engine stalls at a crossroad or
crossing, set the shift lever in the N
(Neutral) position and then push the
vehicle to a safe place.
If you have a flat tire while
driving
If a tire goes flat while you are driv-
ing:
1. Take your foot off the acceleratorpedal and let the vehicle slow
down while driving straight ahead.
Do not apply the brakes immedi-
ately or attempt to pull off the road
as this may cause a loss of con-
trol. When the vehicle has slowed
to such a speed that it is safe to do
so, brake carefully and pull off the
road. Drive off the road as far as
possible and park on firm level
ground. If you are on a divided
highway, do not park in the median
area between the two traffic lanes. 2. When the vehicle is stopped, turn
on your emergency hazard flash-
ers, set the parking brake and put
the transmission in P.
3. Have all passengers get out of the vehicle. Be sure they all get out on
the side of the vehicle that is away
from traffic.
4. When changing a flat tire, follow the instruction provided later in
this section.
If the engine stalls while driv-
ing
1. Reduce your speed gradually,keeping a straight line. Move cau-
tiously off the road to a safe place.
2. Turn on your emergency flashers.
3. Try to start the engine again. If your vehicle will not start, contact
an authorized K900 Kia dealer or
seek other qualified assistance.
✽ ✽NOTICE
If there was a check engine light and
loss of power or stall and if safe to do
so, wait at least 10 seconds to restart
the vehicle after it stalls. This may
reset the car so it will no longer run
at low power (limp home) condition.
IN CASE OF AN EMERGENCY WHILE DRIVING

What to do in an emergency
10
6
✽ ✽

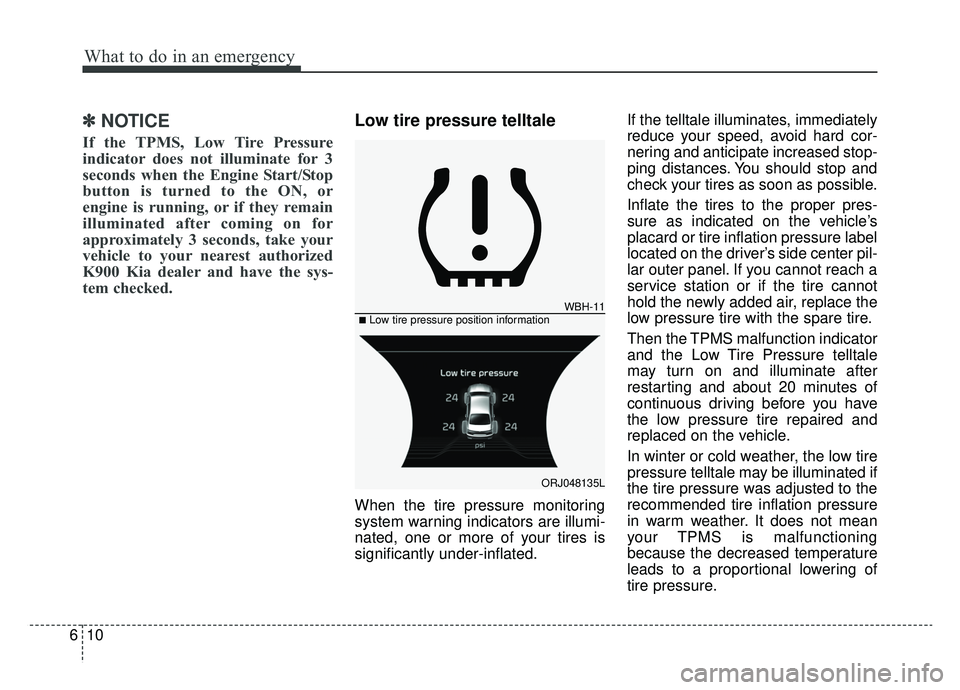

NOTICE
If the TPMS, Low Tire Pressure
indicator does not illuminate for 3
seconds when the Engine Start/Stop
button is turned to the ON, or
engine is running, or if they remain
illuminated after coming on for
approximately 3 seconds, take your
vehicle to your nearest authorized
K900 Kia dealer and have the sys-
tem checked.
Low tire pressure telltale
When the tire pressure monitoring
system warning indicators are illumi-
nated, one or more of your tires is
significantly under-inflated. If the telltale illuminates, immediately
reduce your speed, avoid hard cor-
nering and anticipate increased stop-
ping distances. You should stop and
check your tires as soon as possible.
Inflate the tires to the proper pres-
sure as indicated on the vehicle’s
placard or tire inflation pressure label
located on the driver’s side center pil-
lar outer panel. If you cannot reach a
service station or if the tire cannot
hold the newly added air, replace the
low pressure tire with the spare tire.
Then the TPMS malfunction indicator
and the Low Tire Pressure telltale
may turn on and illuminate after
restarting and about 20 minutes of
continuous driving before you have
the low pressure tire repaired and
replaced on the vehicle.
In winter or cold weather, the low tire
pressure telltale may be illuminated if
the tire pressure was adjusted to the
recommended tire inflation pressure
in warm weather. It does not mean
your TPMS is malfunctioning
because the decreased temperature
leads to a proportional lowering of
tire pressure.
WBH-11
ORJ048135L
■Low tire pressure position information

What to do in an emergency
14
6

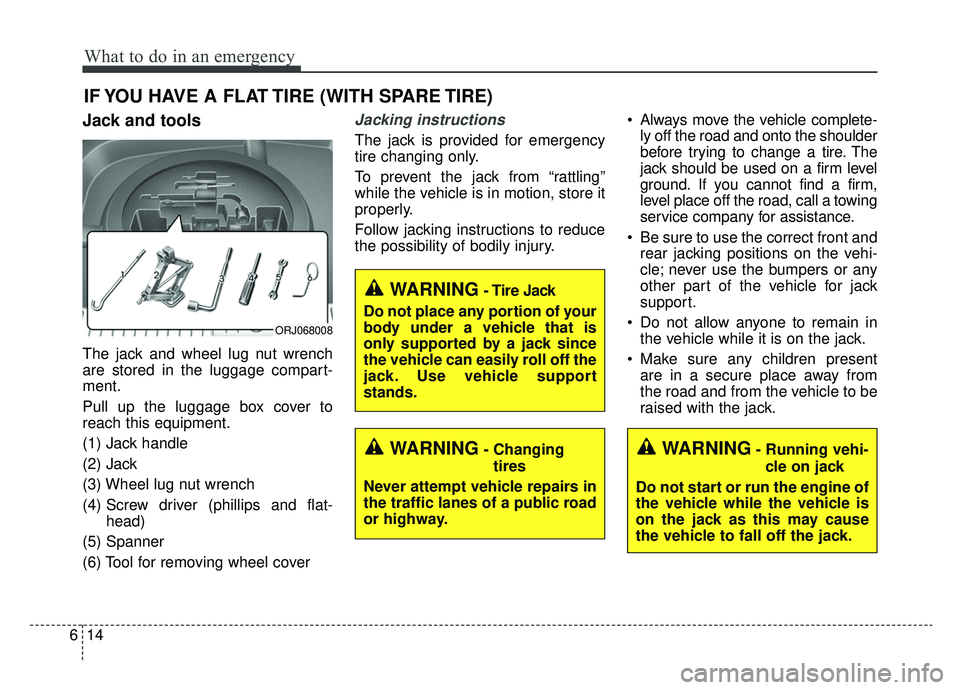

IF YOU HAVE A FLAT TIRE (WITH SPARE TIRE)
Jack and tools
The jack and wheel lug nut wrench
are stored in the luggage compart-
ment.
Pull up the luggage box cover to
reach this equipment.
(1) Jack handle
(2) Jack
(3) Wheel lug nut wrench
(4) Screw driver (phillips and flat-
head)
(5) Spanner
(6) Tool for removing wheel cover
Jacking instructions
The jack is provided for emergency
tire changing only.
To prevent the jack from “rattling”
while the vehicle is in motion, store it
properly.
Follow jacking instructions to reduce
the possibility of bodily injury. Always move the vehicle complete-
ly off the road and onto the shoulder
before trying to change a tire. The
jack should be used on a firm level
ground. If you cannot find a firm,
level place off the road, call a towing
service company for assistance.
Be sure to use the correct front and rear jacking positions on the vehi-
cle; never use the bumpers or any
other part of the vehicle for jack
support.
Do not allow anyone to remain in the vehicle while it is on the jack.
Make sure any children present are in a secure place away from
the road and from the vehicle to be
raised with the jack.
WARNING- Changing
tires
Never attempt vehicle repairs in
the traffic lanes of a public road
or highway.
ORJ068008
WARNING- Tire Jack
Do not place any portion of your
body under a vehicle that is
only supported by a jack since
the vehicle can easily roll off the
jack. Use vehicle support
stands.
WARNING- Running vehi- cle on jack
Do not start or run the engine of
the vehicle while the vehicle is
on the jack as this may cause
the vehicle to fall off the jack.

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
34
• Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-34
• Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . . 7-36
• Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-37\
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
• Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
7-38
• Recommended cold tire inflation pressures . . . . . . . 7-38
• Tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-39
• Checking tire inflation pressure. . . . . . . . . . . . . . . . . 7-39
• Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-40
• Wheel alignment and tire balance . . . . . . . . . . . . . . . 7-41
• Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-42
• Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
• Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
• Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
• Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
• All season tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50
• Summer tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50
• Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
50
• Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51\
• Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
• Low aspect ratio tire . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
7-53
• Inner panel fuse replacement . . . . . . . . . . . . . . . . . . . 7-55
• Engine compartment fuse replacement. . . . . . . . . . . 7-57
• Fuse/relay panel description. . . . . . . . . . . . . . . . . . . . 7-59
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-77
• Lamp (LED type) bulb replacement . . . . . . . . . . . . . 7-77
• Light bulb position (Front). . . . . . . . . . . . . . . . . . . . . 7-79
• Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . . 7-79
• Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . . . 7-80
• Headlamp (LED type) bulb replacement . . . . . . . . . 7-80
• Rear combination lamp (LED type) bulbreplacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-80
• High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-81
• License plate lamp (LED type) bulb replacement . . 7-81
• Rear fog lamp (LED type) bulb replacement . . . . . . 7-81
• Side repeater lamp (LED type) bulb replacement . . 7-82
• Map lamp (LED type) bulb replacement . . . . . . . . . 7-82
• Vanity mirror lamp (front)(LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-82
• Room lamp (LED type) bulb replacement . . . . . . . . 7-83
• Glove box lamp (LED type) bulb replacement . . . . 7-83
• Trunk lamp (LED type) bulb replacement . . . . . . . . 7-83
Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-84
• Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-84
• Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-89
7

795
Maintenance
Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL forgasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized K900 Kia dealer.
Avoid driving with an extremely low fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter. Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
Perchlorate Material-special handling
may apply, See www.dtsc.ca.gov/haz-
ardouswaste/ perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials,
such as air bag inflators, seatbelt
pretensioners and keyless remote
entry batteries, must be disposed of
according to Title 22 California Code
of Regulations Chapter 67384.10
(a).
CALIFORNIA
PERCHLORATE NOTICE

Specifications, Consumer information, Reporting safety defects
12
8

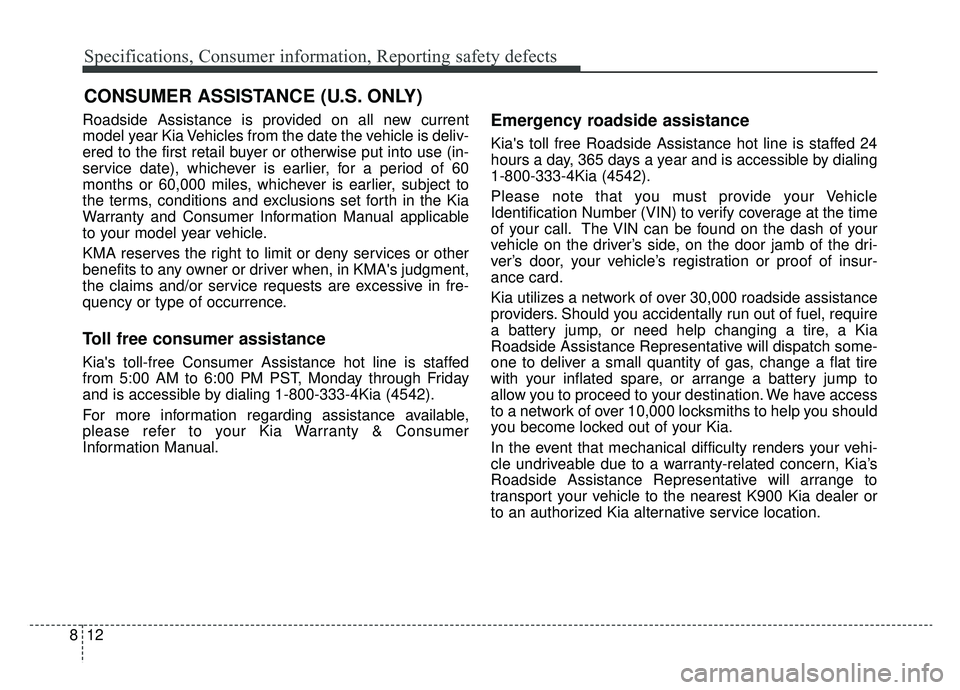

Roadside Assistance is provided on all new current
model year Kia Vehicles from the date the vehicle is deliv-
ered to the first retail buyer or otherwise put into use (in-
service date), whichever is earlier, for a period of 60
months or 60,000 miles, whichever is earlier, subject to
the terms, conditions and exclusions set forth in the Kia
Warranty and Consumer Information Manual applicable
to your model year vehicle.
KMA reserves the right to limit or deny services or other
benefits to any owner or driver when, in KMA's judgment,
the claims and/or service requests are excessive in fre-
quency or type of occurrence.
Toll free consumer assistance
Kia's toll-free Consumer Assistance hot line is staffed
from 5:00 AM to 6:00 PM PST, Monday through Friday
and is accessible by dialing 1-800-333-4Kia (4542).
For more information regarding assistance available,
please refer to your Kia Warranty & Consumer
Information Manual.
Emergency roadside assistance
Kia's toll free Roadside Assistance hot line is staffed 24
hours a day, 365 days a year and is accessible by dialing
1-800-333-4Kia (4542).
Please note that you must provide your Vehicle
Identification Number (VIN) to verify coverage at the time
of your call. The VIN can be found on the dash of your
vehicle on the driver’s side, on the door jamb of the dri-
ver’s door, your vehicle’s registration or proof of insur-
ance card.
Kia utilizes a network of over 30,000 roadside assistance
providers. Should you accidentally run out of fuel, require
a battery jump, or need help changing a tire, a Kia
Roadside Assistance Representative will dispatch some-
one to deliver a small quantity of gas, change a flat tire
with your inflated spare, or arrange a battery jump to
allow you to proceed to your destination. We have access
to a network of over 10,000 locksmiths to help you should
you become locked out of your Kia.
In the event that mechanical difficulty renders your vehi-
cle undriveable due to a warranty-related concern, Kia’s
Roadside Assistance Representative will arrange to
transport your vehicle to the nearest K900 Kia dealer or
to an authorized Kia alternative service location.
CONSUMER ASSISTANCE (U.S. ONLY)

I9
Index
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-77\
Lamp (LED type) bulb replacement . . . . . . . . . . . . 7-77
Light bulb position (front) . . . . . . . . . . . . . . . . . . . . 7-79
Light bulb position (rear) . . . . . . . . . . . . . . . . . . . . . 7-79
Light bulb position (side) . . . . . . . . . . . . . . . . . . . . . 7-80
Headlamp (LED type) bulb replacement . . . . . . . . . 7-80
Rear combination lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-80
High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-81
License plate lamp (LED type) bulb replacement . . 7-81
Rear fog lamp (LED type) bulb replacement. . . . . . 7-81
Side repeater lamp (LED type) bulb replacement . . 7-82
Map lamp (LED type) bulb replacement . . . . . . . . . 7-82
Vanity mirror lamp (front) (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-82
Room lamp (LED type) bulb replacement . . . . . . . . 7-83
Glove box lamp (LED type) bulb replacement . . . . 7-83
Trunk lamp (LED type) bulb replacement . . . . . . . . 7-83
Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-114 Battery saver function . . . . . . . . . . . . . . . . . . . . . . 4-114
Daytime running light . . . . . . . . . . . . . . . . . . . . . . 4-114
Parking & Tail light . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Auto light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Headlight position . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
High - beam operation . . . . . . . . . . . . . . . . . . . . . . 4-116
High beam assist . . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
Turn signals and lane change signals . . . . . . . . . . . 4-120 Headlight leveling device . . . . . . . . . . . . . . . . . . . 4-121
Dynamic Bending Light (DBL) . . . . . . . . . . . . . . . 4-122
Low aspect ratio tire . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12\
6
Map lamp (LED type) bulb replacement . . . . . . . . . . . 7-82
Mechanical key operations . . . . . . . . . . . . . . . . . . . . . . 4-10
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-58 Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 4-58
Electric Chromic Mirror (ECM) with HomeLink
®
system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
58
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-66
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
Folding the outside rearview mirror. . . . . . . . . . . . . 4-68
Non-inflation conditions (Air bags) . . . . . . . . . . . . . . . 3-73
Occupant Detection System . . . . . . . . . . . . . . . . . . . . . 3-57
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
73
Opening the trunk (Non-power trunk) . . . . . . . . . . . . . 4-23
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-66
M
N
O

Index
10I
Outside Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-74
Overheats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
6-7
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8Owner maintenance schedule. . . . . . . . . . . . . . . . . . . 7-8
Owner maintenance precautions. . . . . . . . . . . . . . . . . . . 7-6
Owner maintenance schedule . . . . . . . . . . . . . . . . . . . . . 7-8
Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Parking & Tail light . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20
Parking distance warning . . . . . . . . . . . . . . . . . . . . . . 4-106 Operation of the parking distance warning . . . . . . 4-106
Non-operational conditions of parking distance warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-110
Pocket lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-130
Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-31
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Power trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25\
Power window lock button . . . . . . . . . . . . . . . . . . . . . . 4-40
Pre-active Seat belt (PSB) . . . . . . . . . . . . . . . . . . . . . . 3-35
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36\
Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . . 3-33 Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
Rear combination lamp (LED type) bulb replacement 7-80
Rear Cross-Traffic Collision Warning/
Rear Cross-Traffic Collision Avoidance Assist
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12\
9
System description . . . . . . . . . . . . . . . . . . . . . . . . . 5-129
System setting and activation . . . . . . . . . . . . . . . . . 5-130
Warning message and system control . . . . . . . . . . 5-131
Limitations of the system . . . . . . . . . . . . . . . . . . . . 5-137
Rear fog lamp (LED type) bulb replacement . . . . . . . . 7-81
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21 Headrest(rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
22
Wing out head rest . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22
Forward/Backward adjustment and seatback angle adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
Lumbar support(rear) . . . . . . . . . . . . . . . . . . . . . . . . 3-23
Rear Relaxation Seat system (for rear right passenger’s seat) . . . . . . . . . . . . . . . 3-24
Rear view monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-111
Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
Recommended cold tire inflation pressures . . . . . . . . . 7-38
Record your key number . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Remote control (outside rear view mirror) . . . . . . . . . . 4-67
Remote keyless entry system operations . . . . . . . . . . . . 4-4
Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-37\
P
R
