2019 INFINITI QX60 instruments and controls

120V OUTLET (if so equipped)
CAUTION
∙ The outlet and plug may be hot during orimmediately after use.
∙ Use power outlets with the engine run- ning to avoid discharging the vehicle
battery.
∙ Do not use accessories that exceed a 120V, 150W power draw. Do not use
double adaptors or more than one elec-
trical accessory. ∙ Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.
∙ Before inserting or disconnecting a plug, be sure the electrical accessory being
used is turned OFF.
∙ Push the plug in as far as it will go. If good contact is not made, the plug may over-
heat or the internal temperature fuse
may open.
∙ When not in use, be sure to close the cap. Do not allow water or any other liquid to
contact the outlet.
The extended storage switch is pulled out
when in transit from the factory to the re-
tailer. It is located in the fuse panel to the left
of the steering wheel on the instrument
panel. If any electrical equipment does not
operate, ensure the extended storage switch
is pushed fully in place, as shown.
2nd Row
LIC2215LDI2758
EXTENDED STORAGE SWITCH
Instruments and controls2-55

FRONT-DOOR POCKETSPulled position
LIC3266
Pushed position
LIC3268LIC3546
STORAGE
2-56Instruments and controls

SEATBACK POCKETS
The seatback pockets may be located on the
back of the driver’s and/or passenger’s seats.
The pockets can be used to store maps.
WARNING
To ensure proper operation of the front
passenger’s INFINITI Advanced Air Bag
System (if so equipped), please observe the
following items:
∙ Do not allow a passenger in the rear seatto push or pull on the seatback pocket or
head restraint/head rest.
∙ Do not place heavy loads heavier than 9.1 lbs. (4 kg) on the seatback, head
restraint/head rest or in the seatback
pocket.
STORAGE TRAYS
WARNING
Do not place sharp objects in the trays to
help prevent injury in an accident or sudden
stop.
LIC1328
Front console (if so equipped)
LIC3282
Instruments and controls2-57

GLOVE BOX
Open the glove box by pulling the handle. Use
the master key when locking
1or unlocking
2the glove box.
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a sud-
den stop.
CONSOLE BOX
Upper half
Pull up on the driver’s side latch to open the
upper half of the console box.
The upper half of the console box may be
used for storage of cellular phones. An access
hole is provided at the front of the upper half
of the console box for a phone or iPod® cord
routing to the power outlet.
Rear armrest
LIC2214LIC2243WIC1120
2-58Instruments and controls

Lower half
Pull up on the passenger’s side latch to open
the lower half of the console box. A power
outlet is located inside the console box and
there is storage for compact discs.
OVERHEAD SUNGLASSES
STORAGE
To open the sunglasses holder, push1and
release.
Only store one pair of sunglasses in the
holder.
WARNING
Keep the sunglasses holder closed while
driving to avoid obstructing the driver’s
view and to help prevent an accident.
CAUTION
∙ Do not use for anything other than sunglasses.
∙ Do not leave sunglasses in the sunglasses holder while parking in direct sunlight.
The heat may damage the sunglasses.
LIC0702SIC4344
Instruments and controls2-59

CUP HOLDERSWARNING
∙ Do not recline the 2nd row seatbackwhen you use the cup holders on the rear
armrest. Doing so may cause the bever-
ages to spill over, and if they are hot, they
may scald the passengers.
∙ Avoid abrupt starting and braking when the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it can
scald you or your passenger.
CAUTION
Use only soft cups in the cup holder. Hard
objects can injure you in an accident.
Front console
LIC3623
2nd row
LIC2212
3rd row
LIC3514
2-60Instruments and controls

CAUTION
∙ Do not use the bottle holder for any otherobjects that could be thrown about in the
vehicle and possibly injure people during
sudden braking or an accident.
∙ Do not use the bottle holder for open liq- uid containers.
CARGO AREA STORAGE BIN
To access the floor storage area raise the
handle.
Bottle holder — front
LIC2209
Bottle holder — rear
LIC2210LIC3513
Instruments and controls2-61

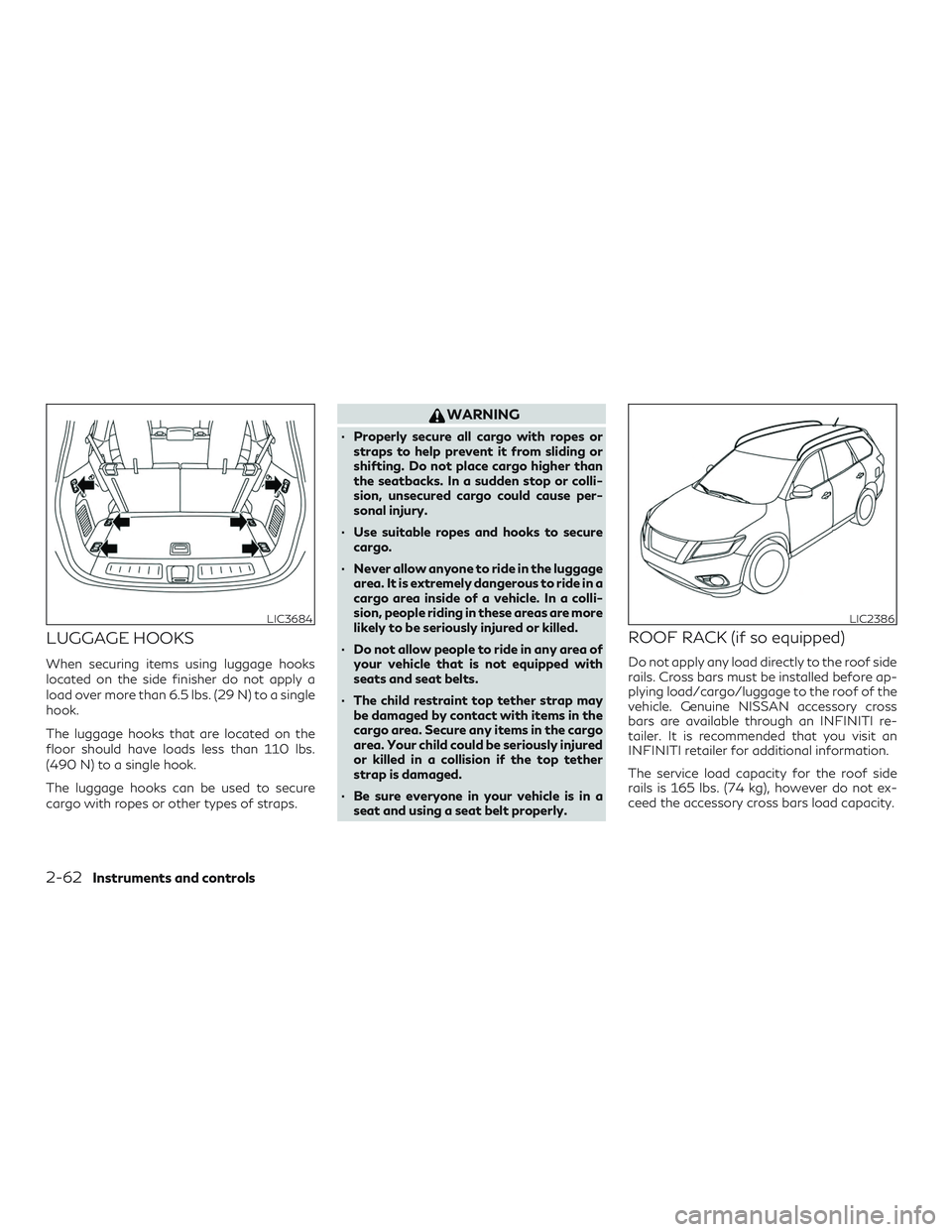

LUGGAGE HOOKS
When securing items using luggage hooks
located on the side finisher do not apply a
load over more than 6.5 lbs. (29 N) to a single
hook.
The luggage hooks that are located on the
floor should have loads less than 110 lbs.
(490 N) to a single hook.
The luggage hooks can be used to secure
cargo with ropes or other types of straps.
WARNING
∙ Properly secure all cargo with ropes orstraps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.
∙ Use suitable ropes and hooks to secure cargo.
∙ Never allow anyone to ride in the luggage area. It is extremely dangerous to ride in a
cargo area inside of a vehicle. In a colli-
sion, people riding in these areas are more
likely to be seriously injured or killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped with
seats and seat belts.
∙ The child restraint top tether strap may be damaged by contact with items in the
cargo area. Secure any items in the cargo
area. Your child could be seriously injured
or killed in a collision if the top tether
strap is damaged.
∙ Be sure everyone in your vehicle is in a seat and using a seat belt properly.
ROOF RACK (if so equipped)
Do not apply any load directly to the roof side
rails. Cross bars must be installed before ap-
plying load/cargo/luggage to the roof of the
vehicle. Genuine NISSAN accessory cross
bars are available through an INFINITI re-
tailer. It is recommended that you visit an
INFINITI retailer for additional information.
The service load capacity for the roof side
rails is 165 lbs. (74 kg), however do not ex-
ceed the accessory cross bars load capacity.
LIC3684LIC2386
2-62Instruments and controls
