2019 INFINITI QX60 instruments and controls

off. For additional information, refer to “Dis-
tance Control Assist (DCA)”, “Lane Departure
Prevention (LDP)”, or “Blind Spot Interven-
tion® (BSI)” in the “Starting and driving” sec-
tion of this manual.
Unavailable: High Cabin Temp.
(if so equipped)
This message appears when the camera de-
tects an interior temperature of more than
40°C (104°F). For additional information, re-
fer to “Distance Control Assist (DCA),” “Lane
Departure Warning (LDW),” “Lane Departure
Prevention (LDP)” or “Blind Spot Interven-
tion® (BSI)” in the “Starting and driving” sec-
tion of this manual.
Unavailable: Side Radar Obstruction
(if so equipped)
This message appears when the Blind Spot
Warning (BSW), Rear Cross Traffic Alert
(RCTA), Blind Spot Intervention® (BSI), or
Backup Collision Intervention (BCI) systems
become unavailable because a radar block-
age is detected. For additional information,
refer to “Blind Spot Warning (BSW),” “Rear
Cross Traffic Alert (RCTA),” “Blind Spot Inter-
vention® (BSI),” or “Backup Collision Inter-
vention (BCI)” in the “Starting and driving”
section of this manual.Unavailable: High Accelerator Temp.
(if so equipped)
This message appears when the Backup Col-
lision Intervention (BCI) system becomes un-
available because of an interior temperature
greater than approximately 104°F (40°C).
For additional information, refer to “Backup
Collision Intervention (BCI)” in the “Starting
and driving” section of this manual.
Unavailable: Front Radar Obstruction
(if so equipped)
This message appears when the Intelligent
Cruise Control (ICC), Distance Control Assist
(DCA), Forward Emergency Braking (FEB)
with Pedestrian Detection system, or Predic-
tive Forward Collision Warning (PFCW) sys-
tems become unavailable because the front
radar is obstructed. For additional informa-
tion, refer to “Intelligent Cruise Control (ICC),”
“Distance Control Assist (DCA),” “Forward
Emergency Braking (FEB) with Pedestrian
Detection system,” or “Predictive Forward
Collision Warning (PFCW)” in the “Starting
and driving” section of this manual.
BCI OFF (if so equipped)
This message appears when the Backup Col-
lision Intervention (BCI) system is turned off
using the BCI switch. For additional informa-tion, refer to “Backup Collision Intervention
(BCI)” in the “Starting and driving” section of
this manual.
Shipping Mode On Push Storage Fuse
This warning may appear if the extended
storage switch is not pushed in. When this
warning appears, push in the extended stor-
age switch to turn off the warning. For addi-
tional information, refer to “Extended stor-
age switch” in this section.
CVT Error: See Owner’s Manual
This warning illuminates when there is a
problem with the CVT system. If this warning
comes on, have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service.
Rear Door Alert is activated
When the system is enabled, this message
appears when the Rear Door Alert system is
active and can remind the driver to check the
back seat.
∙ Using the steering wheel switch, a driver can select “Dismiss Message” to clear the
display for a period of time. If no selection
is made, this message automatically turns
off after a period of time.
Instruments and controls2-31

∙ Using the steering wheel switch, a drivercan select “Disable Alert” to disable the
horn alert for the remainder of the cur-
rent trip.
WARNING
Selecting “Dismiss Message” during a stop
within a trip temporarily dismisses the mes-
sage for that stop without turning the sys-
tem off. Alerts can be provided for other
stops during the trip. Selecting “Disable
Alert” turns off the Rear Door Alert system
for the remainder of a trip and no audible
alert will be provided.
NOTE:
This system is disabled until a driver enables
it using the vehicle information display. For
additional information, refer to “How to use
the vehicle information display” in this sec-
tion.
For additional information, refer to “Rear
Door Alert” in this section.
Check Back Seat For All Articles
When the system is enabled, this message
appears when the vehicle comes to a com-
plete stop, the vehicle is transitioned from the
D (Drive) position to P (Park) position, and the driver exits the vehicle. This message alerts
the driver, after a period of time, to check for
items in the rear seat after the audible alert
has been provided.
NOTE:
This system is disabled until a driver enables
it using the vehicle information display. For
additional information, refer to “How to use
the vehicle information display” in this sec-
tion.
For additional information, refer to “Rear
Door Alert” in this section.
Distance Control Assist (DCA) indicators
(if so equipped)
These indicators show the Distance Control
Assist (DCA) system status. For additional
information, refer to “Distance Control Assist
(DCA)” in the “Starting and driving” section of
this manual.
Power turned off to save the battery
This message appears after the ignition
switch is automatically turned off. For addi-
tional information, refer to “Push-button ig-
nition switch positions” in the “Starting and
driving” section of this manual.
Your vehicle has two types of security sys-
tems:
∙ Vehicle security system
∙ INFINITI Vehicle Immobilizer System
VEHICLE SECURITY SYSTEM
The vehicle security system provides visual
and audible alarm signals if someone opens
the doors, liftgate or hood when the system is
armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs.
The system helps deter vehicle theft but can-
not prevent it nor can it prevent the theft of
LIC0661
SECURITY SYSTEMS
2-32Instruments and controls

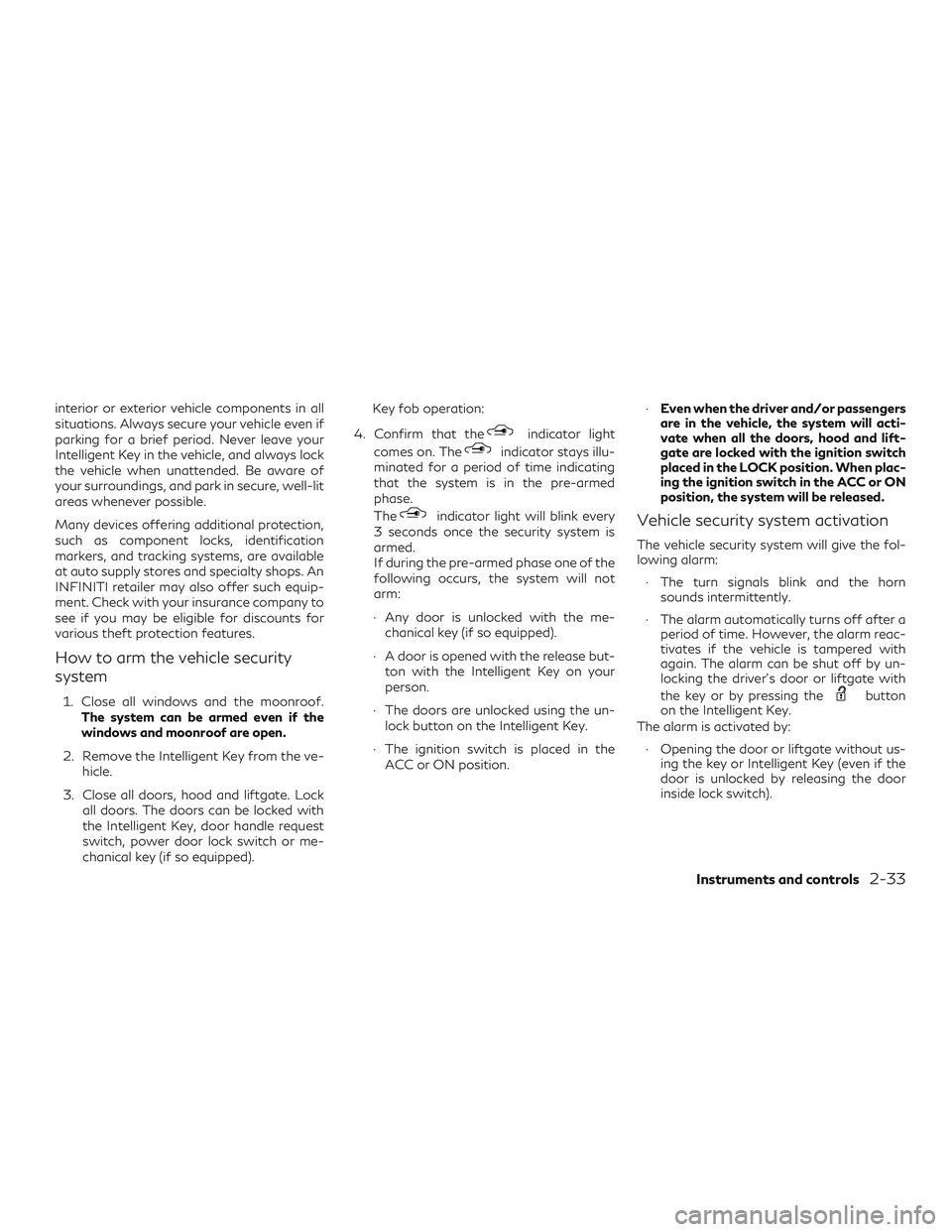

interior or exterior vehicle components in all
situations. Always secure your vehicle even if
parking for a brief period. Never leave your
Intelligent Key in the vehicle, and always lock
the vehicle when unattended. Be aware of
your surroundings, and park in secure, well-lit
areas whenever possible.
Many devices offering additional protection,
such as component locks, identification
markers, and tracking systems, are available
at auto supply stores and specialty shops. An
INFINITI retailer may also offer such equip-
ment. Check with your insurance company to
see if you may be eligible for discounts for
various theft protection features.
How to arm the vehicle security
system
1. Close all windows and the moonroof.The system can be armed even if the
windows and moonroof are open.
2. Remove the Intelligent Key from the ve- hicle.
3. Close all doors, hood and liftgate. Lock all doors. The doors can be locked with
the Intelligent Key, door handle request
switch, power door lock switch or me-
chanical key (if so equipped). Key fob operation:
4. Confirm that the
indicator light
comes on. The
indicator stays illu-
minated for a period of time indicating
that the system is in the pre-armed
phase.
The
indicator light will blink every
3 seconds once the security system is
armed.
If during the pre-armed phase one of the
following occurs, the system will not
arm:
∙ Any door is unlocked with the me- chanical key (if so equipped).
∙ A door is opened with the release but- ton with the Intelligent Key on your
person.
∙ The doors are unlocked using the un- lock button on the Intelligent Key.
∙ The ignition switch is placed in the ACC or ON position. ∙
Even when the driver and/or passengers
are in the vehicle, the system will acti-
vate when all the doors, hood and lift-
gate are locked with the ignition switch
placed in the LOCK position. When plac-
ing the ignition switch in the ACC or ON
position, the system will be released.Vehicle security system activation
The vehicle security system will give the fol-
lowing alarm:
∙ The turn signals blink and the horn sounds intermittently.
∙ The alarm automatically turns off after a period of time. However, the alarm reac-
tivates if the vehicle is tampered with
again. The alarm can be shut off by un-
locking the driver’s door or liftgate with
the key or by pressing the
button
on the Intelligent Key.
The alarm is activated by:
∙ Opening the door or liftgate without us- ing the key or Intelligent Key (even if the
door is unlocked by releasing the door
inside lock switch).
Instruments and controls2-33

How to stop an activated alarm
The alarm stops only by unlocking the driver’s
door or the liftgate with the key, pressing
the
button on the Intelligent Key, or
pushing the request switch on the driver’s or
passenger’s door with the Intelligent Key in
range of the door handle.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System will
not allow the engine to start without the use
of a registered INFINITI Vehicle Immobilizer
System key.
If the engine fails to start using a registered
INFINITI Vehicle Immobilizer System key (for
example, when interference is caused by an-
other INFINITI Vehicle Immobilizer System
key, an automated toll road device or auto-
matic payment device on the key ring), restart
the engine using the following procedures:
1. Leave the ignition switch in the ON po- sition for approximately 5 seconds.
2. Place the ignition switch in the OFF or LOCK position, and wait approximately
10 seconds. 3. Repeat steps 1 and 2.
4. Restart the engine while holding the de-
vice (which may have caused the inter-
ference) separate from the registered
INFINITI Vehicle Immobilizer System
key.
If the no start condition re-occurs, INFINITI
recommends placing the registered INFINITI
Vehicle Immobilizer System key on a separate
key ring to avoid interference from other de-
vices.
FCC Notice:
For USA:
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-
vice must accept any interference received,
including interference that may cause unde-
sired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment. For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
2-34Instruments and controls

Security indicator light
The security indicator light blinks whenever the
ignition switch is in the LOCK, OFF or ACC
position. This function indicates the INFINITI
Vehicle Immobilizer System is operational.
If the INFINITI Vehicle Immobilizer System is
malfunctioning, the light will remain on while
the ignition switch is in the ON position.
If the light still remains on and/or the engine
will not start, seek service for the INFINITI
Vehicle Immobilizer System as soon as pos-
sible. Please bring all registered keys that
you have. It is recommended that you visit an
INFINITI retailer for this service.
SWITCH OPERATION
WARNING
In freezing temperatures the washer solu-
tion may freeze on the windshield and ob-
scure your vision which may lead to an acci-
dent. Warm the windshield with the
defroster before you wash the windshield.
CAUTION
∙ Do not operate the washer continuouslyfor more than 30 seconds. ∙ Do not operate the washer if the
windshield-washer fluid reservoir is
empty.
∙ Do not fill the windshield-washer fluid reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl alcohol based windshield-washer
fluid concentrates may permanently
stain the grille if spilled while filling the
windshield-washer fluid reservoir.
LIC0474
Type A (if so equipped)
LIC3755
Type B (if so equipped)
LIC3756
WIPER AND WASHER SWITCH
Instruments and controls2-35

∙ Pre-mix windshield-washer fluid concen-trates with water to the manufacturer’s
recommended levels before pouring the
fluid into the windshield-washer fluid
reservoir. Do not use the windshield-
washer fluid reservoir to mix the
windshield-washer fluid concentrate and
water.
NOTE:
If the windshield wiper operation is inter-
rupted by snow or ice, the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to the OFF position
and remove the snow or ice that is on and
around the wiper arms. In approximately
1 minute, turn the switch on again to operate
the wiper.
The windshield wiper and washer operates
when the ignition switch is in the ON position. Push the lever down to operate the wiper at
the following speed:
1Intermittent (INT) — intermittent opera-
tion can be adjusted by turning the knob
toward
A(Slower) orB(Faster). Also,
the intermittent operation speed varies in
accordance with the vehicle speed. (For
example, when the vehicle speed is high,
the intermittent operation speed will be
faster.) Further, if so equipped, the rain-
sensing feature will adjust the speed of
the intermittent operation. For additional
information, refer to “Rain-sensing auto
wiper system” in this section.
2Low (LO) — continuous low speed op-
eration
3High (HI) — continuous high speed opera-
tion
Push the lever up
4to have one sweep
operation (MIST) of the wiper.
Pull the lever toward you
5to operate the
washer. The wiper will also operate several
times.
NOTE:
The Wiper with Speed feature may be dis-
abled. For additional information, refer to
“Vehicle information display” in this section.
RAIN-SENSING AUTO WIPER
SYSTEM (if so equipped)
CAUTION
∙ Do not touch the rain sensor and around it when the wiper switch is in the AUTO
position and the ignition switch is in the
ON position. The wipers may operate un-
expectedly and cause an injury or may
damage a wiper.
LIC2901
2-36Instruments and controls

∙ The rain-sensing auto wipers are in-tended for use during rain. If the switch is
left in the AUTO position, the wipers may
operate unexpectedly when dirt, finger-
prints, oil film or insects are stuck on or
around the sensor. The wipers may also
operate when exhaust gas or moisture
affect the rain sensor.
∙ When the windshield glass is coated with water repellent, the speed of the rain-
sensing auto wipers may be higher even
though the amount of the rainfall is small.
∙ Be sure to turn off the rain-sensing auto wiper system when you use a car wash.
∙ The rain-sensing auto wipers may not operate if rain does not hit the rain sensor
even if it is raining.
∙ Using Genuine NISSAN wiper blades is recommended for proper operation of
the rain-sensing auto wiper system. For
additional information, refer to “Wind-
shield wiper blades” in the “Do-it-
yourself” section of this manual. The rain-sensing auto wiper system can au-
tomatically turn on the wipers and adjust the
wiper speed depending on the rainfall and the
vehicle speed by using the rain sensor located
on the upper part of the windshield.
To set the rain-sensing auto wiper system,
place the lever in the AUTO position
1. The
wiper will sweep once while the ignition
switch is in the ON position.
The rain sensor sensitivity level can be ad-
justed by turning the knob toward the front
2(High) or toward the rear3(Low).
– High — High sensitive operation
– Low — Low sensitive operation
To turn the rain-sensing auto wiper system
off, rotate the lever to the OFF position, or
rotate the lever to the LO or HI position. For additional information on disabling the
rain-sensing feature, refer to “How to use the
vehicle information display” in “Vehicle infor-
mation display” in this section.
Instruments and controls2-37

REAR SWITCH OPERATION
WARNING
In freezing temperatures the washer solu-
tion may freeze on the rear window and
obscure your vision which may lead to an
accident. Warm the rear window with the
defroster before you wash the rear
window.
CAUTION
∙ Do not operate the washer continuouslyfor more than 30 seconds.
∙ Do not operate the washer if the windshield-washer fluid reservoir is
empty.
∙ Do not fill the windshield-washer fluid reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl alcohol based windshield-washer
fluid concentrates may permanently
stain the grille if spilled while filling the
windshield-washer fluid reservoir.
∙ Pre-mix windshield-washer fluid concen- trates with water to the manufacturer’s
recommended levels before pouring the
fluid into the windshield-washer fluid
reservoir. Do not use the windshield-
washer fluid reservoir to mix the
windshield-washer fluid concentrate and
water.
If the rear window wiper operation is inter-
rupted by snow, etc., the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to OFF and remove the
snow, etc. on and around the wiper arms.
After about 1 minute, turn the switch on
again to operate the wiper. The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF po-
sition to operate the wiper.
1Intermittent (INT) — intermittent opera-
tion (not adjustable)
2Low (ON) — continuous low speed op-
eration
Push the switch forward
3to operate the
washer. The wiper will also operate several
times.
LIC3129
2-38Instruments and controls
