– When driving in a makeshift or tempo-rary lane.
– When driving on roads where the lane width is too narrow.
– When driving without normal tire conditions (for example, tire wear, low
tire pressure, installation of spare tire,
tire chains, non-standard wheels).
– When the vehicle is equipped with nonoriginal brake parts or suspension
parts.
– When you are towing a trailer or other vehicle.
∙ If the LDP system malfunctions, it will cancel automatically. The LDW indicator
(orange) will illuminate and the “Mal-
function: See Owner’s Manual” warning
message will appear in the display.
∙ If the LDW indicator (orange) illuminates in the display, pull off the road to a safe
location and stop the vehicle. Turn the
engine off and restart the engine. If the
LDW indicator (orange) continues to illu-
minate, have the LDP system checked. It
is recommended that you visit an
INFINITI retailer for this service. ∙ Excessive noise will interfere with the
warning chime sound, and the chime may
not be heard.
The LDP system may or may not operate
properly under the following conditions:
∙ On roads where there are multiple paral- lel lane markers; lane markers that are
faded or not painted clearly; yellow
painted lane markers; non-standard lane
markers; or lane markers covered with
water, dirt, snow, etc.
∙ On roads where discontinued lane mark- ers are still detectable.
∙ On roads where there are sharp curves.
∙ On roads where there are sharply con- trasting objects, such as shadows, snow,
water, wheel ruts, seams or lines remain-
ing after road repairs. (The LDP system
could detect these items as lane
markers.)
∙ On roads where the traveling lane merges or separates.
∙ When the vehicle’s traveling direction does not align with the lane marker. ∙ When traveling close to the vehicle in
front of you, which obstructs the lane
camera unit detection range.
∙ When rain, snow or dirt adheres to the windshield in front of the lane camera
unit.
∙ When the headlights are not bright due to dirt on the lens or if the aiming is not
adjusted properly.
∙ When strong light enters the lane camera unit. (For example, the light directly
shines on the front of the vehicle at sun-
rise or sunset.)
∙ When a sudden change in brightness oc- curs. (For example, when the vehicle en-
ters or exits a tunnel or under a bridge.)
While the LDP system is operating, you may
hear a sound of brake operation. This is nor-
mal and indicates that the LDP system is
operating properly.
5-36Starting and driving

HOW TO ENABLE/DISABLE THE
BSW SYSTEM
When the BSW system is enabled in the ve-
hicle information display, the system can be
turned off temporarily by pushing the warn-
ing systems switch. For additional informa-
tion, refer to “Warning systems switch” in the
“Instruments and controls” section of this
manual.
Perform the following steps to enable or dis-
able the BSW system.1. Press the
button until “Settings”
displays in the vehicle information dis-
play. Use the
button to select
“Driver Assistance.” Then press the EN-
TER button.
2. Select “Driving Aids” and press the EN- TER button.
3. Select “Blind Spot” and press the ENTER button.
4. Select “Blind Spot” and use the ENTER button to turn the system on or off. NOTE:
∙ When enabling/disabling the system,
the system will retain current settings
even if the engine is restarted.
∙ The RCTA system (if so equipped) is in-
tegrated into the BSW system. There is
not a separate selection in the vehicle
information display for the RCTA sys-
tem. When the BSW is disabled, the
RCTA system is also disabled.
∙ When the BSW system is turned on, the
BSW/RCTA indicator (white) in the ve-
hicle information display illuminates.BSW SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the BSW system. Failure to operate the ve-
hicle in accordance with these system limi-
tations could result in serious injury or
death.
∙ The BSW system cannot detect all ve-
hicles under all conditions.
∙ The radar sensors may not be able to de- tect and activate BSW when certain ob-
jects are present such as: – Pedestrian, bicycles, animals.
– Vehicles such as motorcycles, low
height vehicles, or high ground clear-
ance vehicles.
– Oncoming vehicles.
– Vehicles remaining in the detection zone when you accelerate from a stop.
– A vehicle merging into an adjacent lane at a speed approximately the
same as your vehicle.
– A vehicle approaching rapidly from behind.
– A vehicle which your vehicle overtakes rapidly.
– A vehicle that passes through the de- tection zone quickly.
– When overtaking several vehicles in a row, the vehicles after the first vehicle
may not be detected if they are trav-
eling close together.
∙ The radar sensors’ detection zone is de- signed based on a standard lane width.
When driving in a wider lane, the radar
sensors may not detect vehicles in an ad-
jacent lane. When driving in a narrow
lane, the radar sensors may detect ve-
hicles driving two lanes away.
5-42Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE
When radar blockage is detected, the system
will be deactivated automatically. The “Un-
available: Side Radar Obstruction” warning
message will appear and the BSW/RCTA in-
dicator (white) will blink
Ain the vehicle in-
formation display.
The system is not available until the condi-
tions no longer exist.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog. The blocked condition
may also be caused by objects such as ice,
frost or dirt obstructing the radar sensors.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take:
When the above conditions no longer exist,
the system will resume automatically.
LSD2634
5-46Starting and driving

Malfunction
If the BSW system malfunctions, it will turn
off automatically. The system malfunction
warning message with the BSW/RCTA indi-
cator (orange) will appear in the vehicle infor-
mation display.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the mes-
sage continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
SYSTEM MAINTENANCE
The two radar sensors1for the BSW and
RCTA systems are located near the rear
bumper. Always keep the area near the radar
sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
Radio frequency statement
For USA
This device complies with part 15 of the FCC
Rules. (FCC Number UR8100261)
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
NOTE:
The manufacturer is not responsible for any
radio or TV interference caused by unau-
thorized modifications to this equipment.
Such modifications could void the user’s au-
thority to operate the equipment.
LSD2221
Starting and driving5-47

BSI SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the BSI system. Failure to operate the ve-
hicle in accordance with these system limi-
tations could result in serious injury or
death.
∙ The radar sensors may not be able to de-tect and activate BSI when certain ob-
jects are present such as:
– Pedestrians, bicycles, or animals.
– Vehicles such as motorcycles, low height vehicles, or high ground clear-
ance vehicles.
– Oncoming vehicles.
– Vehicles remaining in the detection zone when you accelerate from a stop.
For additional information, refer to
“BSI driving situations” in this section.
– A vehicle merging into an adjacent lane at a speed approximately the
same as your vehicle. For additional
information, refer to “BSI driving situ-
ations” in this section. – A vehicle approaching rapidly from
behind. For additional information,
refer to “BSI driving situations” in this
section.
– A vehicle which your vehicle overtakes rapidly. For additional information,
refer to “BSI driving situations” in this
section.
– A vehicle that passes through the de- tection zone quickly.
∙ The radar sensors’ detection zone is de- signed based on a standard lane width.
When driving in a wider lane, the radar
sensors may not detect vehicles in an ad-
jacent lane. When driving in a narrow
lane, the radar sensors may detect ve-
hicles driving two lanes away.
∙ The radar sensors are designed to ignore most stationary objects; however, ob-
jects such as guardrails, walls, foliage and
parked vehicles may occasionally be de-
tected. This is a normal driving condition.
∙ Severe weather or road spray conditions may reduce the ability of the radar to de-
tect other vehicles. ∙ The camera may not detect lane markers
in the following situations and the BSI
system may not operate properly.
– On roads where there are multiple parallel lane markers; lane markers
that are faded or not painted clearly;
yellow painted lane markers; non-
standard lane markers; lane markers
covered with water, dirt, snow, etc.
– On roads where discontinued lane markers are still detectable.
– On roads where there are sharp curves.
– On roads where there are sharply con- trasting objects, such as shadows,
snow, water, wheel ruts, seams or
lines remaining after road repairs.
– On roads where the traveling lane merges or separates.
– When the vehicle’s traveling direction does not align with the lane markers.
– When traveling close to the vehicle in front of you, which obstructs the lane
camera unit detection range.
5-52Starting and driving

Illustration 2: If the driver activates the turn
signal then the system chimes a sound (twice)
and the side indicator light flashes.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the side
indicator light will flash but no chime will
sound when the other vehicle is detected.Illustration 3: If the BSI system is on and your
vehicle is approaching a lane marker and a
vehicle is in the detection zone, the system
chimes a sound (three times), and the side
indicator light flashes. Then the BSI system
slightly applies the brakes on one side to help
return the vehicle back to the center of the
driving lane.
NOTE:
Illustration 4: If you accelerate from a stop
with a vehicle in the detection zone, the
other vehicle may not be detected.
Illustration 2 – Approaching from behind
SSD1031
Illustration 3 – Approaching from behind
LSD2048
Illustration 4 – Accelerate from a stop
SSD1032
5-54Starting and driving

Illustration 10: If the driver activates the turn
signal while another vehicle is in the detection
zone, then the side indicator light flashes and
a chime will sound twice.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the side
indicator light will flash but no chime will
sound when another vehicle is detected.Illustration 11: If the BSI system is on and
your vehicle approaches the lane marker
while another vehicle is in the detection zone,
the side indicator light flashes and a chime
will sound three times. Then, the BSI system
slightly applies the brakes on the appropriate
side to help return the vehicle back to the
center of the driving lane.
NOTE:
∙ Illustration 12: The BSI system will not
operate if your vehicle is on a lane marker
when another vehicle enters the detec-
tion zone. In this case, only the BSW sys-
tem operates.
∙ BSI braking will not operate or will stop
operating and only a warning chime will
sound under the following conditions:
– When the brake pedal is depressed.
– When the vehicle is accelerated dur-
ing BSI system operation.
Illustration 10 – Entering from the side
SSD1038
Illustration 11 – Entering from the side
SSD1094
Illustration 12 – Entering from the side
LSD2051
Starting and driving5-57

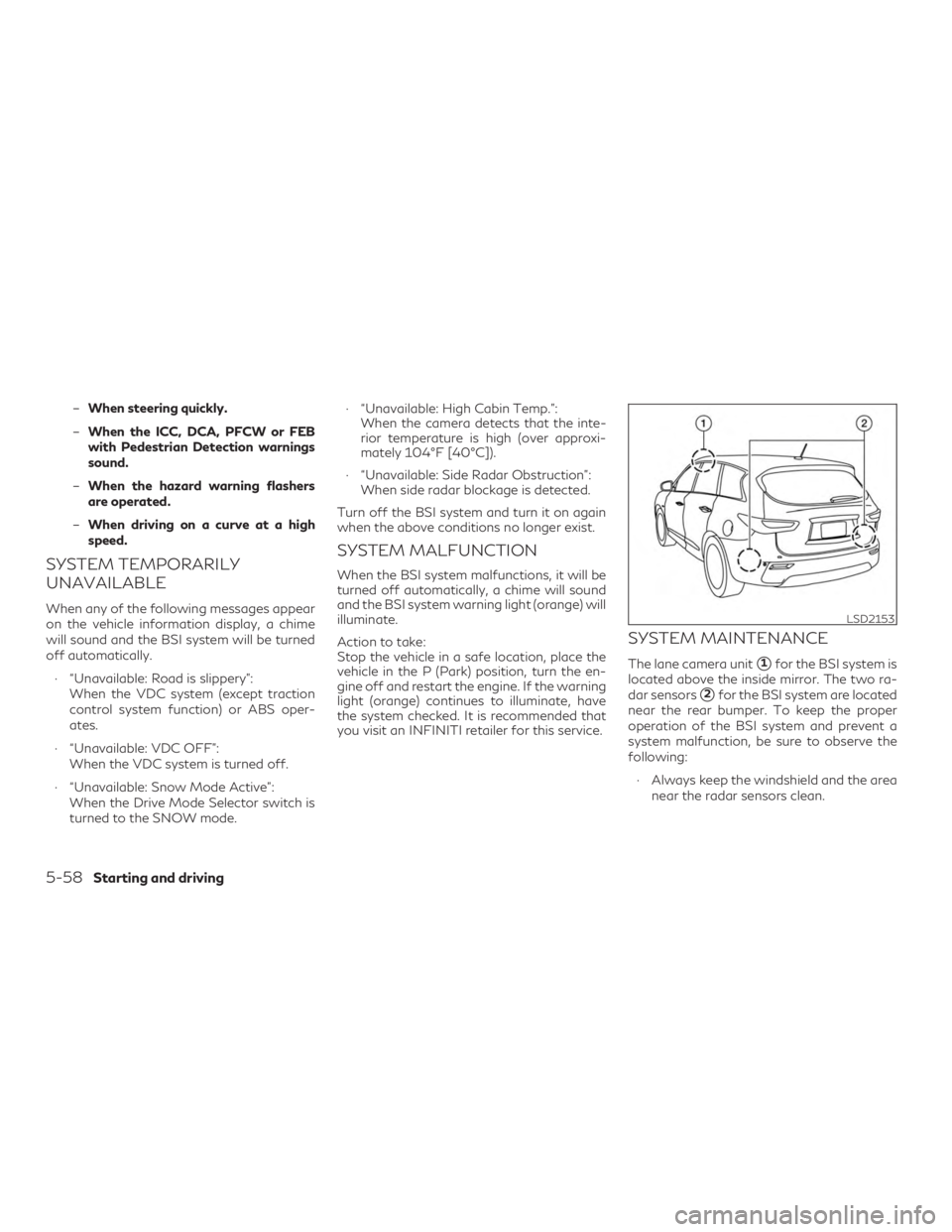

–When steering quickly.
– When the ICC, DCA, PFCW or FEB
with Pedestrian Detection warnings
sound.
– When the hazard warning flashers
are operated.
– When driving on a curve at a high
speed.
SYSTEM TEMPORARILY
UNAVAILABLE
When any of the following messages appear
on the vehicle information display, a chime
will sound and the BSI system will be turned
off automatically.
∙ “Unavailable: Road is slippery”: When the VDC system (except traction
control system function) or ABS oper-
ates.
∙ “Unavailable: VDC OFF”: When the VDC system is turned off.
∙ “Unavailable: Snow Mode Active”: When the Drive Mode Selector switch is
turned to the SNOW mode. ∙ “Unavailable: High Cabin Temp.”:
When the camera detects that the inte-
rior temperature is high (over approxi-
mately 104°F [40°C]).
∙ “Unavailable: Side Radar Obstruction”: When side radar blockage is detected.
Turn off the BSI system and turn it on again
when the above conditions no longer exist.
SYSTEM MALFUNCTION
When the BSI system malfunctions, it will be
turned off automatically, a chime will sound
and the BSI system warning light (orange) will
illuminate.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the warning
light (orange) continues to illuminate, have
the system checked. It is recommended that
you visit an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The lane camera unit1for the BSI system is
located above the inside mirror. The two ra-
dar sensors
2for the BSI system are located
near the rear bumper. To keep the proper
operation of the BSI system and prevent a
system malfunction, be sure to observe the
following:
∙ Always keep the windshield and the area near the radar sensors clean.
LSD2153
5-58Starting and driving
