2019 INFINITI QX60 display

When the Rear Door Alert system is activated
and a driver exits the vehicle after arriving at a
destination:∙ When the driver puts the vehicle in the P (Park) position, a message appears in the
vehicle information display for a driver to
“Dismiss Message” or “Disable Alert” if
desired.
∙ With the system enabled, when the driver exits the vehicle, an audible alert (horn
sound) will occur unless a rear door is
opened and closed within a short time to
deactivate the alert.
∙ If the doors are locked before the alert is deactivated by opening a rear door, the
horn will sound.
∙ If the system is activated but the rear liftgate is opened before opening a rear
door, the horn will be delayed until after
the liftgate is closed.
∙ If the audible horn alert occurs, a mes- sage will also appear in the vehicle infor-
mation display that states, “Check Back
Seat for All Articles”.WARNING
• If the driver selects “Disable Alert”, no au-
dible alert will be provided regardless of
rear door open/close status.
• There may be times when there is an object
or passenger in the rear seat(s) but the au-
dible alert does not sound. For example,
this may occur if the engine is turned off
and then on again in a short period of time
during a trip, or if rear seat passengers en-
ter or exit the vehicle during a trip.
• The system does not directly detect ob-
jects or passengers in the rear seat(s). In-
stead, it can detect when a rear door is
opened and closed, indicating that there
may be something in the rear seat(s).
NOTE:
There may be times when the horn sounds
but there are no objects or passengers in the
rear seat(s).
For additional information, refer to “Rear
Door Alert is activated” in this section. To use the outlets for devices that require
120v power, place the ignition in the ON
position and push the power inverter switch.
CAUTION
∙ Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
∙ Do not attempt to use this while driving.
∙ Do not use double adapters or more than one electrical accessory; doing so could
significantly drain the battery of your
vehicle.
LIC2231
POWER INVERTER SWITCH
(if so equipped)
2-52Instruments and controls

The interior lights will automatically turn on
and stay on for a period of time when:∙ The doors are unlocked by the Intelligent Key, a key or the request switch while all
doors are closed and the ignition switch is
in the OFF position.
∙ The doors and/or liftgate is opened.
∙ The switch is individually pushed.
When the ON switch
1is pushed, the inte-
rior lights illuminate.
When the DOOR/OFF switch
2is pushed,
the interior lights do not illuminate unless
individually pushed. NOTE:
The footwell lights and step lights illuminate
when the driver and passenger doors are
open regardless of the interior light switch
position. These lights will turn off automati-
cally after a period of time while doors are
open to prevent the battery from becoming
discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result in
a discharged battery.
CONSOLE LIGHT
The console light1will turn on whenever
the parking lights or headlights are illumi-
nated.
The console light brightness can be adjusted
with the illumination brightness control in the
vehicle information display.
SIC4357LIC3970
INTERIOR LIGHTS
Instruments and controls2-71

Lockout protection
When the power door lock switch is moved to
the lock position and any door is open, all
doors will lock. With the Intelligent Key left in
the vehicle and any door open, all doors will
unlock automatically and chime will sound
after the door is closed.
These functions help prevent the Intelligent
Key from being accidentally locked inside the
vehicle.
AUTOMATIC DOOR LOCKS
∙ All doors lock automatically when the ve-hicle speed reaches 15 mph (24 km/h).
NOTE:
The automatic door unlock function can be
changed using “Vehicle Settings” of the ve-
hicle information display. For additional in-
formation, refer to “Vehicle information dis-
play” in the “Instruments and controls”
section of this manual.
CHILD SAFETY REAR DOOR
LOCK
Child safety locks help prevent the rear doors
from being opened accidentally, especially
when small children are in the vehicle.
The child safety lock levers are located on the
edge of the rear doors.
When the lever is in the LOCK position, the
door can be opened only from the outside.
WARNING
∙ Radio waves could adversely affect elec- tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.
∙ The Intelligent Key transmits radio waves when the buttons are pressed. The
FAA advises the radio waves may affect
aircraft navigation and communication
systems. Do not operate the Intelligent
Key while on an airplane. Make sure the
buttons are not operated unintentionally
when the unit is stored for a flight.
The Intelligent Key system can operate all the
door locks using the remote control function
or pushing the request switch on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or
conditions may affect the Intelligent Key sys-
tem operation.
LPD2374
INFINITI INTELLIGENT KEY SYSTEM
Pre-driving checks and adjustments3-7

Be sure to read the following before using the
Intelligent Key system.
CAUTION
∙ Be sure to carry the Intelligent Key withyou when operating the vehicle.
∙ Never leave the Intelligent Key in the ve- hicle when you leave the vehicle.
The Intelligent Key is always communicating
with the vehicle as it receives radio waves.
The Intelligent Key system transmits weak
radio waves. Environmental conditions may
interfere with the operation of the Intelligent
Key system under the following operating
conditions: ∙ When operating near a location where strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station.
∙ When in possession of wireless equip- ment, such as a cellular telephone, trans-
ceiver or a CB radio.
∙ When the Intelligent Key is in contact with or covered by metallic materials.
∙ When any type of radio wave remote control is used nearby. ∙ When the Intelligent Key is placed near an
electric appliance such as a personal
computer.
∙ When the vehicle is parked near a parking meter.
In such cases, correct the operating condi-
tions before using the Intelligent Key function
or use the mechanical key.
Although the life of the battery varies de-
pending on the operating conditions, the bat-
tery’s life is approximately two years. If the
battery is discharged, replace it with a new
one.
When the Intelligent Key battery is low, an
indicator illuminates in the vehicle informa-
tion display. For additional information, refer
to “Vehicle information display” in the “Instru-
ments and controls” section of this manual.
Since the Intelligent Key is continuously re-
ceiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and per-
sonal computer, the battery life may become
shorter.
For additional information, refer to “Battery
replacement” in the “Do-it-yourself” section
of this manual. As many as four Intelligent Keys can be reg-
istered and used with one vehicle. For infor-
mation about the purchase and use of addi-
tional Intelligent Keys, it is recommended that
you visit an INFINITI retailer.
CAUTION
Listed below are conditions or occurrences
which will damage the Intelligent Key:
∙ Do not allow the Intelligent Key, which
contains electrical components, to come
into contact with water or salt water.
This could affect the system function.
∙ Do not drop the Intelligent Key.
∙ Do not strike the Intelligent Key sharply against another object.
∙ Do not change or modify the Intelligent Key.
∙ Wetting may damage the Intelligent Key. If the Intelligent Key gets wet, immedi-
ately wipe until it is completely dry.
∙ Do not place the Intelligent Key for an extended period in an area where tem-
peratures exceed 140°F (60°C).
∙ Do not attach the Intelligent Key with a key holder that contains a magnet.
3-8Pre-driving checks and adjustments

Locking doors
1. Move the shift lever to the P (Park) posi-tion, place the ignition switch in the
LOCK position and make sure you carry
the Intelligent Key with you.
2. Close the driver’s door and press the driver’s door request switch OR close all
doors and press any door request switch
while carrying the Intelligent Key with
you.
3. All doors and the rear liftgate will lock.
4. The hazard warning lights flash twice and the outside chime sounds twice. NOTE:
∙ Request switches for all doors and lift-
gate can be deactivated when the I-Key
Door Lock setting is switched to OFF in
“Vehicle Settings” of the vehicle infor-
mation display. For additional informa-
tion, refer to “Vehicle information dis-
play” in the “Instruments and controls”
section of this manual.
∙ Doors lock with the door handle request
switch while the ignition switch is not in
the LOCK position. ∙
Doors do not lock by pushing the door
handle request switch while the driver’s
door is open. However, doors lock with
the mechanical key even if any door is
open.
∙ Doors do not lock with the door handle
request switch with the Intelligent Key
inside the vehicle and a beep sounds to
warn you. However, when an Intelligent
Key is inside the vehicle, doors can be
locked with another Intelligent Key.
CAUTION
∙ After locking the doors using the request
switch, make sure that the doors have
been securely locked by operating the
door handles or the rear liftgate opener
switch.
∙ When locking the doors using the request switch, make sure to have the Intelligent
Key in your possession before operating
the request switch to prevent the Intelli-
gent Key from being left in the vehicle.
∙ The request switch is operational only when the Intelligent Key has been de-
tected by the Intelligent Key system.LPD2894LPD2811
Pre-driving checks and adjustments3-11

NOTE:
Request switches for all doors and liftgate
can be deactivated when the I-Key Door
Lock setting is switched to OFF in “Vehicle
Settings” of the vehicle information display.
For additional information, refer to “Vehicle
information display” in the “Instruments and
controls” section of this manual.
If a door handle is pulled while unlocking the
doors, that door may not be unlocked. Re-
turning the door handle to its original position
will unlock the door. If the door does not
unlock after returning the door handle, push
the door handle request switch to unlock the
door.All doors will be locked automatically unless
one of the following operations is performed
within 1 minute after pushing the request
switch.
∙ Opening any door.
∙ Pushing the ignition switch.
The interior light timer illuminates for a period
of time when a door is unlocked and the room
light switch is in the DOOR position.
The interior light can be turned off without
waiting by performing one of the following
operations: ∙ Placing the ignition switch in the ON po- sition.
∙ Locking the doors with the remote con- trol.
∙ Switching the room light switch to the OFF position.
∙ Switching the Auto Room Lamp to the OFF position in “Vehicle Settings” of the
vehicle information display. For addi-
tional information, refer to “Vehicle infor-
mation display” in the “Instruments and
controls” section of this manual.
HOW TO USE THE REMOTE
KEYLESS ENTRY FUNCTION
The remote keyless entry function can oper-
ate all door locks using the remote keyless
function of the Intelligent Key. The remote
keyless function can operate at a distance of
33 ft (10 m) away from the vehicle. The op-
erating distance depends upon the conditions
around the vehicle.
The remote keyless entry function will not
function under the following conditions:
∙ When the Intelligent Key is not within the operational range.
∙ When the doors or the rear liftgate are open or not closed securely.
∙ When the Intelligent Key battery is dis- charged.
CAUTION
When locking the doors using the Intelli-
gent Key, be sure not to leave the key in the
vehicle.
LPD2811
Pre-driving checks and adjustments3-13

NOTE:
The unlocking operation can be changed in
Selective Unlock in “Vehicle Settings” of the
vehicle information display. For additional
information, refer to “Vehicle information
display” in the “Instruments and controls”
section of this manual.
All doors will be locked automatically unless
one of the following operations is performed
within 1 minute after pressing the
but-
ton:
∙ Opening any doors.
∙ Pushing the ignition switch.
The interior light illuminates for a period of
time when a door is unlocked and the room
light switch is in the DOOR position.
The light can be turned off without waiting
by performing one of the following opera-
tions:
∙ Placing the ignition switch in the ON po- sition.
∙ Locking the doors with the Intelligent Key.
∙ Switching the room light switch to the OFF position. ∙ Switching the Auto Room Lamp to the
OFF position in “Vehicle Settings” of the
vehicle information display. For addi-
tional information, refer to “Vehicle infor-
mation display” in the “Instruments and
controls” section of this manual.
Opening windows
The Intelligent Key allows you to simultane-
ously open windows equipped with auto-
matic operation.
∙ To open the windows, press the
button on the Intelligent Key for longer
than 3 seconds after all doors are un-
locked.
The door windows will open while pressing
the
button on the Intelligent Key.
The door windows cannot be closed by using
the Intelligent Key.
Linking the key fob to automatic
drive positioner memory
(if so equipped)
If the vehicle is equipped with automatic drive
positioner, the key fob can be linked to a
memory setting.
For additional information, refer to “Auto-
matic drive positioner” in this section.
Releasing the rear liftgate
The rear liftgate can be opened and closed by
performing the following:
∙ Press the
button for longer than
0.5 seconds to open the rear liftgate.
∙ Press the
button again for longer
than 0.5 seconds to close the rear lift-
gate.
When the
button is pressed during the
open or close process, the liftgate motors will
stop. When the
button is pressed again
for longer than 0.5 seconds, the liftgate will
reverse direction.
LPD2901
Pre-driving checks and adjustments3-15

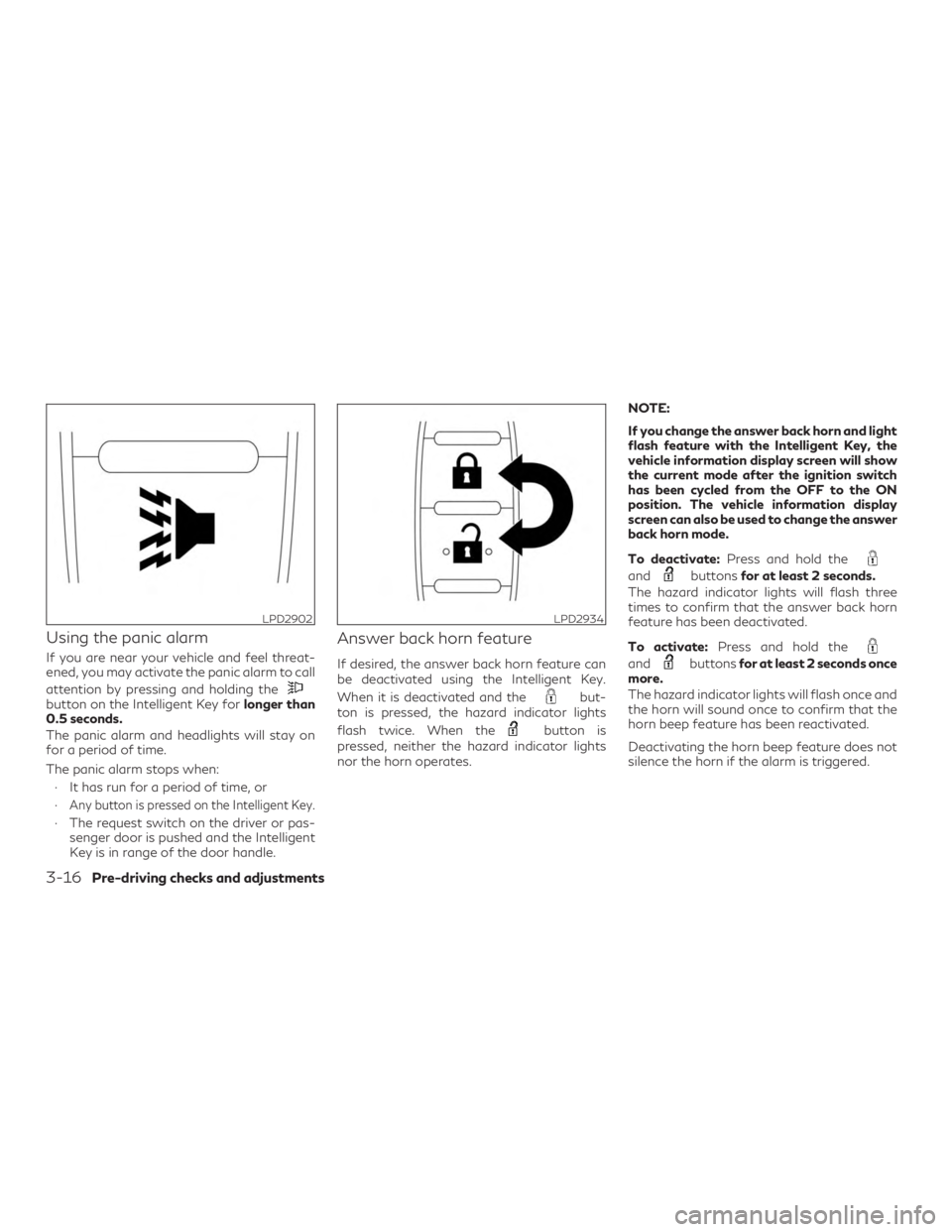

Using the panic alarm
If you are near your vehicle and feel threat-
ened, you may activate the panic alarm to call
attention by pressing and holding the
button on the Intelligent Key forlonger than
0.5 seconds.
The panic alarm and headlights will stay on
for a period of time.
The panic alarm stops when:
∙ It has run for a period of time, or
∙
Any button is pressed on the Intelligent Key.
∙ The request switch on the driver or pas- senger door is pushed and the Intelligent
Key is in range of the door handle.
Answer back horn feature
If desired, the answer back horn feature can
be deactivated using the Intelligent Key.
When it is deactivated and the
but-
ton is pressed, the hazard indicator lights
flash twice. When the
button is
pressed, neither the hazard indicator lights
nor the horn operates. NOTE:
If you change the answer back horn and light
flash feature with the Intelligent Key, the
vehicle information display screen will show
the current mode after the ignition switch
has been cycled from the OFF to the ON
position. The vehicle information display
screen can also be used to change the answer
back horn mode.
To deactivate:
Press and hold the
andbuttonsfor at least 2 seconds.
The hazard indicator lights will flash three
times to confirm that the answer back horn
feature has been deactivated.
To activate: Press and hold the
andbuttonsfor at least 2 seconds once
more.
The hazard indicator lights will flash once and
the horn will sound once to confirm that the
horn beep feature has been reactivated.
Deactivating the horn beep feature does not
silence the horn if the alarm is triggered.
LPD2902LPD2934
3-16Pre-driving checks and adjustments
