∙ Do not attempt to test an AWD equippedvehicle on a 2-wheel dynamometer (such
as the dynamometers used by some
states for emissions testing), or similar
equipment even if the other two wheels
are raised off the ground. Make sure you
inform test facility personnel that your
vehicle is equipped with AWD before it is
placed on a dynamometer. Using the
wrong test equipment may result in
drivetrain damage or unexpected vehicle
movement which could result in serious
vehicle damage or personal injury.
∙ When a wheel is off the ground due to an unlevel surface, do not spin the wheel
excessively.
∙ Accelerating quickly, sharp steering ma- neuvers or sudden braking may cause loss
of control.
∙ If at all possible, avoid sharp turning ma- neuvers, particularly at high speeds. Your
INFINITI vehicle has a higher center of
gravity than a passenger car. The vehicle
is not designed for cornering at the same
speeds as passenger cars. Failure to op-
erate this vehicle correctly could result in
loss of control and/or a rollover accident. ∙ Always use tires of the same type, size,
brand, construction (bias, bias-belted, or
radial), and tread pattern on all four
wheels. Install tire chains on the front
wheels when driving on slippery roads
and drive carefully.
∙ Be sure to check the brakes immediately after driving in mud or water. For addi-
tional information, refer to “Brake pre-
cautions” in this section.
∙ Avoid parking your vehicle on steep hills. If you get out of the vehicle and it rolls
forward, backward or sideways, you
could be injured.
∙ Whenever you drive off-road through sand, mud or water as deep as the wheel
hub, more frequent maintenance may be
required. For additional information, re-
fer to “Maintenance under severe oper-
ating conditions” in the “Maintenance
and schedules” section of this manual.INTELLIGENT ALL-WHEEL
DRIVE (AWD) DRIVING SAFETY
PRECAUTIONS (if so equipped)
WARNING
∙ Replacing tires with those not originallyspecified by INFINITI could affect the
proper operation of the TPMS.
∙ Always use tires of the same type, size, brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels. Install tire chains on the front
wheels when driving on slippery roads
and drive carefully.
∙ This vehicle is not designed for off-road (rough road) use. Do not drive on sandy or
muddy roads that tires may get stuck in.
∙ For AWD equipped vehicles, do not at- tempt to raise two wheels off the ground
and shift the transmission to any D
(Drive) or R (Reverse) position with the
engine running. Doing so may result in
drivetrain damage or unexpected vehicle
movement which could result in serious
vehicle damage or personal injury.
5-12Starting and driving

∙ Make sure the area around the vehicle isclear.
∙ Check fluid levels such as engine oil, cool- ant, brake fluid, and windshield-washer
fluid as frequently as possible, or at least
whenever you refuel.
∙ Check that all windows and lights are clean.
∙ Visually inspect tires for their appearance and condition. Also check tires for proper
inflation.
∙ Check that all doors are closed.
∙ Position seat and adjust head restraints/headrests.
∙ Adjust inside and outside mirrors.
∙ Fasten seat belts and ask all passengers to do likewise.
∙ Check the operation of warning lights when the ignition switch is placed in the
ON position. For additional information,
refer to “Warning lights, indicator lights
and audible reminders” in the “Instru-
ments and controls” section of this
manual. 1. Apply the parking brake.
2. Move the shift lever to P (Park) or
N (Neutral). P (Park) is recommended.
The starter is designed not to operate if
the shift lever is in any of the driving
positions.
3. Push the ignition switch to the ON posi- tion. Depress the brake pedal and push
the ignition switch to start the engine.
To start the engine immediately, push
and release the ignition switch while de-
pressing the brake pedal with the ignition
switch in any position.
∙ If the engine is very hard to start in extremely cold weather or when re-
starting, depress the accelerator pedal
a little (approximately 1/3 to the floor)
and while holding, crank the engine.
Release the accelerator pedal when
the engine starts.
∙ If the engine is very hard to start be- cause it is flooded, depress the accel-
erator pedal all the way to the floor
and hold it. Push the ignition switch to
the ON position to start cranking the
engine. After 5 or 6 seconds, stop
cranking by pushing the ignition switch
to the LOCK position. After cranking the engine, release the accelerator
pedal. Crank the engine with your foot
off the accelerator pedal by depress-
ing the brake pedal and pushing the
ignition switch to start the engine. If
the engine starts, but fails to run, re-
peat the above procedure.
CAUTION
Do not operate the starter for more than
15 seconds at a time. If the engine does not
start, push the ignition switch to the OFF
position and wait 10 seconds before crank-
ing again, otherwise the starter could be
damaged.
4. Warm-up:
Allow the engine to idle for at least
30 seconds after starting. Do not race
the engine while warming it up. Drive at a
moderate speed for a short distance
first, especially in cold weather. In cold
weather, keep the engine running for a
minimum of2-3minutes before shut-
ting it off. Starting and stopping the en-
gine over a short period of time may
make the vehicle more difficult to start.
5. To stop the engine, place the shift lever in the P (Park) position and push the
ignition switch to the OFF position.
BEFORE STARTING THE ENGINE STARTING THE ENGINE
Starting and driving5-17

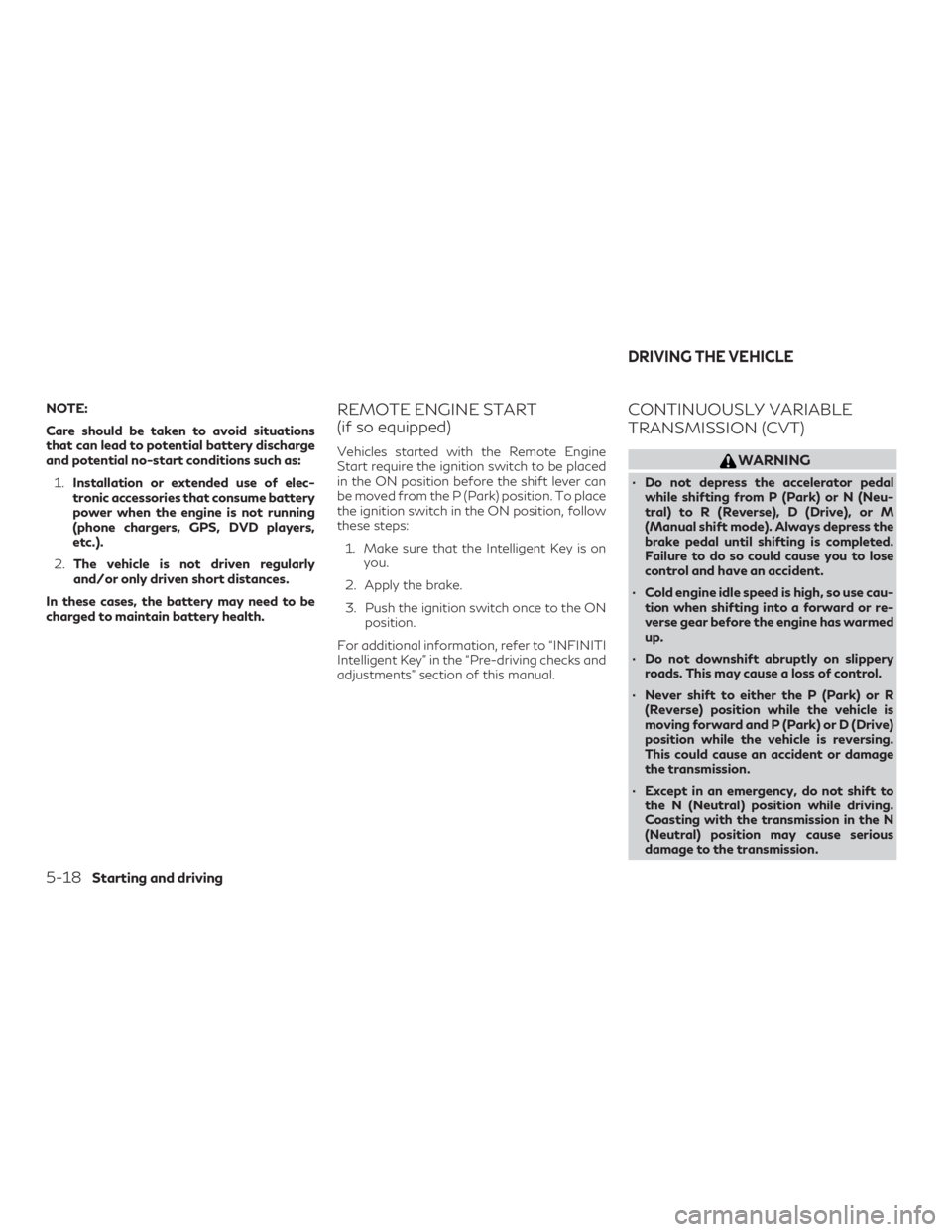

NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:1. Installation or extended use of elec-
tronic accessories that consume battery
power when the engine is not running
(phone chargers, GPS, DVD players,
etc.).
2. The vehicle is not driven regularly
and/or only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.REMOTE ENGINE START
(if so equipped)
Vehicles started with the Remote Engine
Start require the ignition switch to be placed
in the ON position before the shift lever can
be moved from the P (Park) position. To place
the ignition switch in the ON position, follow
these steps: 1. Make sure that the Intelligent Key is on you.
2. Apply the brake.
3. Push the ignition switch once to the ON position.
For additional information, refer to “INFINITI
Intelligent Key” in the “Pre-driving checks and
adjustments” section of this manual.
CONTINUOUSLY VARIABLE
TRANSMISSION (CVT)
WARNING
∙ Do not depress the accelerator pedal while shifting from P (Park) or N (Neu-
tral) to R (Reverse), D (Drive), or M
(Manual shift mode). Always depress the
brake pedal until shifting is completed.
Failure to do so could cause you to lose
control and have an accident.
∙ Cold engine idle speed is high, so use cau- tion when shifting into a forward or re-
verse gear before the engine has warmed
up.
∙ Do not downshift abruptly on slippery roads. This may cause a loss of control.
∙ Never shift to either the P (Park) or R (Reverse) position while the vehicle is
moving forward and P (Park) or D (Drive)
position while the vehicle is reversing.
This could cause an accident or damage
the transmission.
∙ Except in an emergency, do not shift to the N (Neutral) position while driving.
Coasting with the transmission in the N
(Neutral) position may cause serious
damage to the transmission.
DRIVING THE VEHICLE
5-18Starting and driving

Shift lock release
If the battery charge is low or discharged, the
shift lever may not be moved from the P
(Park) position even with the brake pedal de-
pressed and the shift lever button pressed. To
move the shift lever, perform the following
procedure:1. Push the ignition switch to the OFF or LOCK position.
2. Apply the parking brake.
3. Remove the shift lock release cover us- ing a suitable tool. 4. Push down the shift lock release using a
suitable tool.
5. Press the shift lever button and move the shift lever to the N (Neutral) position
while holding down the shift lock release.
The vehicle may be moved to the desired
location. Replace the removed shift lock
release cover after the operation.
If the shift lever cannot be moved out of the P
(Park) position, have the Continuously Vari-
able Transmission system checked as soon as
possible. It is recommended that you visit an
INFINITI retailer for this service.
WARNING
If the shift lever cannot be moved from the
P (Park) position while the engine is running
and the brake pedal is depressed, the stop
lights may not work. Malfunctioning stop
lights could cause an accident injuring your-
self and others.
Accelerator downshift
— in D (Drive) position —
For passing or hill climbing, depress the ac-
celerator pedal to the floor. This shifts the
transmission down into a lower gear, de-
pending on the vehicle speed.
High fluid temperature protection
mode
This transmission has a high fluid tempera-
ture protection mode. If the fluid temperature
becomes too high (for example, when climb-
ing steep grades in high temperatures with
heavy loads, such as when towing a trailer),
engine power and, under some conditions,
vehicle speed will be decreased automatically
to reduce the chance of transmission dam-
age. Vehicle speed can be controlled with the
accelerator pedal, but the engine and vehicle
speed may be limited.
Fail-safe
If the vehicle is driven under extreme condi-
tions, such as excessive wheel spinning and
subsequent hard braking, the fail-safe sys-
tem may be activated. The Malfunction Indi-
cator Light (MIL) may come on to indicate
the fail-safe mode is activated. For addi-
tional information, refer to “Malfunction In-
dicator Light (MIL)” in the “Instruments and
controls” section of this manual. This will oc-
cur even if all electrical circuits are function-
ing properly. In this case, place the ignition
switch in the OFF position and wait for
10 seconds. Then place the ignition switch
back in the ON position. The vehicle should
return to its normal operating condition. If it
LSD3339
5-22Starting and driving

HOW TO ENABLE/DISABLE THE
LDW SYSTEM
When the LDW system is enabled in the ve-
hicle information display, the system can be
turned off temporarily by pushing the warn-
ing systems switch. For additional informa-
tion, refer to “Warning systems switch” in the
“Instruments and controls” section of this
manual.
Perform the following steps to enable or dis-
able the LDW system:1. Press the
button until “Settings”
displays in the vehicle information dis-
play. Use the
button to select
“Driver Assistance.” Then press the EN-
TER button.
2. Select “Driving Aids” and press the EN- TER button.
3. To set the LDW system to on or off, use the
buttons to navigate in the
menu and use the ENTER button to se-
lect or change an item:
∙ Select “Lane” and press the ENTER button.
–
To turn on the warning, use the ENTER
button to check the box for “Lane.”
LDW SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the LDW system. Failure to follow the
warnings and instructions for proper use of
the LDW system could result in serious in-
jury or death.
∙ This system is only a warning device to inform the driver of a potential unin-
tended lane departure. It will not steer
the vehicle or prevent loss of control. It is
the driver’s responsibility to stay alert,
drive safely, keep the vehicle in the trav-
eling lane, and be in control of the vehicle
at all times.
∙ The system will not operate at speeds be- low approximately 45 mph (70 km/h) or
if it cannot detect lane markers. ∙ If the LDW system malfunctions, it will
cancel automatically, and “Malfunction:
See Owner’s Manual” will appear in the
vehicle information display. If "Malfunc-
tion: See Owner’s Manual” appears in the
vehicle information display, pull off the
road to a safe location and stop the ve-
hicle. Place the shift lever in the P (Park)
position and the ignition switch in the
OFF position and restart the engine.If
“Malfunction: See Owner’s Manual” con-
tinues to appear in the vehicle informa-
tion display, have the system checked. It
is recommended that you visit an
INFINITI retailer for this service.
∙ Excessive noise will interfere with the warning chime sound, and the chime may
not be heard.
∙ Do not use the LDW system under the following conditions as it may not func-
tion properly:
– During bad weather (rain, fog, snow, etc.).
– When driving on slippery roads, such as on ice or snow.
– When driving on winding or uneven roads.
5-30Starting and driving

– When driving in a makeshift or tempo-rary lane.
– When driving on roads where the lane width is too narrow.
– When driving without normal tire conditions (for example, tire wear, low
tire pressure, installation of spare tire,
tire chains, non-standard wheels).
– When the vehicle is equipped with nonoriginal brake parts or suspension
parts.
– When you are towing a trailer or other vehicle.
∙ If the LDP system malfunctions, it will cancel automatically. The LDW indicator
(orange) will illuminate and the “Mal-
function: See Owner’s Manual” warning
message will appear in the display.
∙ If the LDW indicator (orange) illuminates in the display, pull off the road to a safe
location and stop the vehicle. Turn the
engine off and restart the engine. If the
LDW indicator (orange) continues to illu-
minate, have the LDP system checked. It
is recommended that you visit an
INFINITI retailer for this service. ∙ Excessive noise will interfere with the
warning chime sound, and the chime may
not be heard.
The LDP system may or may not operate
properly under the following conditions:
∙ On roads where there are multiple paral- lel lane markers; lane markers that are
faded or not painted clearly; yellow
painted lane markers; non-standard lane
markers; or lane markers covered with
water, dirt, snow, etc.
∙ On roads where discontinued lane mark- ers are still detectable.
∙ On roads where there are sharp curves.
∙ On roads where there are sharply con- trasting objects, such as shadows, snow,
water, wheel ruts, seams or lines remain-
ing after road repairs. (The LDP system
could detect these items as lane
markers.)
∙ On roads where the traveling lane merges or separates.
∙ When the vehicle’s traveling direction does not align with the lane marker. ∙ When traveling close to the vehicle in
front of you, which obstructs the lane
camera unit detection range.
∙ When rain, snow or dirt adheres to the windshield in front of the lane camera
unit.
∙ When the headlights are not bright due to dirt on the lens or if the aiming is not
adjusted properly.
∙ When strong light enters the lane camera unit. (For example, the light directly
shines on the front of the vehicle at sun-
rise or sunset.)
∙ When a sudden change in brightness oc- curs. (For example, when the vehicle en-
ters or exits a tunnel or under a bridge.)
While the LDP system is operating, you may
hear a sound of brake operation. This is nor-
mal and indicates that the LDP system is
operating properly.
5-36Starting and driving

Malfunction
If the BSW system malfunctions, it will turn
off automatically. The system malfunction
warning message with the BSW/RCTA indi-
cator (orange) will appear in the vehicle infor-
mation display.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the mes-
sage continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
SYSTEM MAINTENANCE
The two radar sensors1for the BSW and
RCTA systems are located near the rear
bumper. Always keep the area near the radar
sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
Radio frequency statement
For USA
This device complies with part 15 of the FCC
Rules. (FCC Number UR8100261)
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
NOTE:
The manufacturer is not responsible for any
radio or TV interference caused by unau-
thorized modifications to this equipment.
Such modifications could void the user’s au-
thority to operate the equipment.
LSD2221
Starting and driving5-47

–When steering quickly.
– When the ICC, DCA, PFCW or FEB
with Pedestrian Detection warnings
sound.
– When the hazard warning flashers
are operated.
– When driving on a curve at a high
speed.
SYSTEM TEMPORARILY
UNAVAILABLE
When any of the following messages appear
on the vehicle information display, a chime
will sound and the BSI system will be turned
off automatically.
∙ “Unavailable: Road is slippery”: When the VDC system (except traction
control system function) or ABS oper-
ates.
∙ “Unavailable: VDC OFF”: When the VDC system is turned off.
∙ “Unavailable: Snow Mode Active”: When the Drive Mode Selector switch is
turned to the SNOW mode. ∙ “Unavailable: High Cabin Temp.”:
When the camera detects that the inte-
rior temperature is high (over approxi-
mately 104°F [40°C]).
∙ “Unavailable: Side Radar Obstruction”: When side radar blockage is detected.
Turn off the BSI system and turn it on again
when the above conditions no longer exist.
SYSTEM MALFUNCTION
When the BSI system malfunctions, it will be
turned off automatically, a chime will sound
and the BSI system warning light (orange) will
illuminate.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the warning
light (orange) continues to illuminate, have
the system checked. It is recommended that
you visit an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The lane camera unit1for the BSI system is
located above the inside mirror. The two ra-
dar sensors
2for the BSI system are located
near the rear bumper. To keep the proper
operation of the BSI system and prevent a
system malfunction, be sure to observe the
following:
∙ Always keep the windshield and the area near the radar sensors clean.
LSD2153
5-58Starting and driving
