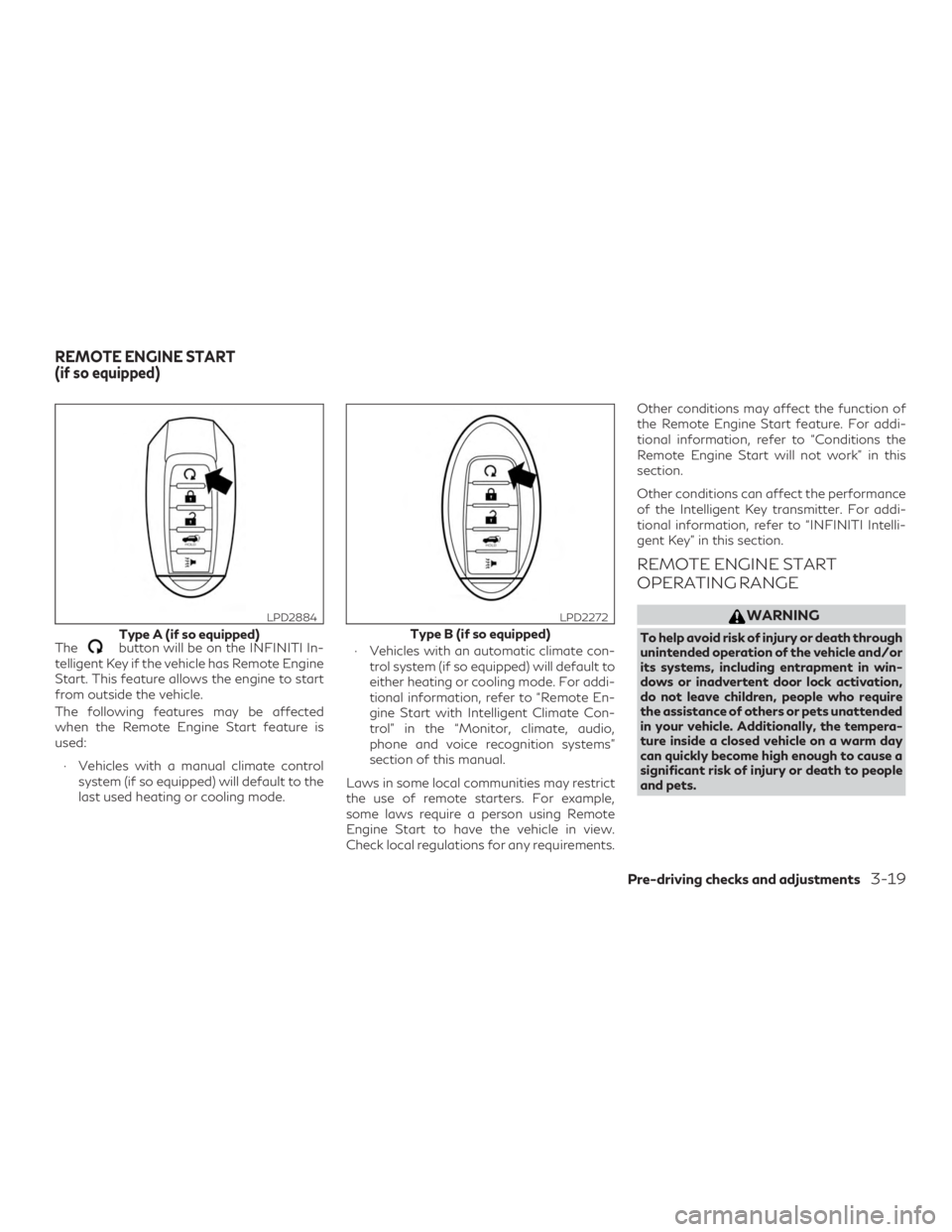

Thebutton will be on the INFINITI In-
telligent Key if the vehicle has Remote Engine
Start. This feature allows the engine to start
from outside the vehicle.
The following features may be affected
when the Remote Engine Start feature is
used:
∙ Vehicles with a manual climate control system (if so equipped) will default to the
last used heating or cooling mode. ∙ Vehicles with an automatic climate con-
trol system (if so equipped) will default to
either heating or cooling mode. For addi-
tional information, refer to “Remote En-
gine Start with Intelligent Climate Con-
trol” in the “Monitor, climate, audio,
phone and voice recognition systems”
section of this manual.
Laws in some local communities may restrict
the use of remote starters. For example,
some laws require a person using Remote
Engine Start to have the vehicle in view.
Check local regulations for any requirements. Other conditions may affect the function of
the Remote Engine Start feature. For addi-
tional information, refer to “Conditions the
Remote Engine Start will not work” in this
section.
Other conditions can affect the performance
of the Intelligent Key transmitter. For addi-
tional information, refer to “INFINITI Intelli-
gent Key” in this section.
REMOTE ENGINE START
OPERATING RANGE
WARNING
To help avoid risk of injury or death through
unintended operation of the vehicle and/or
its systems, including entrapment in win-
dows or inadvertent door lock activation,
do not leave children, people who require
the assistance of others or pets unattended
in your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause a
significant risk of injury or death to people
and pets.Type A (if so equipped)
LPD2884
Type B (if so equipped)
LPD2272
REMOTE ENGINE START
(if so equipped)
Pre-driving checks and adjustments3-19

CAUTION
When the Intelligent Key battery is dis-
charged or other strong radio wave sources
are present near the operating location, the
Intelligent Key operating range becomes
narrower, and the Intelligent Key may not
function properly.
The Remote Engine Start function can only
be used when the Intelligent Key is within the
specified operating range from the vehicle.
The Remote Engine Start operating range is
approximately 197 ft (60 m) from the vehicle.
REMOTE STARTING THE
VEHICLE
To use the Remote Engine Start feature per-
form the following: 1. Aim the Intelligent Key at the vehicle.
2. Press the
button to lock all
doors.
3. Within 5 seconds press and hold the
button until the turn signal
lights flash and the tail lamps turn on. If
the vehicle is not within view press and
hold the
button for at least 2 sec-
onds. The following events will occur when the en-
gine starts:
∙ The parking lights will turn on and remain on as long as the engine is running.
∙ The doors will be locked and the climate control system may come on.
∙ The engine will continue to run for 10 minutes. Repeat the steps to extend
the time for an additional 10 minutes. For
additional information, refer to “Extend-
ing engine run time” in this section.
Press and hold the brake pedal while switch-
ing the ignition to the ON position before
driving. For additional information, refer to
“Driving the vehicle” in the “Starting and driv-
ing” section of this manual.
EXTENDING ENGINE RUN TIME
The Remote Engine Start feature can be ex-
tended one time by performing the steps
listed in “Remote starting the vehicle” in this
section. Run time will be calculated as fol-
lows: ∙ The first 10 minute run time will start when the Remote Engine Start function
is performed. ∙ The second 10 minutes will start immedi-
ately when the Remote Engine Start
function is performed again. For ex-
ample, if the engine has been running for
5 minutes, and 10 minutes are added, the
engine will run for a total of 15 minutes.
∙ Extending engine run time will bring you to the two Remote Engine Start limit.
A maximum of two Remote Engine Starts, or
a single Remote Engine Start with an exten-
sion, are allowed between ignition cycles. The
ignition switch must be cycled to the ON
position and then back to the OFF position
before the Remote Engine Start procedure
can be used again.
CANCELING A REMOTE ENGINE
START
To cancel a Remote Engine Start, perform
one of the following: ∙ Aim the Intelligent Key at the vehicle and press
until the parking lights turn
off.
∙ Turn on the hazard warning flashers.
∙ Cycle the ignition switch on and then off.
∙ The extended engine run time has ex- pired.
3-20Pre-driving checks and adjustments

∙ The first 10 minute timer has expired.
∙ Opening the engine hood.
∙ Shifting the vehicle out of P (Park).
∙ The alarm sounds due to illegal entry intothe vehicle.
∙ Pushing the ignition switch without the Intelligent Key in the vehicle.
∙ Not pressing the brake pedal while press- ing the ignition switch with the Intelligent
Key in the vehicle.
CONDITIONS THE REMOTE
ENGINE START WILL NOT WORK
The Remote Engine Start will not operate if
any of the following conditions are present:
∙ The ignition switch is placed in the ON position.
∙ The hood is not securely closed.
∙ The hazard indicator lights are on.
∙ The engine is still running. The engine must be completely stopped. Wait at
least 6 seconds if the engine goes from
running to off. This is not applicable when
extending engine run time. ∙ The
button is not pressed and held
for at least 2 seconds.
∙ The
button is not pressed and held
within 5 seconds of pressing the lock but-
ton.
∙ The brake is pressed.
∙ The doors are not closed and locked.
∙ The liftgate is open.
∙ The I–Key Indicator Light remains solid is in the vehicle information display.
∙ The alarm sounds due to illegal entry into the vehicle.
∙ Two Remote Engine Starts, or a single Remote Engine Start with an extension,
have already been used.
∙ The vehicle is not in P (Park).
∙ There is a detected registered key already inside of the vehicle.
∙ The Remote Engine Start function has been switched to the OFF position in
Vehicle Settings of the vehicle informa-
tion display. For additional information,
refer to “Vehicle information display” in
the “Instruments and controls” section of
this manual. The Remote Engine Start may display a
warning or indicator in the vehicle informa-
tion display. For additional information, refer
to “Vehicle information display” in the “Instru-
ments and controls” section of this manual.
Pre-driving checks and adjustments3-21

1. Pull the hood lock release handle1lo-
cated below the driver side instrument
panel. The hood will spring up slightly.
2. Push the lever
2at the front of the
hood to the side as illustrated with your
fingertips and raise the hood.
When closing the hood, lower it slowly and
make sure it locks into place.
WARNING
∙ Make sure the hood is completely closed and latched before driving. Failure to do
so could cause the hood to fly open and
result in an accident.
∙ If you see steam or smoke coming from the engine compartment, to avoid injury
do not open the hood.
WARNING
∙ Always be sure the liftgate has beenclosed securely to prevent it from open-
ing while driving.
∙ Do not drive with the liftgate open. This could allow dangerous exhaust gases to
be drawn into the vehicle. For additional
information, refer to “Exhaust gas (car-
bon monoxide)” in the “Starting and driv-
ing” section of this manual.
∙ To help avoid risk of injury or death through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent door
lock activation, do not leave children,
people who require the assistance of oth-
ers or pets unattended in your vehicle.
Additionally, the temperature inside a
closed vehicle on a warm day can quickly
become high enough to cause a signifi-
cant risk of injury or death to people and
pets.
∙ Always be sure that hands and feet are clear of the door frame to avoid injury
while closing the liftgate.
LPD2665
HOOD LIFTGATE
3-22Pre-driving checks and adjustments

2. To open the fuel-filler door, push theright side of the fuel-filler door to re-
lease.
To lock, close the fuel-filler door securely and
lock the doors.
FUEL-FILLER CAP
WARNING
∙ Gasoline is extremely flammable and highly explosive under certain conditions.
You could be burned or seriously injured if
it is misused or mishandled. Always stop
the engine and do not smoke or allow
open flames or sparks near the vehicle
when refueling.
∙ Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off au-
tomatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire. ∙ Use only an original equipment type fuel-
filler cap as a replacement. It has a
built-in safety valve needed for proper
operation of the fuel system and emission
control system. An incorrect cap can re-
sult in a serious malfunction and possible
injury. It could also cause the
Mal-
function Indicator Light (MIL) to come
on.
∙ Never pour fuel into the throttle body to attempt to start your vehicle.
∙ Do not fill a portable fuel container in the vehicle or trailer. Static electricity can
cause an explosion of flammable liquid,
vapor or gas in any vehicle or trailer. To
reduce the risk of serious injury or death
when filling portable fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are filling it.
– Use only approved portable fuel con- tainers for flammable liquid.
CAUTION
∙ Do not use a fuel containing more than15% ethanol in your vehicle. For addi-
tional information, refer to “Fuel recom-
mendation” in the “Technical and con-
sumer information” section of this
manual.
∙ The Loose Fuel Cap warning message will be displayed if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be dis-
played. Failure to tighten the fuel-filler
cap properly after the Loose Fuel Cap
warning message is displayed may cause
the
Malfunction Indicator Light
(MIL) to illuminate.
Pre-driving checks and adjustments3-29

Backing up behind a projecting
object
The positionCis shown farther than the
position
Bin the display. However, the po-
sition
Cis actually at the same distance as
the position
A. The vehicle may hit the object when backing
up to the position
Aif the object projects
over the actual backing up course.
HOW TO PARK WITH
PREDICTED COURSE LINES
WARNING
∙ If the tires are replaced with different sized tires, the predicted course lines may
be displayed incorrectly.
∙ On a snow-covered or slippery road, there may be a difference between the
predicted course line and the actual
course line.
∙ If the battery is disconnected or becomes discharged, the predicted course lines
may be displayed incorrectly. If this oc-
curs, please perform the following
procedures:
– Turn the steering wheel from lock to lock while the engine is running.
– Drive the vehicle on a straight road for more than 5 minutes.
∙ When the steering wheel is turned with the ignition switch in the ACC position,
the predicted course lines may be dis-
played incorrectly. 1. Visually check that the parking space is
safe before parking your vehicle.
2. The rear view of the vehicle is displayed on the screen
Awhen the shift lever is
moved to the R (Reverse) position.
LHA4218LHA1197
Monitor, climate, audio, phone and voice recognition systems4-7

when backing up to the positionAif the
object projects over the actual backing up
course.
HOW TO PARK WITH
PREDICTED COURSE LINES
WARNING
∙ If the tires are replaced with different sized tires, the predicted course lines may
be displayed incorrectly.
∙ On a snow-covered or slippery road, there may be a difference between the
predicted course line and the actual
course line.
∙ If the battery is disconnected or becomes discharged, the predicted course lines
may be displayed incorrectly. If this oc-
curs, please perform the following
procedures:
– Turn the steering wheel from lock to lock while the engine is running.
– Drive the vehicle on a straight road for more than 5 minutes.
∙ When the steering wheel is turned with the ignition switch in the ACC position,
the predicted course lines may be dis-
played incorrectly. 1. Visually check that the parking space is
safe before parking your vehicle. 2. The rear view of the vehicle is displayed
on the screen
Awhen the shift lever is
moved to the R (Reverse) position. When
activating the Around View®Monitor,
the guide lines, the icons and the mes-
sages may not be displayed immediately.
LHA1197
Monitor, climate, audio, phone and voice recognition systems4-19

∙ Keep your engine tuned up. Malfunctionsin the ignition, fuel injection, or electrical
systems can cause over rich fuel flow into
the three-way catalyst, causing it to
overheat. Do not keep driving if the en-
gine misfires, or if noticeable loss of per-
formance or other unusual operating
conditions are detected. Have the vehicle
inspected promptly. It is recommended
that you visit an INFINITI retailer for this
service.
∙ Avoid driving with an extremely low fuel level. Running out of fuel could cause the
engine to misfire, damaging the three-
way catalyst.
∙ Do not race the engine while warming it up.
∙ Do not push or tow your vehicle to start the engine.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label.
(If your vehicle has tires of a different size
than the size indicated on the vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure
for those tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitor-
ing System (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires is significantly under-inflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check your tires
as soon as possible, and inflate them to the
proper pressure. Driving on a significantly
under-inflated tire causes the tire to overheat
and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability.
Please note that the TPMS is not a substitute
for proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if under-inflation has not
reached the level to trigger illumination of the
TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is combined
with the low tire pressure telltale. When the
system detects a malfunction, the telltale willflash for approximately one minute and then
remain continuously illuminated. This se-
quence will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is illumi-
nated, the system may not be able to detect
or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of rea-
sons, including the installation of replace-
ment or alternate tires or wheels on the ve-
hicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunc-
tion telltale after replacing one or more tires
or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels al-
low the TPMS to continue to function prop-
erly.
Additional information:
∙ When replacing a wheel without the TPMS such as the spare tire, the TPMS
does not monitor the tire pressure of the
spare tire.
∙ The TPMS will activate only when the vehicle is driven at speeds above 16 mph
(25 km/h). Also, this system may not de-
tect a sudden drop in tire pressure (for
example, a flat tire while driving).
Starting and driving5-5
