2019 INFINITI QX50 engine

–The braking force is applied by the
automatic brake hold function for
3 minutes or longer
– The driver’s seat belt is unfastened
– The ignition switch is placed in the
OFF position
– If a malfunction occurs in the auto-
matic brake hold function
∙ When the vehicle stops, but the brake
force is not automatically applied, de-
press the brake pedal firmly until the au-
tomatic brake hold indicator light
(green) illuminates.
Automatic brake hold function
display
The automatic brake hold function status can
be checked in the “Chassis Control” mode in
the vehicle information display. For additional
information, refer to “Vehicle information
display” in the “Instruments and controls” sec-
tion of this manual. Four driving modes can be selected by using
the Drive Mode Selector switch: STAN-
DARD, SPORT, ECO and PERSONAL.
NOTE:
∙ When the Drive Mode Selector switch
selects a mode, the mode may not switch
quickly. This is not a malfunction.
∙ Select the STANDARD mode center for
normal driving.
STANDARD MODE
STANDARD mode is recommended for nor-
mal driving. Push the Drive Mode Selector
switch until “STANDARD” appears in the ve-
hicle information display. STANDARD mode
will also be displayed in the upper display.
SPORT MODE
The SPORT mode adjusts the engine and
transmission to enhance performance. Push
the Drive Mode Selector switch to the
SPORT position. “SPORT” appears in the ve-
hicle information display. SPORT mode will
also be displayed in the upper display.
NOTE:
In the SPORT mode, fuel economy may be
reduced.
PERSONAL MODE
PERSONAL mode is used for adjusting the
steering mode and drive modes. Turn the
PERSONAL mode off for normal driving.
Push the Drive Mode Selector switch until
“PERSONAL” appears in the vehicle informa-
tion display. PERSONAL mode will also be
displayed in the upper display. For additional
information, refer to the INFINITI InTouch™
Owner’s Manual.
Drive Mode Selector switch
LSD2917
INFINITI DRIVE MODE SELECTOR
Starting and driving5-29

How to set the PERSONAL mode
Perform the following steps to set the PER-
SONAL mode:1. Press the MENU button
1and select
“Infiniti Drive Mode Selector” on the
lower display.
2. Select “Engine/Transmission,” “Steer- ing,” “Active Trace Control” or “Active
Engine Brake” and select each item. (See
“Engine/Transmission,” “Steering,” “Ac-
tive Trace Control” or “Active Engine
Brake” about the feature of each item.) 3. Select “Back” or press the MENU button
to finish the PERSONAL mode setting.
Engine/Transmission:
“Engine/Transmission” can be set to “Stan-
dard,” “Sport” or “Eco.”
Steering (models with Direct Adaptive
Steering®):
Four combinations of steering mode and
steering response can be set.
Mode Response
Sport Dynamic+
Dynamic
Default
Standard Default
Steering (models without Direct Adaptive
Steering):
“Steering” can be set to “Sport” or “Standard.”
Active Trace Control:
“Active Trace Control” can be set to ON (en-
abled) or OFF (disabled). For additional infor-
mation, refer to “Active Trace Control” in this
section. Active Engine Brake:
“Active Engine Brake” can be set to ON (en-
abled) or OFF (disabled). For additional infor-
mation, refer to “Active Engine Brake” in this
section.
Reset Settings:
Select “Reset Settings” and select “OK” to
restore all the PERSONAL mode settings to
default.
ECO MODE
The ECO mode adjusts the engine and trans-
mission to enhance fuel economy.
NOTE:
Selecting this drive mode will not necessarily
improve fuel economy as many driving fac-
tors influence its effectiveness.
Operation
Push the Drive Mode Selector switch to the
ECO position. “ECO” appears in the vehicle
information display and the ECO drive indi-
cator light illuminates on the instrument
panel. ECO mode will also be displayed in the
upper display.
LSD2982
5-30Starting and driving

When the accelerator pedal is depressed
within the range of economy drive, the ECO
drive indicator light illuminates in green.
When the accelerator pedal is depressed
above the range of economy drive, the ECO
drive indicator light turns off. For ECO pedal
system equipped models, refer to “ECO pedal
system” in this section.
The ECO drive indicator light will not illumi-
nate in the following cases:∙ When the shift lever is in the R (Reverse) position.
∙ When the vehicle speed is below 3 mph (4.8 km/h) or over 90 mph (144 km/h).
∙ When the Intelligent Cruise Control sys- tem (if so equipped) is operated.
ECO pedal system (if so equipped)
The ECO pedal system helps assist the driver
to improve fuel economy by increasing the
reaction force of the accelerator pedal. When
the ECO drive indicator light is blinking or
turns off, the ECO pedal system increases
the reaction force of the accelerator pedal.
ECO drive indicator Illuminates or
blinks
Illuminates
(green) When the pedal
is depressed
within range of economy drive
Blinks
(green) When the pedal
is depressed
almost over the range of
economy drive
Not illumi-
nated When the pedal
is depressed
over the range of economy drive
When the ECO drive indicator illuminates in
green, the accelerator reaction force is nor-
mal. When the ECO drive indicator light is
blinking or turns off, the ECO pedal system
increases the reaction force of the accelera-
tor pedal.
The ECO pedal system may not vary accel-
erator reaction force under the following
conditions:
∙ When the shift lever is in the N (Neu-tral) or R (Reverse) position. ∙ When Intelligent Cruise Control (if so
equipped) is being operated.
If the ECO pedal system malfunctions, it will
cancel automatically. The ECO pedal system
will not vary the reaction force of the accel-
erator pedal.
When the Drive Mode Selector switch is
pushed and the drive mode changes from the
ECO mode to another mode (STANDARD,
SPORT or PERSONAL) while the ECO pedal
system is operating, the ECO pedal system
continues to operate until the pedal is re-
leased.
If the accelerator pedal is depressed quickly,
the ECO pedal system will not increase the
reaction force of the accelerator pedal. The
ECO pedal system is not designed to prevent
the vehicle from accelerating.
Adjusting the ECO pedal system reaction
force
The ECO pedal system reaction force can be
adjusted. The reaction force setting will be
maintained until the setting is changed even if
the engine is turned off.
Starting and driving5-31

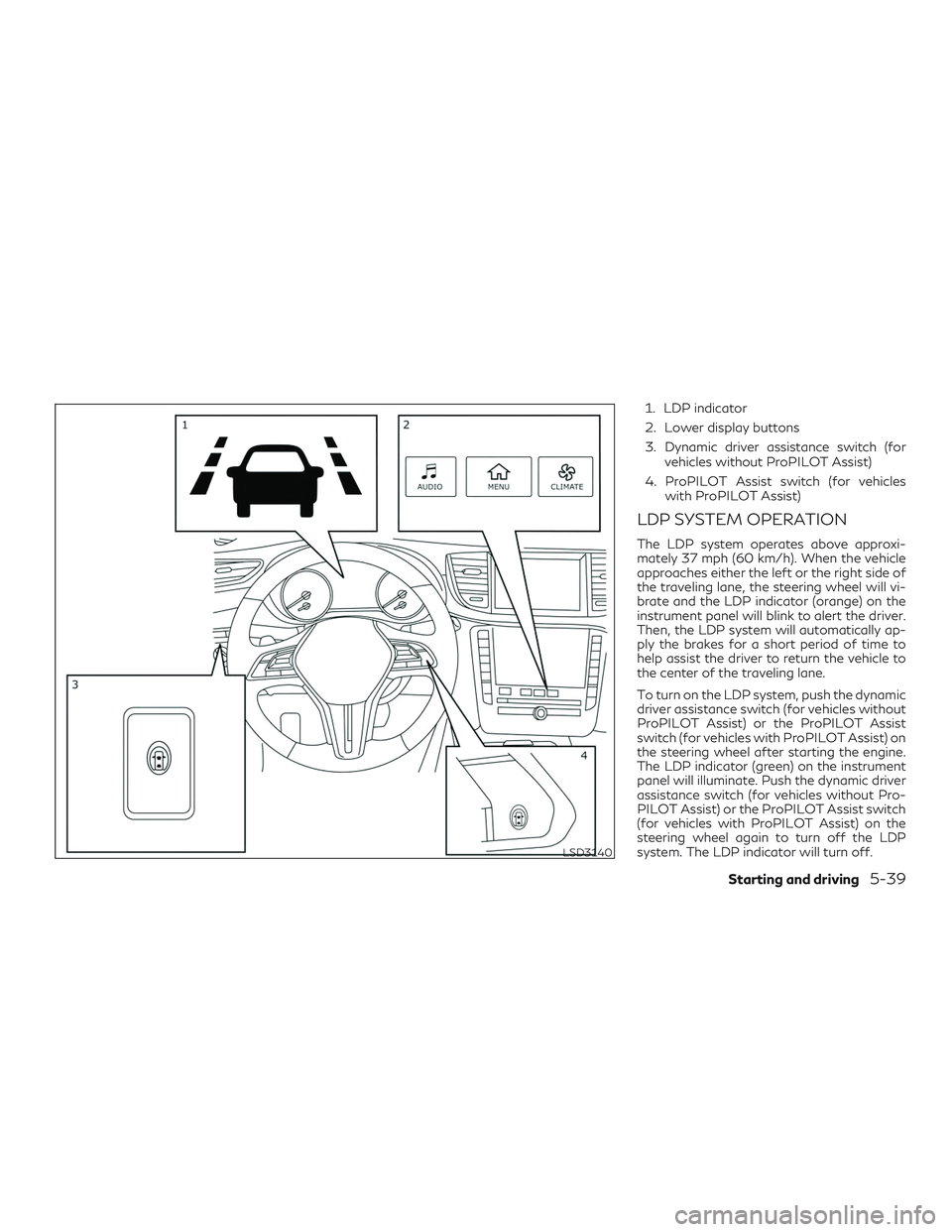

1. LDP indicator
2. Lower display buttons
3. Dynamic driver assistance switch (forvehicles without ProPILOT Assist)
4. ProPILOT Assist switch (for vehicles with ProPILOT Assist)
LDP SYSTEM OPERATION
The LDP system operates above approxi-
mately 37 mph (60 km/h). When the vehicle
approaches either the left or the right side of
the traveling lane, the steering wheel will vi-
brate and the LDP indicator (orange) on the
instrument panel will blink to alert the driver.
Then, the LDP system will automatically ap-
ply the brakes for a short period of time to
help assist the driver to return the vehicle to
the center of the traveling lane.
To turn on the LDP system, push the dynamic
driver assistance switch (for vehicles without
ProPILOT Assist) or the ProPILOT Assist
switch (for vehicles with ProPILOT Assist) on
the steering wheel after starting the engine.
The LDP indicator (green) on the instrument
panel will illuminate. Push the dynamic driver
assistance switch (for vehicles without Pro-
PILOT Assist) or the ProPILOT Assist switch
(for vehicles with ProPILOT Assist) on the
steering wheel again to turn off the LDP
system. The LDP indicator will turn off.
LSD3140
Starting and driving5-39

HOW TO ENABLE/DISABLE THE
BSW SYSTEM
Perform the following steps to enable or dis-
able the BSW system.1. Press the MENU button below the lower display screen.
2. Select “Driver Assistance.”
3. Select “Blind Spot Assist.”
4. Select “ON” to turn the “Blind Spot Warning” system on or off.
NOTE: ∙ When enabling/disabling the system,
the system will retain current settings
even if the engine is restarted.
∙ The RCTA system (if so equipped) is in-
tegrated into the BSW system. There is
not a separate selection in the lower dis-
play for the RCTA system. When the
BSW is disabled, the RCTA system is also
disabled.
∙ When the BSW system is turned on, the
BSI/BSW/BCI/RCTA indicator (white)
in the vehicle information display illumi-
nates.
LSD2922
5-46Starting and driving

Malfunction
If the BSW system malfunctions, it will turn
off automatically. The system malfunction
warning message with the
BSI/BSW/BCI/RCTA indicator (orange) will
appear in the vehicle information display.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the mes-
sage continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
SYSTEM MAINTENANCE
The two radar sensors1for the BSW and
RCTA systems are located near the rear
bumper. Always keep the area near the radar
sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
Radio frequency statement
For USA
FCC: OAYSRR3B
This device complies with part 15 of the FCC
Rules.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
LSD2920
5-52Starting and driving

–When steering quickly.
– When the ICC, DCA, PFCW or FEB
with Pedestrian Detection warnings
sound.
– When the hazard warning flashers
are operated.
– When driving on a curve at a high
speed.
SYSTEM TEMPORARILY
UNAVAILABLE
When any of the following messages appear
on the vehicle information display, a chime
will sound and the BSI system will be turned
off automatically.
∙ “Not Available Poor Road Conditions”: When the VDC system (except traction
control system function) or ABS oper-
ates.
∙ “Currently Not Available”: When the VDC system is turned off.
∙ “Not Available: High Camera Temp”: When the camera detects that the inte-
rior temperature is high (over approxi-
mately 104°F [40°C]). ∙ “Unavailable: Side Radar Obstruction”:
When side radar blockage is detected.
Turn off the BSI system and turn it on again
when the above conditions no longer exist.
SYSTEM MALFUNCTION
When the BSI system malfunctions, it will be
turned off automatically, a chime will sound
and the BSI system warning light (orange) will
illuminate.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the warning
light (orange) continues to illuminate, have
the system checked. It is recommended that
you visit an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The lane camera unit1for the BSI system is
located above the inside mirror. The two ra-
dar sensors
2for the BSI system are located
near the rear bumper. To keep the proper
operation of the BSI system and prevent a
system malfunction, be sure to observe the
following:
∙ Always keep the windshield and the area near the radar sensors clean.
LSD2924
5-64Starting and driving

TURNING THE BCI SYSTEM
ON/OFF
The BCI system automatically turns on every
time the engine is started.
The BCI system can be turned off temporarily
by touching the BCI system key
on the
upper display. The indicator on the BCI ON
key turns off. When the shift lever is placed in
the R (Reverse) position again, the BCI sys-
tem is turned on.
Perform the following steps to enable or dis-
able the BCI system.
1. Press the MENU button below the lower display screen.
2. Select “Camera/Sonar Settings.”
3. Select “Camera.”
4. Select “ON” to turn the “Back-up Colli- sion Intervention” system on or off.
When the BCI system is disabled by selecting
“Back-up Collision Intervention,” the BCI sys-
tem does not turn on automatically by the
following operations: ∙ When the shift lever is placed in the R (Reverse) position.
∙ When the engine is restarted.
LSD2926
5-70Starting and driving
