2019 INFINITI QX50 fuse box

KR20DDET engine
1. Engine coolant reservoir (P. 8-4)
2. Drive belt location (P. 8-13)
3. Air filter (P. 8-15)
4. Brake fluid reservoir (P. 8-10)
5. Battery (P. 8-11)
6. Fuse/Fusible link box (P. 8-19)
7. Windshield-washer fluid reservoir(P. 8-10)
8. Engine oil filler cap (P. 8-6)
9. Engine oil dipstick (P. 8-6)
Refer to the page number indicated in paren-
theses for operating details.
LDI3173
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

The extended storage switch is used when
shipping the vehicle. It is located in the fuse
panel on the driver’s side of the instrument
panel. If any electrical equipment does not
operate, ensure the extended storage switch
is pushed fully in place, as shown.
To inspect the extended storage switch, en-
sure the ignition switch and headlight switch
are off, remove the fuse box cover
Ausing a
suitable tool in combination with a cloth to
avoid damaging the trim.
FRONT-DOOR POCKETS SEATBACK POCKETS
The seatback pockets may be located on the
back of the driver’s and/or passenger’s seats.
The pockets can be used to store maps.
WARNING
To ensure proper operation of the front
passenger’s INFINITI Advanced Air Bag
System (if so equipped), please observe the
following items:
∙ Do not allow a passenger in the rear seat
to push or pull on the seatback pocket or
head restraint/head rest.
ON position
LIC3268LIC3834LIC1328
STORAGE
Instruments and controls2-55

KR20DDET engine
1. Engine coolant reservoir
2. Drive belt location
3. Air filter
4. Brake fluid reservoir
5. Battery
6. Fuse/Fusible link box
7. Windshield-washer fluid reservoir
8. Engine oil filler cap
9. Engine oil dipstick
LDI3173
ENGINE COMPARTMENT CHECK
LOCATIONS
Do-it-yourself8-3

If any electrical equipment does not operate,
check for an open fuse.
Fuses are used in the passenger and engine
compartment. Spare fuses are provided and
can be found in the passenger compartment
fuse box.
When installing a fuse make sure the fuse is
installed in the fuse box securely.ENGINE COMPARTMENT
WARNING
Never use a fuse of higher or lower amper-
age rating than that specified on the fuse
box cover. This could damage the electrical
system or electronic control units or cause a
fire.If any electrical equipment does not come on,
check for an open fuse.
1. Be sure the ignition switch and the head- light switch are OFF.
2. Open the engine hood.
3. Remove the fuse box cover by pushing the tabs and lifting the cover up.
4. Remove the fuse with the fuse puller. The fuse puller is located in the fuse
block in the passenger compartment.
LDI2997LDI3174
FUSES
Do-it-yourself8-19

5. If the fuse is openA, replace it with a
new fuse
B.
6. If a new fuse also opens, have the elec- trical system checked and repaired. It is
recommended that you visit an INFINITI
retailer for this service.
Fusible links
If the electrical equipment does not operate
and fuses are in good condition, check the
fusible links. If any of these fusible links are
melted, replace with only Genuine NISSAN
parts.
PASSENGER COMPARTMENT
WARNING
Never use a fuse of higher or lower amper-
age rating than that specified on the fuse
box cover. This could damage the electrical
system or electronic control units or cause a
fire.
If any electrical equipment does not operate,
check for an open fuse. NOTE:
The fuse box is located on the driver’s side of
the instrument panel.
1. Be sure the ignition switch and the head- light switch are OFF.
2. Remove the fuse box cover
Awith a
suitable tool. Use a cloth to avoid dam-
aging the trim.
3. Locate the fuse that needs to be re- placed.
4. Remove the fuse with the fuse puller
B.
LDI3200LDI3167
8-20Do-it-yourself

5. If the fuse is openC, replace it with an
equivalent good fuse
D.
6. Push the fuse box cover to install.
If a new fuse also opens, have the electrical
system checked and repaired. It is recom-
mended that you visit an INFINITI retailer for
this service. NOTE:
Your vehicle may not be equipped with all
fuses listed on the fuse label.
CAUTION
Be careful not to allow children to swallow
the battery or removed parts.
LDI3203
BATTERY REPLACEMENT
Do-it-yourself8-21

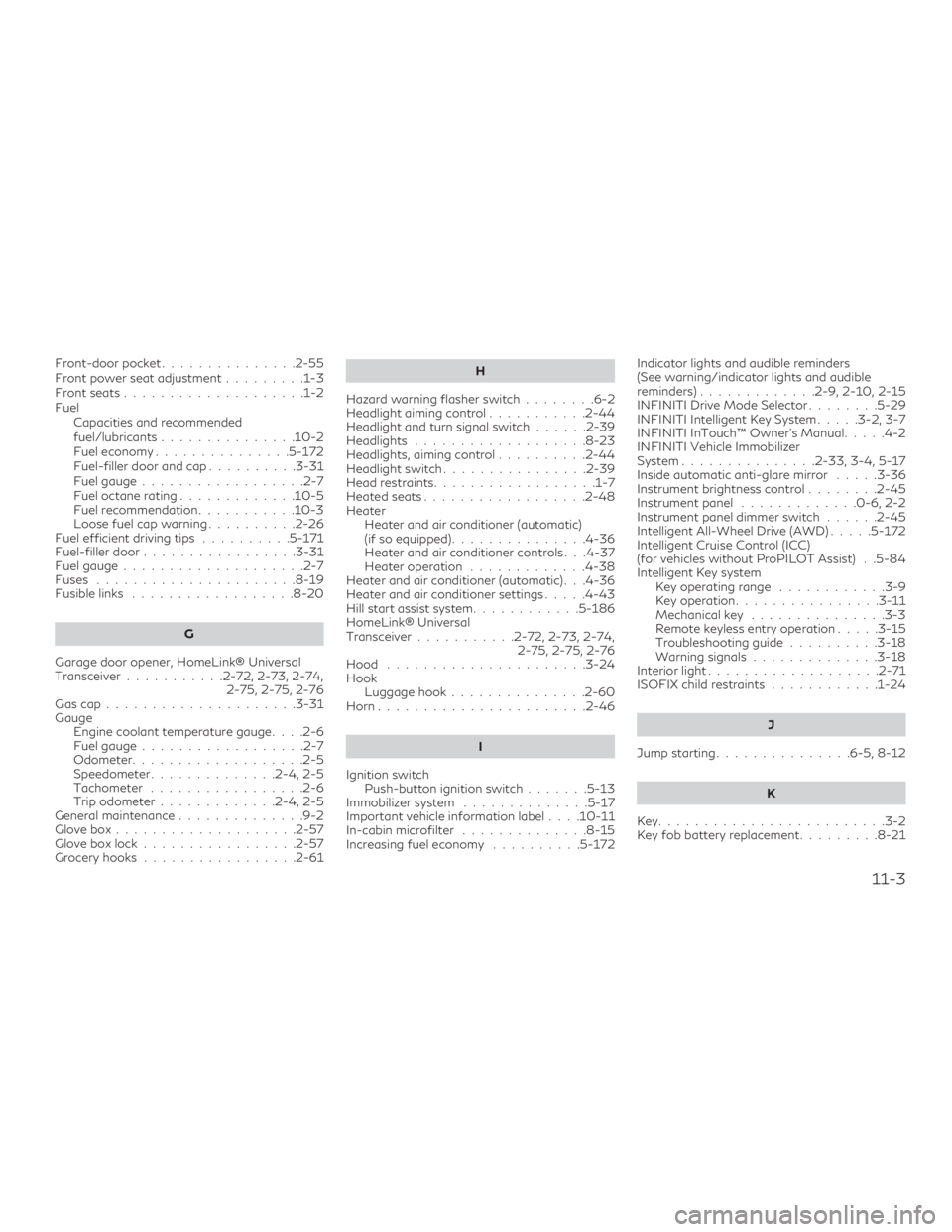

Front-door pocket...............2-55
Front power seat adjustment .........1-3
Frontseats....................1-2
Fuel Capacities and recommended
fuel/lubricants...............10-2
Fuel economy ...............5-172
Fuel-filler door and cap ..........3-31
Fuel gauge ..................2-7
Fueloctanerating.............10-5
Fuel recommendation ...........10-3
Loose fuel cap warning ..........2-26
Fuel efficient driving tips ..........5-171
Fuel-filler door .................3-31
Fuel gauge ....................2-7
Fuses ......................8-19
Fusiblelinks ..................8-20
G
Garage door opener, HomeLink® Universal
Transceiver...........2-72,2-73,2-74, 2-75, 2-75, 2-76
Gascap.....................3-31
Gauge Engine coolant temperature gauge ....2-6
Fuel gauge ..................2-7
Odometer ...................2-5
Speedometer ..............2-4,2-5
Tachometer .................2-6
Trip odometer .............2-4,2-5
General maintenance ..............9-2
Glovebox....................2-57
Gloveboxlock.................2-57
Grocery hooks .................2-61 H
Hazard warning flasher switch ........6-2
Headlight aiming control ...........2-44
Headlight and turn signal switch ......2-39
Headlights ...................8-23
Headlights, aiming control ..........2-44
Headlight switch ................2-39
Head restraints ..................1-7
Heated seats ..................2-48
Heater Heater and air conditioner (automatic)
(if so equipped) ...............4-36
Heater and air conditioner controls . . .4-37
Heater operation .............4-38
Heater and air conditioner (automatic) . . .4-36
Heater and air conditioner settings .....4-43
Hill start assist system ............5-186
HomeLink® Universal
Transceiver...........2-72,2-73,2-74, 2-75, 2-75, 2-76
Hood ......................3-24
Hook Luggage hook ...............2-60
Horn.......................2-46
I
Ignition switch Push-button ignition switch .......5-13
Immobilizer system ..............5-17
Important vehicle information label ....10-11
In-cabin microfilter ..............8-15
Increasing fuel economy ..........5-172Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)
.............2-9,2-10,2-15
INFINITI Drive Mode Selector ........5-29
INFINITI Intelligent Key System .....3-2, 3-7
INFINITI InTouch™ Owner's Manual .....4-2
INFINITI Vehicle Immobilizer
System ...............
2-
33,3-4,5-17
Inside automatic anti-glare mirror .....3-36
Instrument brightness control ........2-45
Instrument panel .............0-6,2-2
Instrument panel dimmer switch ......2-45
Intelligent All-Wheel Drive (AWD) .....5-172
Intelligent Cruise Control (ICC)
(for vehicles without ProPILOT Assist) . .5-84
Intelligent Key system Key operating range ............3-9
Keyoperation................3-11
Mechanical key ...............3-3
Remote keyless entry operation .....3-15
Troubleshooting guide ..........3-18
Warningsignals..............3-18
Interiorlight...................2-71
ISOFIX child restraints ............1-24
J
Jump starting ............... 6-5, 8-12
K
Key.........................3-2
Key fob battery replacement .........8-21
