2019 INFINITI QX50 Owner's Manual

TURNING THE BCI SYSTEM
ON/OFF
The BCI system automatically turns on every
time the engine is started.
The BCI system can be turned off temporarily
by touching the BCI system key
on the
upper display. The indicator on the BCI ON
key turns off. When the shift lever is placed in
the R (Reverse) position again, the BCI sys-
tem is turned on.
Perform the following steps to enable or dis-
able the BCI system.
1. Press the MENU button below the lower display screen.
2. Select “Camera/Sonar Settings.”
3. Select “Camera.”
4. Select “ON” to turn the “Back-up Colli- sion Intervention” system on or off.
When the BCI system is disabled by selecting
“Back-up Collision Intervention,” the BCI sys-
tem does not turn on automatically by the
following operations: ∙ When the shift lever is placed in the R (Reverse) position.
∙ When the engine is restarted.
LSD2926
5-70Starting and driving

BCI SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the BCI system. Failure to follow the warn-
ings and instructions for proper use of the
BCI system could result in serious injury or
death.
∙ The BCI system cannot detect all vehiclesunder all conditions.
∙ Always check surroundings and turn to check what is behind you before backing
up. The radar sensors detect approaching
(moving) vehicles. The radar sensors can-
not detect every object such as:
– Pedestrians, bicycles, motorcycles, animals or child-operated toy vehicles
– A vehicle that is passing at speeds greater than approximately 15 mph
(24 km/h)
∙ The radar sensors may not detect ap- proaching vehicles in certain situations:
– Illustration
A: When a vehicle parked
next to you obstructs the beam of the
radar sensor.
– Illustration
B: When the vehicle is
parked in an angled parking space.
LSD3195
Starting and driving5-71

– IllustrationC: When the vehicle is
parked on inclined ground.
– Illustration
D: When an approaching
vehicle turns into your vehicle’s park-
ing lot aisle.
– Illustration
E: When the angle
formed by your vehicle and approach-
ing vehicle is small.
∙ The radar sensors are designed to ignore most stationary objects; however, ob-
jects such as guardrails, walls, foliage and
parked vehicles may occasionally be de-
tected. This is a normal operation
condition.
∙ The following conditions may reduce the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice/frost/dirt build up on the vehicle
∙ Do not attach stickers (including trans- parent material), install accessories or
apply additional paint near the radar sen-
sors. These conditions may reduce the
ability of the radar to detect other
vehicles. ∙ The sonar sensors detect stationary ob-
jects behind the vehicle. The sonar sensor
may not detect:
– Small or moving objects
– Wedge-shaped objects
– Objects close to the bumper (less than approximately 1 ft [30 cm])
– Thin objects such as rope, wire and chain, etc.
∙ The brake engagement by the BCI system is not as effective on a slope as it is on flat
ground. When on a steep slope the sys-
tem may not function properly.
∙ Do not use the BCI system under the fol- lowing conditions because the system
may not function properly:
– When driving with a tire that is not within normal tire conditions (e.g., tire
wear, low tire pressure, installation of
spare tire, tire chains, non-standard
wheels).
– When the vehicle is equipped with non-original brake parts or suspen-
sion parts.
∙ Do not use the BCI system when towing a trailer. ∙ Excessive noise (e.g., audio system vol-
ume, open vehicle window) will interfere
with the chime sound, and it may not be
heard.
SYSTEM TEMPORARILY NOT
AVAILABLE
If the following messages appear on the ve-
hicle information display, a chime will sound
and the BCI system will be turned off auto-
matically:
∙ “Unavailable: High Accelerator Temp.”: If the vehicle is parked in direct sunlight
under high temperature conditions (over
approximately 104°F [40°C]) and then
started, the BCI system may be deacti-
vated automatically and the “Unavailable:
High Accelerator Temp” message will ap-
pear in the vehicle information display for
a period of time.
When the interior temperature is re-
duced, turn off the BCI system and turn it
on again.
∙ “Unavailable: Side Radar Obstruction”: When side radar blockage is detected.
When the blockage is removed, turn off
the BCI system and turn it on again.
5-72Starting and driving

SYSTEM MALFUNCTION
If the BCI system malfunctions, it will turn off
automatically, a chime will sound and the BCI
system warning light (orange) will illuminate.
Action to take:
Stop the vehicle in a safe location, turn the
engine off and restart the engine. If the warn-
ing light (orange) continues to illuminate,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
SYSTEM MAINTENANCE
The radar sensors1and the sonar sensors
2for the BCI system are located near the
rear bumper. Always keep the area near the
radar sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
For USA
FCC: OAYSRR3B
This device complies with part 15 of the FCC
Rules.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
LSD2925
Starting and driving5-73

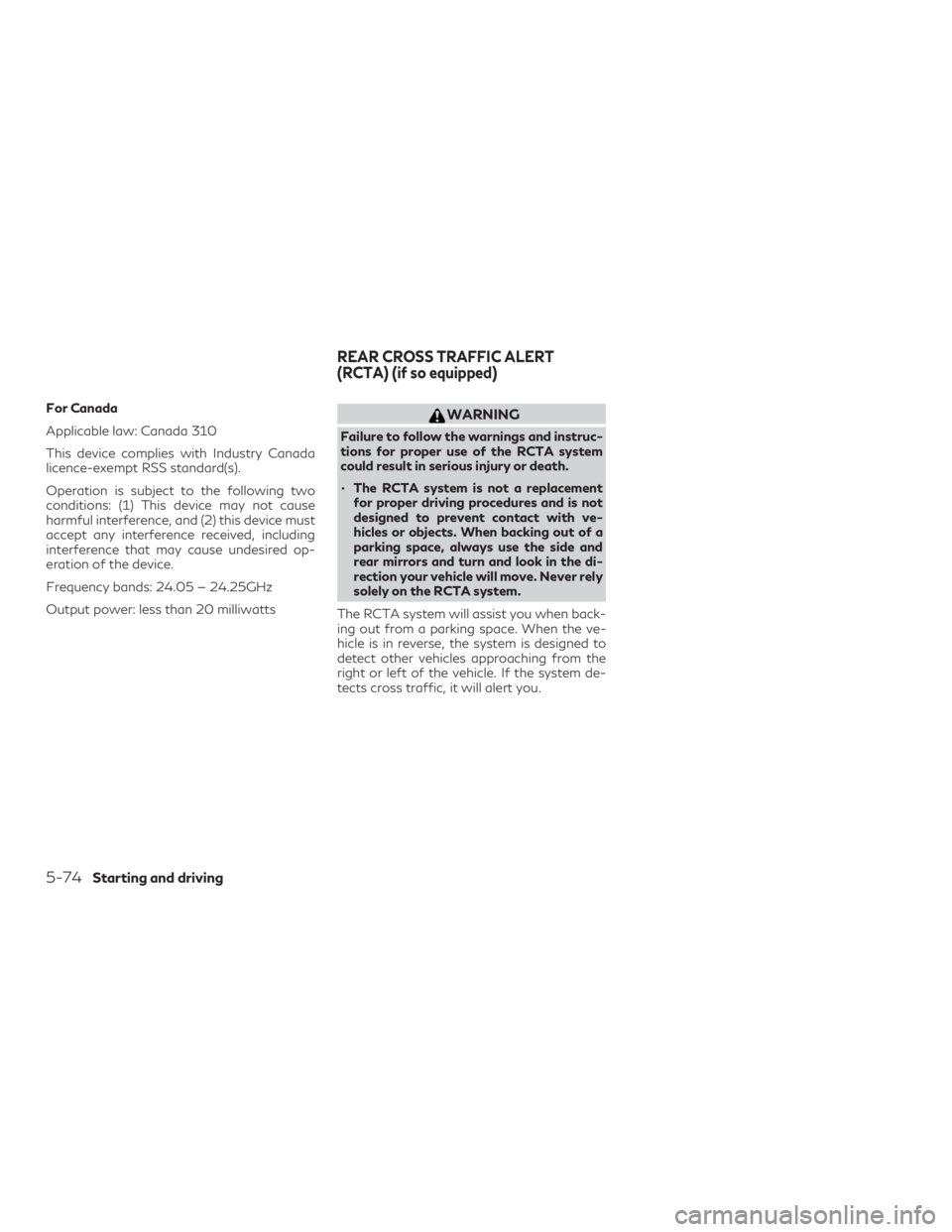

For Canada
Applicable law: Canada 310
This device complies with Industry Canada
licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration of the device.
Frequency bands: 24.05 — 24.25GHz
Output power: less than 20 milliwattsWARNING
Failure to follow the warnings and instruc-
tions for proper use of the RCTA system
could result in serious injury or death.
∙ The RCTA system is not a replacementfor proper driving procedures and is not
designed to prevent contact with ve-
hicles or objects. When backing out of a
parking space, always use the side and
rear mirrors and turn and look in the di-
rection your vehicle will move. Never rely
solely on the RCTA system.
The RCTA system will assist you when back-
ing out from a parking space. When the ve-
hicle is in reverse, the system is designed to
detect other vehicles approaching from the
right or left of the vehicle. If the system de-
tects cross traffic, it will alert you.
REAR CROSS TRAFFIC ALERT
(RCTA) (if so equipped)
5-74Starting and driving

1. Side indicator light
2. BSI/BSW/BCI/RCTA indicator
RCTA SYSTEM OPERATION
The RCTA system can help alert the driver of
an approaching vehicle when the driver is
backing out of a parking space.
When the shift position is in R (Reverse) and
the vehicle speed is less than approximately
5 mph (8 km/h), the RCTA system is opera-
tional.
If the radar detects an approaching vehicle
from either side, the system chimes (once)
and the side indicator light flashes on the side
the vehicle is approaching from.
LSD2921
Starting and driving5-75

The RCTA system uses radar sensors1in-
stalled on both sides near the rear bumper to
detect an approaching vehicle.
The radar sensors
1can detect an ap-
proaching vehicle from up to approximately
66 ft (20 m) away.
LSD2216LSD2920
5-76Starting and driving

HOW TO ENABLE/DISABLE THE
RCTA SYSTEM
Perform the following steps to enable or dis-
able the RCTA system.1. Press the MENU button below the lower display screen.
2. Select “Driver Assistance.”
3. Select “Blind Spot Assist.”
4. Select “ON” to turn the “Blind Spot Warning” system on or off.
When the RCTA system is turned on, the
BSI/BSW/BCI/RCTA indicator (white) in the
vehicle information display illuminates.
NOTE: ∙ The RCTA system is integrated into the
BSW system. There is not a separate se-
lection in the vehicle information display
for the RCTA system. When the BSW is
disabled, the RCTA system is also dis-
abled.
∙ When enabling/disabling the system,
the system setting will be retained even
if the engine is restarted.
LSD2922
Starting and driving5-77
