2019 INFINITI QX50 display

∙ When the headlights are not bright dueto dirt on the lens or if the aiming is not
adjusted properly.
∙ When strong light enters the lane camera unit. (For example, the light directly
shines on the front of the vehicle at sun-
rise or sunset.)
∙ When a sudden change in brightness oc- curs. (For example, when the vehicle en-
ters or exits a tunnel or under a bridge.)
While the LDP system is operating, you may
hear a sound of brake operation. This is nor-
mal and indicates that the LDP system is
operating properly.
SYSTEM TEMPORARILY
UNAVAILABLE
Condition A:
The warning and assist functions of the LDP
system are not designed to work under the
following conditions: ∙ When you operate the lane change signal and change the traveling lanes in the di-
rection of the signal. (The LDP system will
be deactivated for approximately 2 sec-
onds after the lane change signal is
turned off.) ∙ When the vehicle speed lowers to less
than approximately 37 mph (60 km/h).
After the above conditions have finished and
the necessary operating conditions are satis-
fied, the warning and assist functions will
resume.
Condition B:
The assist function of the LDP system is not
designed to work under the following condi-
tions (warning is still functional): ∙ When the brake pedal is depressed.
∙ When the steering wheel is turned as far as necessary for the vehicle to change
lanes.
∙ When the vehicle is accelerated during LDP system operation.
∙ When the Intelligent Cruise Control (ICC) approach warning occurs.
∙ When the hazard warning flashers are operated.
∙ When driving on a curve at high speed.
After the above conditions have finished and
the necessary operating conditions are satis-
fied, the LDP system application of the
brakes will resume. Condition C:
If the following messages appear in the ve-
hicle information display the LDP system will
be turned off automatically:
∙ “Not Available Poor Road Conditions”: When the VDC system (except Traction
Control System [TCS] function) or ABS
operates.
∙ “Currently not available”: When the VDC system is turned off.
Action to take:
When the above conditions no longer exist,
turn off the LDP system. Push the dynamic
driver assistance switch (for vehicles without
ProPILOT Assist) or the ProPILOT Assist
switch (for vehicles with ProPILOT Assist) on
the steering wheel again to turn the LDP
system back on.
Temporary disabled status at high temperature:
If the vehicle is parked in direct sunlight under
high temperature conditions (over approxi-
mately 104°F [40°C]) and then the LDP sys-
tem is turned on, the LDP system may be de-
activated automatically and the following
message will appear on the vehicle information
display: “Not available: High Camera Temp.”
5-42Starting and driving

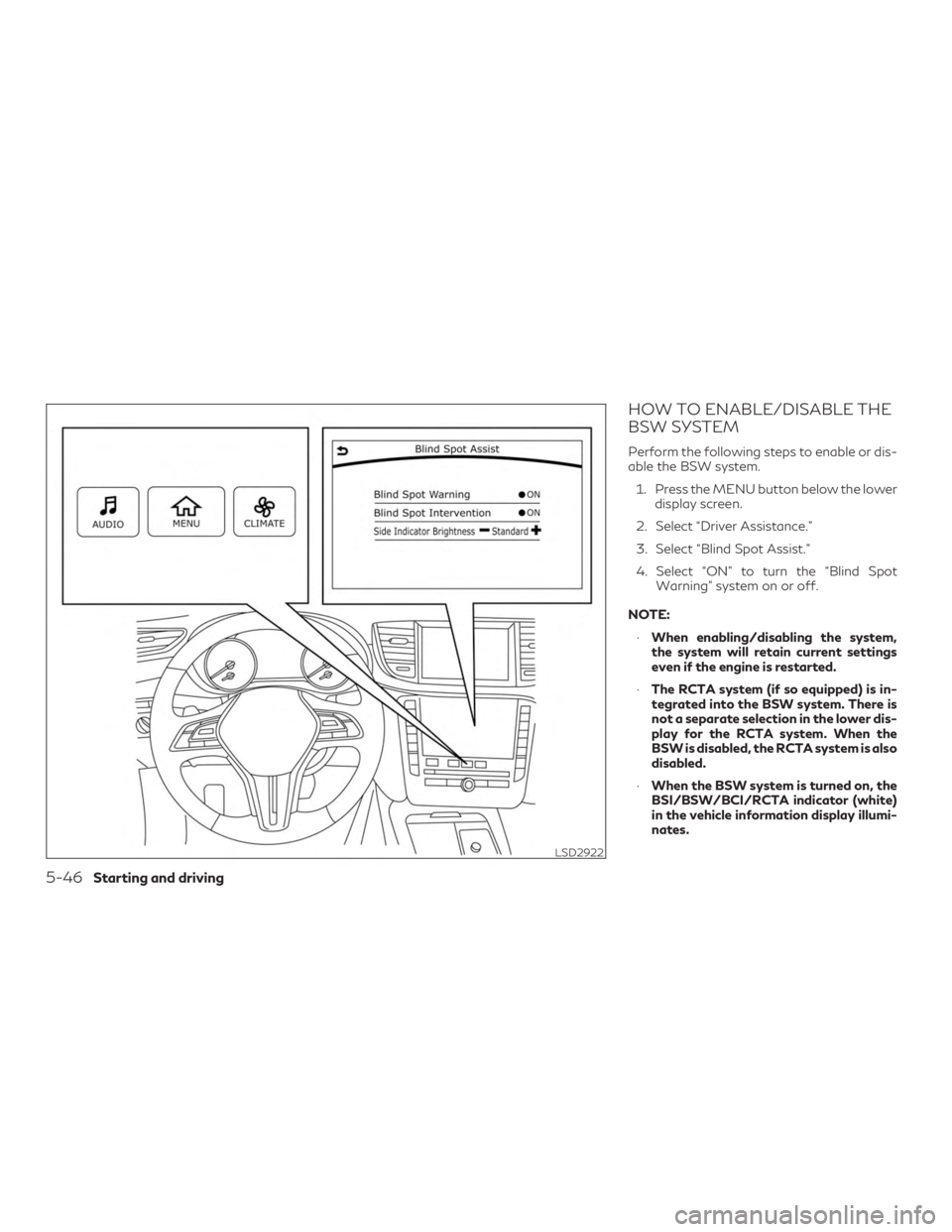

HOW TO ENABLE/DISABLE THE
BSW SYSTEM
Perform the following steps to enable or dis-
able the BSW system.1. Press the MENU button below the lower display screen.
2. Select “Driver Assistance.”
3. Select “Blind Spot Assist.”
4. Select “ON” to turn the “Blind Spot Warning” system on or off.
NOTE: ∙ When enabling/disabling the system,
the system will retain current settings
even if the engine is restarted.
∙ The RCTA system (if so equipped) is in-
tegrated into the BSW system. There is
not a separate selection in the lower dis-
play for the RCTA system. When the
BSW is disabled, the RCTA system is also
disabled.
∙ When the BSW system is turned on, the
BSI/BSW/BCI/RCTA indicator (white)
in the vehicle information display illumi-
nates.
LSD2922
5-46Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE
When radar blockage is detected, the system
will be deactivated automatically. The “Un-
available: Side Radar Obstruction” warning
message will appear and the
BSI/BSW/BCI/RCTA indicator (white) will
blink
Ain the vehicle information display.
The system is not available until the condi-
tions no longer exist.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog. The blocked condition
may also be caused by objects such as ice,
frost or dirt obstructing the radar sensors.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take:
When the above conditions no longer exist,
the system will resume automatically.
LSD3036
Starting and driving5-51

Malfunction
If the BSW system malfunctions, it will turn
off automatically. The system malfunction
warning message with the
BSI/BSW/BCI/RCTA indicator (orange) will
appear in the vehicle information display.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the mes-
sage continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
SYSTEM MAINTENANCE
The two radar sensors1for the BSW and
RCTA systems are located near the rear
bumper. Always keep the area near the radar
sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
Radio frequency statement
For USA
FCC: OAYSRR3B
This device complies with part 15 of the FCC
Rules.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
LSD2920
5-52Starting and driving

1. Side indicator light
2. BSI/BSW/BCI/RCTA indicator light
3. Dynamic driver assistance switch (formodels without ProPILOTAssist)
4. ProPILOT Assist switch (for vehicles with ProPILOT Assist)
BSI SYSTEM OPERATION
The BSI system operates above approxi-
mately 37 mph (60 km/h).
If the radar sensors detect a vehicle in the
detection zone, the side indicator light
1
illuminates.
If the turn signal is then activated, the system
chimes (twice) and the side indicator light
flashes. The side indicator light continues to
flash until the detected vehicle leaves the
detection zone.
If the BSI system is on and your vehicle ap-
proaches a lane marker while another vehicle
is in the detection zone, the system chimes
(three times) and the side indicator light
flashes. The BSI system activates to help re-
turn the vehicle back to the center of the
driving lane. The BSI system operates regard-
less of turn signal usage. NOTE:
∙ BSI warning and system application will
only be activated if the side indicator
light is already illuminated when your
vehicle approaches a lane marker. If an-
other vehicle comes into the detection
zone after your vehicle has crossed a lane
marker, no BSI warning or system appli-
cation will be activated. For additional
information, refer to “BSI driving situa-
tions” in this section.
∙ The BSI system is typically activated
earlier than the Lane Departure Preven-
tion (LDP) system when your vehicle is
approaching a lane marker.
The BSI system turns on when the dynamic
driver assistance switch (for models without
ProPILOT Assist) or the ProPILOT Assist
switch (for models with ProPILOT Assist) on
the steering wheel is pushed when the “Blind
Spot Intervention” is enabled in the “Driver
Assistance” menu in the lower display. The
BSI ON indicator light on the instrument
panel illuminates when the BSI system is
turned on. The BSI system provides a chime and turns on
or flashes the side indicator light even if the
BSW system is off.
Starting and driving5-55

HOW TO ENABLE/DISABLE THE
BSI SYSTEM
When the BSI system is enabled in the lower
display, the system can be turned off tempo-
rarily by pushing the dynamic driver assis-
tance switch (for models without ProPILOT
Assist) or the ProPILOT Assist switch (for
models with ProPILOT Assist) on the steer-
ing wheel.
Perform the following steps to enable or dis-
able the BSI system:1. Press the MENU button below the lower display screen.
2. Select “Driver Assistance.”
3. Select “Blind Spot Assist.”
4. Select “ON” to turn the “Blind Spot Inter- vention” system on or off.
∙ Select the “-” or the “+” to change the “Side Indicator Brightness” and set it to
either “Standard”, “Bright” or “Dark.”
LSD3143
5-56Starting and driving

–When steering quickly.
– When the ICC, DCA, PFCW or FEB
with Pedestrian Detection warnings
sound.
– When the hazard warning flashers
are operated.
– When driving on a curve at a high
speed.
SYSTEM TEMPORARILY
UNAVAILABLE
When any of the following messages appear
on the vehicle information display, a chime
will sound and the BSI system will be turned
off automatically.
∙ “Not Available Poor Road Conditions”: When the VDC system (except traction
control system function) or ABS oper-
ates.
∙ “Currently Not Available”: When the VDC system is turned off.
∙ “Not Available: High Camera Temp”: When the camera detects that the inte-
rior temperature is high (over approxi-
mately 104°F [40°C]). ∙ “Unavailable: Side Radar Obstruction”:
When side radar blockage is detected.
Turn off the BSI system and turn it on again
when the above conditions no longer exist.
SYSTEM MALFUNCTION
When the BSI system malfunctions, it will be
turned off automatically, a chime will sound
and the BSI system warning light (orange) will
illuminate.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the warning
light (orange) continues to illuminate, have
the system checked. It is recommended that
you visit an INFINITI retailer for this service.
SYSTEM MAINTENANCE
The lane camera unit1for the BSI system is
located above the inside mirror. The two ra-
dar sensors
2for the BSI system are located
near the rear bumper. To keep the proper
operation of the BSI system and prevent a
system malfunction, be sure to observe the
following:
∙ Always keep the windshield and the area near the radar sensors clean.
LSD2924
5-64Starting and driving

1. Side indicator light
2. Vehicle information display
3. Lower display buttons
BCI SYSTEM OPERATION
When the shift position is in R (Reverse) and
the vehicle speed is less than approximately
5 mph ( 8 km/h), the BCI system operates.
If the radar detects a vehicle approaching
from the side or the sonar detects close sta-
tionary objects behind the vehicle, the system
gives visual and audible warnings. If the driver
does not apply the brakes, the system auto-
matically applies the brake for a moment
when the vehicle is moving backwards. After
the automatic brake application, the driver
must depress the brake pedal to maintain
brake pressure. If the driver’s foot is on the
accelerator pedal, the system pushes the ac-
celerator upward before applying the brake.
If you continue to press the accelerator, the
system will not engage the brake.
When the shift lever is placed in the R (Re-
verse) position, the
key appears in the
upper display. The BCI system can be turned
off temporarily by touching the BCI system
key on the upper display.
LSD2927
Starting and driving5-67
