2019 INFINITI QX50 display

Sonar function settings
To set up the sonar function to your preferred
settings, press the MENU button, select the
“Settings” key, select the “Camera/Sonar” key
and then select the “Sonar” key on the lower
display.
Designs and items displayed on the screen
may vary depending on the models.
Sonar:When this item is turned to ON, the
front and rear sonar is activated and a sonar
indicator
Cwill appear at the corner of the
vehicle to inform the driver when an obstacle
is near. Another sonar indicator
Dmay also
appear on either a side view, front or rear- wide view Around View® Monitor screen to
aid the driver when an object is near. When
this item is turned off (indicator turns off), the
front and rear sonar is deactivated. The am-
ber markers are displayed at the corners of
the vehicle icon and the sonar icon will disap-
pear from the “
” keyAon the Around
View® Monitor display. The next time the
ignition switch is placed in the on position, a
gray sonar icon will briefly flash on the upper
display, indicating that the sonar system is
off.
FR sensor only: When this item is turned to
“ON”, only the front sonar sensors are active.
Interrupt Display: When this item is turned to “ON” the upper display screen will interrupt
the current view in the display to see the
surrounding area of the vehicle.
Sonar Sensitivity:
Adjust the sensitivity level
of the sonar by touching either the “+” or “-” on
the menu screen.
Sonar Volume: Adjust the volume of the
buzzer by touching either the “+” or the “-” on
the menu screen.
SONAR SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the sonar function. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
∙ Inclement weather or ultrasonic sources such as an automatic car wash, a truck’s
compressed-air brakes or a pneumatic
drill may affect the function of the sys-
tem, including reduced performance or a
false activation.
∙ The system is not designed to prevent contact with small or moving objects.LHA4609LHA4610
Monitor, climate, audio, phone and voice recognition systems4-27

∙ The system will not detect small objectsbelow the bumper, and may not detect
objects close to the bumper or on the
ground.
∙ The system may not detect the following objects:
– Fluffy objects such as snow, cloth, cotton, grass or wool.
– Thin objects such as rope, wire or chain.
– Wedge-shaped objects.
∙ If your vehicle sustains damage to the bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
jects or false alarms.
CAUTION
Excessive noise (such as audio system vol-
ume or an open vehicle window) will inter-
fere with the tone and it may not be heard.
System temporarily unavailable
When the amber markers are displayed at the
corners of the vehicle icon and the function
cannot be activated from the Camera setting
menu (the setting items are grayed out), the
sonar system may be malfunctioning.
SYSTEM MAINTENANCE
CAUTION
Keep the surface of the sonar sensors (lo-
cated on the front and rear bumper fascia)
free from accumulations of snow, ice and
dirt. Do not scratch the surface of the sonar
sensors when cleaning. If the sensors are
covered, the accuracy of the sonar function
will be diminished.
4-28Monitor, climate, audio, phone and voice recognition systems

1. Upper touch-screen display (upper dis-play)
2. Lower touch-screen display (lower dis- play) 3. MENU button
4.
CAMERA button
LHA4553
MOVING OBJECT DETECTION
(MOD) (if so equipped)
Monitor, climate, audio, phone and voice recognition systems4-29

WARNING
∙ Failure to follow the warnings and in-structions for proper use of the Moving
Object Detection system could result in
serious injury or death.
∙ The MOD system is not a substitute for proper vehicle operation and is not de-
signed to prevent contact with objects
surrounding the vehicle. When maneu-
vering, always use the outside mirrors
and rearview mirror and turn and check
the surroundings to ensure it is safe to
maneuver.
∙ The system is deactivated at speeds above 6 mph (10 km/h). It is reactivated
at lower speeds.
∙ The MOD system is not designed to de- tect surrounding stationary objects.
The MOD system can inform the driver of
moving objects near the vehicle when back-
ing out of garages, maneuvering in parking
lots and in other such instances.
The MOD system detects moving objects by
using image processing technology on the
image shown in the display.
MOD SYSTEM OPERATION
The MOD system will turn on automatically
under the following conditions:
∙ When the shift lever is in the R (Reverse) position. When activating the Around
View® Monitor, the guide lines, the icons
and the messages may not be displayed
immediately.
∙ When the
CAMERA button is
pressed to activate the camera view on
the display.
∙ When vehicle speed decreases below ap- proximately 6 mph (10 km/h) and the
camera screen is shown in the upper dis-
play. The MOD system operates in the following
conditions when the camera view is dis-
played:
∙ When the shift lever is in the P (Park) or N (Neutral) position and the vehicle is
stopped, the MOD system detects mov-
ing objects in the bird’s-eye view. The
MOD system will not operate if the out-
side mirrors are moving in or out, in the
stowed position, or if either front door is
opened.
Front and bird’s-eye views
LHA4572
4-30Monitor, climate, audio, phone and voice recognition systems

∙ When the shift lever is in the D (Drive)position and the vehicle speed is below
approximately 6 mph (10 km/h), the
MOD system detects moving objects in
the front view or front-wide view. ∙ When the shift lever is in the R (Reverse)
position and the vehicle speed is below
approximately 6 mph (10 km/h), the
MOD system detects moving objects in
the rear view or rear-wide view. When
activating the Around View® Monitor,
the guide lines, the icons and the mes-
sages may not be displayed immediately.
The MOD system will not operate if the
liftgate is open.
The MOD system does not detect moving
objects in the front-side view. The MOD icon
is not displayed on the screen when in this
view. NOTE:
If the vehicle is equipped with Backup Colli-
sion Intervention (BCI) system, a “
” key
5may be displayed on the Around View®
Monitor screen when the shift lever is in the
R (Reverse) position. When activating the
Around View® Monitor, the guide lines, the
icons and the messages may not be displayed
immediately. For additional information, re-
fer to “Backup Collision Intervention (BCI)”
in the “Starting and driving” section of this
manual.
Front-wide view
LHA4275
Rear and bird’s-eye views
LHA4560
Rear and front-side views
LHA4561
Monitor, climate, audio, phone and voice recognition systems4-31

When the MOD system detects moving ob-
jects near the vehicle, a yellow frame will be
displayed on the view where the objects are
detected. While the MOD system continues
to detect moving objects, the yellow frame
continues to be displayed.
NOTE:
While the sonar/BCI chime (if so equipped) is
beeping, the MOD system does not chime.
In the bird’s-eye view, the yellow frame
1is
displayed on each camera image (front, rear,
right, left) depending on where moving ob-
jects are detected. The yellow frame
2is displayed on each
view in the front view and rear view modes.
A blue MOD icon
3is displayed in the view
where the MOD system is operative. A gray
MOD icon is displayed in the view where the
MOD system is not operative.
If the MOD system is turned off, the MOD
icon
3is not displayed.
Rear-wide view
LHA4562
4-32Monitor, climate, audio, phone and voice recognition systems

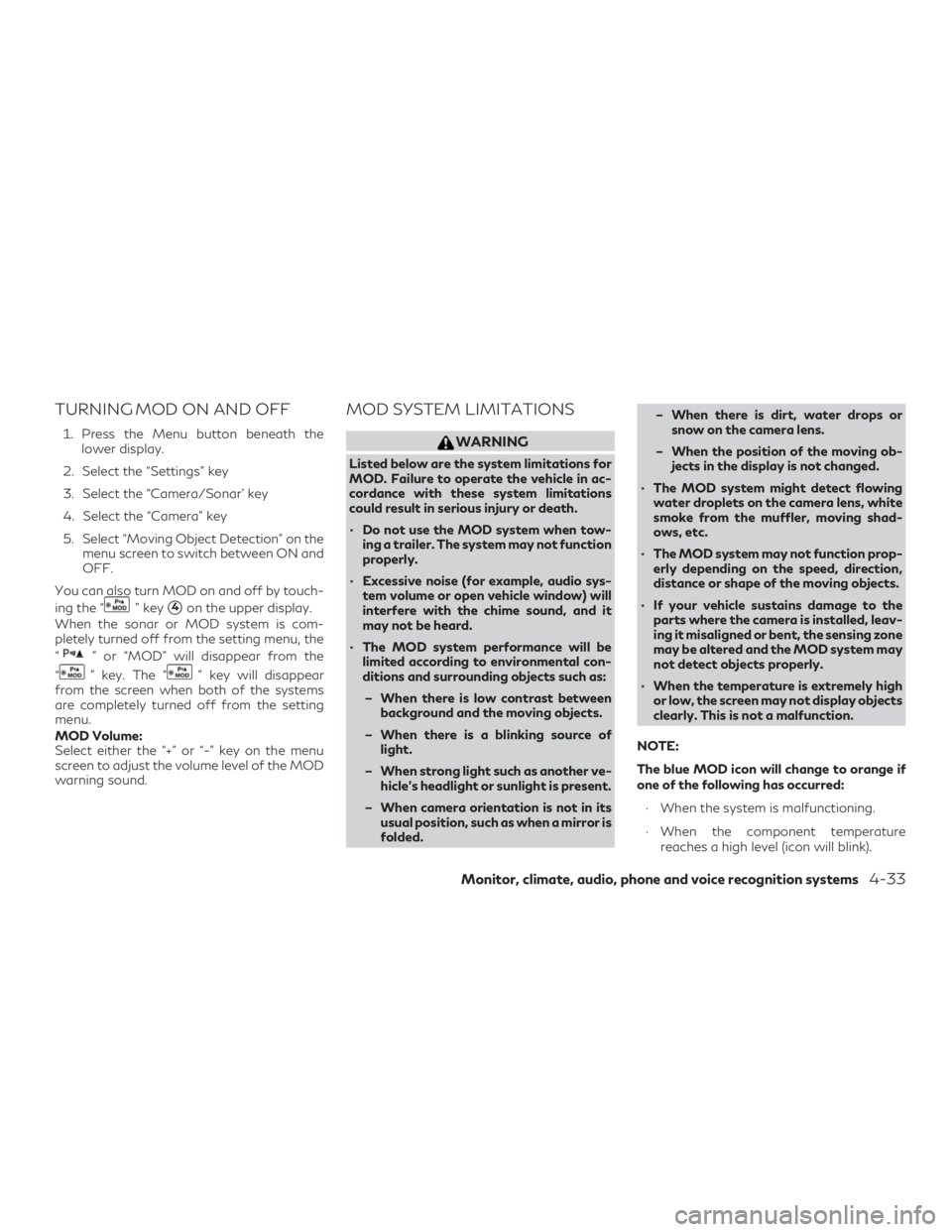

TURNING MOD ON AND OFF
1. Press the Menu button beneath thelower display.
2. Select the “Settings” key
3. Select the “Camera/Sonar’ key
4. Select the “Camera” key
5. Select “Moving Object Detection” on the menu screen to switch between ON and
OFF.
You can also turn MOD on and off by touch-
ing the “
” key4on the upper display.
When the sonar or MOD system is com-
pletely turned off from the setting menu, the
“
” or “MOD” will disappear from the
“
” key. The “” key will disappear
from the screen when both of the systems
are completely turned off from the setting
menu.
MOD Volume:
Select either the “+” or “-” key on the menu
screen to adjust the volume level of the MOD
warning sound.
MOD SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
MOD. Failure to operate the vehicle in ac-
cordance with these system limitations
could result in serious injury or death.
∙ Do not use the MOD system when tow- ing a trailer. The system may not function
properly.
∙ Excessive noise (for example, audio sys- tem volume or open vehicle window) will
interfere with the chime sound, and it
may not be heard.
∙ The MOD system performance will be limited according to environmental con-
ditions and surrounding objects such as:
– When there is low contrast between background and the moving objects.
– When there is a blinking source of light.
– When strong light such as another ve- hicle’s headlight or sunlight is present.
– When camera orientation is not in its usual position, such as when a mirror is
folded. – When there is dirt, water drops or
snow on the camera lens.
– When the position of the moving ob- jects in the display is not changed.
∙ The MOD system might detect flowing water droplets on the camera lens, white
smoke from the muffler, moving shad-
ows, etc.
∙ The MOD system may not function prop- erly depending on the speed, direction,
distance or shape of the moving objects.
∙ If your vehicle sustains damage to the parts where the camera is installed, leav-
ing it misaligned or bent, the sensing zone
may be altered and the MOD system may
not detect objects properly.
∙ When the temperature is extremely high or low, the screen may not display objects
clearly. This is not a malfunction.
NOTE:
The blue MOD icon will change to orange if
one of the following has occurred: ∙ When the system is malfunctioning.
∙ When the component temperature reaches a high level (icon will blink).
Monitor, climate, audio, phone and voice recognition systems4-33

1. Lower touch-screen display (lowerdisplay)
2.
Temperature control increase
button (passenger’s side)
3.
Temperature control decrease
button (passenger’s side) 4.
Air recirculation button
5.
Front defroster button
6.
Rear window and outside mir-
ror (if so equipped) defroster switch
7. ON-OFF button
8.
CLIMATE button 9.
MENU button
10.
Manual air flow control button
11.
Fan speed decrease button
12.
Fan speed increase button
13. AUTO button
14.
Temperature control decrease
button (driver’s side)
15.
Temperature control increase
button (driver’s side)
WARNING
∙ The air conditioner cooling function op- erates only when the engine is running.
∙ Do not leave children or adults who would normally require the assistance of
others alone in your vehicle. Pets should
also not be left alone. They could acciden-
tally injure themselves or others through
inadvertent operation of the vehicle.
Also, on hot, sunny days, temperatures in
a closed vehicle could quickly become
high enough to cause severe or possibly
fatal injuries to people or animals.
∙ Do not use the recirculation mode for long periods as it may cause the interior
air to become stale and the windows to
fog up.
LHA4574
HEATER AND AIR CONDITIONER
(automatic)
4-36Monitor, climate, audio, phone and voice recognition systems
