2019 INFINITI QX30 odometer

INFINITI CUSTOMER CARE PROGRAM
INFINITI CARES ...
Both INFINITI and your INFINITI retailer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your
INFINITI retailer are our primary concerns. Your INFINITI retailer is always available to assist you with all your automobile sales and service
needs.
However, if there is something that your
INFINITI retailer cannot assist you with or
you would like to provide INFINITI directly
with comments or questions, please contact
our (INFINITI’s) Consumer Affairs Depart-
ment using our toll-free number:
For U.S. customers
1-800-662-6200
For Canadian customers
1-800-361-4792
The Consumer Affairs Department will ask
for the following information:
•Your name, address, and telephone number
•Vehicle identification number (on dash
panel)
•Date of purchase
•Current odometer reading
•Your INFINITI retailer’s name
•Your comments or questions
OR
You can write to INFINITI with the informa-
tion on the left at:
For U.S. customers
INFINITI Division Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
nnaconsumeraffairs@nissan-usa. comFor Canadian customers
INFINITI Division
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
information.center@nissancanada. com
If you prefer, visit us at:
www.infinitiUSA.com (for U.S. customers) or
www.infiniti.ca (for Canadian customers)
We appreciate your interest in INFINITI and
thank you for buying a quality INFINITI ve-
hicle.

1. Speedometer (P. 2-4)
2. Vehicle information display (P. 2-15)
— Odometer/twin trip odometer (P. 2-15)
3. Upper information display (P. 2-15)
4. Tachometer (P. 2-6)5. Engine coolant temperature gauge
(P. 2-6)
6. Fuel gauge (P. 2-7)
NIC2651
METERS AND GAUGES
0-8Illustrated table of contents

2 Instruments and controls
Cockpit............................2-2
Instrument panel......................2-3
Meters and gauges.....................2-4
Speedometer and odometer.............2-4
Outside temperature display.............2-5
Tachometer.......................2-6
Engine coolant temperature gauge.........2-6
Fuel gauge........................2-7
Warning lights, indicator lights and audible
reminders...........................2-8
Checking lights.....................2-8
Warning lights......................2-9
Indicator lights.....................2-13
Audible reminders...................2-14
Vehicle information display...............2-15
Menus and submenus................2-16
Display Messages...................2-29
Security system......................2-60
Immobiliser.......................2-60
Anti-theft alarm system (if equipped)......2-60
Wiper and washer switch................2-61
Switching the windshield wipers on/off.....2-62
Switching the rear window wiper on/off. . . .2-63
Rear window and outside mirror defroster
switch............................2-64
Windshield de-icer switch (if equipped).......2-64
Headlight and turn signal switches..........2-65Headlight switch...................2-65
Combination switch.................2-67
Adaptive front lighting system
(LED headlight only) (if equipped).........2-67
High beam assist (LED headlight only)......2-69
Headlights misted up on the inside........2-71
Instrument brightness control...........2-71
Fog light switch (If so equipped)............2-71
Front fog lights....................2-71
Rear fog light......................2-72
Horn.............................2-72
Seat heating (if equipped)................2-73
Windows..........................2-74
Power windows....................2-74
Fixed glass roof (if equipped)..............2-78
Sunshade operation.................2-78
Clock.............................2-79
Adjusting time.....................2-79
Power outlet........................2-79
Storage...........................2-80
Glove box........................2-80
Front console compartment............2-81
Console box......................2-81
Card holder.......................2-81
Cup holders.......................2-82
Coat hooks.......................2-83
Cargo tie-down hooks................2-83

1. Speedometer (P. 2-4)
2. Vehicle information display (P. 2-15)
— Odometer/twin trip odometer (P. 2-15)
3. Upper information display (P. 2-15)
4. Tachometer (P. 2-6)5. Engine coolant temperature gauge
(P. 2-6)
6. Fuel gauge (P. 2-7)NOTE
The needle indicators may move slightly af-
ter the ignition switch is put in the “OFF”
position. This is not a malfunction.
CAUTION
•For cleaning, use a soft cloth, dampened
with water. Never use a rough cloth,
alcohol, thinner or any kind of solvent or
paper towel with a chemical cleaning
agent. They will scratch or cause discol-
oration to the lens.
•Do not spray any liquid such as water on
the meter lens. Spraying liquid may
cause the system to malfunction.
SPEEDOMETER AND
ODOMETER
This vehicle is equipped with a speedometer
and odometer. The speedometer is located
on the right side of the meter cluster. The
odometer is located below the vehicle infor-
mation display.
NIC2651
METERS AND GAUGES
2-4Instruments and controls

Speedometer
The speedometer indicates vehicle speed.The speedometer is divided into segments1,2and3only on vehicles with Intelligent
Cruise Control.
The segments in the speedometer indicate
which speed range is available (see "Displays
in the speedometer").
Odometer/Twin trip odometer
The odometer and the twin trip odometer are
displayed in the Vehicle Information Display
see "Vehicle information display".
OUTSIDE TEMPERATURE
DISPLAY
You should pay special attention to road con-
ditions when temperatures are around freez-
ing point.
Bear in mind that the outside temperature
display indicates the measured air tempera-
ture and not the road surface temperature
Depending on the vehicle specification, the
outside temperature display is in either the
upper display or the main screen of the ve-
hicle information display. See "Vehicle infor-
mation display".
NIC2824ZNIC2824AZ
With segments
NSD659
Instruments and controls2-5

5. Press theorbutton to set
[Off], [Standard] or [Adaptive].
6. Press thebutton to save the setting.
For further information about Lane Depar-
ture Warning, see " Lane departure warning
(LDW) system (if equipped) ".
Service menu ([Serv.])
Depending on the equipment fitted in the
vehicle, you have the following options in the
[Serv.] menu:
•Calling up display messages in the mes-
sage memory (see "Message memory"
later in this section).
•Restarting the tire pressure monitoring
system (TPMS) (see "Restarting TPMS".
•Checking the tire pressure electronically
(see "Checking the tire pressure electroni-
cally").
•Calling up the service due date (see "Main-
tenance service messages").
Settings menu
Depending on the equipment fitted in the
vehicle, in the [Settings] menu you have the
following options:
•Changing the instrument cluster settings.
•Changing the light setting.
•Changing the vehicle setting.
•Changing the convenience setting.
•Restoring the factory setting.
Instrument cluster:
Unit of measurement for distance: The Dis-
play unit Speed-/odometer function allows
you to choose whether certain displays ap-
pear in kilometers or miles in the vehicle infor-
mation display.
NIC2874NIC2731
2-24Instruments and controls

1.Press theorbutton on the
steering wheel to select the [Settings] menu.
2. Press theorbutton to select
[Instrument Cluster] submenu.
3. Press to confirm.
4. Press the
orbutton to select
the [Display Unit Speed-/Odometer] func-
tion.
You will see the selected setting: [miles] or
[km].
5. Press the button to change the set-
ting.
The selected unit of measurement for dis-
tance applies to:
•Digital speedometer in the [Trip] menu.
•Total distance recorder and the trip meter.
•Trip computer.
•Current fuel consumption and approximate
range.
•Navigation instructions in the [Navi] menu.
•Cruise control.
•Speed limiter.
•Intelligent cruise control (ICC).
•Maintenance service interval display.
Switching the additional speedometer on/off.
The [Speedometer (mph)] or [Speedometer
(km/h)] function allows you to choose
whether the vehicle information display in the
status area shows the speed in MPH or in
km/h instead of the outside temperature.
1. Press the
orbutton on the
steering wheel to select the [Settings]
menu.
2. Press the
orbutton to select
[Instrument Cluster] submenu.
3. Press to confirm.
4. Press the
orbutton to select
the [Speedometer (mph)] or [Speedom-
eter (km/h)] function.
You will see the selected setting: [On] or
[off].
5. Press the button to change the
setting.
Selecting the permanent display function.
You can determine whether the vehicle infor-
mation display permanently shows the out-
side temperature or the speed in MPH.
1. Press the
orbutton on the
steering wheel to select the [Settings]
menu.2. Press the
orbutton to select
[Instrument Cluster] submenu.
3. Press to confirm.
4. Press the
orbutton to select
the [Outside Temperature] function.
You will see the selected setting: [outside
temperature] or [Speedometer (mph)].
5. Press the button to save the setting.
Lights
Switching the Adaptive Front Lighting
System on/off:
1. Press the
orbutton on the
steering wheel to select the [Settings]
menu.
2. Press the
orbutton to select
[Light] submenu.
3. Press to confirm.
4.
Press theorbutton to select the
[Adaptive front lighting system] function.
If the [Adaptive front lighting system]
function has been switched on, the cone
of light and the
symbol in the vehicle
information display are shown in orange.
5. Press the button to save the setting.
Instruments and controls2-25

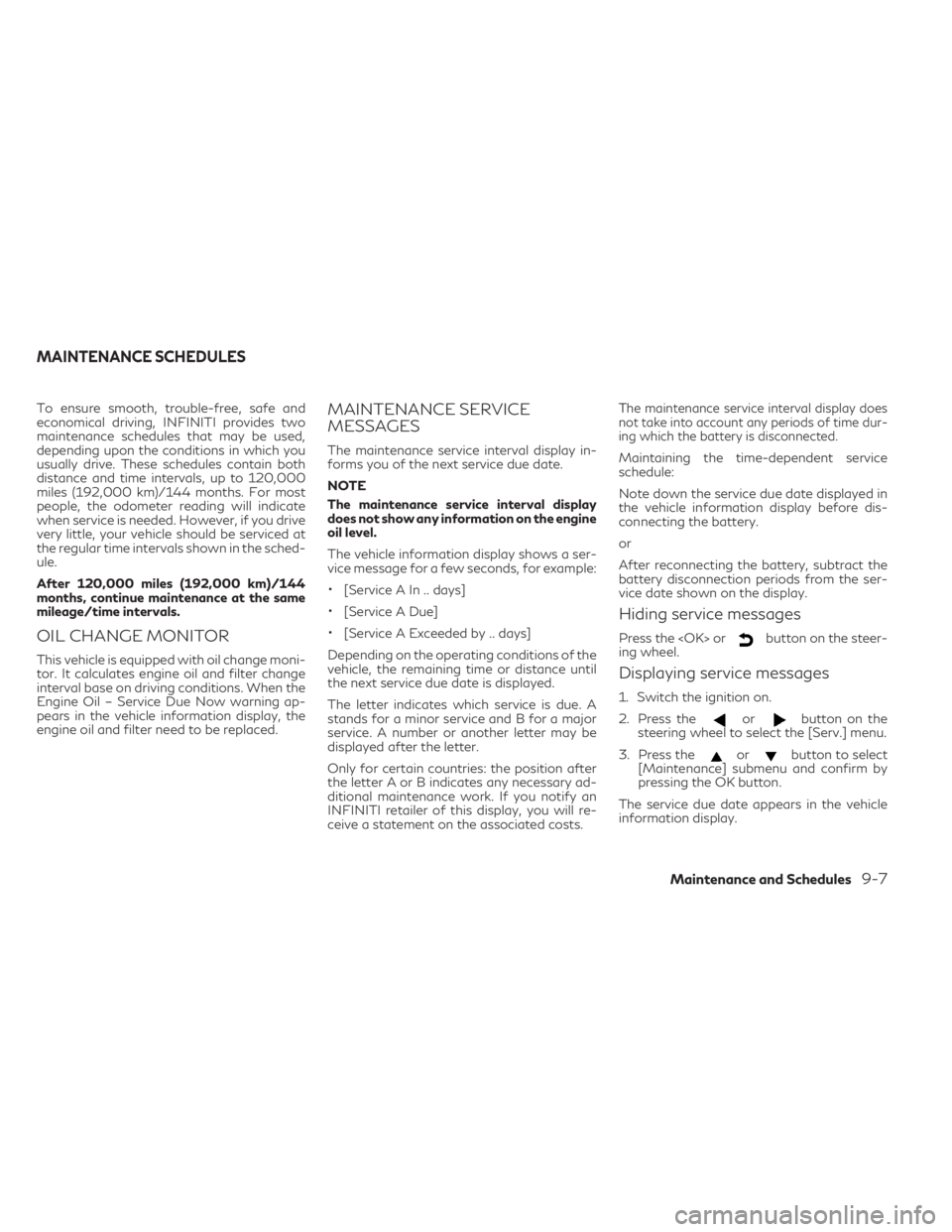

To ensure smooth, trouble-free, safe and
economical driving, INFINITI provides two
maintenance schedules that may be used,
depending upon the conditions in which you
usually drive. These schedules contain both
distance and time intervals, up to 120,000
miles (192,000 km)/144 months. For most
people, the odometer reading will indicate
when service is needed. However, if you drive
very little, your vehicle should be serviced at
the regular time intervals shown in the sched-
ule.
After 120,000 miles (192,000 km)/144
months, continue maintenance at the same
mileage/time intervals.
OIL CHANGE MONITOR
This vehicle is equipped with oil change moni-
tor. It calculates engine oil and filter change
interval base on driving conditions. When the
Engine Oil – Service Due Now warning ap-
pears in the vehicle information display, the
engine oil and filter need to be replaced.
MAINTENANCE SERVICE
MESSAGES
The maintenance service interval display in-
forms you of the next service due date.
NOTE
The maintenance service interval display
does not show any information on the engine
oil level.
The vehicle information display shows a ser-
vice message for a few seconds, for example:
•[Service A In .. days]
•[Service A Due]
•[Service A Exceeded by .. days]
Depending on the operating conditions of the
vehicle, the remaining time or distance until
the next service due date is displayed.
The letter indicates which service is due. A
stands for a minor service and B for a major
service. A number or another letter may be
displayed after the letter.
Only for certain countries: the position after
the letter A or B indicates any necessary ad-
ditional maintenance work. If you notify an
INFINITI retailer of this display, you will re-
ceive a statement on the associated costs.
The maintenance service interval display does
not take into account any periods of time dur-
ing which the battery is disconnected.
Maintaining the time-dependent service
schedule:
Note down the service due date displayed in
the vehicle information display before dis-
connecting the battery.
or
After reconnecting the battery, subtract the
battery disconnection periods from the ser-
vice date shown on the display.
Hiding service messages
Press the orbutton on the steer-
ing wheel.
Displaying service messages
1. Switch the ignition on.
2. Press the
orbutton on the
steering wheel to select the [Serv.] menu.
3. Press the
orbutton to select
[Maintenance] submenu and confirm by
pressing the OK button.
The service due date appears in the vehicle
information display.
MAINTENANCE SCHEDULES
Maintenance and Schedules9-7
