2019 INFINITI QX30 display

WARNING
While parking or pulling out of a parking
space, the vehicle swings out and can drive
onto areas of the oncoming lane. This could
cause you to collide with other road users.
There is a risk of an accident.
9. Depending on the message or as required,
shift the transmission to position D or R.
IPA immediately steers in the other direc-
tion. The [Observe surroundings] mes-
sage appears in the display.
NOTE
You will achieve the best results by wait-
ing for the steering procedure to com-
plete before pulling away.
If you back up after activation, the steer-
ing wheel is moved to the straight-ahead
position.
10. Drive forward and back up as prompted
by the IPA and sonar function warning
displays, several times if necessary.Once you have exited the parking space com-
pletely, the steering wheel is moved to the
straight-ahead position. You hear a tone and
the [Park Assist switched off] message ap-
pears in the display. You will then have to
steer and merge into traffic on your own. The
sonar function is still available. You can take
over the steering before the vehicle has ex-
ited the parking space completely. This is use-
ful, for example when you recognize that it is
already possible to pull out of the parking
space.
CANCELING IPA
Stop the movement of the steering wheel or
steer yourself. IPA will be immediately can-
celed. The [Park Assist canceled] message
appears in the vehicle information display.
or
Press the sonar function OFF switch. The
sonar function is switched off and IPA is
immediately canceled The [Park Assist can-
celed] message appears in the vehicle infor-
mation display.IPA is canceled automatically if:
•The electric parking brake is applied
•Parking using IPA is no longer possible
•You are driving faster than 5 MPH (10 km/h)
•A wheel spins and VDC intervenes or fails.
Thewarning light lights up in the
combination meter.
A warning tone sounds. The parking symbol
disappears and the vehicle information dis-
play shows the [Park Assist canceled] mes-
sage.
When IPA is canceled, you must steer again
yourself.
Starting and driving5-75

ARearView/Around View monitor display
BINFINITI controller
C

•The system may not detect the follow-
ing objects:
–Fluffy objects such as snow, cloth,
cotton, grass or wool.
–Thin objects such as rope, wire or
chain.
–Wedge-shaped objects.
•If your vehicle sustains damage to the
bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
jects or false alarms.
CAUTION
Excessive noise (such as audio system vol-
ume or an open vehicle window) will inter-
fere with the tone and it may not be heard.
PROBLEMS WITH SONAR FUNCTION
Problem Possible causes/consequences and solutions
Only the red segments in the
sonar function displays are lit.
You also hear a warning tone for
approximately two seconds.
The sonar function is then
deactivated and the indicator light
on the sonar function OFF switch
lights up.The sonar function has malfunctioned and has been deactivated.
If problems persist, have the sonar function checked.
It is recommended you visit an INFINITI retailer for this service.
Only the red segments in the
sonar function displays are lit. The
sonar function is then deactivated.The sonar sensors are dirty or there is interference.
•Clean the sensors.•Switch the ignition back on.
The problem may be caused by an external source of radio or
ultrasound waves.
See if the sonar system functions in a different location.
Starting and driving5-83

CAUTION
Never tow the vehicle with one axle raised.
This may damage the differential. Damage
of this sort is not covered by the warranty.
All wheels must be fully raised (see "Four-
Wheel Drive (4WD) models")
4WD, together with VDC, improves the trac-
tion of your vehicle whenever a drive wheel
spins due to insufficient grip.
If you fail to adapt your driving style, 4WD
can neither reduce the risk of an accident nor
override the laws of physics. 4WD cannot
take account of road, weather, and traffic
conditions. 4WD is only an aid. You are re-
sponsible for the distance to the vehicle in
front, for vehicle speed, for braking in good
time, and for staying in lane.
If a drive wheel spins due to insufficient grip
•When pulling away, only depress the ac-
celerator pedal as far as is necessary.
•Accelerate less when driving.
NOTE
In wintry driving conditions, the maximum
effectiveness of 4WD can only be achieved if
you use winter tires (M+S tires), with snow
chains if necessary.
WARNING
•Do not stop or park the vehicle over
flammable materials such as dry grass,
waste paper or rags. They may ignite
and cause a fire.
•Safe parking procedures require that
both the parking brake be applied and
the P (Park) position engaged. Failure to
do so could cause the vehicle to move
unexpectedly or roll away and result in
an accident.
•When parking the vehicle, make sure the
P (Park) position is engaged. The shift
lever cannot be moved out of the P
(Park) position without depressing the
brake pedal.
•Never leave the engine running while the
vehicle is unattended.
•Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls or move the
vehicle. Unattended children could be-
come involved in serious accidents.
•To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not leave
children, people who require the assis-
tance of others, or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm
day can quickly become high enough to
cause a significant risk of injury or death
to people and pets.
CAUTION
Always secure the vehicle correctly against
rolling away. Otherwise, the vehicle or its
drive train could be damaged.
To ensure that the vehicle is secured against
rolling away unintentionally:
•The electric parking brake must be applied.
•The transmission must be in position P
(Park) and the transmission position dis-
play must show P in the vehicle informa-
tion display.
•The key must be removed from the ignition
switch.
•On uphill or downhill gradients, the front
wheels must be turned towards the curb.
PARKING
Starting and driving5-87

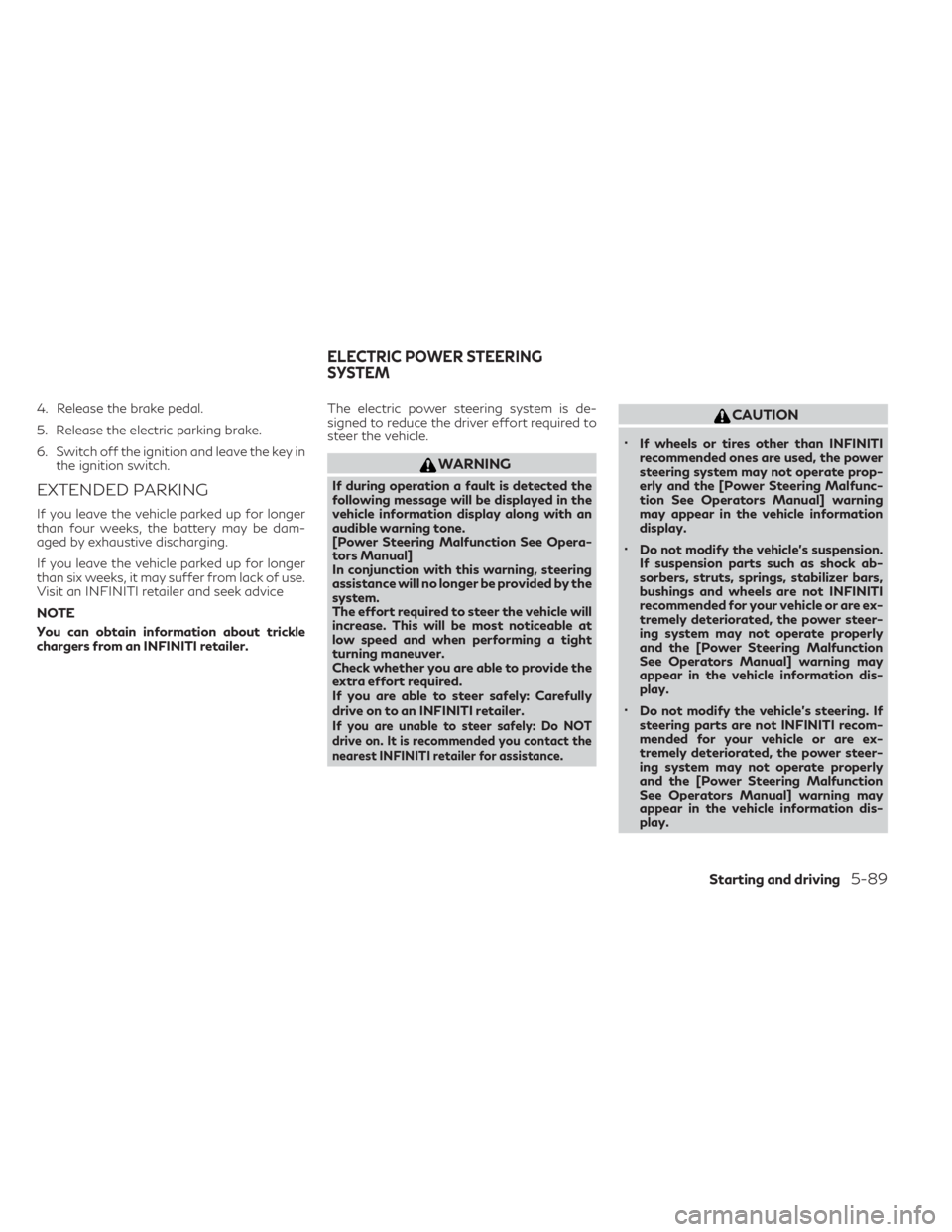

4. Release the brake pedal.
5. Release the electric parking brake.
6. Switch off the ignition and leave the key in
the ignition switch.
EXTENDED PARKING
If you leave the vehicle parked up for longer
than four weeks, the battery may be dam-
aged by exhaustive discharging.
If you leave the vehicle parked up for longer
than six weeks, it may suffer from lack of use.
Visit an INFINITI retailer and seek advice
NOTE
You can obtain information about trickle
chargers from an INFINITI retailer.The electric power steering system is de-
signed to reduce the driver effort required to
steer the vehicle.
WARNING
If during operation a fault is detected the
following message will be displayed in the
vehicle information display along with an
audible warning tone.
[Power Steering Malfunction See Opera-
tors Manual]
In conjunction with this warning, steering
assistance will no longer be provided by the
system.
The effort required to steer the vehicle will
increase. This will be most noticeable at
low speed and when performing a tight
turning maneuver.
Check whether you are able to provide the
extra effort required.
If you are able to steer safely: Carefully
drive on to an INFINITI retailer.
If
you are unable to steer safely: Do NOT
drive on. It is recommended you contact the
nearest INFINITI retailer for assistance.
CAUTION
•If wheels or tires other than INFINITI
recommended ones are used, the power
steering system may not operate prop-
erly and the [Power Steering Malfunc-
tion See Operators Manual] warning
may appear in the vehicle information
display.
•Do not modify the vehicle's suspension.
If suspension parts such as shock ab-
sorbers, struts, springs, stabilizer bars,
bushings and wheels are not INFINITI
recommended for your vehicle or are ex-
tremely deteriorated, the power steer-
ing system may not operate properly
and the [Power Steering Malfunction
See Operators Manual] warning may
appear in the vehicle information dis-
play.
•Do not modify the vehicle's steering. If
steering parts are not INFINITI recom-
mended for your vehicle or are ex-
tremely deteriorated, the power steer-
ing system may not operate properly
and the [Power Steering Malfunction
See Operators Manual] warning may
appear in the vehicle information dis-
play.
ELECTRIC POWER STEERING
SYSTEM
Starting and driving5-89

CAUTION
•When VDC is deactivated, the
VDC OFF warning light lights up con-
tinuously.
•If both thewarning light and
warning light are lit continuously, VDC
is not available due to a malfunction.
TRACTION CONTROL SYSTEM
(TCS)
The Traction Control System (TCS) is part of
VDC.
Traction control brakes the drive wheels indi-
vidually if they spin. This enables you to pull
away and accelerate on slippery surfaces, for
example if the road surface is slippery on one
side. In addition, more drive torque is trans-
ferred to the wheel or wheels with traction.
Traction control remains active if you deacti-
vate VDC.
CHARACTERISTICS OF VDC
If theVDC warning light goes out before
beginning the journey, VDC is automatically
active.If VDC intervenes, the
VDC warning
light flashes in the combination meter.
If VDC intervenes:
•Do not deactivate VDC under any circum-
stances.
•When pulling away, only depress the ac-
celerator pedal as far as is necessary.
•Adapt your driving style to suit the prevail-
ing road and weather conditions.
Deactivating/activating VDC
WARNING
If you deactivate VDC, VDC no longer
stabilizes the vehicle. There is an increased
risk of skidding and an accident.
Only deactivate VDC in the situations
described in the following section.
You can select between the following sta-
tuses of VDC:
•VDC is activated.
•VDC is deactivated.
It may be best to deactivate VDC in the fol-
lowing situations:
•When using snow chains.
•In deep snow.
•On sand or gravel.NOTE
Activate VDC as soon as the situations de-
scribed above no longer apply. VDC will oth-
erwise not be able to stabilize the vehicle if
the vehicle starts to skid or a wheel starts to
spin.
You can activate/deactivate VDC using the
vehicle information display. To activate/
deactivate VDC:
1. Start the engine
2. Press the
orbutton on the
steering wheel to select the [DriveAssist]
menu in the vehicle information display.
3. Press the
orbutton to select
VDC.
4. Press thebutton on the steering
wheel. The current selection is displayed.
5. To activate/deactivate: press the
button again.
VDC is deactivated if the
warning
light in the combination meter lights up
continuously when the engine is running.
Characteristics when VDC is deactivated:
If VDC is deactivated and one or more wheels
start to spin, the
VDC warning light
flashes in the combination meter. In such
situations, VDC will not stabilize the vehicle.
5-94Starting and driving

If you deactivate VDC:
•VDC no longer intervenes in understeer or
oversteer situations.
•Engine torque is no longer limited and the
drive wheels are able to spin.
The spinning of the wheels results in a
cutting action, so the tires cut through the
loose surface until the hit solid ground,
giving better traction.
•Traction control is still activated.
•VDC still provides support when you brake.
EBD (ELECTRONIC BRAKE
FORCE DISTRIBUTION)
EBD monitors and controls the brake pres-
sure on the rear wheels to help improve han-
dling during braking.
WARNING
If EBD is malfunctioning, the EBD [Inop-
erative See Operator's Manual] warning is
displayed in the vehicle information dis-
play. The
VDC warning light may also
light up.
If EBD is malfunctioning as a result of a
VDC malfunction, the rear wheels can lock,
e.g. under full braking. This increases the
risk of skidding and an accident.You should therefore adapt your driving
style to the different handling characteris-
tics. Have the brake system checked. It is
recommended you see an INFINITI retailer.
STEER CONTROL
STEER CONTROL helps you by transmitting
a noticeable steering force to the steering
wheel in the direction required for vehicle
stabilisation.
This steering support is provided in particular
if:
•Both right wheels or both left wheels are
on a wet or slippery road surface when
you brake.
•The vehicle starts to skid.
WARNING
No steering support is provided from
STEER CONTROL, if:
•VDC is malfunctioning.•The steering is faulty.
Power steering will, however, continue to
function.
WARNING
•Never rely solely on the Hill Start Assist
(HSA) system to prevent the vehicle
from moving backward on a hill. Always
drive carefully and attentively. Depress
the brake pedal when the vehicle is
stopped on a steep hill. Be especially
careful when stopped on a hill on frozen
or muddy roads. Failure to prevent the
vehicle from rolling backwards may re-
sult in a loss of control of the vehicle and
possible serious injury or death.
•The Hill Start Assist system is not de-
signed to hold the vehicle at a standstill
on a hill. Depress the brake pedal when
the vehicle is stopped on a steep hill.
Failure to do so may cause the vehicle to
roll backwards and may result in a colli-
sion or serious personal injury.
•The Hill Start Assist system may not
prevent the vehicle from rolling back-
wards on a hill under all load or road
conditions. Always be prepared to de-
press the brake pedal to prevent the
vehicle from rolling backwards. Failure
to do so may result in a collision or seri-
ous personal injury.
HILL START ASSIST (HSA)
Starting and driving5-95

The hazard warning flasher switch1oper-
ates regardless of the ignition switch position
except when the battery is discharged.
The hazard warning flasher is used to warn
other drivers when you have to stop or park
under emergency conditions.
When the hazard warning flasher switch is
pushed, all turn signal lights will flash. To turn
off the hazard warning flasher, push the haz-
ard warning switch again.
WARNING
•If stopping for an emergency, be sure to
move the vehicle well off the road.
•Do not use the hazard warning flashers
while moving on the highway unless un-
usual circumstances force you to drive
so slowly that your vehicle might be-
come a hazard to other traffic.
•Turn signals do not work when the haz-
ard warning flasher lights are on.
Some jurisdictions may prohibit the use of
the hazard warning flasher switch while
driving.If you have a flat tire, follow the instructions
in this section.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
WARNING
•If the low tire pressure warning light il-
luminates or a tire pressure-related
warning is displayed by the vehicle in-
formation display while driving, avoid
sudden steering maneuvers or abrupt
braking, reduce vehicle speed, pull off
the road to a safe location and stop the
vehicle as soon as possible. Driving with
under-inflated tires may permanently
damage the tires and increase the likeli-
hood of tire failure. Serious vehicle dam-
age could occur and may lead to an acci-
dent and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the tire and loading informa-
tion label to turn the low tire pressure
warning light OFF. If you have a flat tire,
replace it with a replacement tire as
soon as possible.
NIC2621
HAZARD WARNING FLASHER
SWITCHFLAT TIRE
6-2In case of emergency
