2019 INFINITI Q60 spark plugs

8 Do-it-yourself
Maintenance precautions ............................................... 8-3
Engine compartment check locations ......................... 8-4VR30DDTT engine ..................................................... 8-4
2.0L turbo gasoline engine ...................................... 8-5
Engine cooling system (for VR30DDTT
engine models) ................................................................... 8-6
Checking engine coolant level ................................ 8-7
Changing engine coolant .......................................... 8-7
Engine cooling system (for 2.0L turbo gasoline
engine models) ................................................................... 8-8
Checking engine coolant level ................................. 8-8
Changing engine coolant .......................................... 8-9
Intercooler cooling system (for VR30DDTT
engine models) ................................................................... 8-9 Checking intercooler coolant level ...................... 8-10
Changing intercooler coolant ............................... 8-10
Engine oil ........................................................................\
.. 8-10 Checking engine oil level ......................................... 8-11
Changing engine oil and filter ................................ 8-11
Automatic Transmission Fluid (ATF) ........................ 8-14
Power steering fluid (models with hydraulic pump
electric power steering) ................................................ 8-14
Brake fluid ........................................................................\
. 8-15
Window washer fluid .................................................... 8-15 Battery ........................................................................\
...... 8-16
Main battery location ............................................ 8-17
Auxiliary battery location (for 2.0L turbo
gasoline engine models) ........................................ 8-18
Checking battery fluid level .................................. 8-18
Jump starting ........................................................... 8-19
Variable voltage control system ............................... 8-20
Drive belts ....................................................................... 8-20
Spark plugs ...................................................................... 8-21 Replacing spark plugs ............................................ 8-21
Air cleaner ........................................................................\
8-22
Windshield wiper blades .............................................. 8-22 Cleaning ..................................................................... 8-22
Replacing ................................................................... 8-23
Brakes ........................................................................\
........ 8-23 Self-adjusting brakes ............................................. 8-23
Brake pad wear warning ....................................... 8-23
Fuses ........................................................................\
......... 8-24 Engine compartment .............................................. 8-25
Passenger compartment ....................................... 8-26
Intelligent Key battery replacement ......................... 8-27
Lights ........................................................................\
......... 8-29 Headlights ................................................................ 8-30
Exterior and interior lights ................................... 8-30

1. Visually inspect each belt for signs ofunusual wear, cuts, fraying or looseness.
If the belt is in poor condition or loose,
have it replaced or adjusted. It is recom-
mended you visit an INFINITI retailer for
this service.
2. Have the belts checked regularly for condition and tension in accordance with
the maintenance schedule shown in the
“9. Maintenance and schedules” section.
WARNING
Be sure the engine and the ignition
switch are off and that the parking
brake is engaged securely.
CAUTION
Be sure to use the correct socket to
remove the spark plugs. An incorrect
socket can damage the spark plugs.
SDI2020
REPLACING SPARK PLUGS
If replacement is required, it is recommended
you visit an INFINITI retailer for this service.
Iridium-tipped spark plugs
It is not necessary to replace the iridium-
tipped spark plugs as frequently as the
conventional type spark plugs since they will
last much longer. Follow the maintenance
schedule shown in the “9. Maintenance and
schedules” section, but do not reuse them by
cleaning or regapping.
Always replace spark plugs with recom-
mended or equivalent ones.
Do-it-yourself8-21
SPARK PLUGS

9-6Maintenance and schedules
Fuel lines*:
Check the fuel hoses, piping and connections
for leaks, looseness, or deterioration. Tight-
en connections or replace parts as necessary.
Spark plugs:
Replace at specified intervals. Install new
plugs of the type as originally equipped.
CHASSIS AND BODY MAINTE-
NANCE
Brake lines and cables:
Visually inspect for proper installation.
Check for chafing, cracks, deterioration,
and signs of leaking. Replace any deterio-
rated or damaged parts immediately.
Brake pads, rotors, drums and linings:
Check for wear, deterioration and fluid
leaks. Replace any deteriorated or damaged
parts immediately.
Exhaust system:
Visually inspect the exhaust pipes, muffler
and hangers for leaks, cracks, deterioration,
and damage. Tighten connections or replace
parts as necessary.
In-cabin microfilter:
Replace at specified intervals. When driving
for prolonged periods in dusty conditions,
replace the filter more frequently.Propeller shaft(s):
Check for damage, looseness, and grease
leakage. (4WD/AWD/RWD)
Steering gear and linkage, axle and suspen-
sion parts, drive shaft boots:
Check for damage, looseness, and leakage
of oil or grease. Under severe driving condi-
tions, inspect more frequently.
Tire rotation:
Tires should be rotated every 5,000 miles
(8,000 km) according to the instructions
under “Explanation of general maintenance
items” (P.9-2). When rotating tires, check for
damage and uneven wear. Replace if neces-
sary.
Transmission fluid/oil, differential oil and
transfer case oil:
Visually inspect for signs of leakage at
specified intervals.
To help ensure smooth, safe and economical
driving, INFINITI provides two maintenance
schedules that may be used, depending upon
the conditions in which you usually drive.
These schedules contain both distance and
time intervals, up to 120,000 miles
(192,000 km)/144 months. For most peo-
ple, the odometer reading will indicate when
service is needed. However, if you drive very
little, your vehicle should be serviced at the
regular time intervals shown in the schedule.
After 120,000 miles (192,000 km)/144
months, continue maintenance at the same
mileage/time intervals.
ADDITIONAL MAINTENANCE
ITEMS FOR SEVERE OPERATING
CONDITIONS
Additional maintenance items for severe
operating conditions;
should be performed
on vehicles that are driven under especially
demanding conditions. Additional mainte-
nance items should be performed if you
primarily operate your vehicle under the
following conditions:
. Repeated short trips of less than 5 miles
(8 km).
. Repeated short trips of less than 10 miles
(16 km) with outside temperatures re-
maining below freezing.
MAINTENANCE SCHEDULES

9-8Maintenance and schedules
EMISSION CONTROL SYSTEM MAINTENANCE (for VR30DDTT engine)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OP-
ERATION
Perform at number of
miles, kilometers or
months, whichever
comes first.Miles × 1,000
(km × 1,000) Months MAINTENANCE INTERVAL
5
(8) 6 10
(16) 12 15
(24) 18 20
(32) 24 25
(40) 30 30
(48) 36 35
(56) 42 40
(64) 48 45
(72) 54 50
(80) 60 55
(88) 66 60
(96) 72
Drive belts See NOTE (1) I*I* I*
Air cleaner filter See NOTE (2) RR
EVAP vapor lines I*I* I*
Fuel lines I*I* I*
Fuel filter See NOTE (3)
Engine coolant* See NOTE (4) (5)
Engine oil See NOTE (6) RR RR R R
Engine oil filter See NOTE (6) RR RR R R
Spark plugs See NOTE (7) Replace every 105,000 miles (168,000 km)
Intake and exhaust valve
clearance* See NOTE (8)

MAINTENANCE OP-
ERATION
Perform at number of
miles, kilometers or
months, whichever
comes first.Miles × 1,000
(km × 1,000) Months MAINTENANCE INTERVAL
65
(104) 78 70
(112) 84 75
(120) 90 80
(128) 96 85
(136) 102 90
(144) 108 95
(152) 114 100
(160) 120 105
(168) 126 110
(176) 132 115
(184) 138 120
(192) 144
Drive belts See NOTE (1) I*I*I*I* I* I*
Air cleaner filter See NOTE (2) RR
EVAP vapor lines I*I* I*
Fuel lines I*I* I*
Fuel filter See NOTE (3)
Engine coolant* See NOTE (4) (5)
Engine oil See NOTE (6) RRRR R R
Engine oil filter See NOTE (6) RRRR R R
Spark plugs See NOTE (7) Replace every 105,000 miles (168,000 km)
Intake and exhaust valve
clearance* See NOTE (8)
NOTE:
(1) After 40,000 miles (64,000 km) or 48
months, inspect every 10,000 miles
(16,000 km) or 12 months. Replace the
drive belts if found damaged.
(2) If operating mainly in dusty conditions,
more frequent maintenance may be re-
quired.
(3) Periodic maintenance is not required.
(4) First replacement interval is 105,000
miles (168,000 km) or 84 months. After first replacement, replace every 75,000
miles (120,000 km) or 60 months.
(5) Use only Genuine NISSAN Long Life
Antifreeze/Coolant (blue) or equivalent
with proper mixture ratio of 50% anti-
freeze and 50% demineralized or distilled
water. Mixing any other type of coolant or
the use of non-distilled water may reduce
the life expectancy of the factory fill cool-
ant.
(6) If the oil replacement indicator is
displayed, change the engine oil and filteras soon as possible. After replacing the
engine oil, reset the display.
(7) Replace spark plug when the plug gap
exceeds 0.043 in (1.1 mm) even if within
specified replacement mileage.
(8) Periodic maintenance is not required.
However, if valve noise increases, inspect
valve clearance.
*: Maintenance items and intervals with “*”
are recommended by INFINITI for reliable
vehicle operation. The owner need not to
Maintenance and schedules9-9

EMISSION CONTROL SYSTEM MAINTENANCE (for 2.0L turbo gasoline engine)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OP-
ERATION
Perform at number of
miles, kilometers or
months, whichever
comes first.Miles × 1,000
(km × 1,000) Months MAINTENANCE INTERVAL
5
(8) 6 10
(16) 12 15
(24) 18 20
(32) 24 25
(40) 30 30
(48) 36 35
(56) 42 40
(64) 48 45
(72) 54 50
(80) 60 55
(88) 66 60
(96) 72
Engine compartment See NOTE (1) II I
V-belt See NOTE (2) I*I* I*
Air cleaner filter Replace every 45,000 miles (72,000 km) or 36 months
Fuel lines I*I* I*
Fuel filter See NOTE (3)
Engine coolant* Replace every 120,000 miles (192,000 km) or 120 months
Engine oil RR RR R R
Engine oil filter RR RR R R
Spark plugs Replace every 45,000 miles (72,000 km) or 36 months
Maintenance and schedules9-11

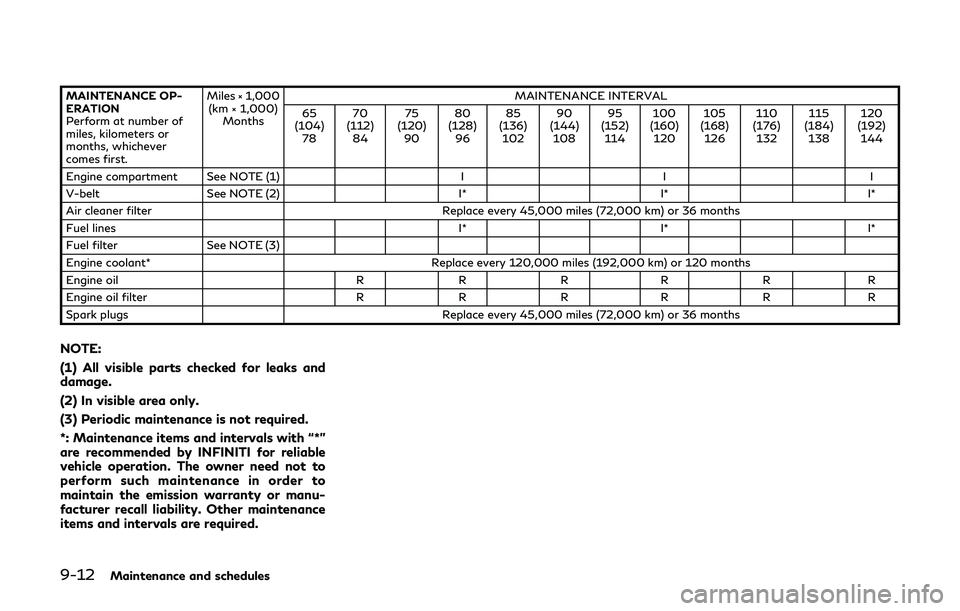

9-12Maintenance and schedules
MAINTENANCE OP-
ERATION
Perform at number of
miles, kilometers or
months, whichever
comes first.Miles × 1,000
(km × 1,000) Months MAINTENANCE INTERVAL
65
(104) 78 70
(112) 84 75
(120) 90 80
(128) 96 85
(136) 102 90
(144) 108 95
(152) 114 100
(160) 120 105
(168) 126 110
(176) 132 115
(184) 138 120
(192) 144
Engine compartment See NOTE (1) II I
V-belt See NOTE (2) I*I* I*
Air cleaner filter Replace every 45,000 miles (72,000 km) or 36 months
Fuel lines I*I* I*
Fuel filter See NOTE (3)
Engine coolant* Replace every 120,000 miles (192,000 km) or 120 months
Engine oil RRRR R R
Engine oil filter RRRR R R
Spark plugs Replace every 45,000 miles (72,000 km) or 36 months
NOTE:
(1) All visible parts checked for leaks and
damage.
(2) In visible area only.
(3) Periodic maintenance is not required.
*: Maintenance items and intervals with “*”
are recommended by INFINITI for reliable
vehicle operation. The owner need not to
perform such maintenance in order to
maintain the emission warranty or manu-
facturer recall liability. Other maintenance
items and intervals are required.

11-6
R
RadioCar phone or CB radio ................................... 4-3
Rain-sensing auto wiper system ..................... 2-36
Rapid air pressure loss ....................................... 5-10
Readiness for inspection/maintenance
(I/M) test (US only) .......................................... 10-24
Rear seats ................................................................. 1-6
Rear window and outside mirror
defroster switch ................................................... 2-37
Recorders Event data .................................................... 10-25
Registering your vehicle in
another country ................................................ 10-14
Remote engine start ........................................... 3-20
Remote keyless entry system .......................... 3-15
Repairing flat tire (with emergency tire
puncture repair kit) ................................................. 6-9
Reporting safety defects ................................ 10-23
Request switch (See Intelligent
Key system) .............................................................. 3-9
Roadside assistance program ............................. 6-2
Rollover ..................................................................... 5-9
Roof Moonroof ......................................................... 2-55
Run-flat tires .......................................................... 6-4
S
Safety
Child seat belts ............................................... 1-17 Reporting safety defects .......................... 10-23
Seat adjustment Front power seat adjustment ....................... 1-3
Front seats ......................................................... 1-3
Seat belt(s) Child safety ..................................................... 1-17
Infants ............................................................... 1-18
Injured persons ............................................... 1-13
Larger children ............................................... 1-18
Precautions on seat belt usage .................. 1-11
Pre-crash seat belts with
comfort function ............................................ 1-13
Pregnant women ........................................... 1-13
Seat belt cleaning ............................................. 7-7
Seat belt extenders ....................................... 1-16
Seat belt maintenance ................................. 1-17
Seat belt warning light and chime ............ 2-17
Seat belts .......................................................... 1-11
Seat belts with pretensioners .................... 1-54
Small children .................................................. 1-18
Three-point type ............................................ 1-14
Seat(s)
Driver-side memory ...................................... 3-33
Heated seats ................................................... 2-46
Seats .................................................................... 1-2
Security system Vehicle security system ................................ 2-32
Security system (INFINITI Vehicle
Immobilizer System)
Engine start ..................................................... 2-33 Shift lever
Shift lock release ........................................... 5-19
Shift lock release, Transmission ...................... 5-19
Shifting
Automatic Transmission (AT) ..................... 5-16
Side ventilators ...................................................... 4-2
SNOW mode ......................................................... 5-23
Spare tire ............................................................. 10-12
Spark plugs ............................................................ 8-21
Speedometer ............................................................ 2-7
SPORT mode ........................................................ 5-23
SPORT+ mode ...................................................... 5-23
Standard maintenance .......................................... 9-7
STANDARD mode ............................................... 5-22
Starting Before starting the engine .......................... 5-14
Jump starting .................................................. 8-19
Precautions when starting and driving ..... 5-4
Push starting ................................................... 6-21
Starting the engine ....................................... 5-15
Status light, Front passenger air bag ............ 1-46
Steering
Direct Adaptive Steering .......................... 5-130
Heated steering wheel ................................. 2-47
Power steering fluid ..................................... 8-14
Power steering system .............................. 5-129
Tilt/telescopic steering ................................ 3-28
Storage ................................................................... 2-48
Storage box ........................................................... 2-51
Sun visors ............................................................... 3-29
Sunglasses holder ................................................ 2-49
