2019 HYUNDAI VELOSTER Owners Manual

888
Specifications & Consumer information
8
Specifications, Consumer information and Reporting safety defects
8
Dimensions ..............................................................8-2
Engine ......................................................................8-\
2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-4
Volume and Weight ................................................8-6
Air Conditioning System........................................8-6
Recommended Lubricants and Capacities ..........8-7
Recommended SAE viscosity number ..........................8-9
Vehicle Identification Number (VIN) .................8-10
Vehicle Certification Label .................................8-10
Tire Specification and Pressure Label .............8-11
Engine Number .....................................................8-11
Refrigerant Label .................................................8-11
Consumer Information .........................................8-12
Reporting Safety Defects ...................................8-13

D
DI
IM
M E
EN
N S
SI
IO
O N
NS
S

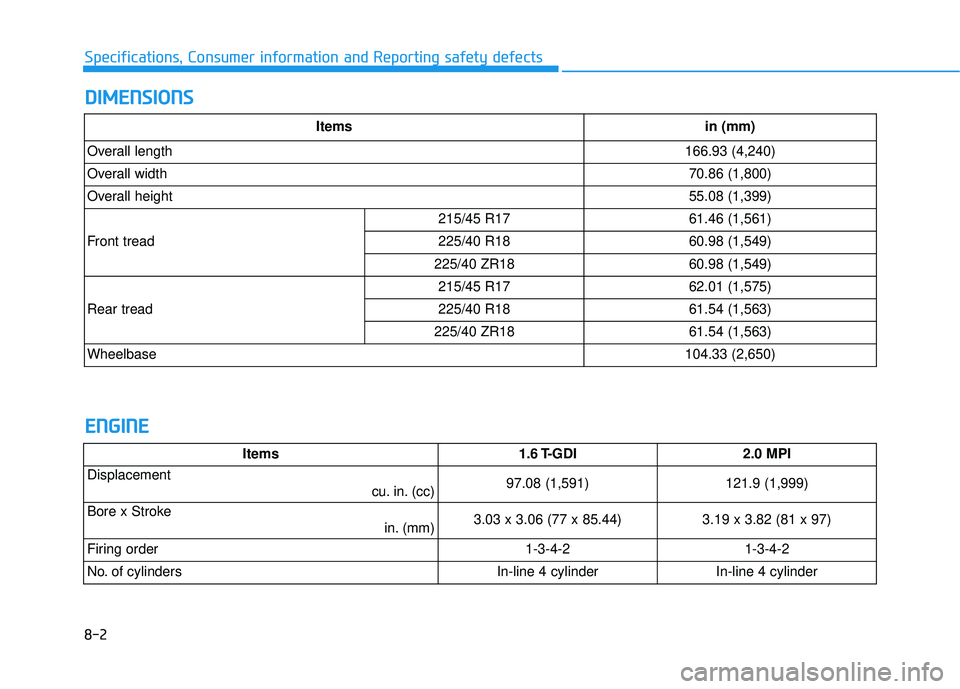

8-2
Specifications, Consumer information and Reporting safety defects
E
EN
N G
GI
IN
N E
E
Items 1.6 T-GDI2.0 MPI
Displacement
cu. in. (cc)97.08 (1,591)121.9 (1,999)
Bore x Stroke in. (mm)3.03 x 3.06 (77 x 85.44)3.19 x 3.82 (81 x 97)
Firing order1-3-4-21-3-4-2
No. of cylindersIn-line 4 cylinderIn-line 4 cylinder
Itemsin (mm)
Overall length166.93 (4,240)
Overall width70.86 (1,800)
Overall height55.08 (1,399)
Front tread
215/45 R1761.46 (1,561)
225/40 R1860.98 (1,549)
225/40 ZR1860.98 (1,549)
Rear tread
215/45 R1762.01 (1,575)
225/40 R1861.54 (1,563)
225/40 ZR1861.54 (1,563)
Wheelbase104.33 (2,650)

B
BU
U L
LB
B
W
W A
AT
TT
TA
A G
G E
E
88
Specifications, Consumer information and Reporting safety defects

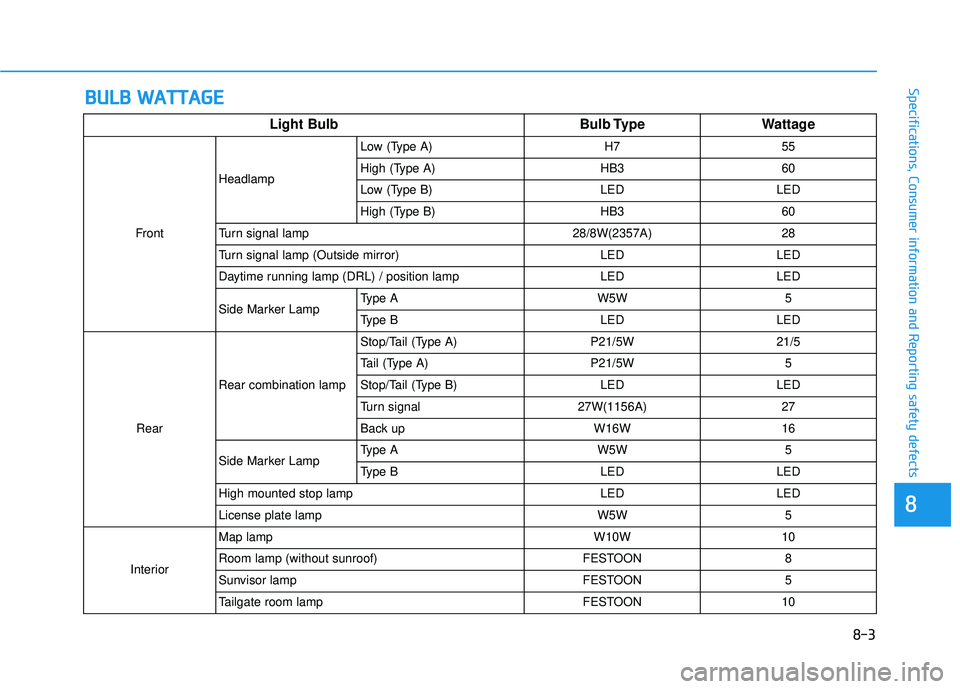

8-3
Light Bulb Bulb Type Wattage
Front
Headlamp
Low (Type A) H7 55
High (Type A) HB3 60
Low (Type B) LED LED
High (Type B) HB3 60
Turn signal lamp 28/8W(2357A) 28
Turn signal lamp (Outside mirror) LED LED
Daytime running lamp (DRL) / position lamp LED LED
Side Marker Lamp Type A W5W 5
Type B LED LED
Rear Rear combination lamp Stop/Tail (Type A) P21/5W 21/5
Tail (Type A) P21/5W 5
Stop/Tail (Type B) LED LED
Turn signal 27W(1156A) 27
Back up W16W 16
Side Marker Lamp Type A W5W 5
Type B LED LED
High mounted stop lamp LED LED
License plate lamp W5W 5
Interior Map lamp W10W 10
Room lamp (without sunroof) FESTOON 8
Sunvisor lamp FESTOON 5
Tailgate room lamp FESTOON 10

T
TI
IR
R E
ES
S
A
A N
N D
D
W
W H
HE
EE
EL
LS
S

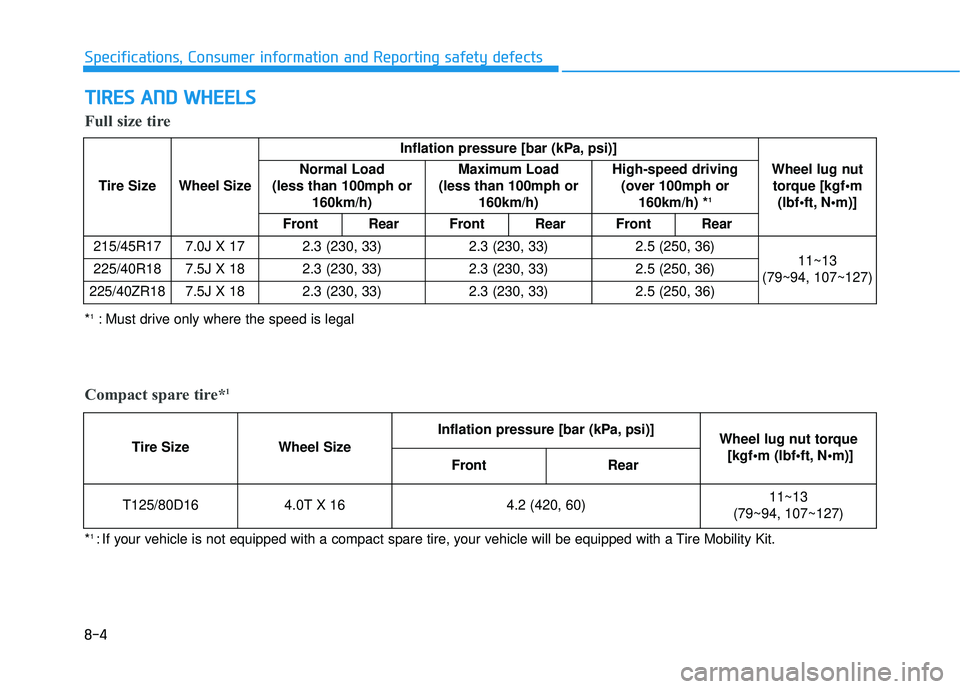

8-4
Specifications, Consumer information and Reporting safety defects
Tire Size Wheel Size Inflation pressure [bar (kPa, psi)]
Wheel lug nut torque [kgf•m
Normal Load
(less than 100mph or 160km/h) Maximum Load
(less than 100mph or 160km/h) High-speed driving
(over 100mph or 160km/h) *1
Front Rear Front Rear Front Rear
215/45R17 7.0J X 17 2.3 (230, 33) 2.3 (230, 33)2.5 (250, 36)
11~13
(79~94, 107~127)
225/40R18 7.5J X 18 2.3 (230, 33)
2.3 (230, 33)2.5 (250, 36)
225/40ZR18 7.5J X 18 2.3 (230, 33) 2.3 (230, 33)2.5 (250, 36)
Full size tire
*1: Must drive only where the speed is legal
Compact spare tire*1
Tire SizeWheel Size Inflation pressure [bar (kPa, psi)]
Wheel lug nut torque

Front Rear
T125/80D16 4.0T X 16 4.2 (420, 60) 11~13
(79~94, 107~127)
*1 : If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit.

8-5
88
Specifications, Consumer information and Reporting safety defects

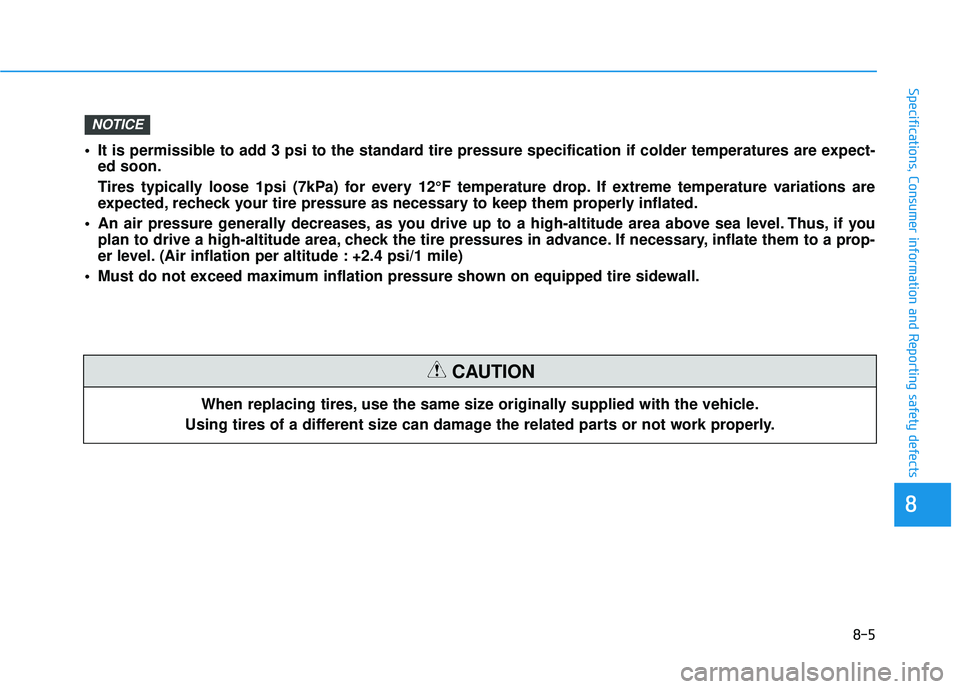

When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect- ed soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are
expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +2.4 psi/1 mile)
Must do not exceed maximum inflation pressure shown on equipped tire sidewall.
NOTICE

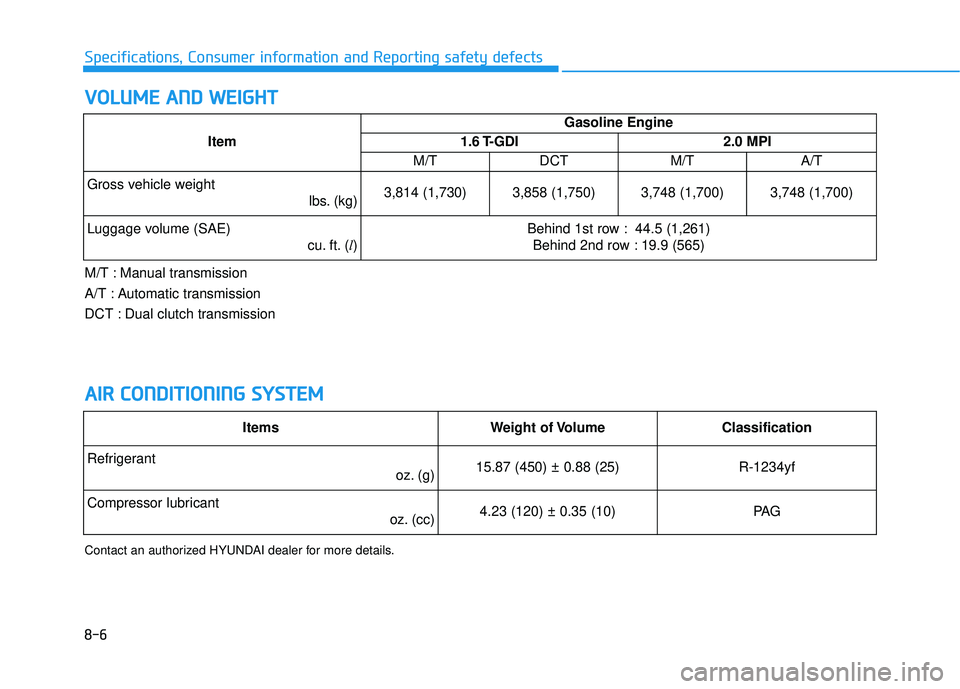

8-6
Specifications, Consumer information and Reporting safety defects
V
VO
O L
LU
U M
M E
E
A
A N
N D
D
W
W E
EI
IG
G H
H T
T
A
A I
IR
R
C
C O
O N
ND
DI
IT
T I
IO
O N
NI
IN
N G
G
S
S Y
Y S
ST
T E
EM
M
Contact an authorized HYUNDAI dealer for more details.
Item
Gasoline Engine
1.6 T-GDI2.0 MPI
M/TDCTM/TA/T
Gross vehicle weight
lbs. (kg)3,814 (1,730)3,858 (1,750)3,748 (1,700)3,748 (1,700)
Luggage volume (SAE)cu. ft. (l)Behind 1st row : 44.5 (1,261)Behind 2nd row : 19.9 (565)
ItemsWeight of VolumeClassification
Refrigerant oz. (g) 15.87 (450) ± 0.88 (25) R-1234yf
Compressor lubricantoz. (cc) 4.23 (120) ± 0.35 (10)PA G
M/T : Manual transmission
A/T : Automatic transmission
DCT : Dual clutch transmission

8-7
88
Specifications, Consumer information and Reporting safety defects
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
R RE
EC
CO
O M
M M
ME
EN
N D
DE
ED
D
L
L U
U B
BR
RI
IC
C A
A N
N T
TS
S
A
A N
N D
D
C
C A
A P
PA
A C
CI
IT
T I
IE
E S
S
LubricantVolume Classification
Engine oil *
1*2(drain and refill)
RecommendsGamma 1.6 T-GDI4.76 US qt. (4.5 l)
ACEA A5/B5 *4
Nu 2.0 MPI4.23 US qt. (4.0 l)API SM *3& ILSAC GF-4 (or above)
ACEA A5/B5 *4
Manual transmission fluid
Gamma 1.6 T-GDI1.8~1.9 US qt. (1.7 ~ 1.8 l) HK SYN MTF 70W (SK)
SPIRAX S6 GHME 70W MTF (H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W TGO-9)
Nu 2.0 MPI
Automatic transmission fluidNu 2.0 MPI7.08 US qt. (6.7
l)
MICHANG ATF SP-IV,
SK ATF SP-IV,
NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV or other
brands meeting the above specification
approved by HYUNDAI Motor Co.
Dual clutch transmission fluidGamma 1.6 T-GDI2.01~2.11 US qt.
(1.9~2.0 l)
HK SYN DCTF 70W (SK)
SPIRAX S6 GHME 70W DCTF
(H.K.SHELL)
GS DCTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W)

8-8
Specifications, Consumer information and Reporting safety defects
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ -
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year's time, they can offer significant cost and energy savings.
*
3: If the API service SM engine oil is not available in your country, you are able to use API service SL.
*4: If the ACEA A5 engine oil is not available in your country, you are able to use ILSAC GF-3 (or above) or ACEA A3 (or above). Lubricant
Volume
Classification
Coolant Gamma 1.6 T-GDI
7.5 US qt. (7.1
l)Mixture of antifreeze and water
(Phosphate-based Ethylene glycol coolant for alu-
minum radiator)
Nu 2.0 MPI
6.8 US qt. (6.5
l)
Brake fluid
0.74~0.85 US qt. (0.7 ~ 0.8 l) FMVSS116 DOT-3 or DOT-4
Fuel13.2 US gal. (50 l)Refer to "Fuel requirements" in the Foreword chapter.
