2019 Hyundai Tucson headlamp

7-75
7
Maintenance
Headlamp low beam
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If headlamp levelling device is equipped, adjust the head lamp levelling device switch with 0 positions.
OTLE075101
■Based on 10m screen
TLe UK 7.qxp 5/10/2018 1:39 PM Page 75

8
Specifications & Consumer information

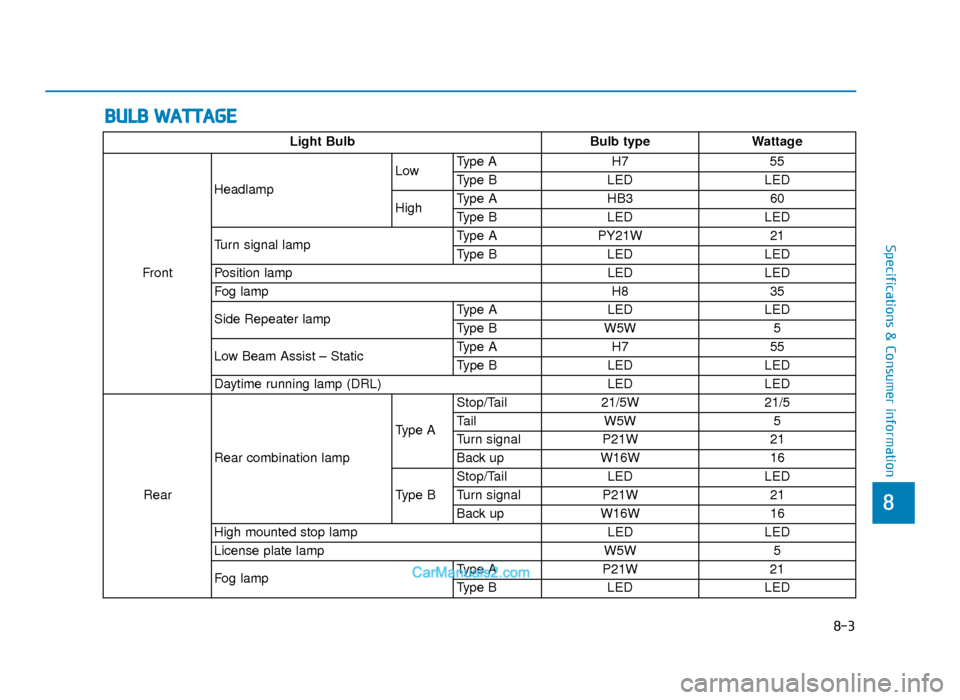

BULB WATTAGE
Light BulbBulb typeWattage
Front Headlamp
Low
Type A
H7 55
Type B LED LED
High Type A
HB3 60
Type B LED LED
Turn signal lamp Type A
PY21W 21
Type B LED LED
Position lamp LEDLED
Fog lamp H835
Side Repeater lamp Type A
LED LED
Type B W5W 5
Low Beam Assist – Static Type A
H7 55
Type B LED LED
Daytime running lamp (DRL) LEDLED
Rear Rear combination lamp
Type AStop/Tail
21/5W 21/5
Tail W5W 5
Turn signal P21W 21
Back up W16W 16
Type B Stop/Tail
LED LED
Turn signal P21W 21
Back up W16W 16
High mounted stop lamp LEDLED
License plate lamp W5W5
Fog lampType AP21W21
Type BLEDLED
8-3
TLe UK 8.qxp 6/12/2018 3:17 PM Page 3

I-8

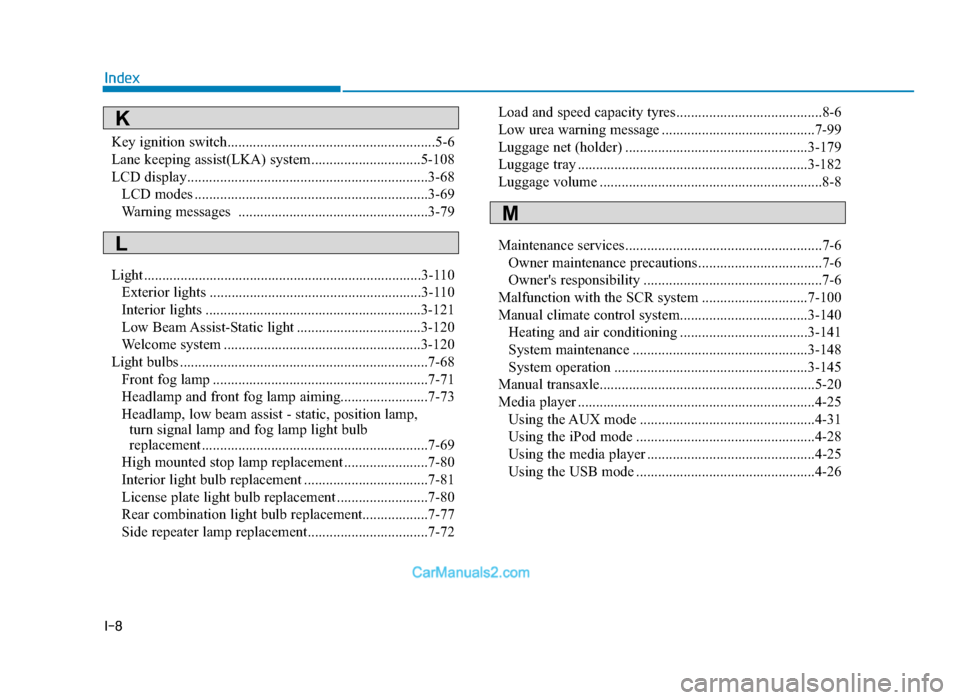

IndexKey ignition switch.........................................................5-6
