2019 Hyundai Tucson engine

7-61
7
Maintenance

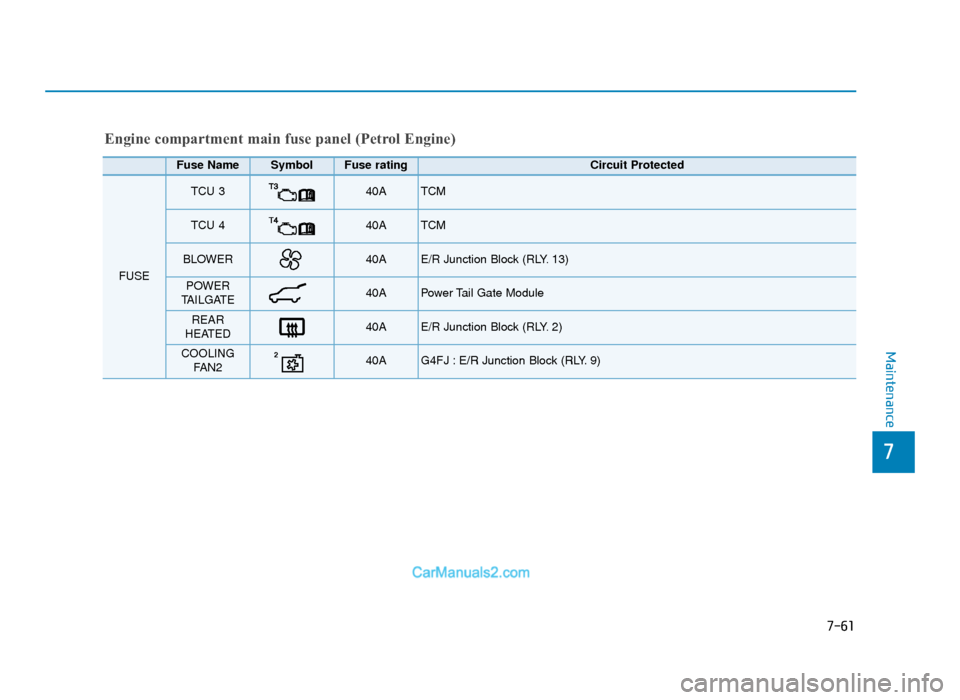

Engine compartment main fuse panel (Petrol Engine)
Fuse Name SymbolFuse ratingCircuit Protected
FUSE
TCU 3 40A TCM
TCU 4 40A TCM
BLOWER40AE/R Junction Block (RLY. 13)
POWER
TAILGATE40APower Tail Gate Module
REAR
HEATED40AE/R Junction Block (RLY. 2)
COOLING FAN2240AG4FJ : E/R Junction Block (RLY. 9)
TLe UK 7.qxp 5/10/2018 1:37 PM Page 61

Maintenance
7-62

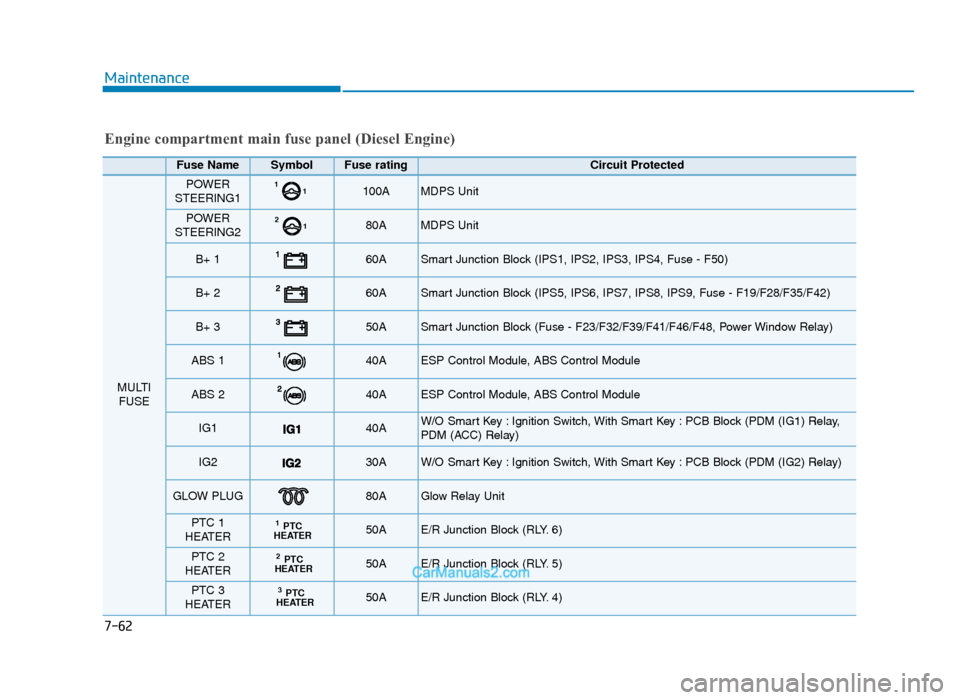

Engine compartment main fuse panel (Diesel Engine)
Fuse Name SymbolFuse ratingCircuit Protected
MULTIFUSE
POWER
STEERING111100AMDPS Unit
POWER
STEERING21280AMDPS Unit
B+ 1 60A Smart Junction Block (IPS1, IPS2, IPS3, IPS4, Fuse - F50)
B+ 2 60A Smart Junction Block (IPS5, IPS6, IPS7, IPS8, IPS9, Fuse - F19/F28/F35/F42)
B+ 3 50A Smart Junction Block (Fuse - F23/F32/F39/F41/F46/F48, Power Window Relay)
ABS 1 40A ESP Control Module, ABS Control Module
ABS 2 40A ESP Control Module, ABS Control Module
IG1 40A W/O Smart Key : Ignition Switch, With Smart Key : PCB Block (PDM (IG1) Relay,
PDM (ACC) Relay)
IG2 30A W/O Smart Key : Ignition Switch, With Smart Key : PCB Block (PDM (IG2) Relay)
GLOW PLUG80AGlow Relay Unit
PTC 1
HEATERPTCHEATER150AE/R Junction Block (RLY. 6)
PTC 2
HEATERPTCHEATER250AE/R Junction Block (RLY. 5)
PTC 3
HEATERPTCHEATER350AE/R Junction Block (RLY. 4)
TLe UK 7.qxp 5/10/2018 1:37 PM Page 62

7-63
7
Maintenance

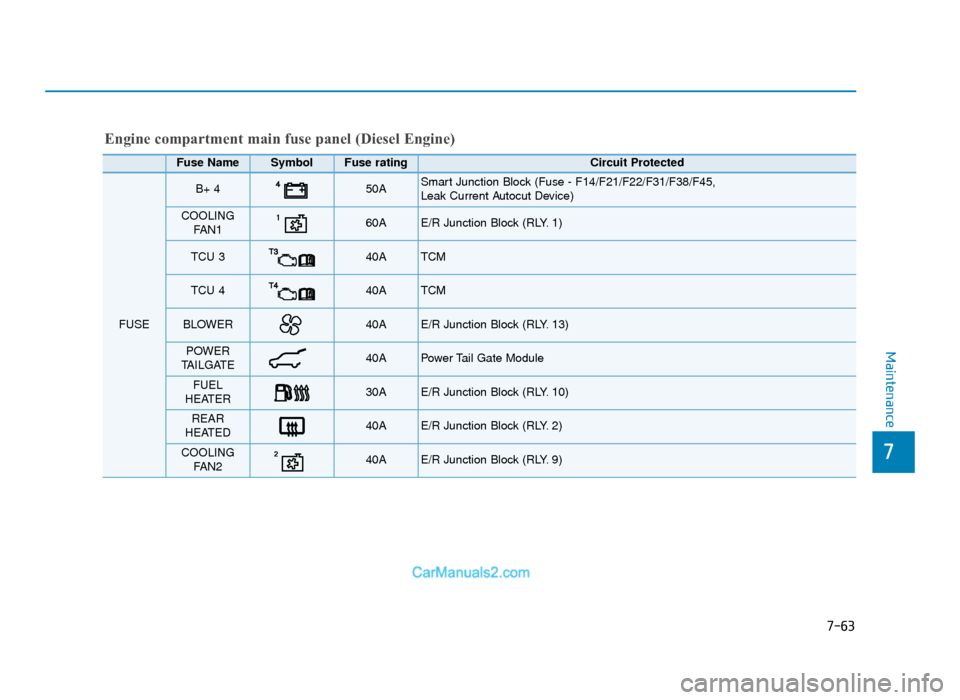

Fuse Name SymbolFuse ratingCircuit Protected
FUSE
B+ 4 50A Smart Junction Block (Fuse - F14/F21/F22/F31/F38/F45,
Leak Current Autocut Device)
COOLINGFAN160AE/R Junction Block (RLY. 1)
TCU 3 40A TCM
TCU 4 40A TCM
BLOWER40AE/R Junction Block (RLY. 13)
POWER
TAILGATE40APower Tail Gate Module
FUEL
HEATER30AE/R Junction Block (RLY. 10)
REAR
HEATED40AE/R Junction Block (RLY. 2)
COOLING FAN2240AE/R Junction Block (RLY. 9)
Engine compartment main fuse panel (Diesel Engine)
TLe UK 7.qxp 5/10/2018 1:37 PM Page 63

Maintenance
7-64

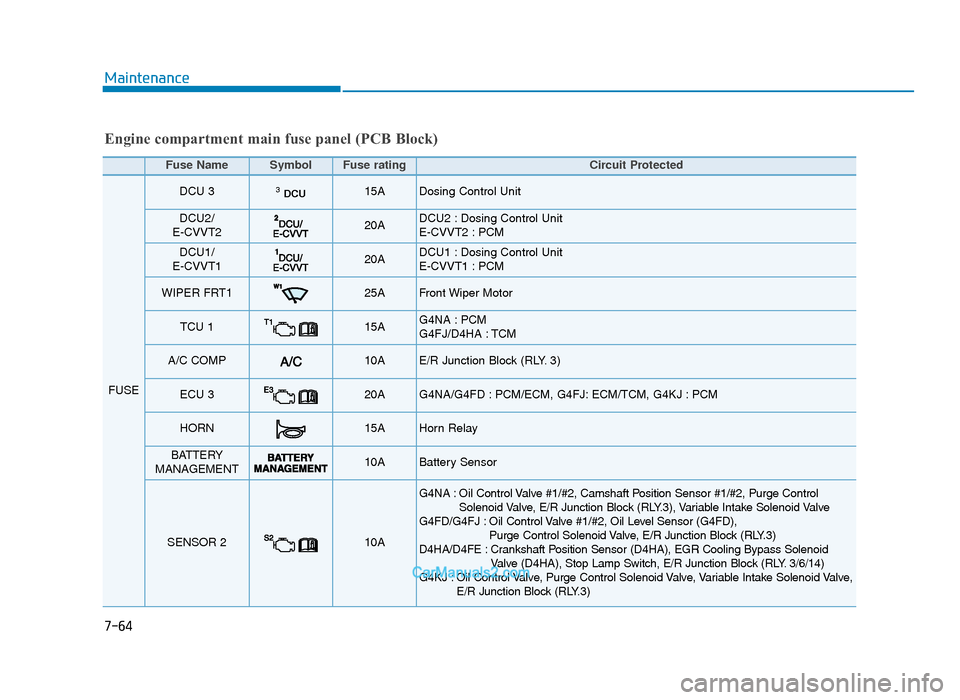

Engine compartment main fuse panel (PCB Block)
Fuse Name SymbolFuse ratingCircuit Protected
FUSE
DCU 3DCU315A Dosing Control Unit
DCU2/
E-CVVT220A DCU2 : Dosing Control Unit
E-CVVT2 : PCM
DCU1/
E-CVVT120A DCU1 : Dosing Control Unit
E-CVVT1 : PCM
WIPER FRT125A Front Wiper Motor
TCU 115A G4NA : PCM
G4FJ/D4HA : TCM
A/C COMP10AE/R Junction Block (RLY. 3)
ECU 320A G4NA/G4FD : PCM/ECM, G4FJ: ECM/TCM, G4KJ : PCM
HORN15A Horn Relay
BATTERY
MANAGEMENT10A Battery Sensor
SENSOR 210A
G4NA : Oil Control Valve #1/#2, Camshaft Position Sensor #1/#2, Purge Control Solenoid Valve, E/R Junction Block (RLY.3), Variable Intake Solenoid Valve
G4FD/G4FJ : Oil Control Valve #1/#2, Oil Level Sensor (G4FD), Purge Control Solenoid Valve, E/R Junction Block (RLY.3)
D4HA/D4FE : Crankshaft Position Sensor (D4HA), EGR Cooling Bypass Solenoid Valve (D4HA), Stop Lamp Switch, E/R Junction Block (RLY. 3/6/14)
G4KJ : Oil Control Valve, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, E/R Junction Block (RLY.3)
TLe UK 7.qxp 5/10/2018 1:38 PM Page 64

7-65
7
Maintenance

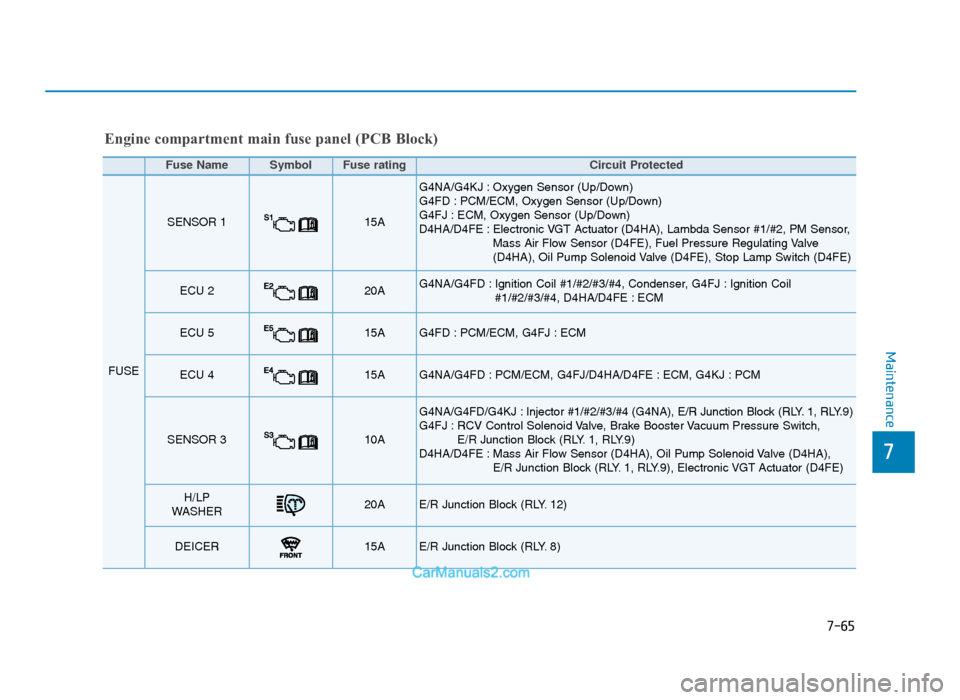

Fuse Name SymbolFuse ratingCircuit Protected
FUSE
SENSOR 115A
G4NA/G4KJ : Oxygen Sensor (Up/Down)
G4FD : PCM/ECM, Oxygen Sensor (Up/Down)
G4FJ : ECM, Oxygen Sensor (Up/Down)
D4HA/D4FE : Electronic VGT Actuator (D4HA), Lambda Sensor #1/#2, PM Sensor,Mass Air Flow Sensor (D4FE), Fuel Pressure Regulating Valve
(D4HA), Oil Pump Solenoid Valve (D4FE), Stop Lamp Switch (D4FE)
ECU 220A G4NA/G4FD : Ignition Coil #1/#2/#3/#4, Condenser, G4FJ : Ignition Coil #1/#2/#3/#4, D4HA/D4FE : ECM
ECU 515A G4FD : PCM/ECM, G4FJ : ECM
ECU 415A G4NA/G4FD : PCM/ECM, G4FJ/D4HA/D4FE : ECM, G4KJ : PCM
SENSOR 310A
G4NA/G4FD/G4KJ : Injector #1/#2/#3/#4 (G4NA), E/R Junction Block (RLY. 1, RLY.9)
G4FJ : RCV Control Solenoid Valve, Brake Booster Vacuum Pressure Switch, E/R Junction Block (RLY. 1, RLY.9)
D4HA/D4FE : Mass Air Flow Sensor (D4HA), Oil Pump Solenoid Valve (D4HA), E/R Junction Block (RLY. 1, RLY.9), Electronic VGT Actuator (D4FE)
H/LP
WASHER20AE/R Junction Block (RLY. 12)
DEICER15A E/R Junction Block (RLY. 8)
Engine compartment main fuse panel (PCB Block)
TLe UK 7.qxp 5/10/2018 1:38 PM Page 65

Maintenance
7-66

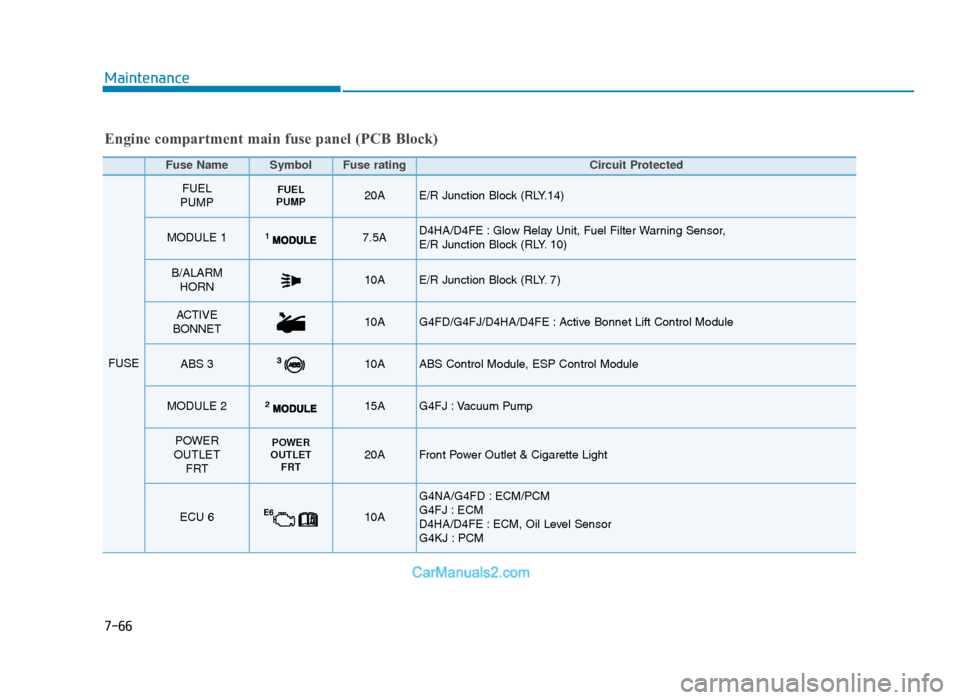

Fuse Name SymbolFuse ratingCircuit Protected
FUSE
FUEL
PUMPFUEL
PUMP20A E/R Junction Block (RLY.14)
MODULE 17.5A D4HA/D4FE : Glow Relay Unit, Fuel Filter Warning Sensor,
E/R Junction Block (RLY. 10)
B/ALARM HORN10A E/R Junction Block (RLY. 7)
ACTIVE
BONNET10AG4FD/G4FJ/D4HA/D4FE : Active Bonnet Lift Control Module
ABS 310A ABS Control Module, ESP Control Module
MODULE 215A G4FJ : Vacuum Pump
POWER
OUTLET FRTPOWER
OUTLET FRT20AFront Power Outlet & Cigarette Light
ECU 610A
G4NA/G4FD : ECM/PCM
G4FJ : ECM
D4HA/D4FE : ECM, Oil Level Sensor
G4KJ : PCM
Engine compartment main fuse panel (PCB Block)
TLe UK 7.qxp 5/10/2018 1:38 PM Page 66

7-67
7
Maintenance

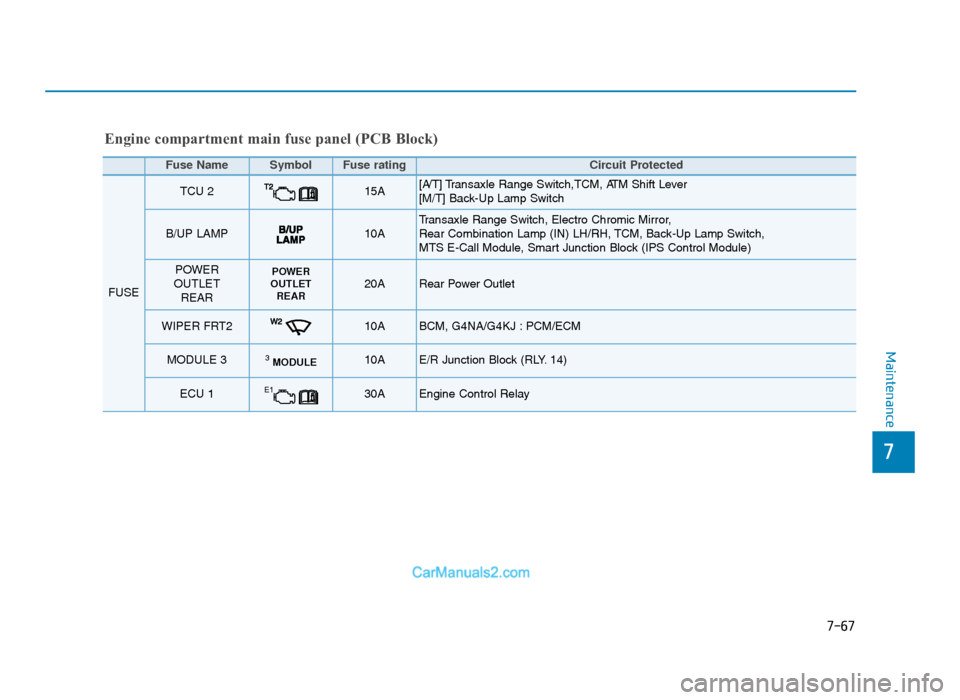

Fuse Name SymbolFuse ratingCircuit Protected
FUSE
TCU 215A [A/T] Transaxle Range Switch,TCM, ATM Shift Lever
[M/T] Back-Up Lamp Switch
B/UP LAMP10A Transaxle Range Switch, Electro Chromic Mirror,
Rear Combination Lamp (IN) LH/RH, TCM, Back-Up Lamp Switch,
MTS E-Call Module, Smart Junction Block (IPS Control Module)
POWER
OUTLET REARPOWER
OUTLET REAR20ARear Power Outlet
WIPER FRT210A BCM, G4NA/G4KJ : PCM/ECM
MODULE 3MODULE310A E/R Junction Block (RLY. 14)
ECU 1E130AEngine Control Relay
Engine compartment main fuse panel (PCB Block)
TLe UK 7.qxp 5/10/2018 1:38 PM Page 67

7-77
7
Maintenance

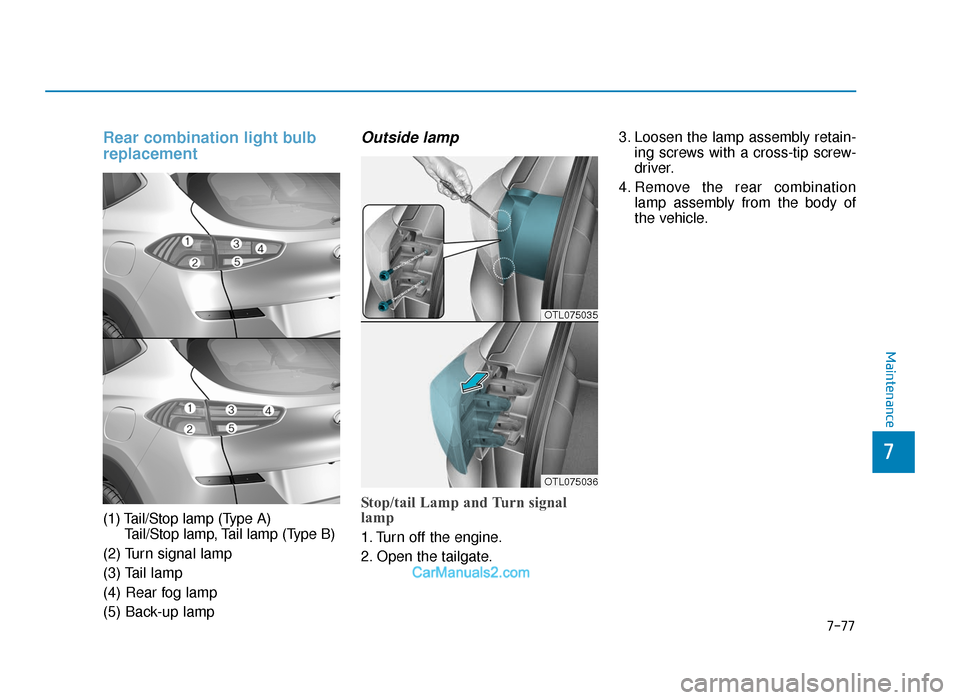

Rear combination light bulb
replacement
(1) Tail/Stop lamp (Type A)Tail/Stop lamp, Tail lamp (Type B)
(2) Turn signal lamp
(3) Tail lamp
(4) Rear fog lamp
(5) Back-up lamp
Outside lamp
Stop/tail Lamp and Turn signal
lamp
1. Turn off the engine.
2. Open the tailgate. 3. Loosen the lamp assembly retain-
ing screws with a cross-tip screw-
driver.
4. Remove the rear combination lamp assembly from the body of
the vehicle.
OTL075035
OTL075036
