2019 Hyundai Ioniq Hybrid height adjustment

2-9
Safety system of your vehicle
2
Seat cushion height
To change the height of the seat
cushion:
Push down on the lever severaltimes, to lower the seat cushion.
Pull up on the lever several times, to raise the seat cushion.
Power adjustment (for driver's seat, if equipped)
The front seat can be adjusted by
using the control switches located on
the outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily control
the steering wheel, foot pedals and
controls on the instrument panel. To prevent damage to the seats:
Always stop adjusting the seats
when the seat has moved as far
forward or rearward as possible.
Do not adjust the seats for longer than necessary when the
vehicle is turned off. This may
result in unnecessary battery
drain.
Do not operate two or more seats at the same time. This may
result in an electrical malfunc-
tion.
NOTICE
NEVER allow children in the
vehicle unattended. The power
seats are operable when the
vehicle is turned off.
WARNING OAE036004

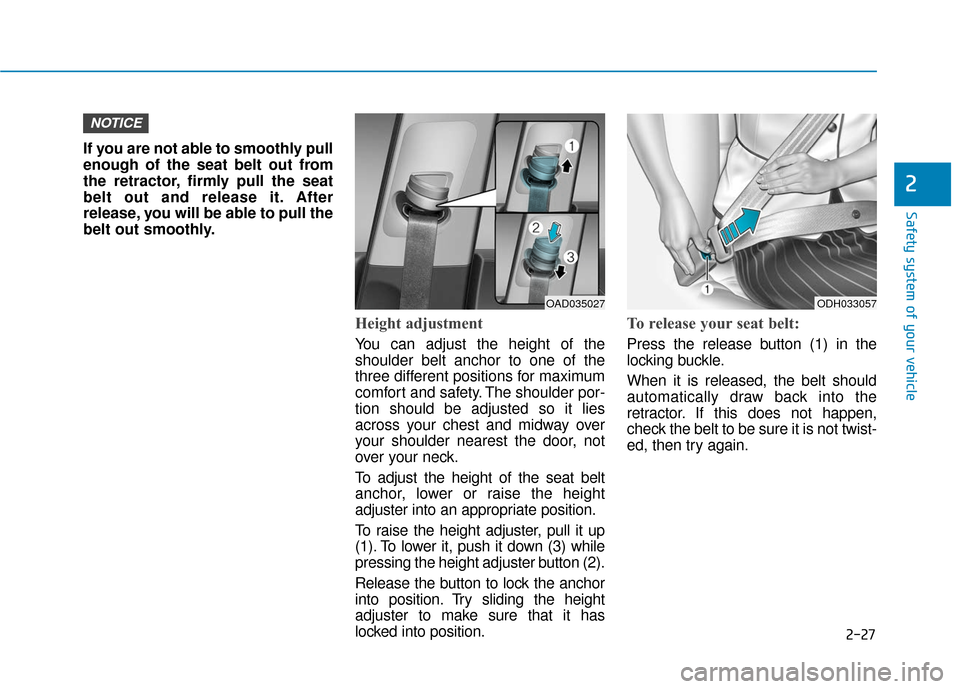

2-27
Safety system of your vehicle
2
If you are not able to smoothly pull
enough of the seat belt out from
the retractor, firmly pull the seat
belt out and release it. After
release, you will be able to pull the
belt out smoothly.
Height adjustment
You can adjust the height of the
shoulder belt anchor to one of the
three different positions for maximum
comfort and safety. The shoulder por-
tion should be adjusted so it lies
across your chest and midway over
your shoulder nearest the door, not
over your neck.
To adjust the height of the seat belt
anchor, lower or raise the height
adjuster into an appropriate position.
To raise the height adjuster, pull it up
(1). To lower it, push it down (3) while
pressing the height adjuster button (2).
Release the button to lock the anchor
into position. Try sliding the height
adjuster to make sure that it has
locked into position.
To release your seat belt:
Press the release button (1) in the
locking buckle.
When it is released, the belt should
automatically draw back into the
retractor. If this does not happen,
check the belt to be sure it is not twist-
ed, then try again.
NOTICE
OAD035027ODH033057

3-17
Convenient features of your vehicle
3
To change the steering wheel angle
and height:
1. Pull down the lock-release lever (1).
2. Adjust the steering wheel to thedesired angle (2) and distance for-
ward/back (3).
3. Pull up the lock-release lever to lock the steering wheel in place.
Information
After adjustment, sometimes the lock
release lever may not lock the steering
wheel. It is not a malfunction. This
occurs when two gears are not
engaged correctly. In this case, adjust
the steering wheel again and then lock
the steering wheel.
Horn
To sound the horn, press the area
indicated by the horn symbol on your
steering wheel (see illustration). The
horn will operate only when this area
is pressed.
Do not strike the horn severely to
operate it, or hit it with your fist.
Do not press on the horn with a
sharp-pointed object.
Heated Steering Wheel
(for Canada, if equipped)
When the Engine Start/Stop button
is in the ON position or when the
vehicle is in the ready ( ) mode,
press the heated steering wheel but-
ton to warm the steering wheel. The
indicator on the button will illuminate.
To turn the heated steering wheel off,
press the button again. The indicator
on the button will turn off.
The heated steering wheel will auto-
matically turn off after approximately
30 minutes.
NOTICE
i
OAEE046014
OAE046009
OAE046008N

I-5
Driving in the rain...........................................................5-94
Dual clutch transmission.................................................5-12DCT warning messages..............................................5-14
ECO mode ..................................................................5-17
Good driving practices ...............................................5-20
Manual shift mode......................................................5-18
Paddle shifter ..............................................................5-19
Shift lever position .....................................................5-16
Shift lock system ........................................................5-18
SPORT mode ..............................................................5-17
Dual clutch transmission shift indicator .........................3-61 Shift indicator pop-up ................................................3-62
Dynamic Bending Light (DBL)....................................3-123
Easy access function .......................................................3-15
ECO mode.......................................................................5\
-17
Electric Chromic Mirror (ECM) with HomeLink
®system,
compass and Blue Link®................................................3-19
Electric Power Steering (EPS) ........................................3-16
Electronic Stability Control (ESC) .................................5-28
Emergency locking retractor...........................................2-26
Emergency towing ..........................................................6-42
Emission control system .................................................7-74 Crankcase emission control system ...........................7-74
Evaporative emission control System ........................7-74
Exhaust emission control system ...............................7-75 Engine compartment .........................................................7-3
Engine compartment panel fuse replacement .................7-51
Engine coolant ................................................................7-18
Engine number location ..................................................8-10
Engine oil ........................................................................\
7-16
Engine specification..........................................................8-2
Engine Start/Stop button ...................................................5-6
Evaporative emission control System.............................7-74
Exhaust emission control system....................................7-75
Explanation of scheduled maintenance items.................7-14
Exterior care....................................................................7-67\
Flat tire
Spare tire ....................................................................6-20\
Tire Mobility Kit (TMK) ..................................6-25, 6-33
Floor mat anchor(s).......................................................3-158
Fluid Brake fluid ..................................................................7-22
Washer fluid ...............................................................7-23
Forward Collision-Avoidance Assist (FCA) system ......5-43
Front seat adjustment ........................................................2-6 Manual adjustment .......................................................2-7
Power adjustment .........................................................2-9
Seatback pocket ..........................................................2-12
Front seat head restraints Adjusting the height up and down .............................2-17
Removal/Reinstallation ..............................................2-18
I
Index
E
F

I-6
Fuel filler doorHybrid vehicle ............................................................3-48
Plug-in hybrid vehicle ................................................3-51
Fuel gauge .......................................................................3\
-58
Fuel requirements .............................................................F-7 Detergent fuel additives ...............................................F-8
Gasoline containing alcohol or methanol ....................F-7
Gasoline containing MMT ...........................................F-8
Operation in foreign countries .....................................F-9
Using fuel additives .....................................................F-8
Fuse switch .....................................................................7-5\
1
Fuses ........................................................................\
.......7-49 Engine compartment panel fuse replacement ............7-51
Fuse switch .................................................................7-51
Fuse/relay panel description .......................................7-53
Instrument panel fuse replacement.............................7-50
Multi fuse ...................................................................7-52
Gauges and meters ..........................................................3-56
Glove box......................................................................3-\
150
Gross vehicle weight.........................................................8-6
Hazard warning flasher .....................................................6-2
Hazardous driving conditions .........................................5-93 Head restraints ................................................................2-16
Front seat head restraints............................................2-17
Rear seat head restraints .............................................2-19
Headlamp delay function ..............................................3-122
Headlamp position ........................................................3-117
Headlight bulb replacement ............................................7-55
Heated steering wheel .....................................................3-17
Heater ........................................................................\
....3-133
Height adjustment ...........................................................2-27
High beam operation .....................................................3-118
Highway driving .............................................................5-95
Hill-start Assist Control (HAC) ......................................5-33
Hood........................................................................\
........3-45
Horn ........................................................................\
........3-17
How to use this manual ....................................................F-6
Hybrid battery SOC (State of Charge) gauge .................3-59
Hybrid starter&generator (HSG) belt .............................7-22
Hybrid vehicle Engine compartment ....................................................1-6
Exterior overview .........................................................1-2
Fuel filler door............................................................3-48
If the 12 volt battery is discharged...............................6-4
If the vehicle will not start ...........................................6-3
Instrument panel overview ...........................................1-5
Interior overview ..........................................................1-4
Jump starting ................................................................6-6
Trip computer ...........................................................3-105
Index
G
H

I-11
Paddle shifter ..................................................................5-19
Parking brake ..................................................................7-24
Parking lamp position ...................................................3-117
Parking Distance Warning (Reverse) System ...............3-130
Passenger's front air bag .................................................2-49
Plug-in hybrid mode indicator ........................................3-59
Plug-in hybrid vehicleEngine compartment...................................................1-11
Exterior overview .........................................................1-7
Fuel filler door............................................................3-51
If the 12 volt battery is discharged...............................6-9
If the vehicle will not start ...........................................6-4
Instrument panel overview .........................................1-10
Interior overview ..........................................................1-9
Jump starting ................................................................6-9
Trip computer ...........................................................3-110
Power brakes ...................................................................5-23
Power gauge....................................................................3-57\
Power outlet ..................................................................3-153
Power steering.................................................................3-16
Power window lock switch .............................................3-40
Pre-tensioner seat belt .....................................................2-29 Range ........................................................................\
......3-61
Rear center seatbelt .........................................................2-31
Rear seat adjustment .......................................................2-12
Armrest .......................................................................2\
-15
Folding the rear seat ...................................................2-12
Rear seat head restraints .................................................2-19 Adjusting the height up and down .............................2-19
Removal/Reinstallation ..............................................2-20
Rear seat warmers ...........................................................2-21
Rear view monitor ........................................................3-125
Recommended cold tire inflation pressures ...................7-35
Recommended lubricants and capacities ..........................8-7 Recommended SAE viscosity number .........................8-8
Regrigerent label location ...............................................8-10
Removable towing hook .................................................6-41
Replacement light bulb ...................................................7-55
Reporting safety defects .................................................8-12
Rocking the vehicle ........................................................5-93
Rotation (Tire) ................................................................7-37
I
Index
PR

I-12
Safety messages ................................................................F-6
Scheduled maintenance services.......................................7-8
Seat belt warning lightDriver's seat ................................................................2-24
Front passenger's seat .................................................2-25
Seat belts ........................................................................\
.2-23 Additional seat belt safety precautions ......................2-32
Care of seat belts ........................................................2-35
Convertible locking retractor .....................................2-27
Do not lie down ..........................................................2-34
Emergency locking retractor ......................................2-26
Height adjustment ......................................................2-27
Keep belts clean and dry ............................................2-35
Lap/shoulder belt ........................................................2-25
One person per belt ....................................................2-34
Periodic inspection .....................................................2-35
Pre-tensioner seat belt ................................................2-29
Rear center seatbelt ....................................................2-31
Seat belt restraint system............................................2-25
Seat belt safety precautions ........................................2-23
Seat belt use and children...........................................2-3\
3
Seat belt use during pregnancy ..................................2-32
Seat belt warning light ...............................................2-24
Transporting an injured person ..................................2-34
When to replace seat belts..........................................2-35 Seat warmers
Front ........................................................................\
...2-20
Rear ........................................................................\
....2-21
Seats ........................................................................\
..........2-4 Battery cooling duct ...................................................2-22
Front seat adjustment ...................................................2-6
Front seat warmers .....................................................2-20
Head restraints ............................................................2-16
Rear seat adjustment ..................................................2-12
Rear seat warmers ......................................................2-21
Safety precautions ........................................................2-5
Shift lever auto door lock ...............................................3-12
Shift lock system.............................................................5-18
Side air bags....................................................................2-50\
Side view mirrors............................................................3-33 Blind spot mirror ........................................................3-34
Smart cruise control system............................................5-76
Smart key ........................................................................\
..3-3 Battery replacement......................................................3-7
Liftgate unlocking ........................................................3-5
Locking........................................................................\
.3-3
Mechanical key ............................................................3-6
Panic button ..................................................................3-5
Unlocking .....................................................................3-4\
Smooth cornering............................................................5-94
Snow tires .......................................................................5\
-96
Index
S
