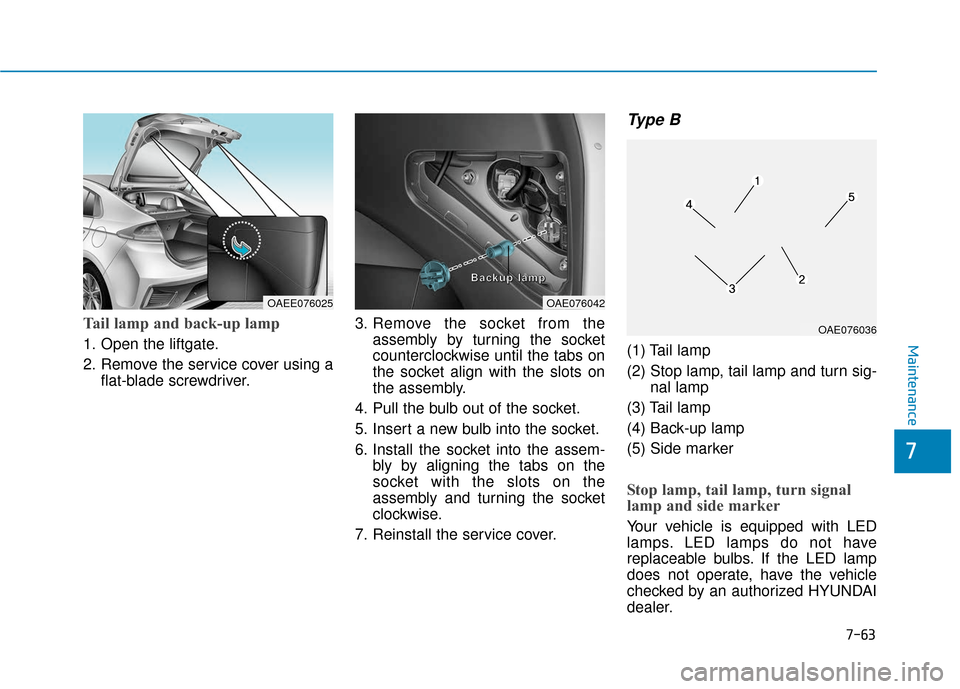

Tail lamp and back-up lamp
1. Open the liftgate.
2. Remove the service cover using aflat-blade screwdriver. 3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Pull the bulb out of the socket.
5. Insert a new bulb into the socket.
6. Install the socket into the assem- bly by aligning the tabs on the
socket with the slots on the
assembly and turning the socket
clockwise.
7. Reinstall the service cover.
Type B
(1) Tail lamp
(2) Stop lamp, tail lamp and turn sig- nal lamp
(3) Tail lamp
(4) Back-up lamp
(5) Side marker
Stop lamp, tail lamp, turn signal
lamp and side marker
Your vehicle is equipped with LED
lamps. LED lamps do not have
replaceable bulbs. If the LED lamp
does not operate, have the vehicle
checked by an authorized HYUNDAI
dealer.
