2019 Hyundai Ioniq Electric Owner's Manual

Convenient features of your vehicle

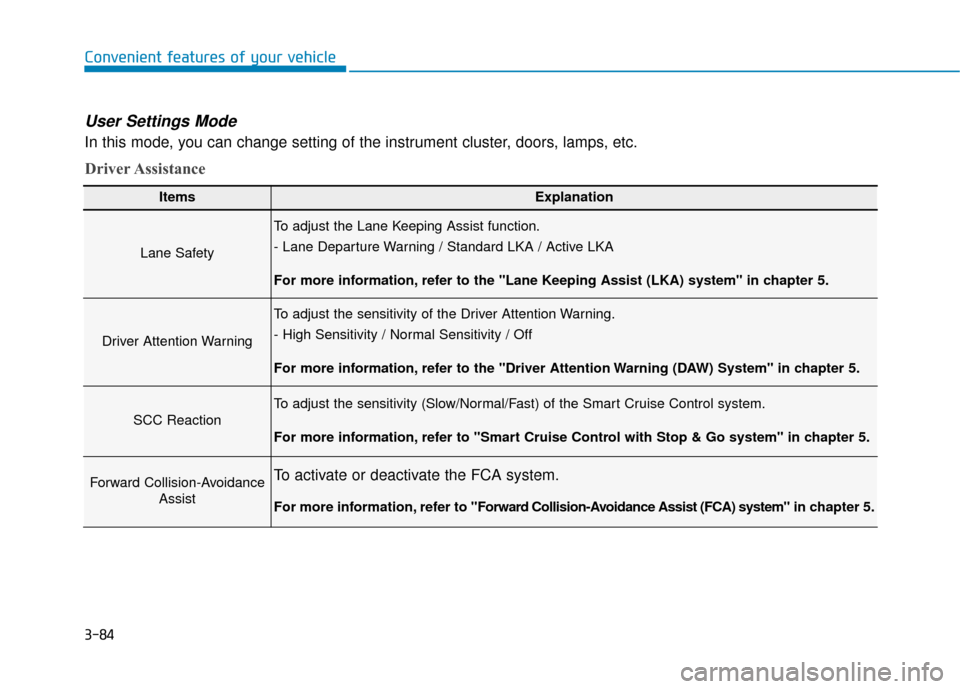

User Settings Mode
In this mode, you can change setting of the instrument cluster, doors, lamps, etc.
Driver Assistance
ItemsExplanation
Lane Safety
To adjust the Lane Keeping Assist function.
- Lane Departure Warning / Standard LKA / Active LKA
For more information, refer to the "Lane Keeping Assist (LKA) system" in chapter 5.
Driver Attention Warning
To adjust the sensitivity of the Driver Attention Warning.
- High Sensitivity / Normal Sensitivity / Off
For more information, refer to the "Driver Attention Warning (DAW) System" in chapter 5.
SCC Reaction
To adjust the sensitivity (Slow/Normal/Fast) of the Smart Cruise Control system.
For more information, refer to "Smart Cruise Control with Stop & Go system" in chapter 5.
Forward Collision-AvoidanceAssistTo activate or deactivate the FCA system.
For more information, refer to " Forward Collision-Avoidance Assist (FCA) system" in c hapter 5.
3-84

Convenient features of your vehicle
3
The information provided differs according to the items applied to your vehicle.
ItemsExplanation
Forward Collision Warning
To adjust the initial warning alert time for the Forward Collision-Avoidance Assist (FCA) system.
The option settings are Late, Normal, or Early.
For more information, refer to "Forward Collision-Avoidance Assist (FCA) system" in c hapter 5.
Blind-Spot Collision Warning
SoundTo activate or deactivate the Blind-Spot Collision Warning Sound.
For more information, refer to "Blind-spot Collision Warning (BCW) system" in chapter 5.
Rear Cross-Traffic CollisionWarningTo activate or deactivate the Rear Cross-Traffic Collision Warning system.
For more information, refer to "Rear Cross-Traffic Collision Warning" in chapter 5.
Driver Assistance
3-85

3-86
Convenient features of your vehicle

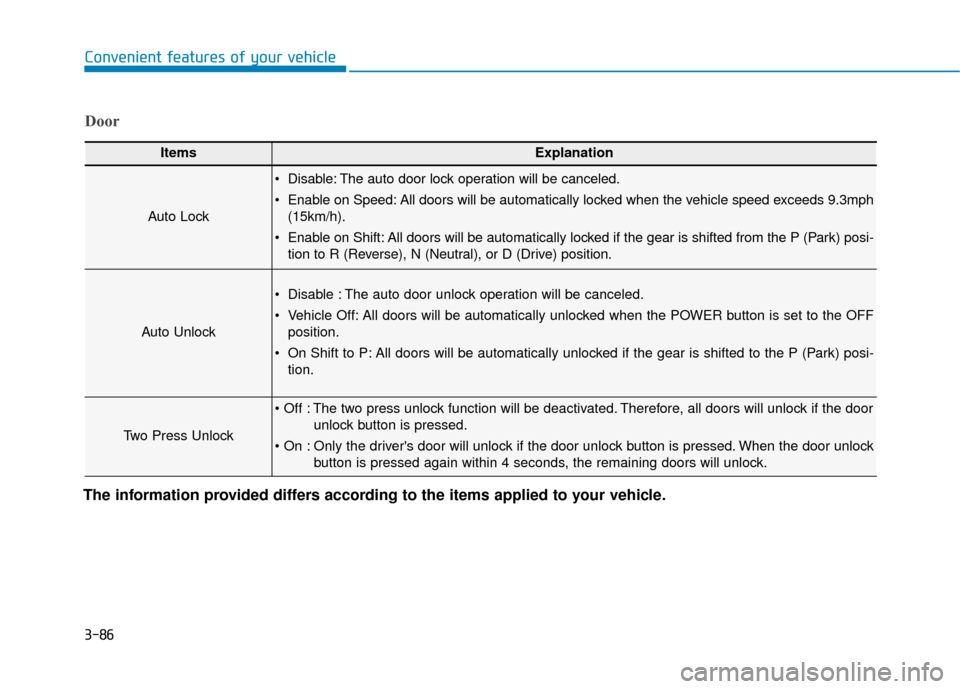

Door
ItemsExplanation
Auto Lock
Disable: The auto door lock operation will be canceled.
Enable on Speed: All doors will be automatically locked when the vehicle speed exceeds 9.3mph(15km/h).
Enable on Shift: All doors will be automatically locked if the gear is shifted from the P (Park) posi- tion to R (Reverse), N (Neutral), or D (Drive) position.
Auto Unlock
Disable : The auto door unlock operation will be canceled.
Vehicle Off: All doors will be automatically unlocked when the POWER button is set to the OFFposition.
On Shift to P: All doors will be automatically unlocked if the gear is shifted to the P (Park) posi- tion.
Two Press Unlock
The two press unlock function will be deactivated. Therefore, all doors will unlock if the door unlock button is pressed.
Only the driver's door will unlock if the door unlock button is pressed. When the door unlock button is pressed again within 4 seconds, the remaining doors will unlock.
The information provided differs according to the items applied to your vehicle.

3-87
Convenient features of your vehicle
3
The information provided differs according to the items applied to your vehicle.
ItemsExplanation

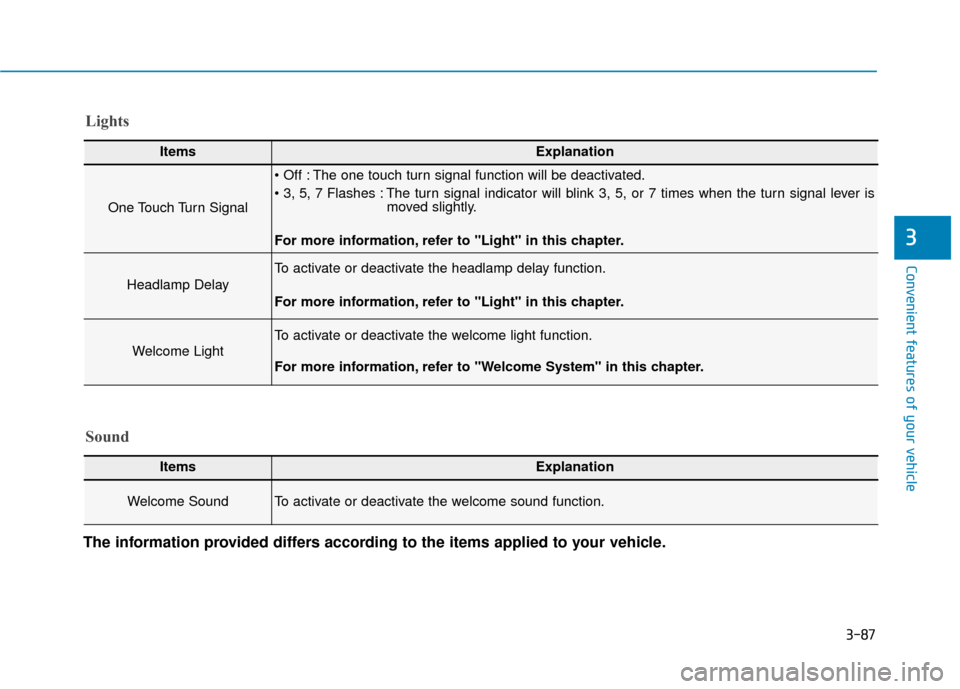

One Touch Turn Signal
The one touch turn signal function will be deactivated.
The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever ismoved slightly.
For more information, refer to "Light" in this chapter.
Headlamp Delay
To activate or deactivate the headlamp delay function.
For more information, refer to "Light" in this chapter.
Welcome Light
To activate or deactivate the welcome light function.
For more information, refer to "Welcome System" in this chapter.
Lights
Sound
ItemsExplanation
Welcome Sound To activate or deactivate the welcome sound function.

3-88
Convenient features of your vehicle
ItemsExplanation

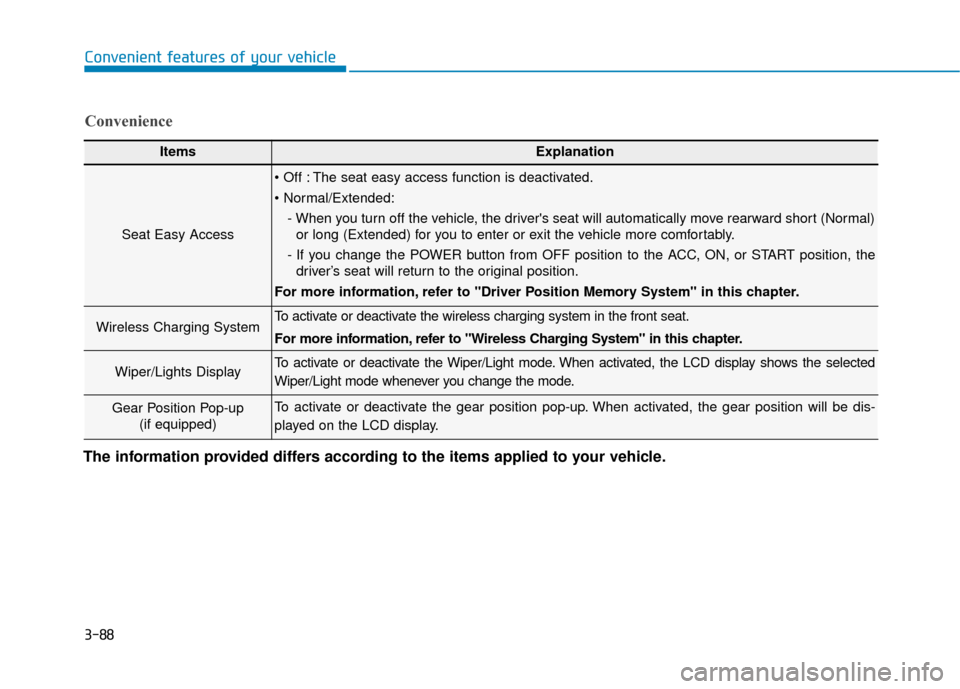

Seat Easy Access
The seat easy access function is deactivated.
- When you turn off the vehicle, the driver's seat will automatically move rearward short (Normal)or long (Extended) for you to enter or exit the vehicle more comfortably.
- If you change the POWER button from OFF position to the ACC, ON, or START position, the driver’s seat will return to the original position.
For more information, refer to "Driver Position Memory System" in this chapter.
Wireless Charging System To activate or deactivate the wireless charging system in the front seat.
For more information, refer to "Wireless Charging System" in this chapter.
Wiper/Lights DisplayTo activate or deactivate the Wiper/Light mode. When activated, the LCD display shows the selected
Wiper/Light mode whenever you change the mode.
Gear Position Pop-up (if equipped)To activate or deactivate the gear position pop-up. When activated, the gear position will be dis-
played on the LCD display.
Convenience
The information provided differs according to the items applied to your vehicle.

3-89
Convenient features of your vehicle
3
ItemsExplanation
Service IntervalTo activate or deactivate the service interval function.
Adjust IntervalIf the service interval menu is activated, you may adjust the time and distance.
Service interval
If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each
time the vehicle is turned on.
- Service in
: Displayed to inform the driver the remaining mileage and days to service.
- Service required
: Displayed when the mileage and days to service has been reached or passed.
If any of the following conditions occur, the mileage and number of days to service may be incorrect.
- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
Information
To use the service interval menu, consult an authorized HYUNDAI dealer.
The information provided differs according to the items applied to your vehicle.
i

3-90
Convenient features of your vehicle
ItemsExplanation

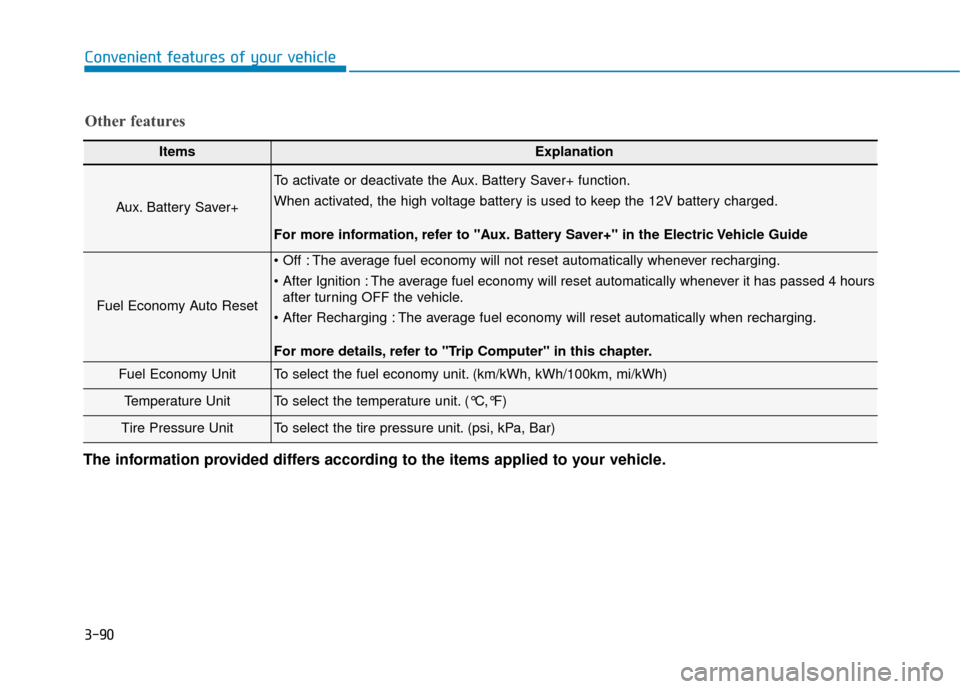

Aux. Battery Saver+
To activate or deactivate the Aux. Battery Saver+ function.
When activated, the high voltage battery is used to keep the 12V battery charged.
For more information, refer to "Aux. Battery Saver+" in the Electric Vehicle Guide
Fuel Economy Auto Reset
The average fuel economy will not reset automatically whenever recharging.
The average fuel economy will reset automatically whenever it has passed 4 hoursafter turning OFF the vehicle.
The average fuel economy will reset automatically when recharging.
For more details, refer to "Trip Computer" in this chapter.
Fuel Economy UnitTo select the fuel economy unit. (km/kWh, kWh/100km, mi/kWh)
Temperature UnitTo select the temperature unit. (°C,°F)
Tire Pressure UnitTo select the tire pressure unit. (psi, kPa, Bar)
Other features
The information provided differs according to the items applied to your vehicle.

3-91
Convenient features of your vehicle
3
T
TR
R I
IP
P
C
C O
O M
M P
PU
U T
TE
ER
R

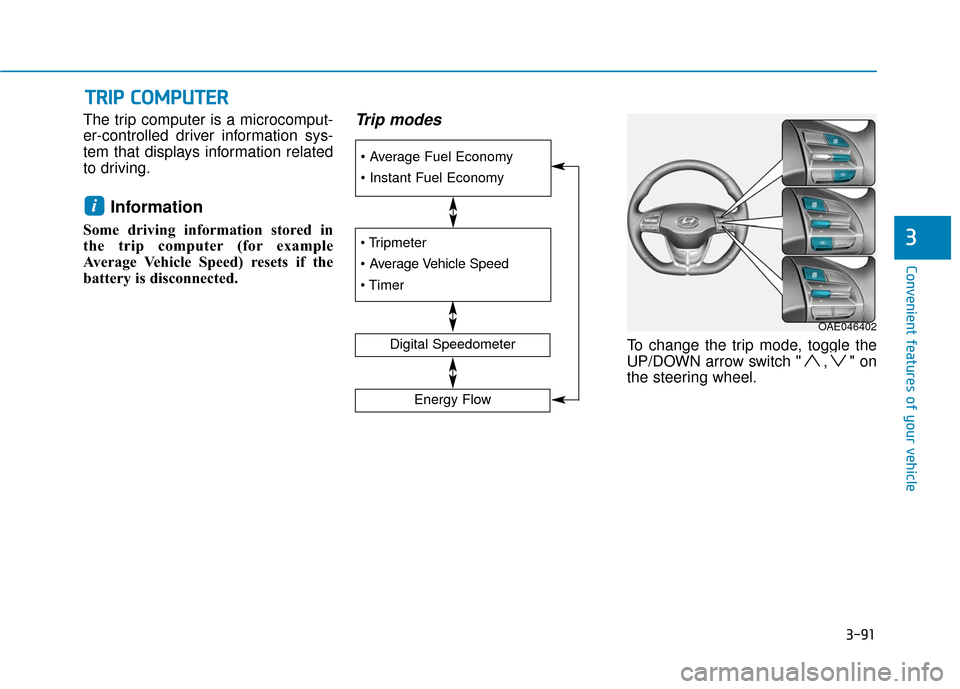

The trip computer is a microcomput-
er-controlled driver information sys-
tem that displays information related
to driving.
Information
Some driving information stored in
the trip computer (for example
Average Vehicle Speed) resets if the
battery is disconnected.
Trip modes
To change the trip mode, toggle the
UP/DOWN arrow switch " , " on
the steering wheel.
i





Digital Speedometer
Energy Flow
OAE046402
