2019 Hyundai Creta Owner's Manual

4-19
Multimedia System
4
(Continued)
• If your iPhone
®is connected to both
the Bluetooth®and USB, the sound
may not be properly played. In your
iPhone
®, select the Dock connector
or Bluetooth®to change the sound
output (source).
• iPod
®mode cannot be operated
when the iPod®cannot be recog-
nized due to the playing of versions
that do not support communication
protocols, cases of iPod
®abnormali-
ties and defects.
• For fifth generation iPod
®Nano
devices, the iPod®may not be recog-
nized when the battery level is low.
Please charge the iPod
®for use.
• The search/play orders shown with-
in the iPod
®device may differ from
the orders shown within the audio
system.
• If the iPod
®malfunctions due to an
iPod®device defect, reset the iPod®
and try again. (To learn more, refer
to your iPod®manual)
(Continued)(Continued)
• Some iPod
®s may not sync with the
System depending on the version. If
the Media is removed before the
Media is recognized, then the sys-
tem may not properly restore the
previously operated mode. (iPad
®
charging is not supported.)
• Use an iPod
®cable shorter than 1
meter in length such as the one orig-
inally supplied with a new iPod
®,
longer cables may lead to the audio
system not recognizing the iPod
®.
Information
- Using Bluetooth®(BT) Audio
• Bluetooth
®Audio Mode can be used
only when a Bluetooth®phone has
been connected.
• Bluetooth
®Audio Mode will not be
available when connecting mobile
phones that do not support this fea-
ture.
• If a Bluetooth
®Phone is being used
to play music and receives an
incoming or outgoing phone call,
then the music will stop.
• Moving the Track up/down while
playing Bluetooth
®audio mode may
result in pop noises with some
mobile phones.
• Bluetooth
®streaming audio may not
be supported in some mobile phones.
• When returning to Bluetooth
®
Audio mode after ending a call, the
mode may not automatically restart
in some mobile phones.
• Receiving an incoming call or mak-
ing an outgoing call while playing
Bluetooth
®Audio may result in
audio interference.
i

4-20
Multimedia System
Media Mode
Change Mode: [MEDIA]button
Each time the button is pressed,
the media mode popup will be dis-
played or closed.
You can select a menu in the mode
popup by using the [1] ~ [6](Preset)
buttons or TUNEknob.
The media mode popup will not be
displayed when [SETUP]button
[Display] [Mode popup] is turned
[Off].
If media device(USB) is connect-
ed, then it will automatically oper-
ate. Once it is disconnected, the
previous mode will be restored.
The Audio/Bluetooth
®(BT) Audio
volume can also be controlled.
Information
When you connect an Apple device,
playback does not start automatically.
Repeat: [1 RPT]button
Repeats the current song or repeats
all songs within the current folder.

®mode: Repeat Song➟
Repeat Off
USB mode: Repeat Song ➟
Repeat Folder➟ Off
Shuffle: [2 SHFL]button
Plays all songs within the current
folder(category) or play all songs in
random order.

®mode: Shuffle All➟ Shuffle
Off
USB mode: Shuffle Folder➟
Shuffle All➟ Off
Change Song/File: [SEEK/TRACK]
button
[∨ ∨

SEEK/TRACK] button
Shortly pressing the button: Plays
the current song from the begin-
ning.
If the [∨ ∨

SEEK/TRACK]button is
pressed again within 2 seconds, the
previous song is played.
Pressing and holding the button
(more than 1.0 seconds): Rewinds
the song.
[SEEK/TRACK ∧ ∧
] button
Shortly pressingthe button: Plays
the next song.
Pressing and holding the button
(more than 1.0 seconds): Fast-for-
wards the song.
Information
• Bluetooth®(BT) Audio don’t sup-
port Rewind/Fast-forward feature.
• Changing the previous/next song
may not be supported in some
Bluetooth
®devices.
ii

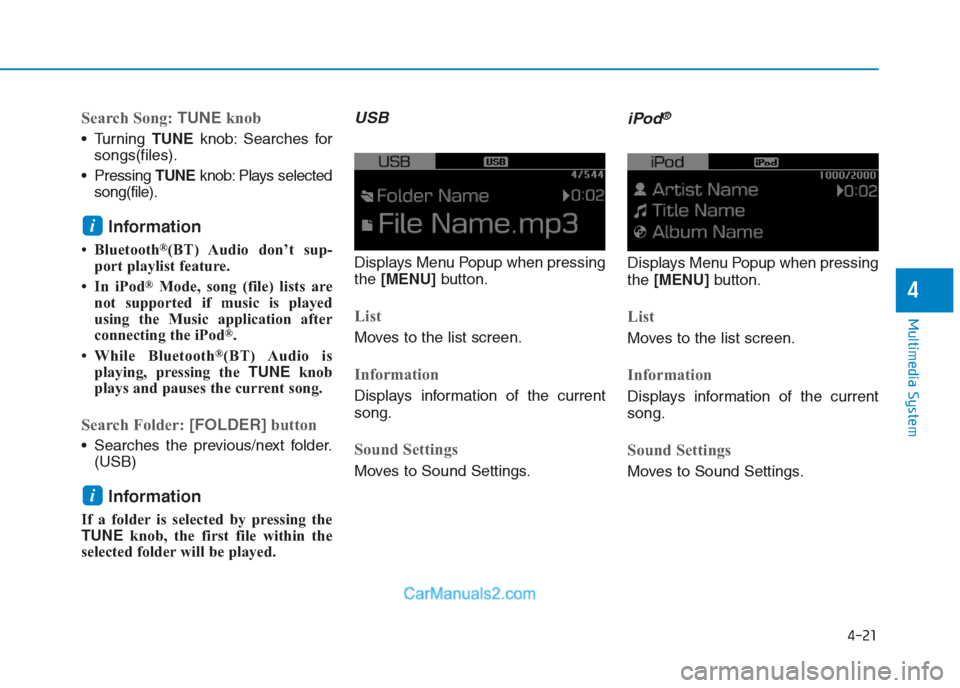

4-21
Multimedia System
4
Search Song: TUNEknob
Turning TUNEknob: Searches for
songs(files).
Pressing TUNEknob: Plays selected
song(file).
Information
• Bluetooth®(BT) Audio don’t sup-
port playlist feature.
• In iPod
®Mode, song (file) lists are
not supported if music is played
using the Music application after
connecting the iPod
®.
• While Bluetooth
®(BT) Audio is
playing, pressing the TUNEknob
plays and pauses the current song.
Search Folder: [FOLDER]button
Searches the previous/next folder.
(USB)
Information
If a folder is selected by pressing the
TUNEknob, the first file within the
selected folder will be played.
USB
Displays Menu Popup when pressing
the [MENU]button.
List
Moves to the list screen.
Information
Displays information of the current
song.
Sound Settings
Moves to Sound Settings.
iPod®
Displays Menu Popup when pressing
the [MENU]button.
List
Moves to the list screen.
Information
Displays information of the current
song.
Sound Settings
Moves to Sound Settings.
i
i

4-22
Multimedia System
Bluetooth®(BT) Audio
Displays Menu Popup when pressing
the [MENU]button.
Sound Settings
Moves to Sound Settings.
Information
• Depending on the connected
Bluetooth device, mobile phone, or
the music player you are using,
playback controls may differ.
• Depending on the music player you
are using, streaming may not be
supported.
• Audio may not automatically start
playing in some Bluetooth
®devices.
If the music in the Bluetooth®device
is not played after changing to audio
streaming mode, press the TUNE
knob. Check if the music is playing
in the Bluetooth
®device after
changing to audio streaming mode.
• Audio streaming may not be sup-
ported for some Bluetooth
®devices.
• If Bluetooth
®device is disconnected,
Bluetooth®(BT) Audio is ended.
• Bluetooth
®connection is required to
use Bluetooth®(BT) Audio. Refer to
the Bluetooth®manual for more
information.
Phone
Information
- Using Bluetooth®(BT) Phone
What is Bluetooth®Wireless Technology?
Bluetooth®refers to a short-dis-
tance wireless networking technol-
ogy which uses a 2.45GHz fre-
quency to connect various devices
within a certain distance.
Supported within PCs, external
devices, Bluetooth
®phones, PDAs,
various electronic devices, and auto-
motive environments, Bluetooth
®to
be transmitted at high speeds with-
out having to use a connector cable.
Bluetooth
®Handsfree refers to a
device which allows the user to
conveniently make phone calls
with Bluetooth
®devices through
the Multimedia system.
The Bluetooth
®Handsfree feature
may not be supported in some
Bluetooth
®devices.
i
i

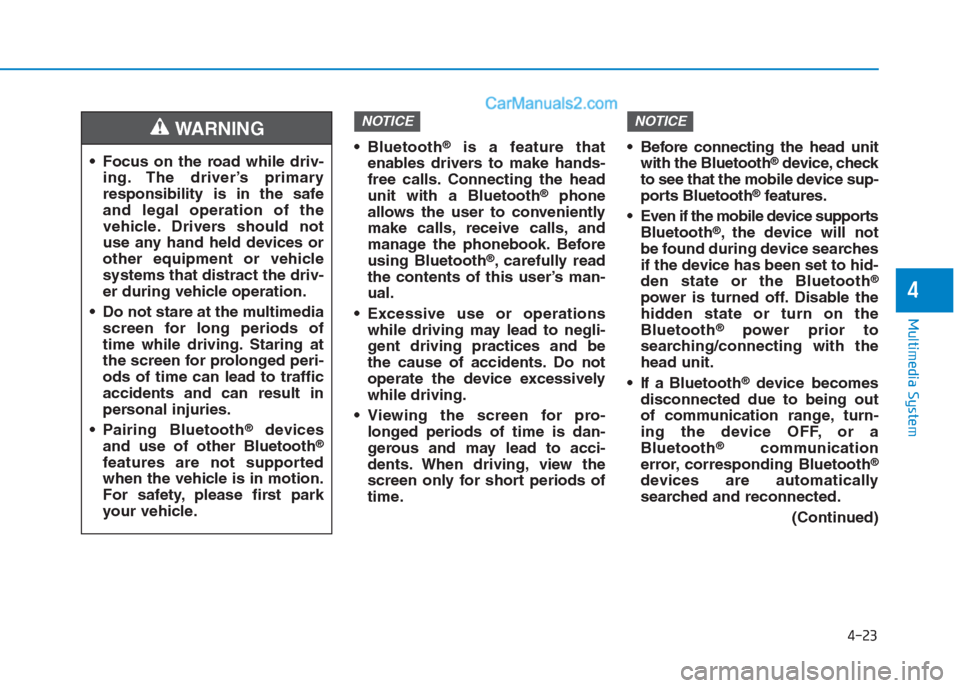

4-23
Multimedia System
4
Bluetooth®is a feature that
enables drivers to make hands-
free calls. Connecting the head
unit with a Bluetooth
®phone
allows the user to conveniently
make calls, receive calls, and
manage the phonebook. Before
using Bluetooth
®, carefully read
the contents of this user’s man-
ual.
Excessive use or operations
while driving may lead to negli-
gent driving practices and be
the cause of accidents. Do not
operate the device excessively
while driving.
Viewing the screen for pro-
longed periods of time is dan-
gerous and may lead to acci-
dents. When driving, view the
screen only for short periods of
time. Before connecting the head unit
with the Bluetooth
®device, check
to see that the mobile device sup-
ports Bluetooth
®features.
Even if the mobile device supports
Bluetooth
®, the device will not
be found during device searches
if the device has been set to hid-
den state or the Bluetooth
®
power is turned off. Disable the
hidden state or turn on the
Bluetooth
®power prior to
searching/connecting with the
head unit.
If a Bluetooth
®device becomes
disconnected due to being out
of communication range, turn-
ing the device OFF, or a
Bluetooth
®communication
error, corresponding Bluetooth®
devices are automatically
searched and reconnected.
(Continued)
NOTICENOTICE
Focus on the road while driv-
ing. The driver’s primary
responsibility is in the safe
and legal operation of the
vehicle. Drivers should not
use any hand held devices or
other equipment or vehicle
systems that distract the driv-
er during vehicle operation.
Do not stare at the multimedia
screen for long periods of
time while driving. Staring at
the screen for prolonged peri-
ods of time can lead to traffic
accidents and can result in
personal injuries.
Pairing Bluetooth
®devices
and use of other Bluetooth®
features are not supported
when the vehicle is in motion.
For safety, please first park
your vehicle.
WARNING

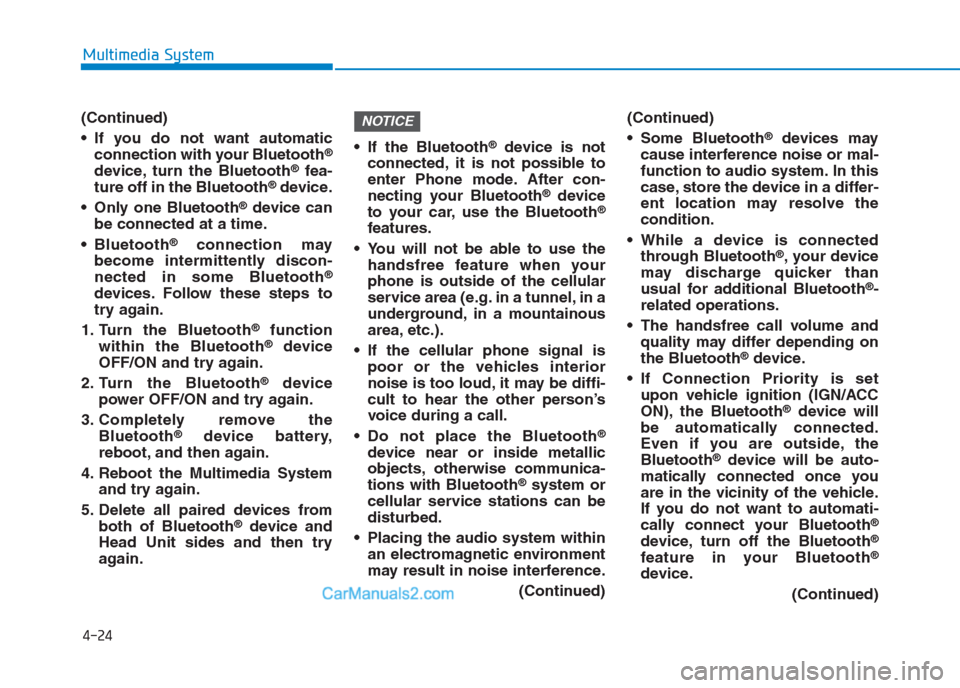

4-24
Multimedia System
(Continued)
If you do not want automatic
connection with your Bluetooth
®
device, turn the Bluetooth®fea-
ture off in the Bluetooth®device.
Only one Bluetooth
®device can
be connected at a time.
Bluetooth
®connection may
become intermittently discon-
nected in some Bluetooth
®
devices. Follow these steps to
try again.
1. Turn the Bluetooth
®function
within the Bluetooth®device
OFF/ON and try again.
2. Turn the Bluetooth
®device
power OFF/ON and try again.
3. Completely remove the
Bluetooth
®device battery,
reboot, and then again.
4. Reboot the Multimedia System
and try again.
5. Delete all paired devices from
both of Bluetooth
®device and
Head Unit sides and then try
again. If the Bluetooth
®device is not
connected, it is not possible to
enter Phone mode. After con-
necting your Bluetooth
®device
to your car, use the Bluetooth®
features.
You will not be able to use the
handsfree feature when your
phone is outside of the cellular
service area (e.g. in a tunnel, in a
underground, in a mountainous
area, etc.).
If the cellular phone signal is
poor or the vehicles interior
noise is too loud, it may be diffi-
cult to hear the other person’s
voice during a call.
Do not place the Bluetooth
®
device near or inside metallic
objects, otherwise communica-
tions with Bluetooth
®system or
cellular service stations can be
disturbed.
Placing the audio system within
an electromagnetic environment
may result in noise interference.
(Continued)(Continued)
Some Bluetooth
®devices may
cause interference noise or mal-
function to audio system. In this
case, store the device in a differ-
ent location may resolve the
condition.
While a device is connected
through Bluetooth
®, your device
may discharge quicker than
usual for additional Bluetooth
®-
related operations.
The handsfree call volume and
quality may differ depending on
the Bluetooth
®device.
If Connection Priority is set
upon vehicle ignition (IGN/ACC
ON), the Bluetooth
®device will
be automatically connected.
Even if you are outside, the
Bluetooth
®device will be auto-
matically connected once you
are in the vicinity of the vehicle.
If you do not want to automati-
cally connect your Bluetooth
®
device, turn off the Bluetooth®
feature in your Bluetooth®
device.
(Continued)
NOTICE

4-25
Multimedia System
4
(Continued)
In some Bluetooth
®devices,
starting the ignition while talk-
ing through Bluetooth
®enabled
handsfree call will result in the
call becoming disconnected due
to car handsfree call transfer. If
you use your phone outside the
vehicle, turn off the Bluetooth
®
feature in your phone.
Information
- Bluetooth®specifications
• Aerial power: Max 3 mW
Bluetooth®Connection
Before you can use the Bluetooth®
feature, you must first pair/connect
your Bluetooth®device to your car.
Pairing a New Device
Press the [PHONE]button in the
head unit or [CALL]button in the
steering wheel remote control.
Press the[SETUP]button Select
[Phone] Select [Add New Device].
In your Bluetooth
®device,
1. Pair your car after your Bluetooth
®
device detects the Bluetooth®
device.
2. Enter the passkey(0000) or accept
the authorization popup.
3. Connect Bluetooth
®.
Information
• Up to 5 Bluetooth®devices can be
paired.
• The default passkey is 0000.
• During a Bluetooth
®device connec-
tion, another device cannot be paired.
• The Vehicle Name above is an exam-
ple. Check the actual information
on the product.
• Pairing and connecting a
Bluetooth
®enabled Bluetooth®
device will work only when the
Bluetooth®option within your
Bluetooth®device has been turned
on. (Methods of turning on the
Bluetooth
®enabled feature may dif-
fer depending on the Bluetooth®
device.)
• After pairing is complete, a contacts
download request is sent to the
Bluetooth
®device. Some Bluetooth®
devices may require confirmation
upon receiving a download request.
Ensure yourBluetooth
®device
accepts the connection. Refer to your
phone’s user manual for additional
information regarding phone pairing
and connections.
i
i

4-26
Multimedia System
Connecting Bluetooth®Devices
Press the [PHONE]button in the
head unit or [CALL]button in the
steering wheel remote control
Select the name of the device to con-
nect Connect Bluetooth
®.
Connects the Bluetooth
®devices
that you add.
Information
• Only one Bluetooth®device can be
connected at a time.
• Bluetooth
®features supported with-
in the vehicle are as follows. Some
features may not be supported
depending on your Bluetooth
®
device.
- Outgoing/Incoming Handsfree
calls
- Operations during a call: Switch
to Private, Switch to call waiting,
MIC on/off
- Downloading Call History
- Downloading Contacts
- Bluetooth
®device Auto Connection
- Bluetooth
®Audio Streaming
Bluetooth®Phone
Bluetooth®Phone
Press the [PHONE]button.
Displays Phone Menu screen. The
connected device name is displayed
in the top of the display.
: Call signal strength indicator.
: Battery level of the Bluetooth
®
devices connected.
i
