2019 HONDA RIDGELINE spark plugs

525
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the maintenance message in the
multi-information display, replace the brake fluid
every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder MessageSystem Message
Indicator
Sub Items
Main
Item
*1: If the message
Maintenance Due Now does not appear more than 12 months after the display
is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 609.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*4: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under
-20°F, -29°C), or towing a trailer, replace every 60,000 miles (U.S.) / 100,000 km (Canada).
*5: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder. If you regularly drive your vehicle under these conditions,
have the differential fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fl uid and transfer fluid*
4●Replace spark plugs●Replace timing belt and inspect water pump*4
●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*, *5
* Not available on all models

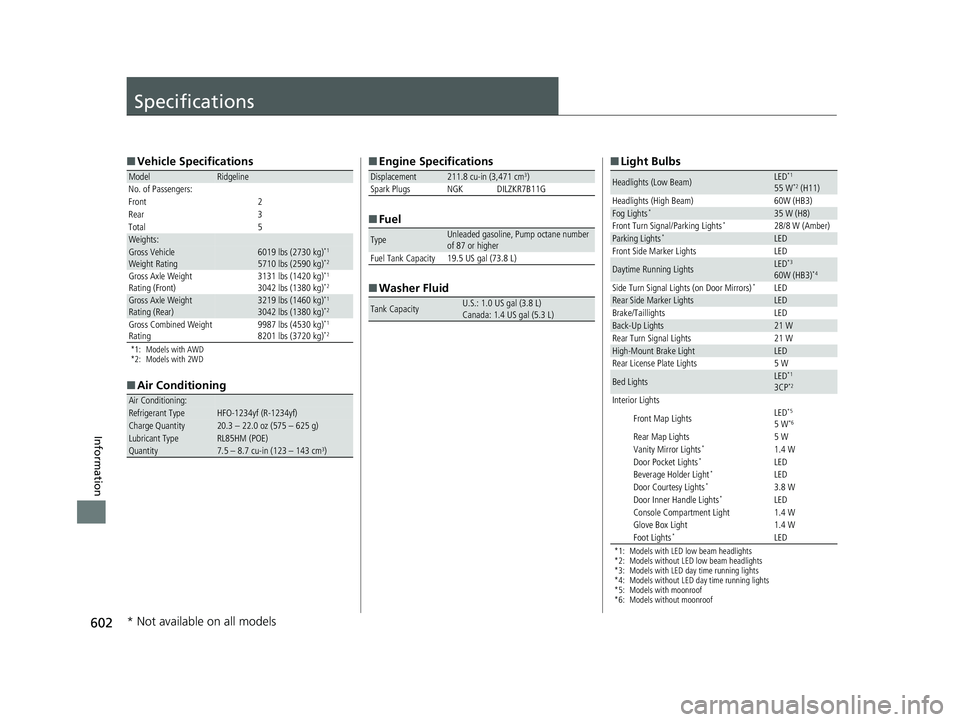

602
Information
Specifications
■Vehicle Specifications
*1: Models with AWD
*2: Models with 2WD
■Air Conditioning
ModelRidgeline
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating6019 lbs (2730 kg)*1
5710 lbs (2590 kg)*2
Gross Axle Weight
Rating (Front)3131 lbs (1420 kg)*1
3042 lbs (1380 kg)*2
Gross Axle Weight
Rating (Rear)3219 lbs (1460 kg)*1
3042 lbs (1380 kg)*2
Gross Combined Weight
Rating 9987 lbs (4530 kg)*1
8201 lbs (3720 kg)*2
Air Conditioning:Refrigerant TypeHFO-1234yf (R-1234yf)Charge Quantity20.3 – 22.0 oz (575 – 625 g)Lubricant TypeRL85HM (POE)Quantity7.5 – 8.7 cu-in (123 – 143 cm3)
■
Engine Specifications
■ Fuel
■ Washer Fluid
Displacement211.8 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 1.0 US gal (3.8 L)
Canada: 1.4 US gal (5.3 L)
■ Light Bulbs
*1: Models with LED low beam headlights
*2: Models without LED low beam headlights
*3: Models with LED day time running lights
*4: Models without LED day time running lights
*5: Models with moonroof
*6: Models without moonroof
Headlights (Low Beam)LED*1
55 W*2 (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights*35 W (H8)
Front Turn Signal/Parking Lights*28/8 W (Amber)Parking Lights*LED
Front Side Marker Lights LED
Daytime Running LightsLED*3
60W (HB3)*4
Side Turn Signal Lights (on Door Mirrors)*LEDRear Side Marker LightsLED
Brake/Taillights LED
Back-Up Lights21 W
Rear Turn Signal Lights 21 W
High-Mount Brake LightLED
Rear License Plate Lights 5 W
Bed LightsLED*1
3CP*2
Interior Lights
Front Map Lights LED*5
5 W*6
Rear Map Lights
5 W
Vanity Mirror Lights*1.4 W
Door Pocket Lights*LED
Beverage Holder Light*LED
Door Courtesy Lights*3.8 W
Door Inner Handle Lights*LED
Console Compartment Light 1.4 W
Glove Box Light 1.4 W
Foot Lights
*LED
* Not available on all models

620
Index
Shift Lever................................... 20, 442, 443
Does Not Move........................................ 584
Operation .................................. 20, 442, 443
Releasing ................................................. 584
Shift Lever Position Indicator ..................... 76
Shifting (Transmission) ....................... 20, 442
Shoulder Anchor ......................................... 39
Side Airbags ................................................ 49
Side Curtain Airbags ................................... 51
Siri Eyes Free ............................................. 286
SiriusXM ® Radio ........................................ 254
Smart Entry System Indicator ..................... 83
Smart Entry with Push Button Start System ...................................................... 114
Snow Tires ................................................. 555
Song By Voice
TM (SBV) .............................. 268
Spare Tire .......................................... 569, 603
Spark Plugs ................................................ 602
Specifications ............................................ 602
Specified Fuel .................................... 514, 602
Speedometer ............................................. 103
SRS Airbags (Airbags) ................................. 45
Starting the Engine .................................. 434
Does Not Start ......................................... 578
Jump Starting .......................................... 581
Remote Engine Start ................................ 436
Steering Wheel ......................................... 160
Adjusting ................................................. 160
Heater ..................................................... 180
Stopping .................................................... 503
Summer Tires ............................................ 555 Sunglasses Holder
..................................... 179
Supplemental Restraint System (SRS) ........ 45
Indicator.................................................... 77
Switches (Around the Steering Wheel) ........ 4, 5, 142
SYNC Mode ............................................... 191
System Message Indicator .......................... 82
T
Tachometer............................................... 103
Tailgate ..................................................... 128
Temperature
Gauge ..................................................... 103
Outside Temperature Display ................... 106
Temperature Gauge ................................. 103
Temperature Sensor ......................... 106, 194
Tie-down Anchors .................................... 186
Time (Setting) ........................................... 110
Tire Fill Assist .................................... 482, 590
Tires ........................................................... 547
Air Pressure ..................................... 548, 603
Checking and Maintaining ...................... 547
Inspection ............................................... 547
Labeling .................................................. 548
Puncture (Flat Tire) .................................. 569
Regulations ............................................. 550
Rotation .................................................. 554
Spare Tire ........................................ 569, 603
Summer .................................................. 555
Tire Chains .............................................. 555 Wear Indicators....................................... 552
Winter .................................................... 555
Tools ......................................................... 568
Towing a Trailer ....................................... 420
Equipment and Accessories ..................... 424
Load Limits ............................................. 420
Towing Your Vehicle ............................... 431
Emergency .............................................. 596
TPMS with Tire Fill Assist ......................... 482
Indicator ........................................... 80, 590
Tire Fill Assist .......................................... 590
Trailer Stability Assist ............................... 429
Transmission ............................... 20, 441, 442
Automatic....................................... 441, 442
Fluid ....................................................... 537
Number .................................................. 604
Shift Lever Position Indicator ..................... 76
Transmission Indicator............................... 76
Trip Meter ................................................ 106
Troubleshooting ...................................... 567
Blown Fuse ............................. 591, 593, 594
Brake Pedal Vibrates ................................. 25
Buzzer Sounds When Opening Door ......... 26
Emergency Towing ................................. 596
Engine Won’t Start ................................. 578
Noise When Braking ................................. 26
Overheating ............................................ 585
Puncture/Flat Tire .................................... 569
Rear Door Won’t Open ..................... 26, 123
Shift Lever Does Not Move ...................... 584
Warning Indicators.................................... 74
