2019 HONDA CR-V navigation system

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Ignition Switch* (P169)
❙Steering Wheel Adjustments (P192)
❙Information Display* (P117)
❙Tire Pressure Monitoring System (TPMS) Button* (P516)
❙Hazard Warning Button
❙System Indicators (P80)
❙Rear Defogger (P188)
❙Gauges (P116)
❙Driver Information Interface* (P120)
❙ENGINE START/STOP Button* (P170)
❙Audio System (P237, 258)
❙Navigation System*
() See the Navigation System Manual
❙ (Vehicle Stability Assist ® (VSA ®) System OFF) Button (P508)
❙Road Departure Mitigation (RDM) Button* (P496)
❙Collision Mitigation Braking SystemTM (CMBSTM) OFF Button* (P534)
❙Heated Windshield Button* (P189)
❙Power Tailgate Button* (P152)
❙Heated Door Mirror Button* (P188)
❙Climate Control System (P224)
❙Front Seat Heater Buttons* (P221)
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 4 ページ ２０１８年８月２２日　水曜日　 午後２時５９分

5
Quick Reference Guide
❙ (TRIP) Knob (P117, 121)
❙Brightness Control (P186)
❙Navigation System Voice Control Buttons*
() See the Navigation System Manual
❙Bluetooth ® HandsFreeLink ® System Voice
Control Buttons
(P385, 408)
❙Cruise Control Buttons* (P470, 473)
❙Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons* (P479)
❙(+ / (- / / Buttons* (P233)
❙SOURCE Button* (P233)
❙ / / / Buttons* (P120, 233)
❙ENTER Button* (P120, 233)
❙Wipers/Washers (P183)
❙Headlights/Turn Signals (P174, 175)
❙Fog Lights* (P178)
❙LaneWatchTM * (P513)
❙Km/Mile Change Knob* (P116)
❙Interval Button* (P489)
❙Heated Steering Wheel Button* (P220)
❙Lane Keeping Assist System (LKAS) Button*
(P499)
❙ (Display/Information) Button*
(P120, 259)
❙Horn (Press an area around .)
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 5 ページ ２０１８年８月２２日　水曜日　 午後２時５９分

13
Quick Reference Guide
Controls (P129)
Clock (P130)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the Selector knob.
•Rotate to select.
•Press to enter.
Models with color audio system
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
aSelect the (HOME) icon, then select
Settings .
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
Models with navigation system
Models with Display Audio
34
ENGINE START/STOP
Button
* (P170)
Press the button to change the vehicle’s
power mode.
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 13 ページ ２０１８年８月２２日　水曜日　午後２時５９分

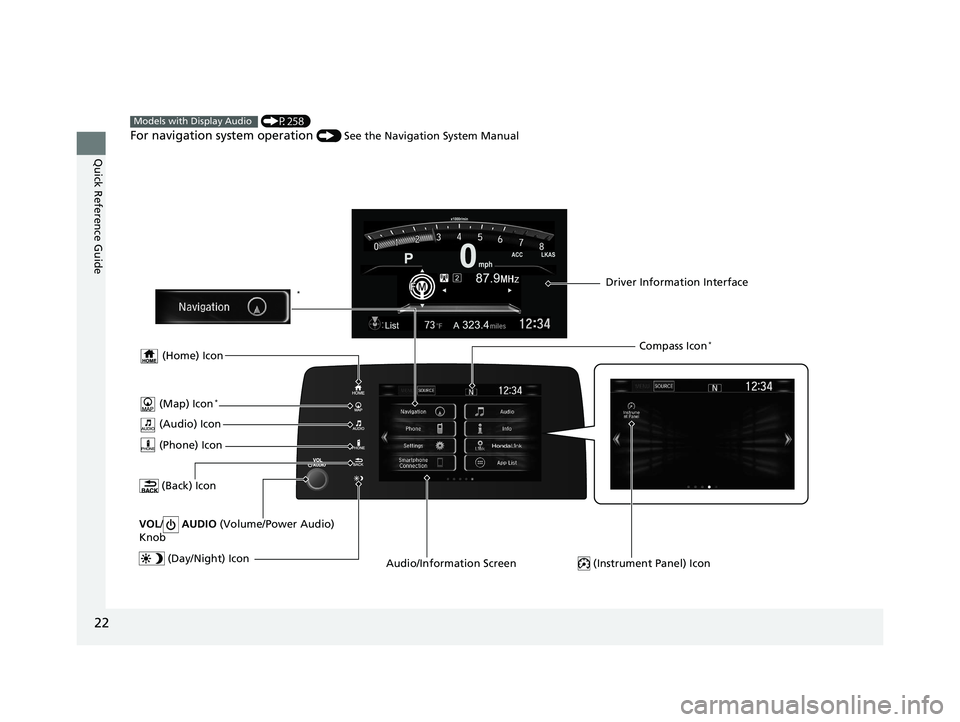

22
Quick Reference Guide
(P258)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
(Audio) Icon
(Back) Icon
Audio/Information Screen Driver Information Interface
(Instrument Panel) Icon (Day/Night) Icon
*
VOL / AUDIO (Volume/Power Audio)
Knob
(Home) Icon
(Map) Icon*
(Phone) Icon
Compass Icon*
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 22 ページ ２０１８年８月２２日　水曜日　午後２時５９分

127
uuGauges and Displays uDriver Information Interface*
Instrument Panel
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
Show the current audio information.
2Audio System Basic Operation P. 258
Show the current phone information.
2Bluetooth ® HandsFreeLink ® P. 385
■Turn-by-Turn Directions*
■Audio
■Phone
1 Turn-by-Turn Directions*
The driver information in terface shows a compass
when the route guidance is not used.
You can select whether the turn-by-turn display
comes on during the route guidance.
2 Customized Features P. 349
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 127 ページ ２０１８年８月２２日　水曜日　午後２時５９分

130
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch in ON (w*1.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1 Adjusting the Clock
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 349
Models with navigation system
Models with color audio system
Models without navigation system
1Using the MENU/CLOCK button
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Models with color audio system
Models with color audio system
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 130 ページ ２０１８年８月２２日　水曜日　午後２時５９分

uuAudio System Basic Operation uAudio/Information Screen
260
Features
■Using the audio/information screen
Select to go to the home screen.
Select Phone, Info, Audio , Settings , Navigation
*, HondaLink , Smartphone
Connection ( Apple CarPlay , Android Auto ), App List*/ (APPS icon)*, or
Instrument Panel.
■Phone
Displays the HFL information.
2 Bluetooth ® HandsFreeLink ® P. 408
1 Using the audio/in formation screen
Touchscreen operation
•Use simple gestures - in cluding touching, swiping
and scrolling - to operate certain audio functions.
•Some items may be grayed out during driving to
reduce the potential for distraction.
•You can select them when the vehicle is stopped or
use voice commands.
•Wearing gloves may limit or prevent touchscreen
response.
You can change the touchs creen sensitivity setting.
2 Customized Features P. 349
Home Screen
Models without navigation system
Models with navigation system
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 260 ページ ２０１８年８月２２日　水曜日　午後２時５９分

261
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features
■Info
Displays Trip Computer , Voice Info, Clock/Wallpaper , or System/Device
Information . Select MENU on the Info Menu screen to see all available options:
Trip Computer , Voice Info , Clock/Wallpaper and System/Device Information .
Trip Computer :
• Current Drive tab: Displays the current trip information.
• History of Trip A tab: Displays information for the three previous drives. The
information is stored every time you reset Trip A.
To delete the history manually, select Delete history on the History of Trip A
tab. The confirmation message appears on the screen, then select Yes.
Voice Info : Displays the All Commands list.
Clock/Wallpaper : Displays the clock and wallpaper.
System/Device Information :
• System Info : Displays the software version of the audio system.
• USB Info : Displays the memory usage of the USB device.
■Audio
Displays the current audio information.
■Settings
Enters the customizing menu screen.
2 Customized Features P. 349
■Navigation*
Displays the navigation screen.
2Refer to the Navigation System Manual
* Not available on all models
19 CR-V ELP HCM MAP HMIN-31TLA6200.book 261 ページ ２０１８年８月２２日　水曜日　午後２時５９分
