Handling the Unexpected
Fuses

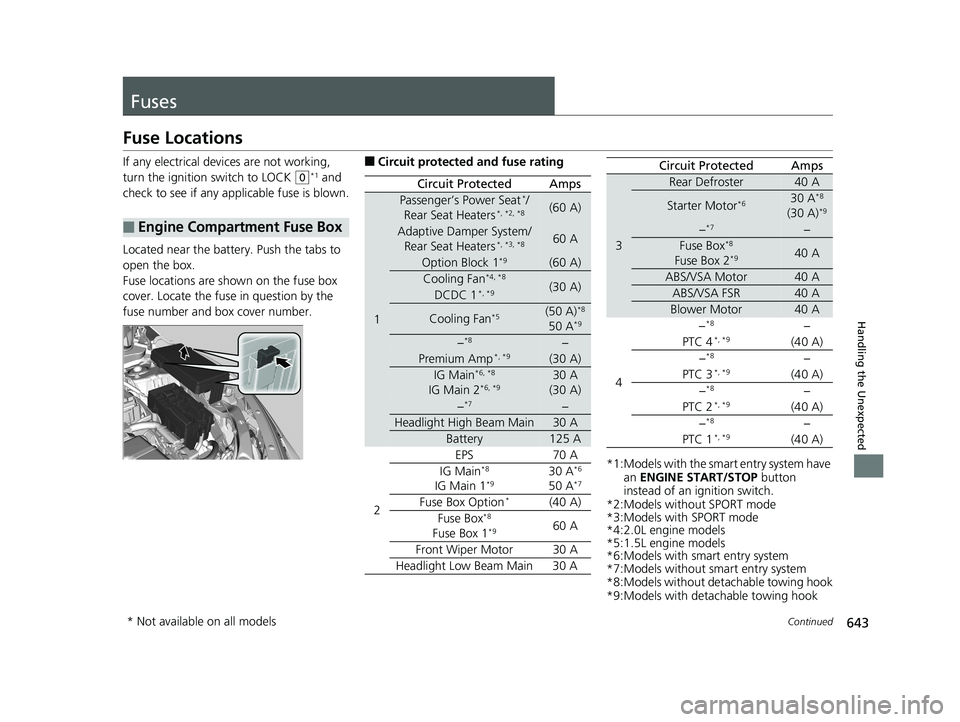

Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
Located near the battery. Push the tabs to
open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
Passenger’s Power Seat*/
Rear Seat Heaters*, *2, *8(60 A)
Adaptive Damper System/ Rear Seat Heaters*, *3, *860 A
Option Block 1*9(60 A)
Cooling Fan*4, *8(30 A)DCDC 1*, *9
Cooling Fan*5(50 A)*8
50 A*9
−*8−
Premium Amp*, *9(30 A)
IG Main*6, *8
IG Main 2*6, *930 A
(30 A)
−*7−
Headlight High Beam Main30 A
Battery125 A
2
EPS70 A
IG Main*8
IG Main 1*930 A*6
50 A*7
Fuse Box Option*(40 A)
Fuse Box*8
Fuse Box 1*960 A
Front Wiper Motor30 A
Headlight Low Beam Main 30 A
*1:Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
*2:Models without SPORT mode
*3:Models with SPORT mode
*4:2.0L engine models
*5:1.5L engine models
*6:Models with smart entry system
*7:Models without smart entry system
*8:Models without detachable towing hook
*9:Models with detachable towing hook
3
Rear Defroster40 A
Starter Motor*630 A*8
(30 A)*9
−*7−
Fuse Box*8
Fuse Box 2*940 A
ABS/VSA Motor40 A
ABS/VSA FSR40 A
Blower Motor40 A
4 −*8−
PTC 4*, *9(40 A)
−*8−
PTC 3*, *9(40 A)
−*8−
PTC 2*, *9(40 A)
−*8−
PTC 1*, *9(40 A)
Circuit ProtectedAmps
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 643 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

645
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.

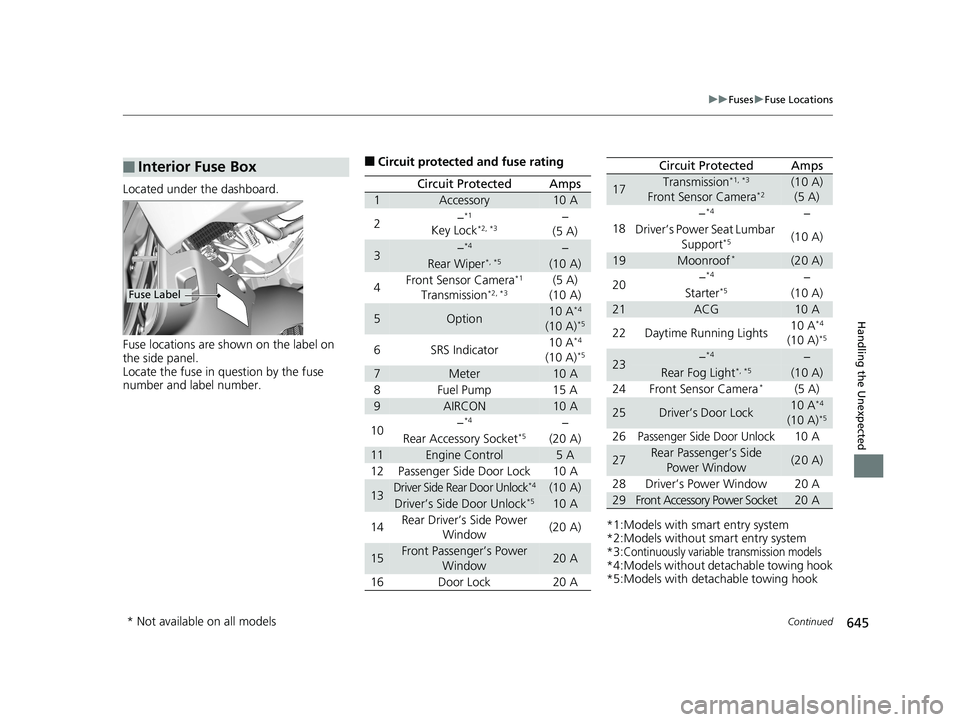

■Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Accessory10 A
2−*1
Key Lock*2, *3−
(5 A)
3−*4−
Rear Wiper*, *5(10 A)
4 Front Sensor Camera*1
Transmission*2, *3(5 A)
(10 A)
5Option10 A*4
(10 A)*5
6 SRS Indicator 10 A*4
(10 A)*5
7Meter10 A
8 Fuel Pump 15 A
9AIRCON10 A
10 −*4−
Rear Accessory Socket*5(20 A)
11Engine Control5A
12 Passenger Side Door Lock 10 A
13Driver Side Rear Door Unlock*4(10 A)
Driver’s Side Door Unlock*510 A
14 Rear Driver’s Side Power
Window (20 A)
15Front Passenger’s Power
Window20 A
16 Door Lock 20 A
*1:Models with smart entry system
*2:Models without smart entry system
*3:
Continuously variable transmission models
*4:Models without detachable towing hook
*5:Models with detachable towing hook
17Transmission*1, *3
Front Sensor Camera*2(10 A)
(5 A)
18 −
*4−
Driver’s Power Seat Lumbar Support
*5(10 A)
19Moonroof*(20 A)
20 −*4−
Starter*5(10 A)
21ACG10 A
22 Daytime Running Lights 10 A*4
(10 A)*5
23−*4−
Rear Fog Light*, *5(10 A)
24 Front Sensor Camera*(5 A)
25Driver’s Door Lock10 A*4
(10 A)*5
26Passenger Side Door Unlock10 A
27Rear Passenger’s Side Power Window(20 A)
28 Driver’s Power Window 20 A
29Front Accessory Power Socket20 A
Circuit ProtectedAmps
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 645 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

647
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

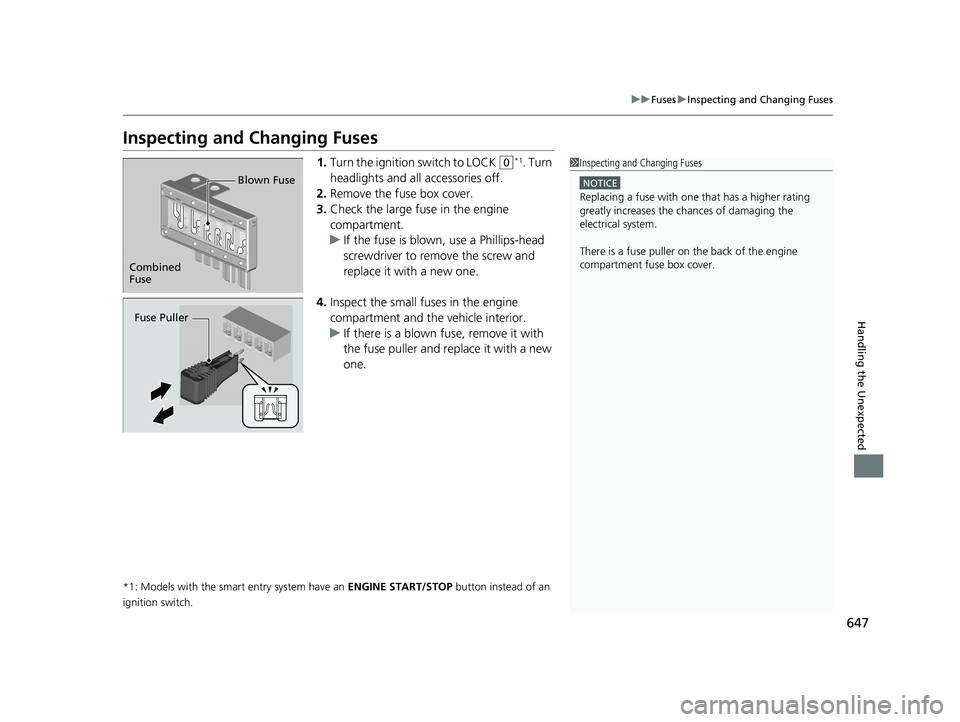

Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
