2019 HONDA CIVIC SEDAN sensor

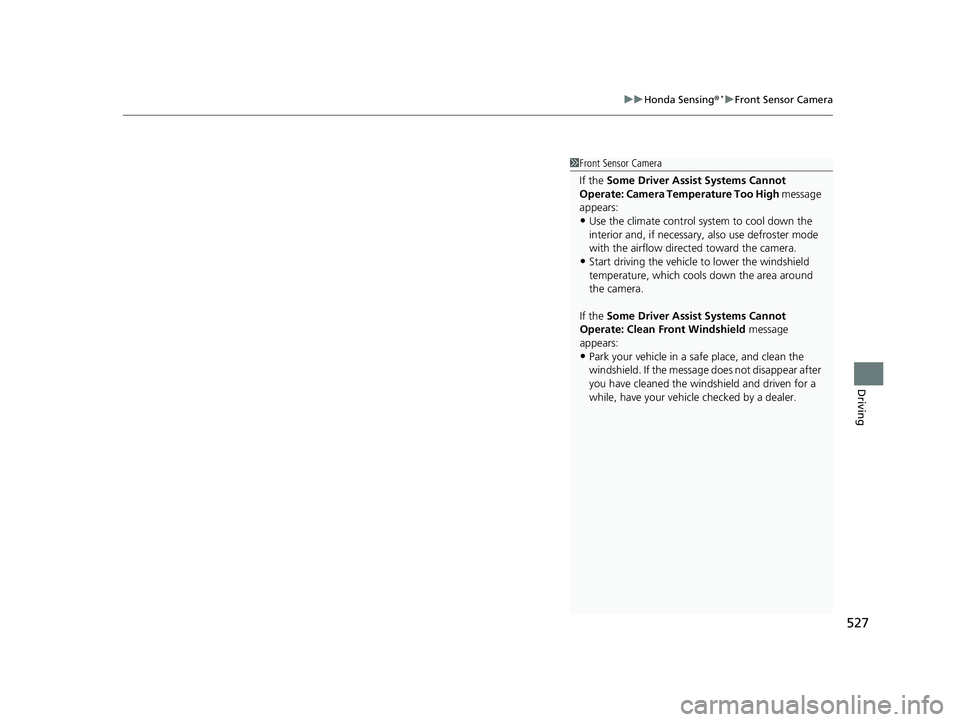

527
uuHonda Sensing ®*uFront Sensor Camera
Driving
1Front Sensor Camera
If the Some Driver Assist Systems Cannot
Operate: Camera Temperature Too High message
appears:
•Use the climate control system to cool down the
interior and, if necessary, also use defroster mode
with the airflow directed toward the camera.
•Start driving the vehicle to lower the windshield
temperature, which cool s down the area around
the camera.
If the Some Driver Assist Systems Cannot
Operate: Clean Front Windshield message
appears:
•Park your vehicle in a sa fe place, and clean the
windshield. If the message does not disappear after
you have cleaned the winds hield and driven for a
while, have your vehicle checked by a dealer.
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 527 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

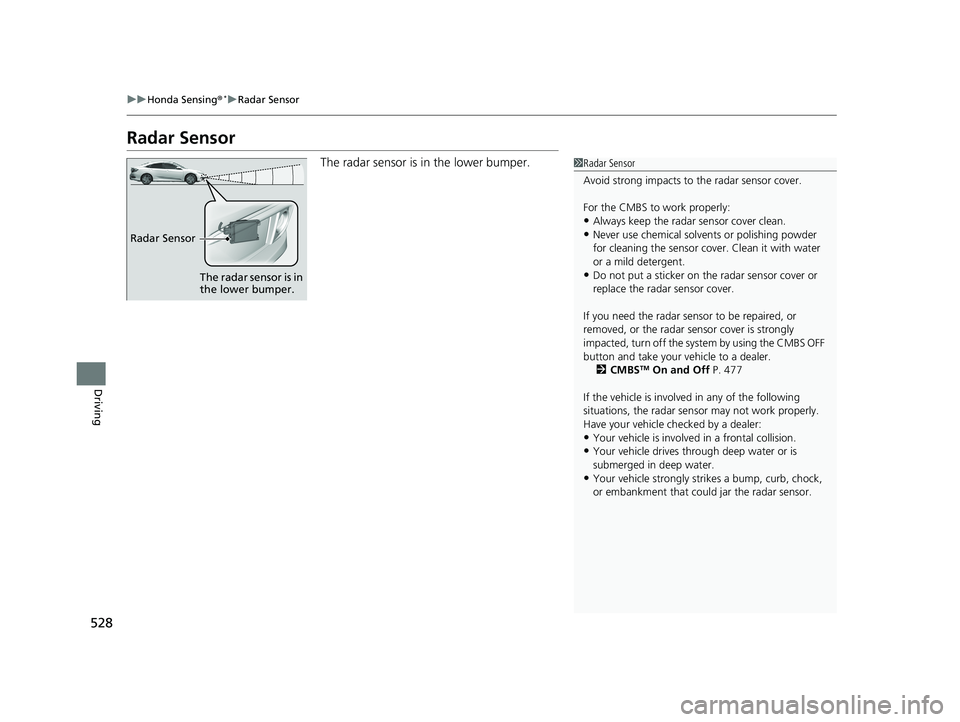

528
uuHonda Sensing ®*uRadar Sensor
Driving
Radar Sensor
The radar sensor is in the lower bumper.1Radar Sensor
Avoid strong impacts to the radar sensor cover.
For the CMBS to work properly:
•Always keep the radar sensor cover clean.•Never use chemical solvents or polishing powder
for cleaning the sensor cove r. Clean it with water
or a mild detergent.
•Do not put a sticker on th e radar sensor cover or
replace the radar sensor cover.
If you need the radar sensor to be repaired, or
removed, or the radar se nsor cover is strongly
impacted, turn off the syst em by using the CMBS OFF
button and take your vehicle to a dealer.
2 CMBS
TM On and Off P. 477
If the vehicle is involved in any of the following
situations, the radar sensor may not work properly.
Have your vehicle checked by a dealer:
•Your vehicle is involved in a frontal collision.•Your vehicle drives th rough deep water or is
submerged in deep water.
•Your vehicle strongly strikes a bump, curb, chock,
or embankment that coul d jar the radar sensor.
Radar Sensor
The radar sensor is in
the lower bumper.
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 528 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

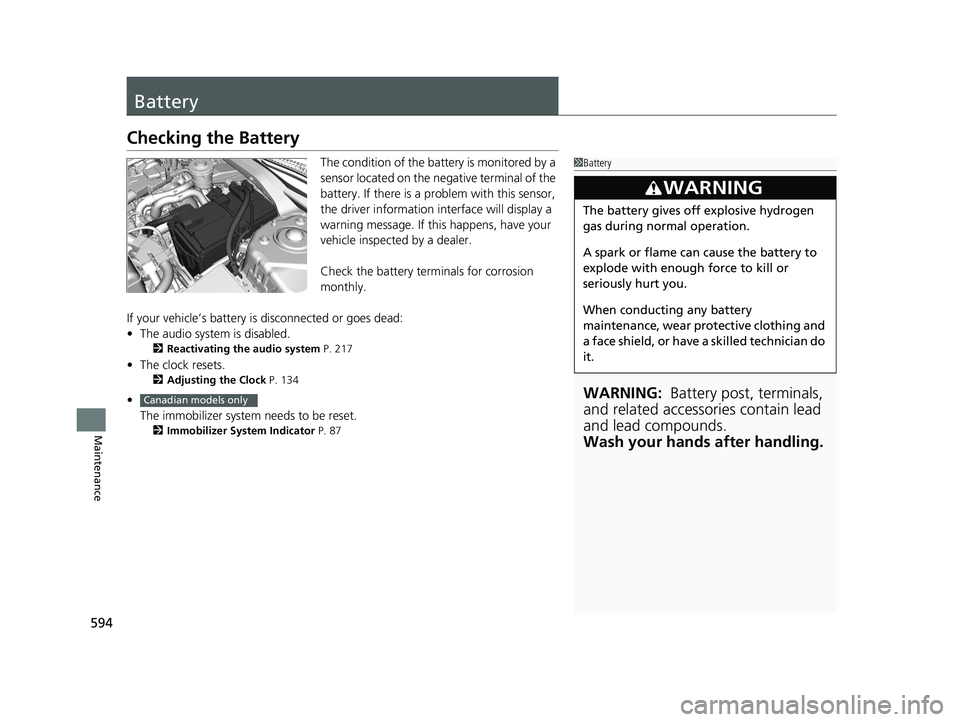

594
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information in terface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery terminals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 217
•The clock resets.
2 Adjusting the Clock P. 134
•
The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 87
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Canadian models only
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 594 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

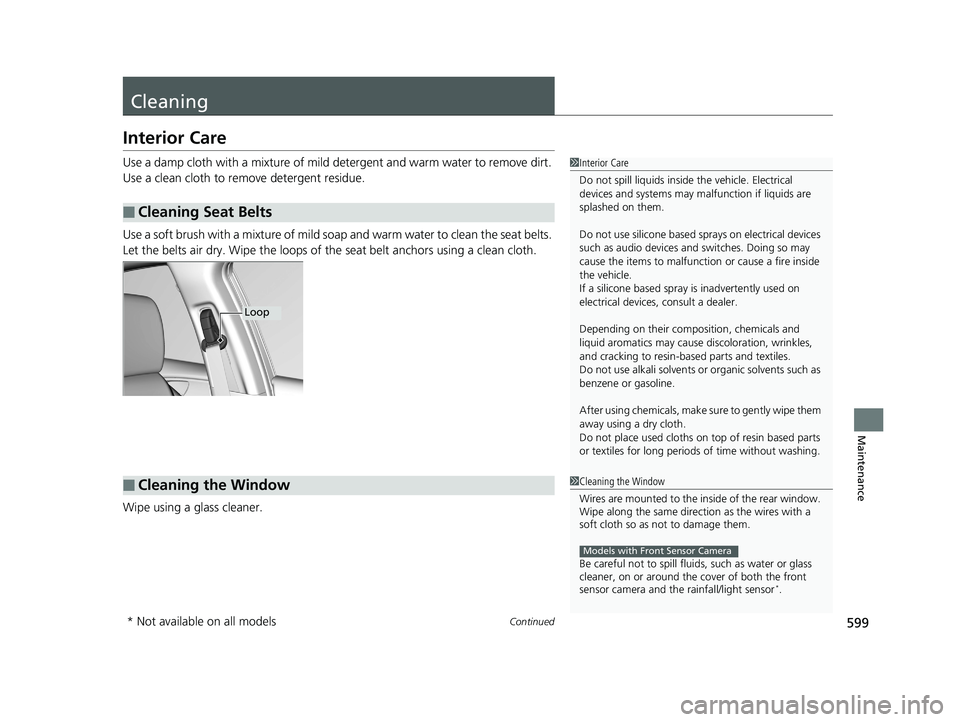

599Continued
Maintenance
Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the loops of the seat belt anchors using a clean cloth.
Wipe using a glass cleaner.
■Cleaning Seat Belts
1 Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may ma lfunction if liquids are
splashed on them.
Do not use silicone based sp rays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemical s, make sure to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
Loop
■Cleaning the Window1Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill flui ds, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light sensor
*.
Models with Front Sensor Camera
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 599 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

645
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Accessory10 A
2−*1
Key Lock*2, *3−
(5 A)
3−*4−
Rear Wiper*, *5(10 A)
4 Front Sensor Camera*1
Transmission*2, *3(5 A)
(10 A)
5Option10 A*4
(10 A)*5
6 SRS Indicator 10 A*4
(10 A)*5
7Meter10 A
8 Fuel Pump 15 A
9AIRCON10 A
10 −*4−
Rear Accessory Socket*5(20 A)
11Engine Control5A
12 Passenger Side Door Lock 10 A
13Driver Side Rear Door Unlock*4(10 A)
Driver’s Side Door Unlock*510 A
14 Rear Driver’s Side Power
Window (20 A)
15Front Passenger’s Power
Window20 A
16 Door Lock 20 A
*1:Models with smart entry system
*2:Models without smart entry system
*3:
Continuously variable transmission models
*4:Models without detachable towing hook
*5:Models with detachable towing hook
17Transmission*1, *3
Front Sensor Camera*2(10 A)
(5 A)
18 −
*4−
Driver’s Power Seat Lumbar Support
*5(10 A)
19Moonroof*(20 A)
20 −*4−
Starter*5(10 A)
21ACG10 A
22 Daytime Running Lights 10 A*4
(10 A)*5
23−*4−
Rear Fog Light*, *5(10 A)
24 Front Sensor Camera*(5 A)
25Driver’s Door Lock10 A*4
(10 A)*5
26Passenger Side Door Unlock10 A
27Rear Passenger’s Side Power Window(20 A)
28 Driver’s Power Window 20 A
29Front Accessory Power Socket20 A
Circuit ProtectedAmps
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 645 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

Index
667
Index
Index
Numbers
7-Speed Manual Shift Mode................... 448
Operation ............................................... 449
A
ABS (Anti-lock Brake System) .................. 535
Accelerator Position Meter ..................... 120
Accessories and Modifications ................ 604
Accessory Power Socket ........................... 194
Adaptive Cruise Control (ACC) .......... 91, 499
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ........................... 91, 483
Adaptive Damper System ........................ 455
Adding the Coolant ................................. 568
Additives
Coolant .................................................. 567
Engine Oil ............................................... 560
Washer ................................................... 571
Additives, Engine Oil ............................... 560
Adjusting
Armrest .................................................. 187
Clock ...................................................... 134
Front Head Restraints .............................. 183
Front Seats.............................................. 180
Mirrors.................................................... 178
Rear Seats ............................................... 186
Steering Wheel ....................................... 177
Temperature ........................................... 118
Adjusting the Clock ................................. 134
Adjusting the Sound ........................ 226, 261 Agile Handling Assist
............................... 461
Air Conditioning System (Climate Control
System) .................................................... 204
Changing the Mode ................................ 207
Defrosting the Windshield and
Windows ............................................... 208
Dust and Pollen Filter ............................... 598
Recirculation/Fresh Air Mode ................... 207
Sensor ..................................................... 211
Synchronization Mode ............................. 210
Using Automatic Climate Control ............ 204
Air Pressure ............................... 585, 655, 657
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ......................................... 49
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator .............................................. 57, 82
Passenger Front Airbag Off Indicator ......... 58
Sensors ...................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
AM/FM Radio .................................... 228, 268
Android Auto ............................................ 305
Anti-lock Brake System (ABS) .................. 535
Indicator .................................................... 82
Apple CarPlay ........................................... 302
Armrest ..................................................... 187
Audio Remote Controls ............................ 218 Audio System
............................ 214, 221, 239
Adjusting the Sound........................ 226, 261
Audio/Information Screen................ 222, 240
Changing the Home Screen Icon Layout ................................................... 244
Changing the Screen Interface ................ 258
Closing Apps ........................................... 260
Customizing the Meter............................ 245
Display Setup .................................. 227, 262
Error Messages ........................................ 309
General Information ................................ 312
Home Screen........................................... 251
iPod ................................................ 230, 280
Limitations for Manual Operation .............................. 263, 369, 396
Menu Customize ..................................... 259
MP3/WMA/AAC .............................. 233, 289
Reactivating ............................................ 217
Recommended Devices............................ 313
Remote Controls ..................................... 218
Security Code .......................................... 217
Selecting an Audio Source ....................... 263
Status Area ............................................. 257
Theft Protection ...................................... 217
USB Flash Drives ...................................... 313
USB Port(s) .............................................. 215
Wallpaper Setup.............................. 224, 249
Audio/Information Screen ............... 222, 240
Authorized Manuals ................................ 665
Auto Door Locking/Unlocking ................. 149
Customize ....................................... 130, 362
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 667 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

668
Index
Auto High-Beam....................................... 170
Indicator .................................................... 82
Automatic Brake Hold .............................. 532
Indicator ............................................ 78, 532
Automatic Brake Hold System
Indicator ............................................ 78, 532
Automatic Lighting .................................. 167
Average Fuel Economy ............................. 117
Average Speed .......................................... 117
B
Battery....................................................... 594
Charging System Indicator ................. 79, 637
Jump Starting .......................................... 631
Maintenance (Checking the Battery) ........ 594
Maintenance (Replacing).......................... 596
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 192
Bluetooth ® Audio ............................. 236, 292
Bluetooth ® HandsFreeLink ®............. 367, 394
Booster Seats (For Children) ....................... 72
Brake System ............................................. 529
Anti-lock Brake System (ABS) ................... 535
Automatic Brake Hold.............................. 532
Brake Assist System ................................. 536
Fluid ........................................................ 570
Foot Brake ............................................... 531
Indicator (Red) ........................... 76, 639, 640
Parking Brake .......................................... 529 Braking Pressure Meter
............................ 120
Brightness Control (Instrument Panel).... 175
Built-in Key ............................................... 136
Bulb Replacement .................................... 572
Brake Light, Tail/Rear Side Marker Light, Rear
Turn Signal Lights and Back-Up Lights ... 579
Fog Lights ............................................... 574
Front Side Marker Lights.......................... 577
Front Turn Signal Lights ........................... 576
Headlights ............................................... 572
High-Mount Brake Light .......................... 580
Parking/Daytime Running Lights .............. 578
Rear License Plate Light ........................... 580
Side Turn Signal/Emergency Indicator
Lights .................................................... 578
Taillights.................................................. 580
Bulb Specifications ........................... 654, 656
C
Carbon Monoxide Gas ............................... 73
Carrying Cargo ................................. 429, 431
Certification Label .................................... 658
Changing Bulbs ........................................ 572
Charging System Indicator ................. 79, 637
Child Safety ................................................. 60
Childproof Door Locks............................. 148
Emergency Trunk Opener ........................ 152 Child Seat
................................................... 60
Booster Seats ............................................ 72
Child Seat for Infants ................................ 62
Child Seat for Small Children .................... 63
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 67
Larger Children ......................................... 71
Rear-facing Child Seat............................... 62
Selecting a Child Seat ............................... 64
Using a Tether .......................................... 69
Childproof Door Locks ............................. 148
Cleaning the Exterior ............................... 601
Cleaning the Interior ............................... 599
Climate Control System ........................... 204
Changing the Mode................................ 204
Defrosting the Windshield and Windows .............................................. 208
Dust and Pollen Filter .............................. 598
Recirculation/Fresh Air Mode................... 207
Sensors ................................................... 211
Synchronization Mode ............................ 210
Using Automatic Climate Control............ 204
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 473
Coat Hooks ............................................... 198
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 473
Compact Spare Tire .................. 609, 655, 657
Console Compartment ............................. 191
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 668 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

670
Index
F
Features..................................................... 213
Filters Dust and Pollen ....................................... 598
Oil ........................................................... 564
Flat Tire ..................................................... 609
Floor Mats ................................................. 600
Fluids
Brake/Clutch ............................................ 570
Continuously Variable Transmission (CVT) ..................................................... 569
Engine Coolant ........................................ 567
Manual Transmission ............................... 569
Windshield Washer .................................. 571
FM/AM Radio .................................... 228, 268
Fog Light Indicator ..................................... 86
Folding Down the Rear Seats ................... 186
Foot Brake ................................................. 531
Front Airbags (SRS) ..................................... 49
Front Head Restraints ............................... 183
Front Seat Heaters .................................... 199
Front Seats
Adjusting ................................................. 180
Front Sensor Camera ................................ 526
Fuel ...................................................... 25, 541
Economy ................................................. 544
Gauge ..................................................... 111
Instant Fuel Economy ............................... 118
Low Fuel Indicator ..................................... 82 Range ..................................................... 117
Recommendation .................................... 541
Refueling......................................... 541, 651
Fuel Economy ........................................... 544
Fuel Fill Door ...................................... 25, 542
Fuses .......................................................... 643
Inspecting and Changing......................... 647
Locations......................................... 643, 645
G
Gasoline (Fuel) Economy ................................................. 544
Gauge ..................................................... 111
Information ............................................. 541
Instant Fuel Economy .............................. 118
Low Fuel Indicator ..................................... 82
Refueling......................................... 541, 651
Gauges ...................................................... 111
Gear Shift Lever Positions Manual Transmission ............................... 450
Glass (care) ........................................ 599, 602
Glove Box .................................................. 190
G-Meter ..................................................... 120
H
Halogen Bulbs .................................. 572, 575
Handling the Unexpected ........................ 607HandsFreeLink®
(HFL)...................... 367, 394
Automatic Import of Cellular Phonebook and
Call History ................................... 383, 407
Automatic Transferring ........................... 380
Displaying Messages ............................... 421
HFL Buttons .................................... 367, 394
HFL Menus...................................... 370, 397
HFL Status Display ........................... 369, 396
In Case of Emergency ............................. 425
Limitations for Manual Operation .... 369, 396
Making a Call ................................. 388, 415
Options During a Call...................... 393, 418
Phone Setup ................................... 374, 402
Phonebook Phonetic M odification........... 411
Receiving a Call............................... 392, 418
Receiving a Text/E-mail Message ............. 419
Ring Tone ....................................... 381, 406
Selecting a Mail Account......................... 420
Speed Dial ...................................... 384, 408
To Set Up Text/E-mail Message Options .. 405
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 269
Headlights ................................................ 166
Aiming.................................................... 572
Auto High-Beam ..................................... 170
Automatic Operation .............................. 167
Dimming......................................... 166, 169
Operating ............................................... 166
Heaters (Front Seat) ................................. 199
Heaters (Rear Seat) .................................. 200
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 670 ページ ２０１８年１０月２６日　金曜日　午前７時４２分
