2019 HONDA CIVIC SEDAN sensor

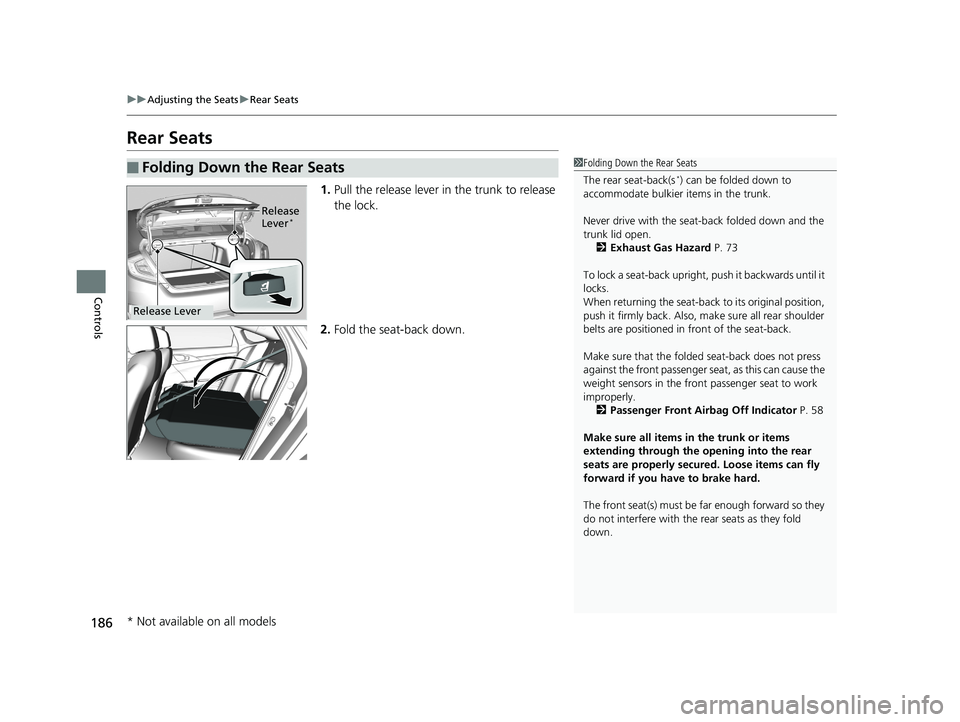

186
uuAdjusting the Seats uRear Seats
Controls
Rear Seats
1. Pull the release lever in the trunk to release
the lock.
2. Fold the seat-back down.
■Folding Down the Rear Seats1Folding Down the Rear Seats
The rear seat-back(s
*) can be folded down to
accommodate bulkier items in the trunk.
Never drive with the seat-back folded down and the
trunk lid open. 2 Exhaust Gas Hazard P. 73
To lock a seat-back upright, push it backwards until it
locks.
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Front Airbag Off Indicator P. 58
Make sure all items in the trunk or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold
down.
Release
Lever*
Release Lever
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 186 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

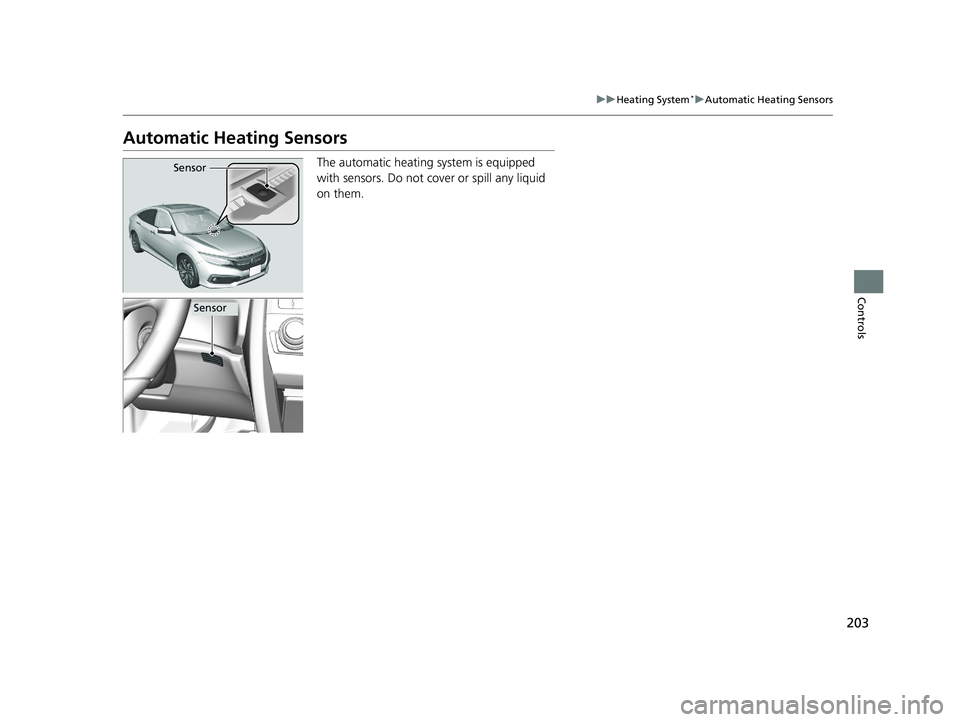

203
uuHeating System*uAutomatic Heating Sensors
Controls
Automatic Heating Sensors
The automatic heating system is equipped
with sensors. Do not cover or spill any liquid
on them.Sensor
Sensor
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 203 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

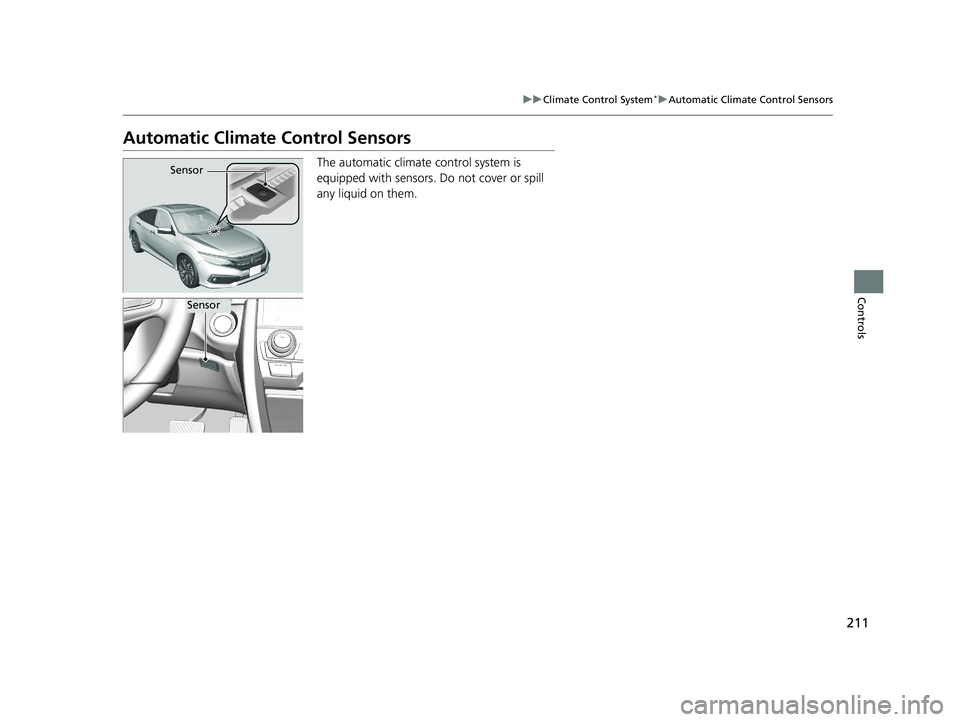

211
uuClimate Control System*uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 211 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

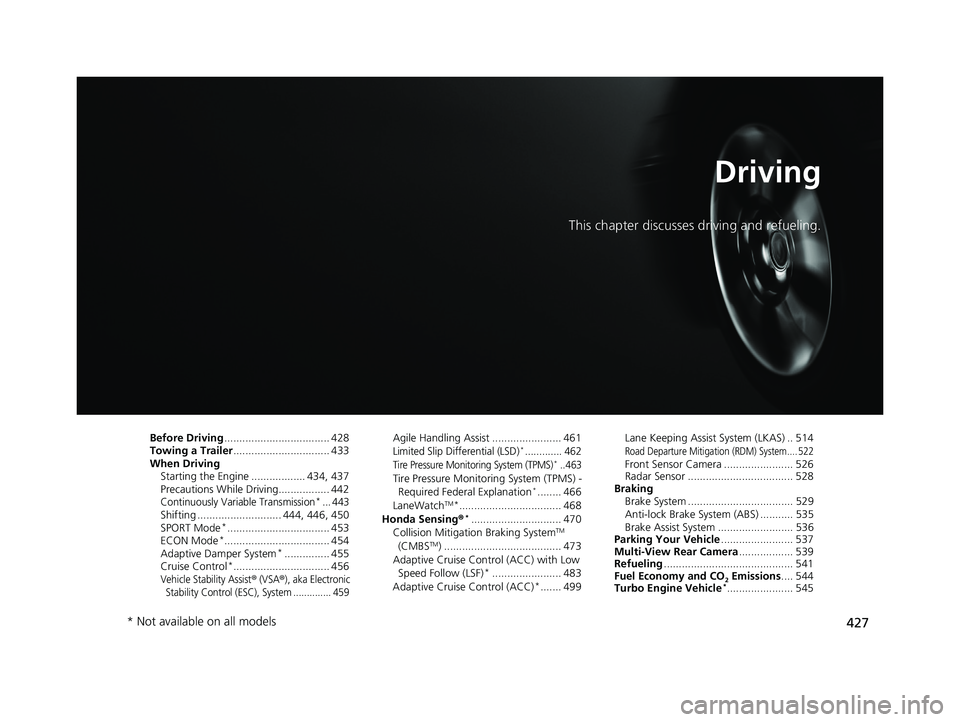

427
Driving
This chapter discusses driving and refueling.
Before Driving................................... 428
Towing a Trailer ................................ 433
When Driving
Starting the Engine .................. 434, 437
Precautions While Driving................. 442
Continuously Variable Transmission*... 443Shifting ............................ 444, 446, 450
SPORT Mode*.................................. 453
ECON Mode*................................... 454
Adaptive Damper System*............... 455
Cruise Control*................................ 456Vehicle Stability Assist® (VSA®), aka Electronic
Stability Control (ESC), System .............. 459
Agile Handling Assist ....................... 461Limited Slip Differential (LSD)*............. 462
Tire Pressure Monitoring System (TPMS)*.. 463
Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation*........ 466
LaneWatchTM*.................................. 468
Honda Sensing ®*.............................. 470
Collision Mitigati on Braking SystemTM
(CMBSTM) ....................................... 473
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
*....................... 483
Adaptive Cruise Control (ACC)*....... 499 Lane Keeping Assist System (LKAS) .. 514
Road Departure Mitigation (RDM) System.... 522Front Sensor Camera ....................... 526
Radar Sensor ................................... 528
Braking
Brake System ................................... 529
Anti-lock Brake System (ABS) ........... 535
Brake Assist System ......................... 536
Parking Your Vehicle ........................ 537
Multi-View Rear Camera .................. 539
Refueling ........................................... 541
Fuel Economy and CO
2 Emissions .... 544
Turbo Engine Vehicle*...................... 545
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 427 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

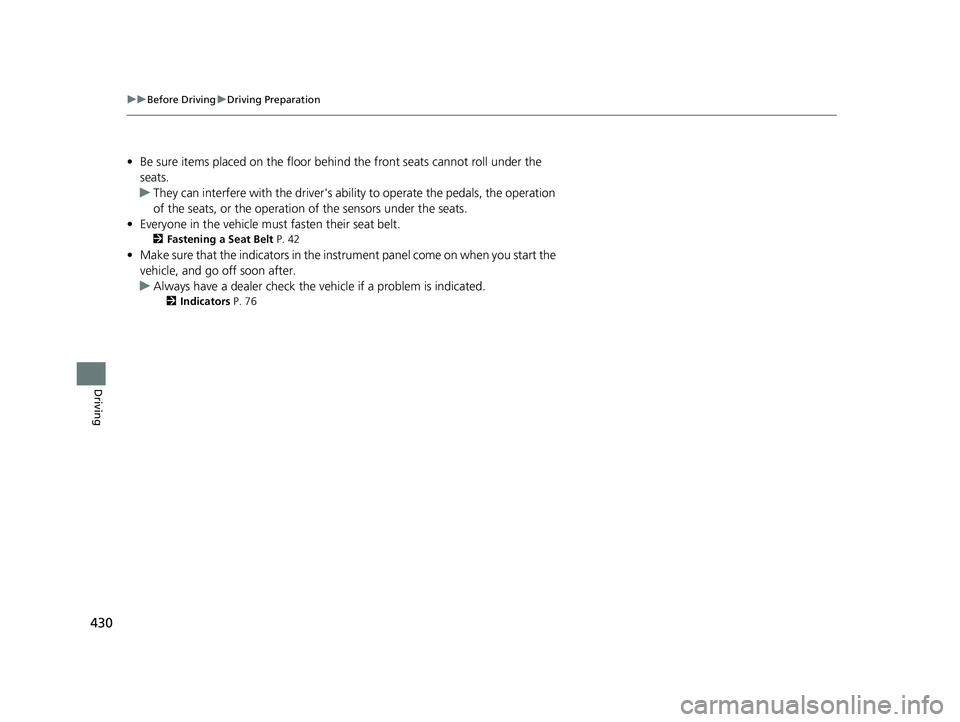

430
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver's ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 42
•Make sure that the indicators in the ins trument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 76
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 430 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

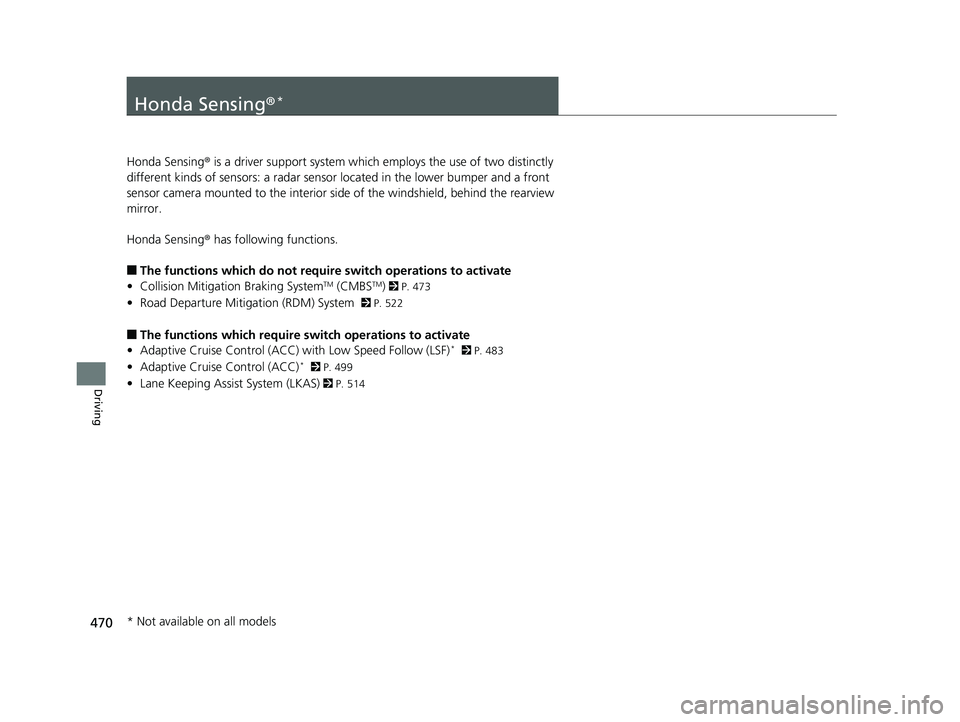

470
Driving
Honda Sensing®*
Honda Sensing® is a driver support system which employs the use of two distinctly
different kinds of sensors: a radar sensor located in the lower bumper and a front
sensor camera mounted to th e interior side of the windshield, behind the rearview
mirror.
Honda Sensing® has following functions.
■The functions which do not require switch operations to activate
• Collision Mitigation Braking SystemTM (CMBSTM) 2 P. 473
• Road Departure Mitigation (RDM) System 2 P. 522
■The functions wh ich require switch operations to activate
• Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)* 2 P. 483
• Adaptive Cruise Control (ACC)* 2 P. 499
• Lane Keeping Assist System (LKAS) 2 P. 514
* Not available on all models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 470 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

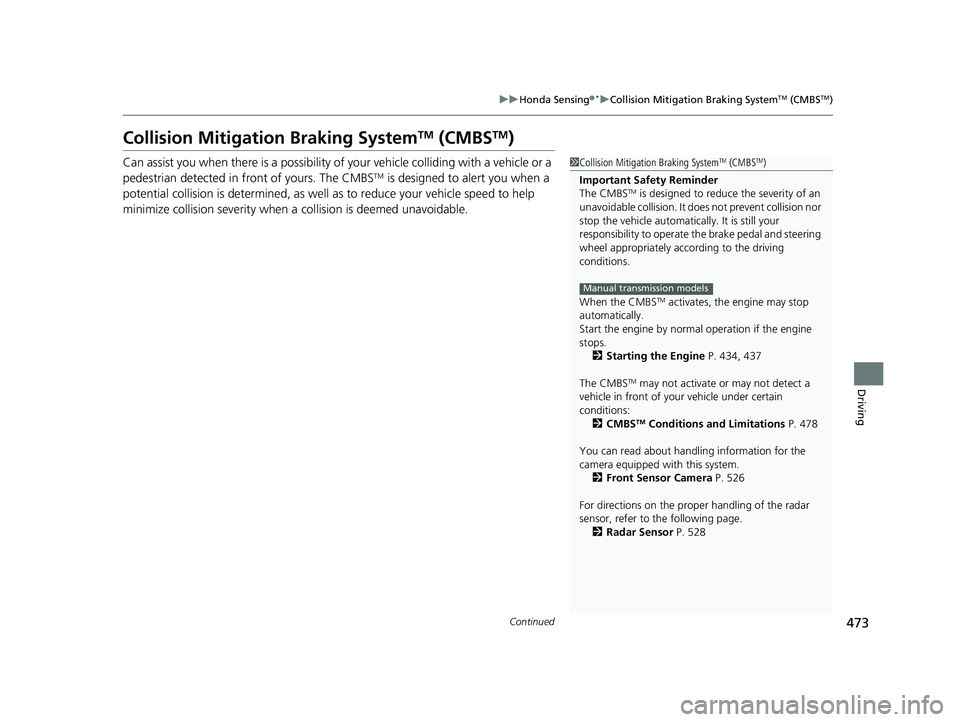

473
uuHonda Sensing ®*uCollision Mitigation Braking SystemTM (CMBSTM)
Continued
Driving
Collision Mitigation Braking SystemTM (CMBSTM)
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The CMBSTM is designed to alert you when a
potential collision is determined, as well as to reduce your vehicle speed to help
minimize collision severity when a collision is deemed unavoidable.
1 Collision Mitigation Braking SystemTM (CMBSTM)
Important Safety Reminder
The CMBS
TM is designed to reduce the severity of an
unavoidable collision. It does not prevent collision nor
stop the vehicle automatically. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately acco rding to the driving
conditions.
When the CMBS
TM activates, the engine may stop
automatically.
Start the engine by normal operation if the engine
stops. 2 Starting the Engine P. 434, 437
The CMBS
TM may not activate or may not detect a
vehicle in front of y our vehicle under certain
conditions: 2 CMBS
TM Conditions and Limitations P. 478
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 526
For directions on the prop er handling of the radar
sensor, refer to the following page.
2 Radar Sensor P. 528
Manual transmission models
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 473 ページ ２０１８年１０月２６日　金曜日　午前７時４２分

uuHonda Sensing ®*uCollision Mitigation Braking SystemTM (CMBSTM)

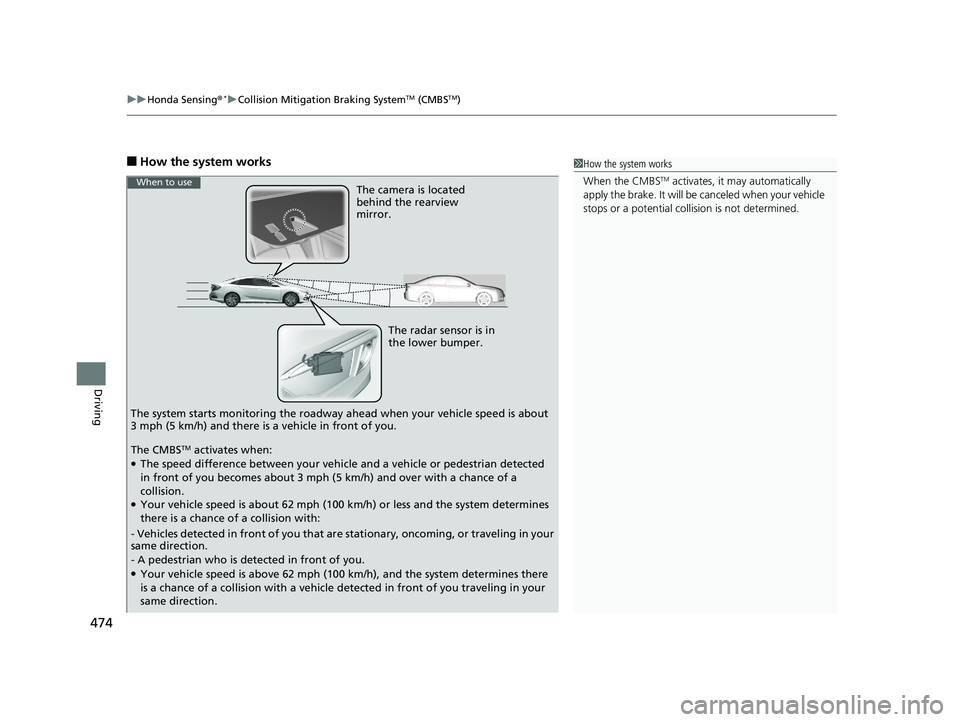

474
Driving
■How the system works1How the system works
When the CMBS
TM activates, it may automatically
apply the brake. It will be canceled when your vehicle
stops or a potential coll ision is not determined.
The radar sensor is in
the lower bumper.
The camera is located
behind the rearview
mirror.
The system starts monitoring th e roadway ahead when your vehicle speed is about
3 mph (5 km/h) and there is a vehicle in front of you.
When to use
The CMBSTM activates when:●The speed difference between your vehicle and a vehicle or pedestrian detected
in front of you becomes about 3 mph (5 km/h) and over with a chance of a
collision.
●Your vehicle speed is about 62 mph (100 km/h) or less and the system determines
there is a chance of a collision with:
- Vehicles detected in front of you that ar e stationary, oncoming, or traveling in your
same direction.
- A pedestrian who is detected in front of you.
●Your vehicle speed is above 62 mph (100 km/h), and the system determines there
is a chance of a collision with a vehicle detected in front of you traveling in your
same direction.
19 CIVIC 4D HCM_HMIN_J (KA KL KC)-31TBA6301.book 474 ページ ２０１８年１０月２６日　金曜日　午前７時４２分
