2019 HONDA CIVIC HATCHBACK key

Continued451
uuWhen Driving uStarting the Engine
Driving
■To stop the engine1Remote Engine Start with Vehicle Feedback*
•You have already used the remote twice to start
the engine.
•Another registered smart entry remote is in the
vehicle.
•There is any antenna failure.
•The door is unlocked with the built-in key.
•The engine oil pressure is low.•The engine coolant temper ature is extremely high.
•The security system alarm is not set.
While the engine is running, the vehicle will
automatically activate climate control with a preset
temperature of 72°F (22°C).
When it is warm outside:
•The climate control system is activated in
recirculation mode.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters are
activated.
•The seat heaters are activated*.
2 Front Seat Heaters* P. 211
Press and hold the
button for one
second.
Go within the range,
and try again.
The exterior lights flash once if the engine stops successfully.
The exterior lights will not flash when the remote is out of
the smart entry system range.
The engine will not stop.
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 451 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

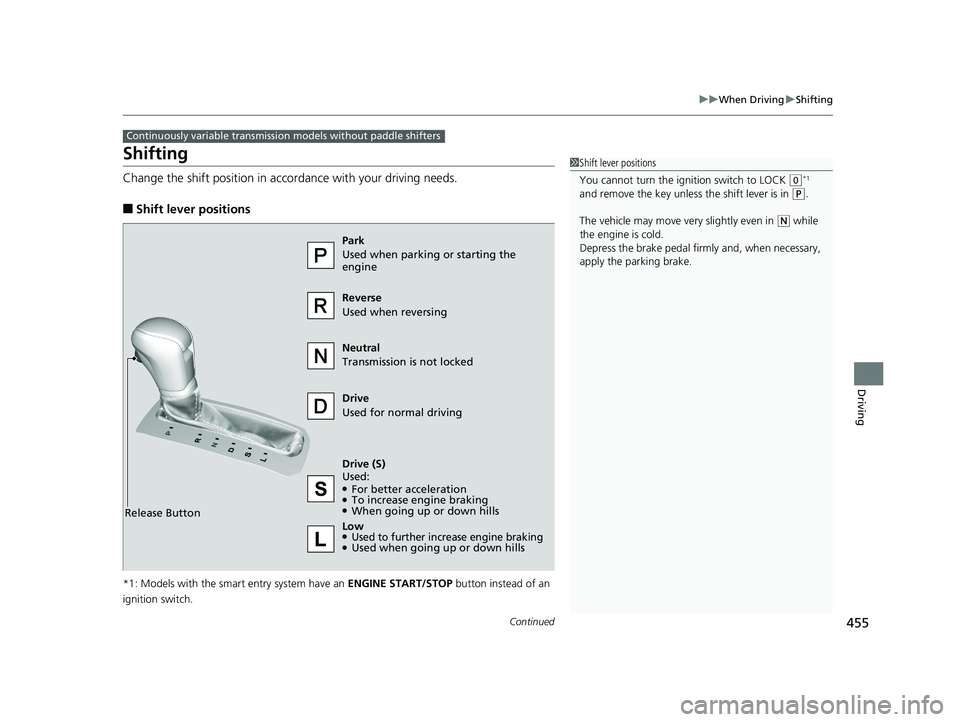

455
uuWhen Driving uShifting
Continued
Driving
Shifting
Change the shift position in accordance with your driving needs.
■Shift lever positions
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Continuously variable transmission models without paddle shifters
1 Shift lever positions
You cannot turn the ignition switch to LOCK
(0*1
and remove the key unless the shift lever is in
( P.
The vehicle may move ve ry slightly even in
(N while
the engine is cold.
Depress the brake pe dal firmly and, when necessary,
apply the parking brake.
Reverse
Used when reversing
Drive
Used for normal driving
Park
Used when parking or starting the
engine
Neutral
Transmission is not locked
Release Button
Drive (S)
Used:
●For better acceleration●To increase engine braking●When going up or down hills
Low
●Used to further increase engine braking●Used when going up or down hills
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 455 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

457
uuWhen Driving uShifting
Continued
Driving
Shifting
Change the shift position in accordance with your driving needs.
■Shift lever positions
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Continuously variable transmission models with paddle shifters
1 Shift lever positions
You cannot turn the ignition switch to LOCK
(0*1
and remove the key unless the shift lever is in
( P.
The vehicle may move ve ry slightly even in
(N while
the engine is cold.
Depress the brake pe dal firmly and, when necessary,
apply the parking brake.
Reverse
Used when reversing
Drive
Used:
●For normal driving●When temporarily driving in the
7-speed manual shift mode
Park
Used when parking or starting the
engine
Neutral
Transmission is not locked
Release Button
Drive (S)
Used:
●For better acceleration●To increase engine braking●When going up or down hills●When driving in the 7-speed
manual shift mode
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 457 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

610
Maintenance
Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1.Unscrew the cover with a small Phillips-
head screwdriver.
2. Open the remote transmitter.
u Wrap the small flat-tip screwdriver with a
cloth to prevent scratching the
transmitter.
3. Remove the button battery with the small
flat-tip screwdriver.
4. Make sure to replace the battery with the
correct polarity.
■Master Keys with Remote Transmitter*
1 Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.ScrewBattery type: CR1620
Battery
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 610 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

611
uuRemote Transmitter Care uReplacing the Button Battery
Maintenance
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the smart entry remote.
u Remove carefully to avoid losing the
buttons.
3. Make sure to replace the battery with the
correct polarity.
■Smart Entry Remote*
Battery type: CR2032
Battery
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 611 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

652
Handling the Unexpected
Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1.Set the parking brake.
2. Remove the key from the ignition switch.
2. Remove the built-in key from the smart
entry remote.
3. Move the removable beverage holder tray
rearward.
2 Front seat beverage holders P. 201
4.Wrap a cloth around the tip of a small flat-
tip screwdriver to remove the cover of the
shift lock release slot. Put the tip of the flat-
tip screwdriver into th e slot and remove it
as shown in the image.
5. Insert the key into the sh ift lock release slot.
6. While pushing the key in, press the shift
lever release button, and place the shift
lever into
(N.
u The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.
■Releasing the Lock
Continuously variable transmission models
Slot
Cover
Models without smart entry system
Models with smart entry system
All models
Release
Button
Shift Lock
Release Slot
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 652 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

664
uuFuses uFuse Locations
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Accessory10 A
2Key Lock(5 A)
3Rear Wiper Motor(10 A)
4Front Sensor Camera*1, *
Transmission*2, *3(5 A)
(10 A)
5Option(10 A)
6SRS Indicator(10 A)
7Meter10 A
8Fuel Pump15 A*4
20 A*5
9AIRCON10 A
10−−
11Engine Control*45A
12Passenger’s Side Door Lock10 A
13Driver’s Side Rear Door Unlock10 A
14Rear Driver’s Side Power
Window(20 A)
15Front Passenger’s Side Power Window20 A
16Door Lock20 A
17Transmission*1, *3
Front Sensor Camera*2, *(10 A)(5 A)
18−−
19Moonroof(20 A)
20−−
21ACG10 A
22Daytime Running Lights(10 A)
23−−
24Front Sensor Camera*(5 A)
25Driver’s Door Lock(10 A)
26Passenger’s Side Door Unlock10 A
27Rear Passenger’s Side
Power Window(20 A)
28Driver’s Power Window20 A
Circuit ProtectedAmps
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
*4:1.5 L engine models
*5:2.0 L engine models
29Front Accessory Power
Socket20 A
30 Smart Entry
*1(10 A)
STS*2(5 A)
31Driver’s Power Seat Reclining*(20 A)
32 Front Seat Heater
*(20 A)
33Driver’s Power Seat Sliding*(20 A)
34 VSA/ABS 10 A
35SRS10 A
36 − −
37Option(10 A)
38 Driver’s Side Rear Door
Lock 10 A
39Driver’s Door Unlock(10 A)
Circuit ProtectedAmps
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 664 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

687
Index
Continuously Variable TransmissionCreeping................................................. 454
Fluid ....................................................... 579
Kickdown ............................................... 454
Operating the Shift Lever .................. 22, 456
Shift Lever Does Not Move ...................... 652
Shifting ................................................... 455
Controls .................................................... 141
Coolant (Engine) ...................................... 577
Adding the Coolant ................................ 578
Overheating ............................................ 653
Creeping (Continuously Variable Transmission) .......................................... 454
Cruise Control .......................................... 469
Indicator ................................................... 92
Cup Holders .............................................. 201
Customer Service Information ................ 683
Customized Features ....................... 129, 340
D
Daytime Running Lights .......................... 177
Dead Battery ............................................ 649
Defaulting All the Settings ...................... 375
Defrosting the Windshield and Windows ................................................. 217
Devices that Emit Radio Waves ............... 675
Dimming Headlights .............................................. 174
Rearview Mirror ...................................... 187
Dipstick (Engine Oil) ................................ 571 Directional Signals (Turn Signal)
............. 174
Display Button .......................................... 248
Display Setup ............................................ 235
Display/Information Button ..................... 120
Door Mirrors ............................................. 188
Doors ......................................................... 143
Auto Door Locking .................................. 157
Auto Door Unlocking ............................... 157
Keys ........................................................ 143
Locking/Unlocking the Doors from the Inside..................................................... 154
Locking/Unlocking the Doors from the Outside.................................................. 145
DOT Tire Quality Grading ........................ 600
Drive Mode Switch ................................... 467
Driver Information Interface ................... 119
Driving ....................................................... 437
Braking .................................................... 528
Continuously Variable Transmission ......... 454
Cruise Control ......................................... 469
Shifting Gear ........................................... 462
Shifting Position ...................................... 455
Starting the Engine .......................... 445, 448
Dust and Pollen Filter ............................... 612
E
Eco Assist System.......................................... 9
ECON Button ............................................. 466
Elapsed Time ............................................. 123 Electric Power Steering (EPS) System
........ 86
Indicator............................................ 86, 659
Electronic Stability Control (ESC) ............. 516
Emergency ................................................ 666
Emergency Engine Stop ........................... 648
Emissions Testing (Readiness Codes) ....... 677
Engine Coolant ................................................... 577
Jump Starting .......................................... 649
Oil ........................................................... 570
Starting ........................................... 445, 448
Switch Buzzer.......................................... 169
Engine Coolant ......................................... 577
Adding the Coolant................................. 578
Overheating ............................................ 653
Temperature Gauge ................................ 117
Engine Oil ................................................. 570
Adding .................................................... 573
Checking................................................. 571
Displaying Oil Life .................................... 562
Low Oil Pressure Indicator ................. 81, 655
Recommended Engine Oil ....................... 570
ENGINE START/STOP Button .................... 170
EPS (Electric Power Steering) System ...... 659
Exhaust Gas Hazard (Carbon Monoxide) .. 74
Exterior Care (Cleaning) ........................... 616
Exterior Mirrors ........................................ 188
F
Features.................................................... 221
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 687 ページ ２０１８年１０月２５日　木曜日　午後４時１２分
