2019 GMC TERRAIN warning

2
Turn Signal Lever/IntelliBeam ButtonF
Driver Information Center
Steering Wheel Adjustment Lever
Audio Next-Previous Favorite Station Controls (behind steering wheel)
Windshield Wipers Lever
Engine Start-Stop ButtonCruise Control/Forward Collision AlertF/Heated Steering WheelF Buttons
Power Mirror/Window Controls
Power Liftgate ControlF
INSTRUMENT PANEL
Audio Volume Controls (behind steering wheel)
Driver Information Center Controls/Voice Recognition Buttons
Memory Seat ButtonsF
Exterior-Interior Lamp Controls/Electric Parking Brake Switch
Check Engine
Engine Oil Pressure
Lane Keep Assist Warning
Airbag Readiness
Cruise Control Set
Service Electric Parking Brake
Traction Control/StabiliTrak Active
Charging System
Security
Seat Belt Reminder
Brake System Warning
Electric Parking Brake
IntelliBeam Lighting
Symbols

3
Refer to your Owner’s Manual to learn about the information being relayed by the lights, gauges and indicators of the instrument cluster.
See In Brief in your Owner’s Manual .
Infotainment System Touch Screen
Driver Mode Control/Hill Descent Button/Lane Keep Assist ButtonF
USB ports/Auxiliary Input/Accessory Power Outlet
Infotainment System ControlsHazard Warning Flashers Button
Park Assist/Automatic Parking Assist ButtonsF
Climate Controls
Passenger’s HeatedF/Ventilated Seat ButtonsF
Electronic Precision Shift Transmission Controls
Driver’s HeatedF/Ventilated Seat ButtonsF
Lights On Reminder
Antilock Brake System Warning
Low Tire Pressure
Power Steering Warning
Vehicle Ahead
StabiliTrak Off
2 Passenger Seat Belt Reminder
F Optional equipment

11

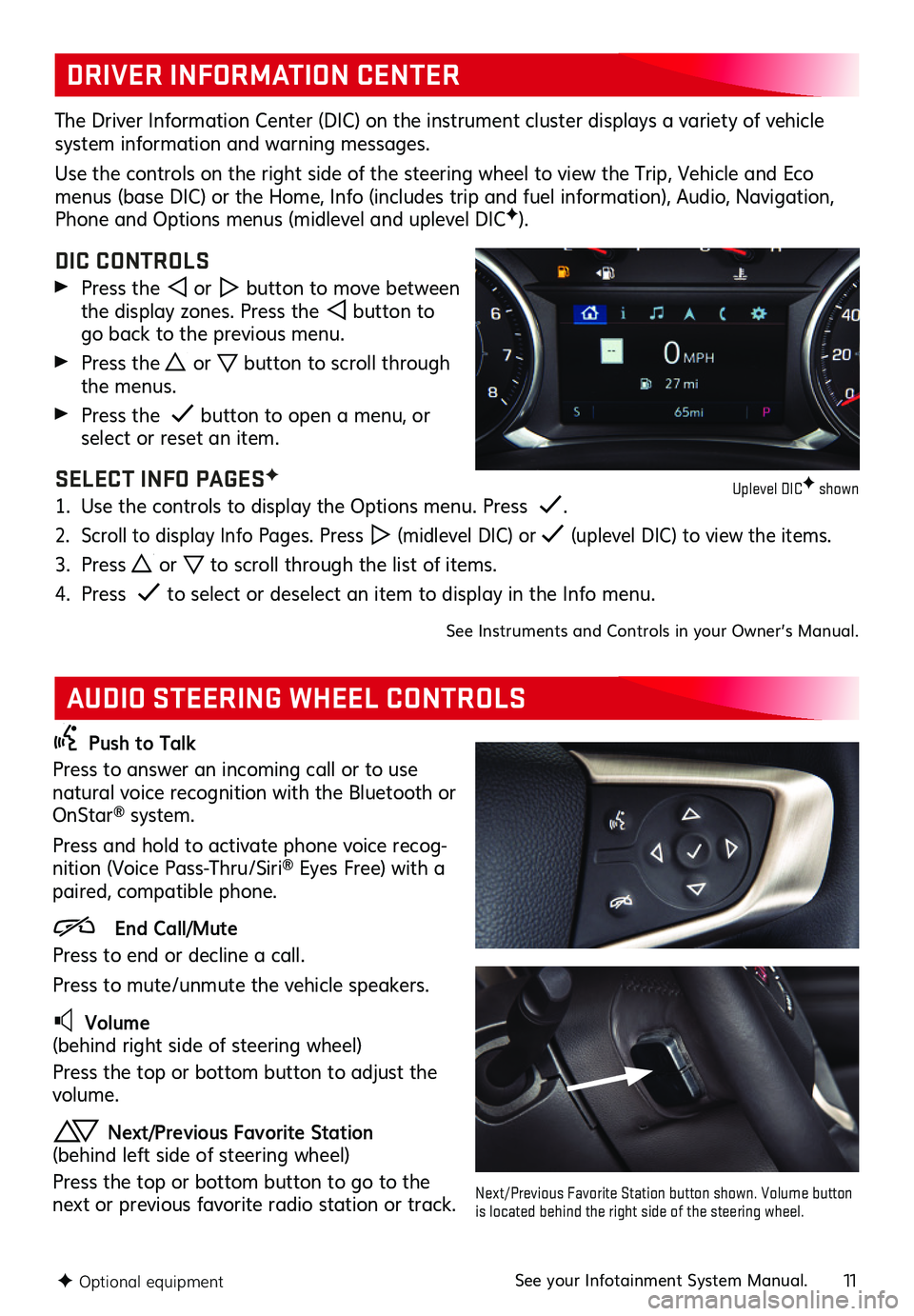

DRIVER INFORMATION CENTER
AUDIO STEERING WHEEL CONTROLS
The Driver Information Center (DIC) on the instrument cluster displays a variety of vehicle system information and warning messages .
Use the controls on the right side of the steering wheel to view the Trip, Vehicle and Eco menus (base DIC) or the Home, Info (includes trip and fuel information), Audio, Navigation, Phone and Options menus (midlevel and uplevel DICF) .
DIC CONTROLS
Press the or button to move between the display zones . Press the button to go back to the previous menu .
Press the or button to scroll through the menus .
Press the button to open a menu, or select or reset an item .
SELECT INFO PAGESF
1 . Use the controls to display the Options menu . Press .
2 . Scroll to display Info Pages . Press (midlevel DIC) or (uplevel DIC) to view the items .
3 . Press or to scroll through the list of items .
4 . Press to select or deselect an item to display in the Info menu .
See Instruments and Controls in your Owner’s Manual .
Push to Talk
Press to answer an incoming call or to use natural voice recognition with the Bluetooth or OnStar® system .
Press and hold to activate phone voice recog-nition (Voice Pass-Thru/Siri® Eyes Free) with a paired, compatible phone .
End Call/Mute
Press to end or decline a call .
Press to mute/unmute the vehicle speakers .
Volume (behind right side of steering wheel)
Press the top or bottom button to adjust the volume .
Next/Previous Favorite Station (behind left side of steering wheel)
Press the top or bottom button to go to the next or previous favorite radio station or track .
F Optional equipmentSee your Infotainment System Manual .
Next/Previous Favorite Station button shown. Volume button is located behind the right side of the steering wheel.
Uplevel DICF shown

16
Safety or driver assistance features are no substitute for the driver’s responsibility to operate the vehicle in a safe manner. The driver should remain attentive to traffic, surroundings and road conditions at all times. Read your Owner’s Manual for important feature limitations and information.
SAFET Y ALERT SEATF – The driver’s seat pulses — left side, right side or simultaneously — to alert the driver of the direction of potential hazards .
Audible alerts or seat pulsing alerts may be selected . To change the alert settings, go to Settings > Vehicle > Collision/Detection Systems > Alert Type .
L ANE CHANGE ALERT WITH SIDE BLIND ZONE ALERTF – While driving, the system displays a warning symbol on the left or right side mirror when a vehicle is detected in that side blind zone area or rapidly approaching that area. The warning symbol flashes if a turn signal is activated when a vehicle has been detected on the same side .
To turn on or off, go to Settings > Vehicle > Collision/Detection Systems > Lane Change Alert .
FORWARD COLLISION ALERTF – The Vehicle Ahead Indicator is green when a vehicle is detected and is amber when following a vehicle ahead much too closely . When approaching a vehicle directly ahead too rapidly, a red alert flashes on the windshield and the Safety Alert Seat pulses or rapid beeps sound (if selected) .
Press the Collision Alert button on the steering wheel to set the alert timing to Far, Medium, or Near . This is also the Adaptive Cruise ControlF following gap setting .
FOLLOWING DISTANCE INDICATORF – The following distance to the vehicle ahead is indicated in seconds under the Info menu on the Driver Information Center . If no vehicle is detected ahead, dashes are displayed .
FORWARD AUTOMATIC BRAKINGF – In potential front-end imminent collision situations with detected vehicles, the brakes may be applied, if you haven’t already done so, to help reduce damage or avoid collisions at very low speeds with vehicles directly ahead .
To set Forward Automatic Braking and Forward Collision Alert to Alert and Brake, Alert, or Off, go to Settings > Vehicle > Collision/Detection Systems > Forward Collision System.
L ANE KEEP ASSIST WITH L ANE DEPARTURE WARNINGF – The system may help you avoid collisions due to unintentional lane departures . The Lane Keep Assist Indicator is green if the system is available to assist . If the vehicle approaches a detected lane marking without using a turn signal in that direction, the system may assist by gently turning the steering wheel and displaying an amber .
If active driver steering is not detected, the amber may flash and the Safety Alert Seat may pulse or beeps may sound (if selected) on the side of the departure direction as the lane marking is crossed . The Lane Keep Assist system does not continuously steer the vehicle; the driver needs to steer and be in complete control of the vehicle .
To turn on or off, press the Lane Keep Assist button on the center console .
FRONT PEDESTRIAN BRAKINGF – During daytime driving, the system detects pedestrians directly ahead up to a distance of approximately 131 ft . and displays an amber indicator . When approaching a detected pedestrian too quickly, a red alert flashes on the windshield and the Safety Alert Seat pulses or rapid beeps sound (if selected) . The system may prepare the brakes or automatically brake the vehicle .
To set to Alert and Brake, Alert, or Off, go to Settings > Vehicle > Collision/Detection Systems > Front Pedestrian Detection .
F Optional equipment
DRIVER ASSISTANCE SYSTEMS

19
OPEN/CLOSE THE POWER LIFTGATE
Press the Power Liftgate button twice on the Remote Keyless Entry (RKE) transmitter .
Press the Liftgate knob (A) on the driver’s door .
Press the touchpad (B) on the liftgate
handle to open the liftgate .
Press the button (C) next to the pull handle to close the liftgate .
PROGRAMMING THE LIFTGATE HEIGHT1 . Turn the Liftgate knob to the 3/4 mode position .
2 . Open the liftgate . Adjust it manually to the desired height .
3 . To save the setting, press and hold the
button (C) next to the pull handle until a beep sounds .
4 . In the 3/4 mode position, the power liftgate will open to the programmed height .
HANDS-FREE OPERATIONF
To open or close the liftgate hands-free, kick your foot straight under the rear bumper, just left of the license plate . The RKE
transmitter must be within 3 feet of the liftgate .
POWER PROGRAMMABLE LIFTGATEF
TIRE PRESSURE MONITOR
HILL DESCENT CONTROL
Hill Descent Control sets and maintains vehicle speed from 2–14 mph while descending a very steep incline in a forward or reverse gear .
Press the Hill Descent Control button on the center console . Vehicle speed must be below 31 mph to turn on the system .
Increase or decrease speed by applying the accelerator or brake pedal or use the Cruise Control +/– buttons on the steering wheel . The adjusted speed becomes the new set speed . The symbol flashes on the instrument cluster when the system is actively apply-ing the brakes to maintain vehicle speed .
See Driving and Operating in your Owner’s Manual .
F Optional equipment
The Low Tire Pressure warning light on the instrument cluster illuminates when one or more of the vehicle’s tires is significantly underinflated. Fill the tires to the proper tire pres-sures listed on the Tire and Loading Information label located below the driver’s door latch . Current tire pressures can be viewed on the Driver Information Center .
See Vehicle Care in your Owner’s Manual .
See Keys, Doors and Windows in your Owner’s Manual .
A
C
B
